Used OKK VM-5 II APC CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

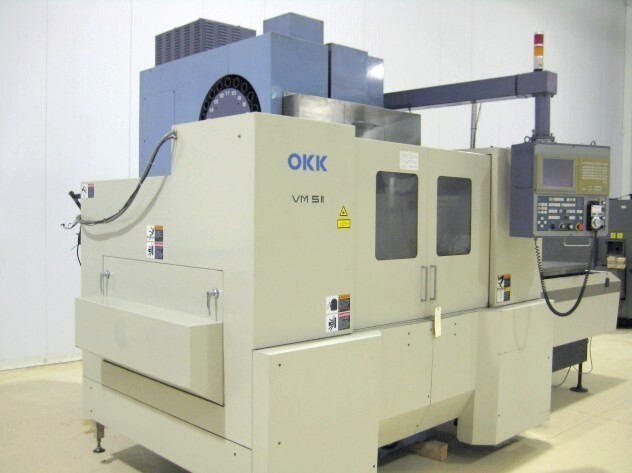

This used OKK VM-5 II APC CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC machine that cuts metal parts with a rotating tool on a vertical spindle.

It has travels of 40.15 × 20.08 × 20.08 inches (X, Y, Z), a CAT 40 spindle running at 25–8,000 rpm from a 25 HP motor, and a 20-station tool changer. A pallet changer is fitted, and the machine was manufactured in 2001.

Key Features

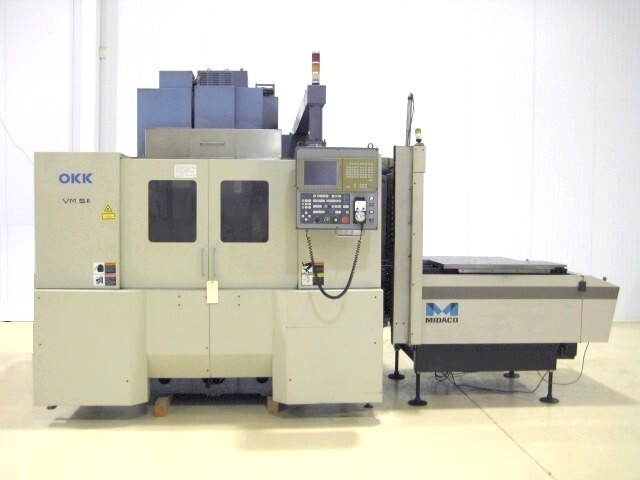

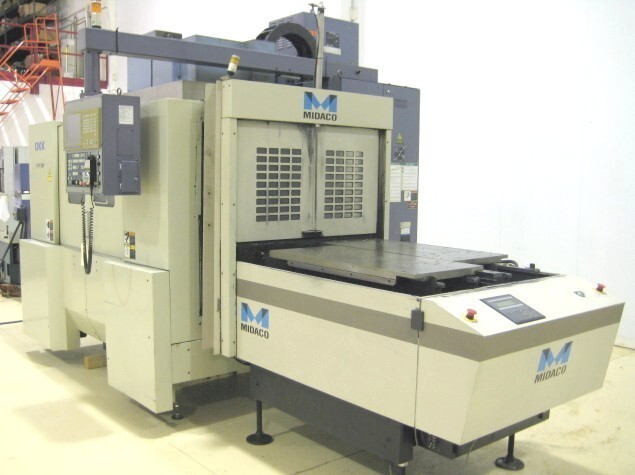

• Midaco ES 4020SD pallet changer
• Mitsubishi M64 CNC control
• Coolant through spindle at 1000 PSI
• Rigid (synchronous) tapping
• Marposs E32 laser probing system
• Internal chip augers with turbo chip conveyor
• RS-232C port for DNC operation

Technical Specifications

• Model: OKK VM-5 II APC
• Year of manufacture: 2001
• Pallet size: 40″ x 19″

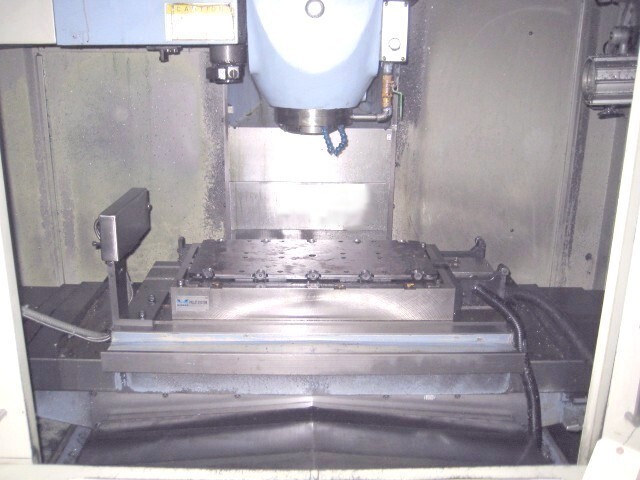

• Table size: 41″ x 22″
• Maximum table load: 1,760 lbs
• X-axis travel: 40.15″
• Y-axis travel: 20.08″
• Z-axis travel: 20.08″
• Spindle nose to table top: 5.9–25.9″
• Rapid traverse X, Y: 1,181 IPM
• Rapid traverse Z: 787 IPM
• Cutting feed rate: 0.1–393 IPM
• Spindle speed (2-speed geared): 25–8,000 rpm
• Spindle taper: CAT 40
• Spindle motor: 25 HP
• Coolant through spindle: 1000 PSI

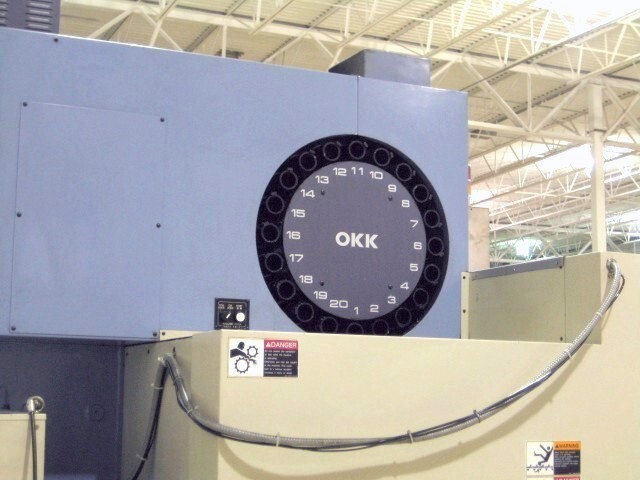

• Tool changer capacity: 20 stations
• Maximum tool weight: 20 lbs

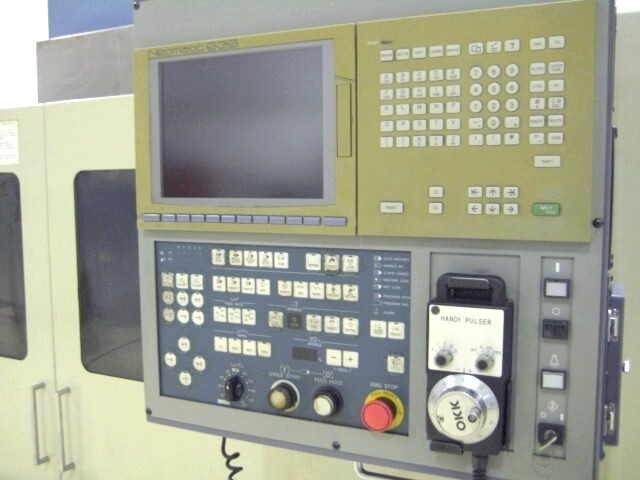

• Control: Mitsubishi M64
• Machine weight: 16,501 lbs
• Approximate dimensions: 115″ x 100″ x 112″

Applications

• Machining of metal components in batch production
• Mould and die parts
• Drilling, milling and tapping of prismatic parts
• General engineering and toolroom work

Commercial Details

• Make: OKK
• Model: VM-5 II APC
• Year: 2001
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does the OKK VM-5 II use? It has a Mitsubishi M64 CNC control with an RS-232C port for DNC operation.
• Does it have a pallet changer? Yes, it is fitted with a Midaco ES 4020SD pallet changer, with a pallet size of 40″ x 19″.
• What is the tool changer capacity? The tool changer holds 20 tools, up to 20 lbs each.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and confirm the condition of the spindle, pallet changer and probing system. Also confirm the control and electrics, any tooling included, and loading and shipping arrangements.
