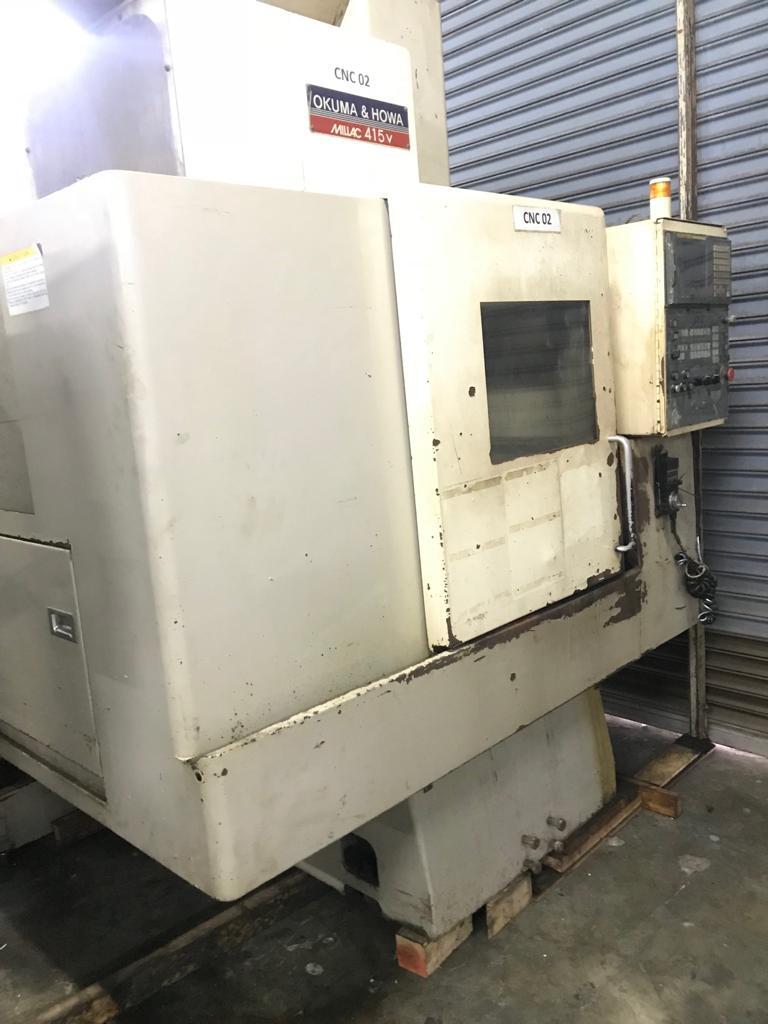

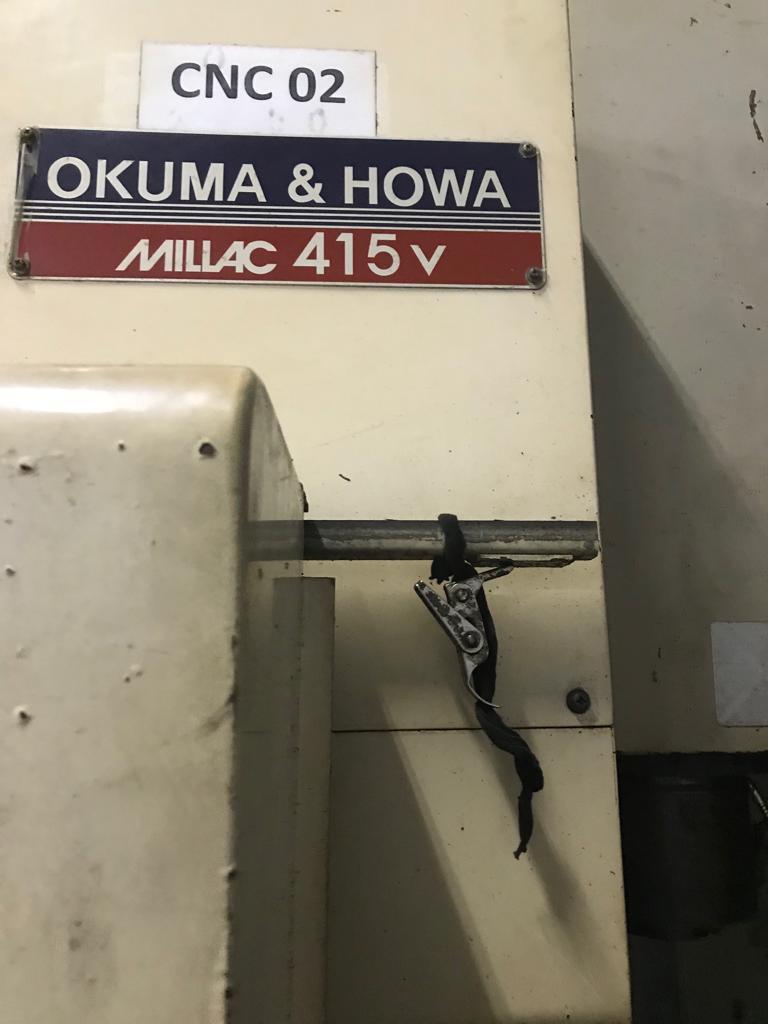

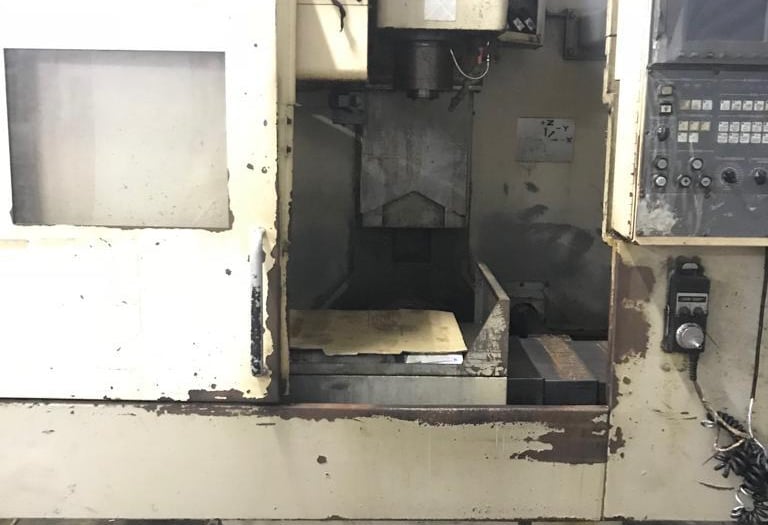

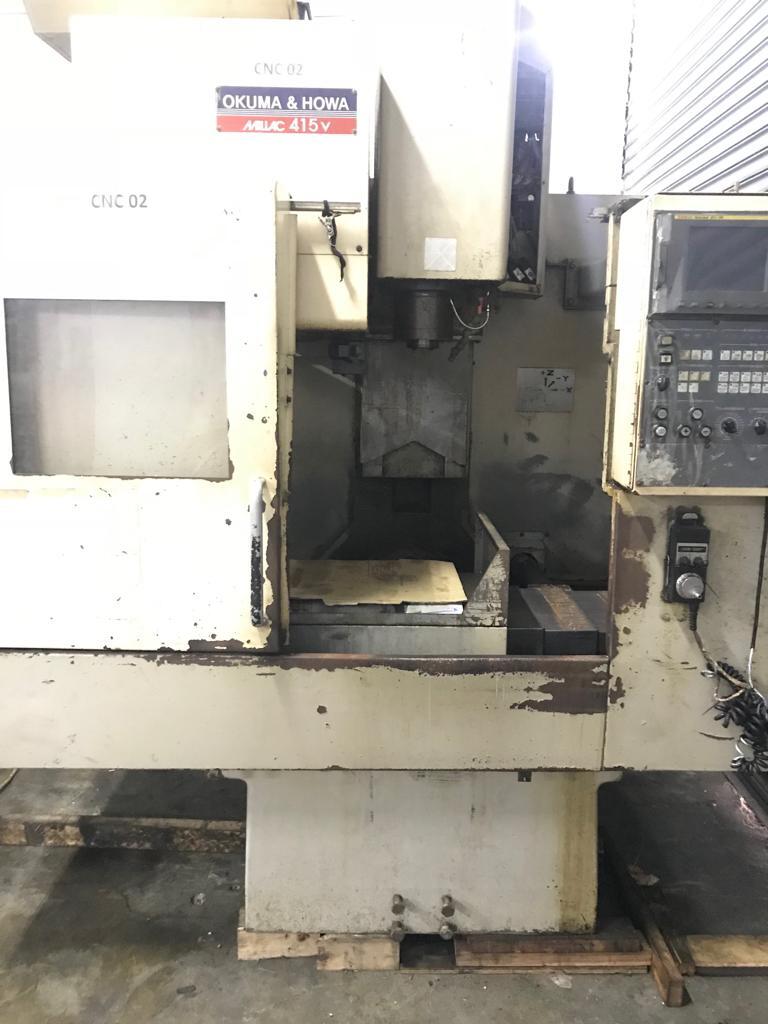

Used Okuma & Howa Millac 415V Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

This used Okuma & Howa Millac 415V machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC machine that cuts metal parts with a rotating tool, and it was manufactured in 2002.

It has travels of 560 mm (X), 490 mm (Y) and 490 mm (Z), a 7.5 kW spindle running at 120–8,000 rpm, and a 16-tool automatic tool changer. Control is by Fanuc 21iMB.

Key Features

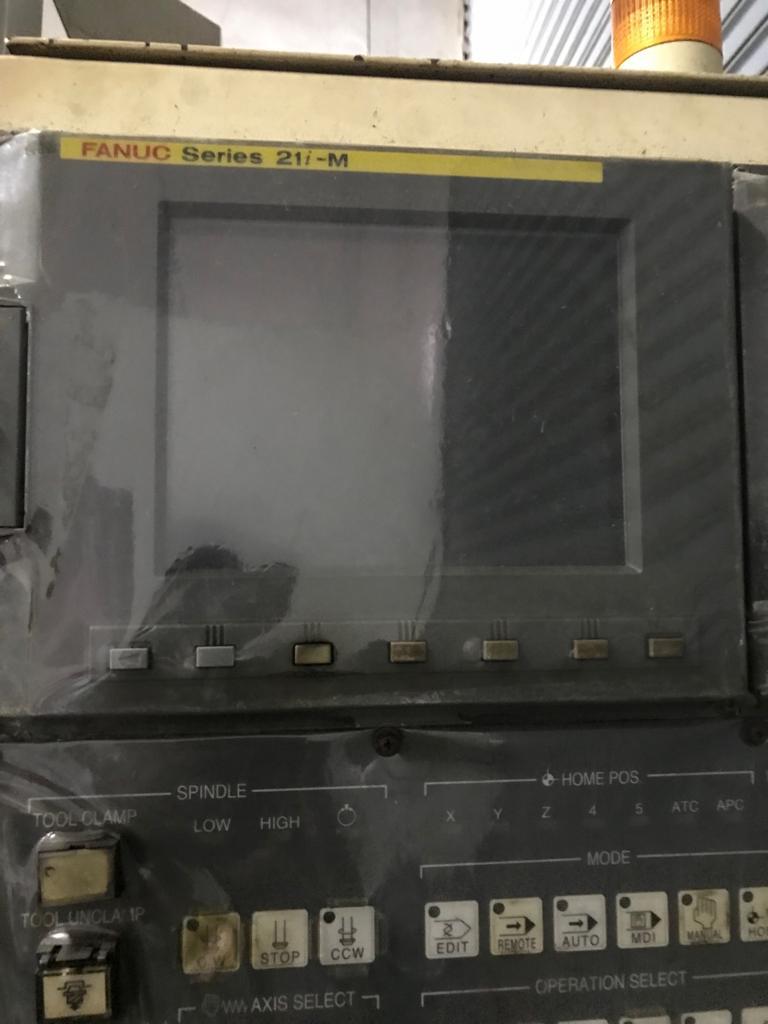

• Fanuc 21iMB CNC controller
• 16-position automatic tool changer with electronic random tool selection

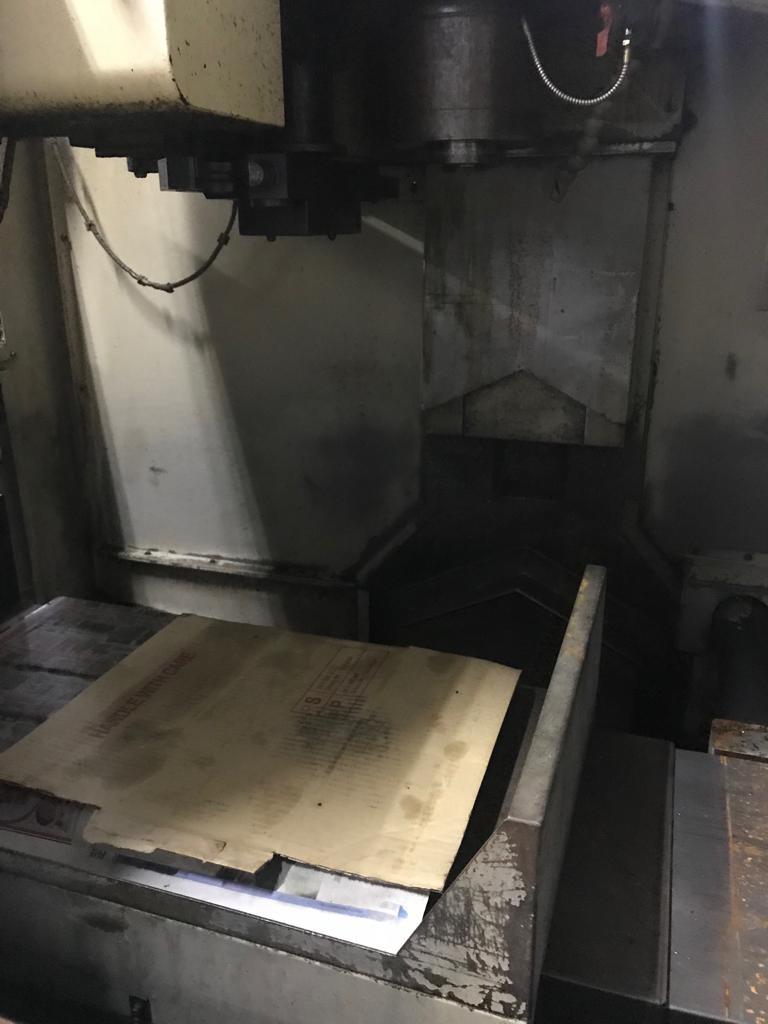

• T-slotted work table
• BT40 (MAS403) tool holders with MAS407 P40T-1 pull studs

Technical Specifications

• Model: Millac 415V
• Year: 2002
• Control: Fanuc 21iMB CNC
• X-axis travel: 560 mm
• Y-axis travel: 490 mm
• Z-axis travel: 490 mm
• Table size: 700 x 400 mm, T-slotted
• Max table load: 350 kg
• Spindle motor: 7.5 kW
• Spindle speed: 120–8,000 rpm
• Spindle taper: NST 40
• Tool changer: 16 tools, automatic
• Tool shank: MAS403 BT40
• Pull stud: MAS407 P40T-1
• Tool selection: Electronic random access
• Max tool diameter: 90 mm with adjacent tool; 115 mm without adjacent tool
• Max tool length: 250 mm
• Max tool weight: 5 kg
• Tool change time: 1.8 seconds, tool to tool
• Power supply: 200 V, three phase, 18 kVA, 52 A

Applications

• Milling and drilling of metal components
• Machining of moulds, dies and fixtures
• Batch production of small to medium-sized parts
• Tool room and general engineering work

Commercial Details

• Make: Okuma & Howa
• Model: Millac 415V
• Year: 2002
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? The X, Y and Z travels are 560 mm, 490 mm and 490 mm.
• What control does it have? It is fitted with a Fanuc 21iMB CNC controller.
• What electrical supply does it need? It needs 200 V three phase, 18 kVA, 52 A.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tool holders, accessories and manuals are included, the condition of the control and electrics (including the 200 V supply requirement), and loading and shipping arrangements.
