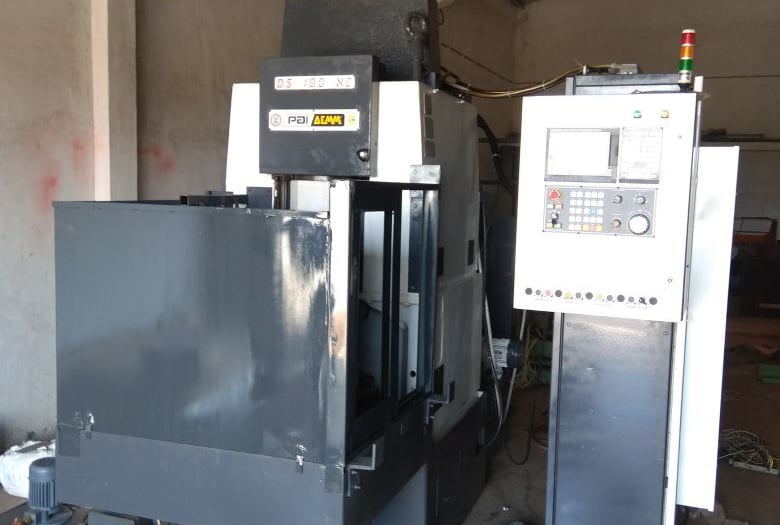

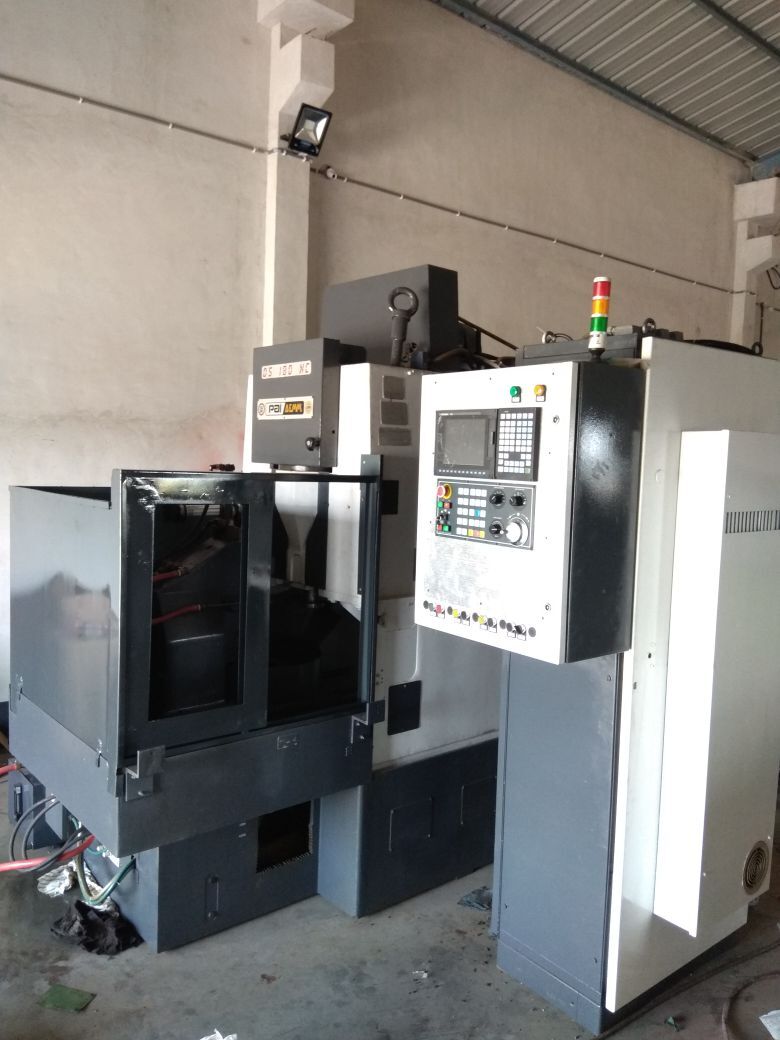

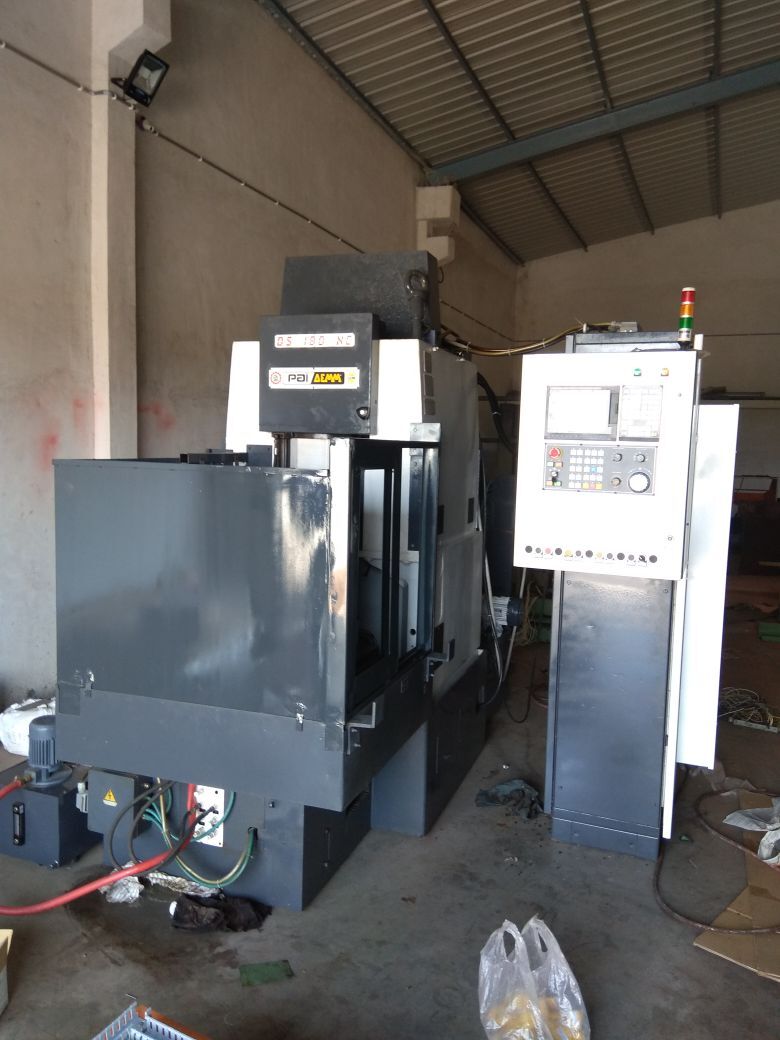

Used Pai Demm DS 180 CNC Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Pai Demm DS 180 CNC gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth using a reciprocating cutter.

It handles gears up to 180 mm in diameter and up to module 5 mm, and runs at up to 2,000 strokes per minute. Stroke length is approximately 50 mm, with 160 mm of radial travel and 30 mm of axial travel.

Key Features

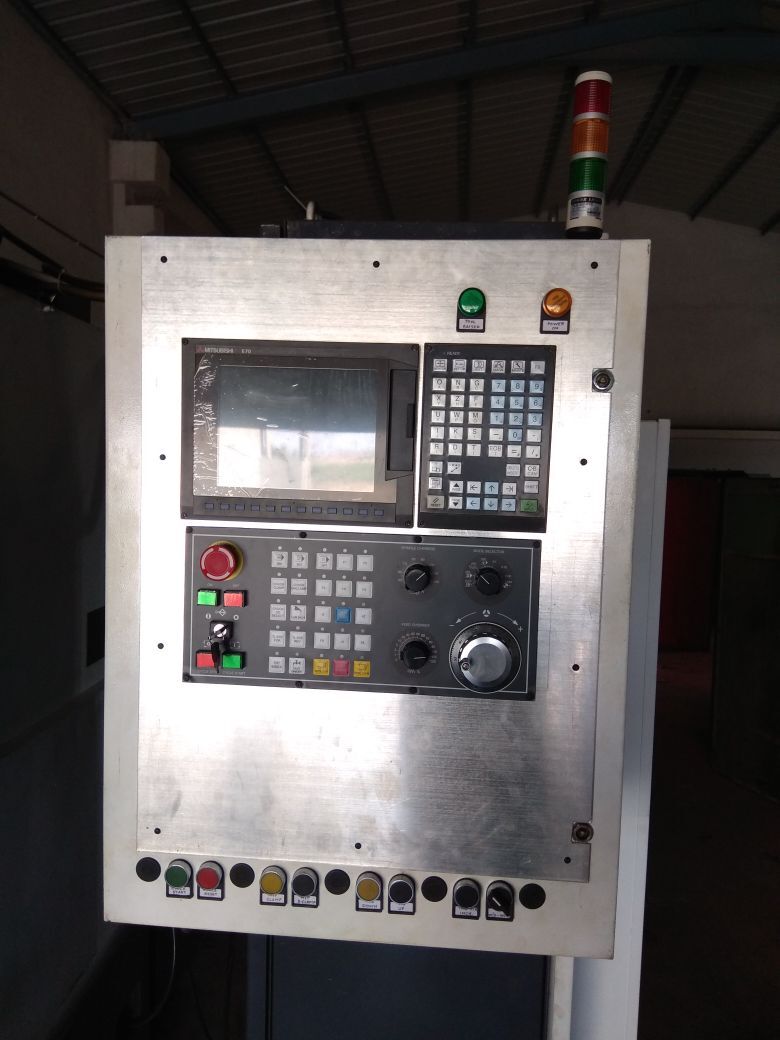

• CNC controlled gear shaping
• Hydrostatic guide for the spindle

Technical Specifications

• Model: DS 180 CNC
• Max. diameter to be cut: 180 mm
• Max. module: 5 mm
• Max. number of strokes: 2,000/min
• Max. stroke length: 50 mm approx.
• Axial travel: 30 mm
• Max. radial travel: 160 mm
• Machine constant: 1/2

Applications

• Cutting external spur gears
• Cutting helical gears
• Small to medium gears for gearboxes and transmissions
• Gear production in engineering workshops

Commercial Details

• Make: Pai Demm
• Model: DS 180 CNC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It cuts gears up to 180 mm in diameter and up to module 5 mm.
• How fast does it run? It runs at up to 2,000 strokes per minute, with a stroke length of approximately 50 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, cutter spindles and accessories are included, the condition of the CNC control and electrics, and the loading and shipping arrangements.
