Used PAMA AL 127 Horizontal Borer | A.K. Machine Traders, Navi Mumbai, India

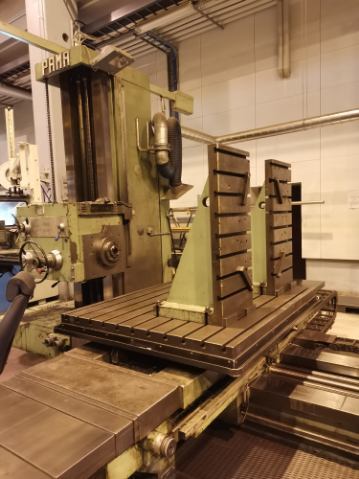

This used PAMA AL 127 horizontal borer is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal borer machines large workpieces with a horizontally mounted rotating spindle.

It has a 127 mm spindle with an ISO 50 taper and a speed range of 8–1000 rpm. Travels are 2,100 mm in X, 1,900 mm in Z and 1,800 mm in Y, and it takes workpieces up to 6,000 kg.

Technical Specifications

• Model: PAMA AL 127
• Machine type: Horizontal borer
• Spindle diameter: 127 mm
• Spindle taper: ISO 50
• Spindle speed: 8–1000 rpm
• X travel (cross): 2,100 mm
• Z travel (longitudinal): 1,900 mm
• Y travel (vertical): 1,800 mm
• Maximum workpiece weight: 6,000 kg
• Machine weight: 23,400 kg

Applications

• Boring and machining large housings and casings
• Machining heavy fabrications and frames
• Large machine-tool and engineering components
• Heavy workpieces up to 6,000 kg

Commercial Details

• Make: PAMA
• Model: AL 127
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpiece can it take? It takes workpieces up to 6,000 kg, with travels of 2,100 mm in X, 1,900 mm in Z and 1,800 mm in Y.
• What is the spindle size and speed? The spindle is 127 mm in diameter with an ISO 50 taper and runs at 8–1000 rpm.
• How heavy is the machine? The machine weighs 23,400 kg, which is relevant for transport and foundations.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which accessories, tooling and attachments are included, the control and electrical details, and loading and shipping arrangements for a 23,400 kg machine.
