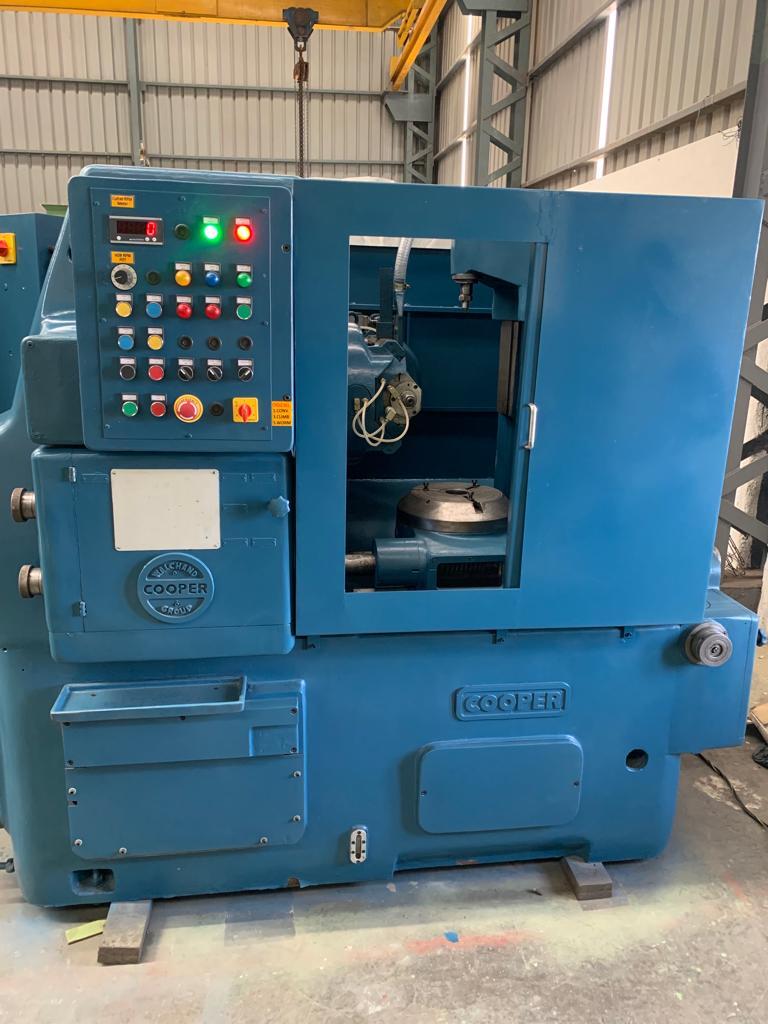

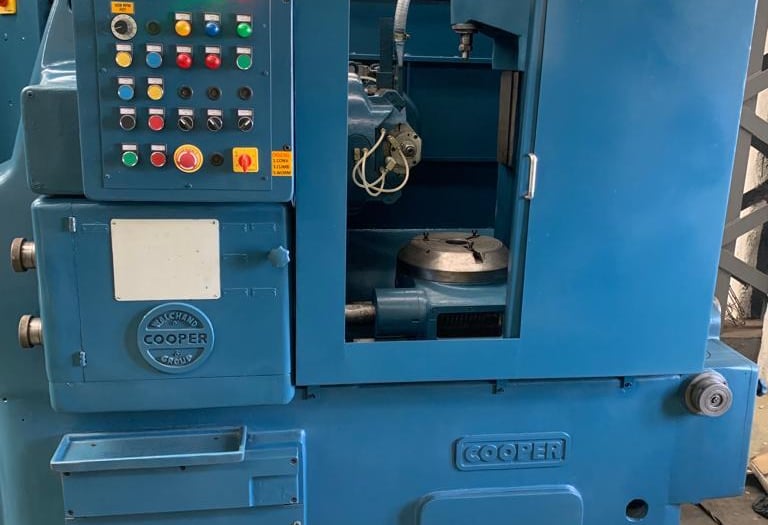

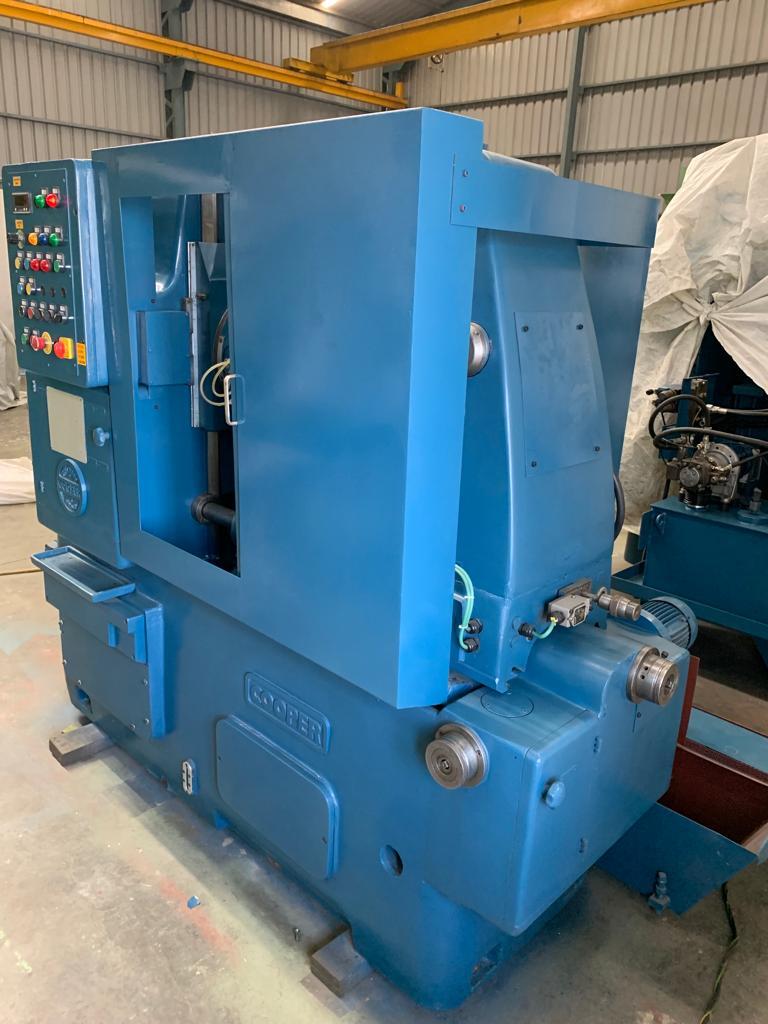

Used Pfauter Cooper P251 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

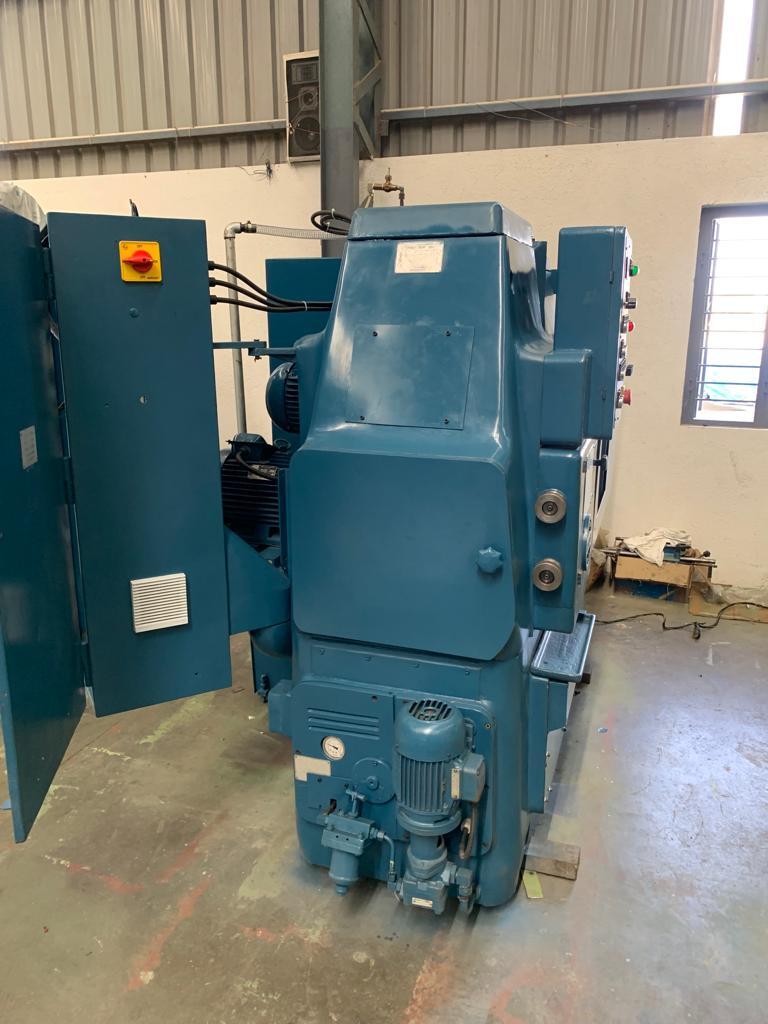

This used Pfauter Cooper P251 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear blanks with a rotating hob cutter.

It takes wheels up to 250 mm in diameter and 242 mm wide, with a maximum module of 6 mm. The machine weighs 3,600 kg and runs on 380 V, 50 Hz.

Technical Specifications

• Model: Pfauter Cooper P251
• Max wheel diameter: 250 mm
• Max wheel width: 242 mm
• Max module: 6 mm
• Min number of teeth: 2
• Milling cutter diameter x width: 130 x 155 mm
• Milling spindle adjustment: 115 mm
• Milling slide swivelling: 240 mm
• Table diameter: 250 mm
• Table hole: 63 mm
• Distance table to counter stay: 565 mm
• Distance table to spindle centre: 380 mm
• Centre distance, workpiece to tool (min–max): 10–210 mm
• Main drive: 6.6 kW
• Main motor: 13.6 kW
• Electrics: 380 V, 50 Hz
• Dimensions: 2,800 x 1,900 x 2,500 mm
• Weight: 3,600 kg

Applications

• Spur and helical gears for gearboxes
• Small gears and pinions for general engineering
• Gear blanks up to 250 mm in diameter
• Toothed wheels for machinery and drive systems

Commercial Details

• Make: Pfauter Cooper
• Model: P251
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It handles wheels up to 250 mm in diameter and 242 mm wide, with a maximum module of 6 mm.
• What cutter size does it take? The milling cutter is 130 mm in diameter and 155 mm wide.
• What power and electrics does it need? It has a 6.6 kW main drive and a 13.6 kW main motor, and runs on 380 V at 50 Hz.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, change gears and accessories are included, the condition of the electrics, and loading and shipping arrangements for its 3,600 kg weight.
