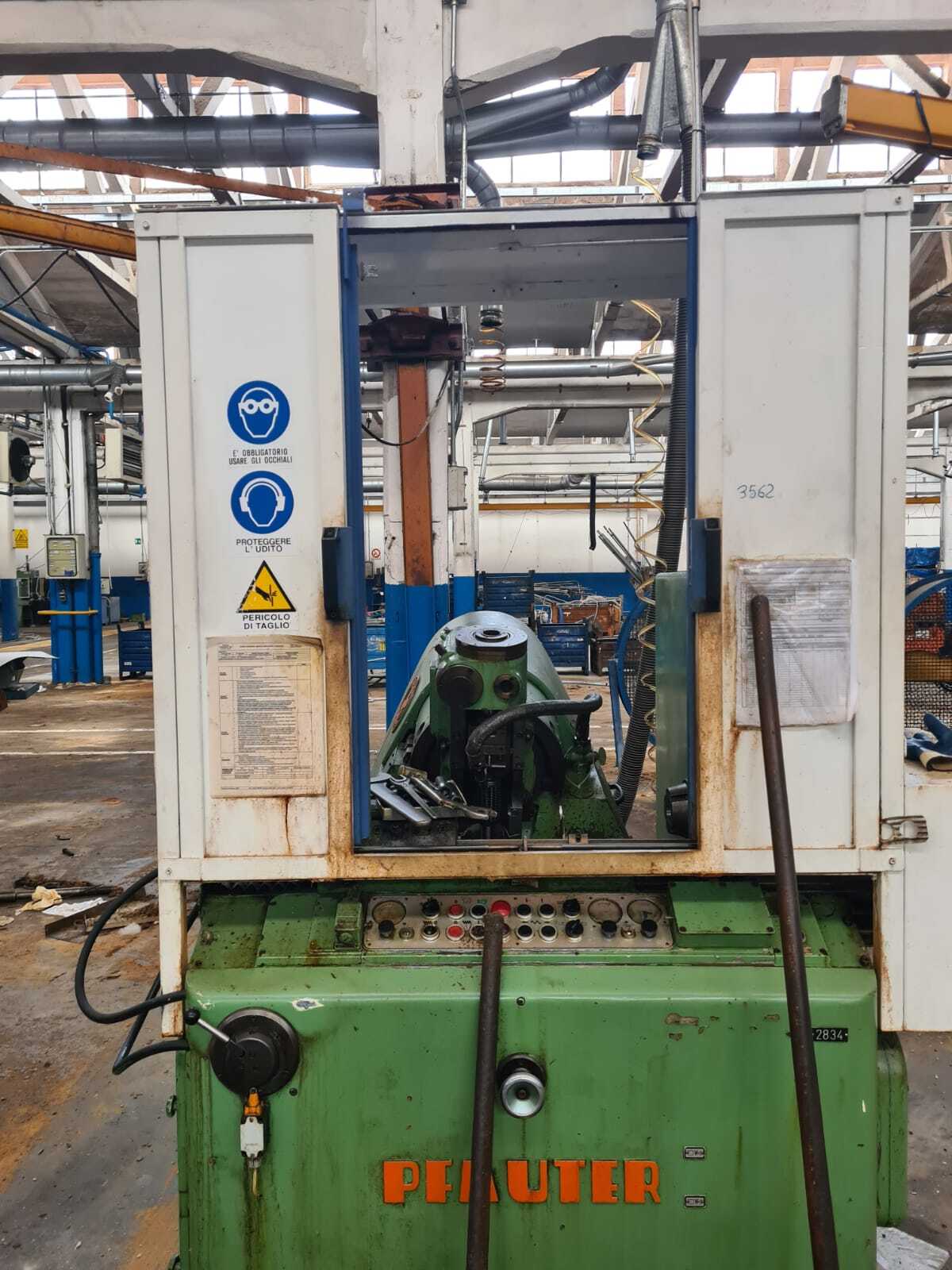

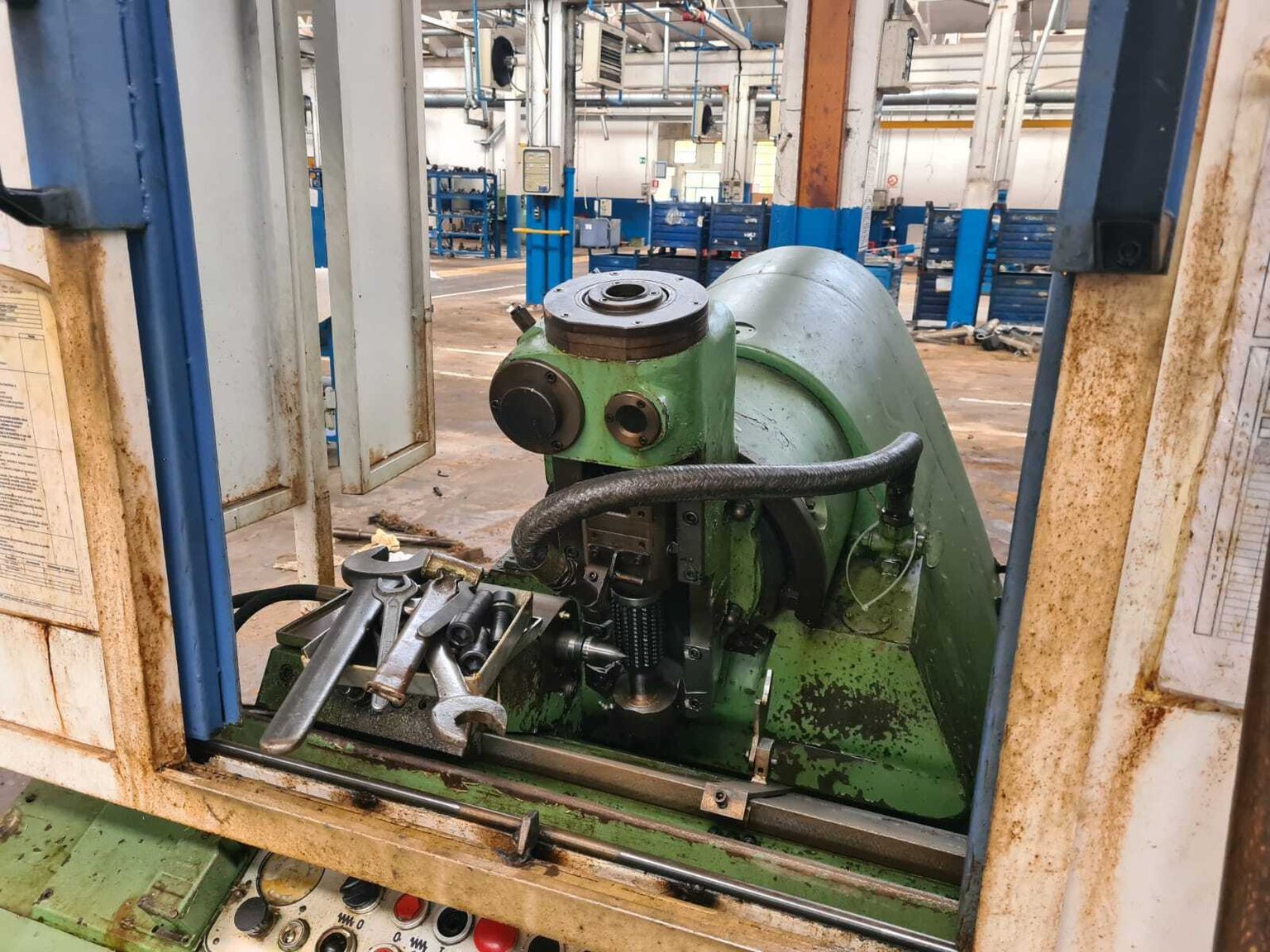

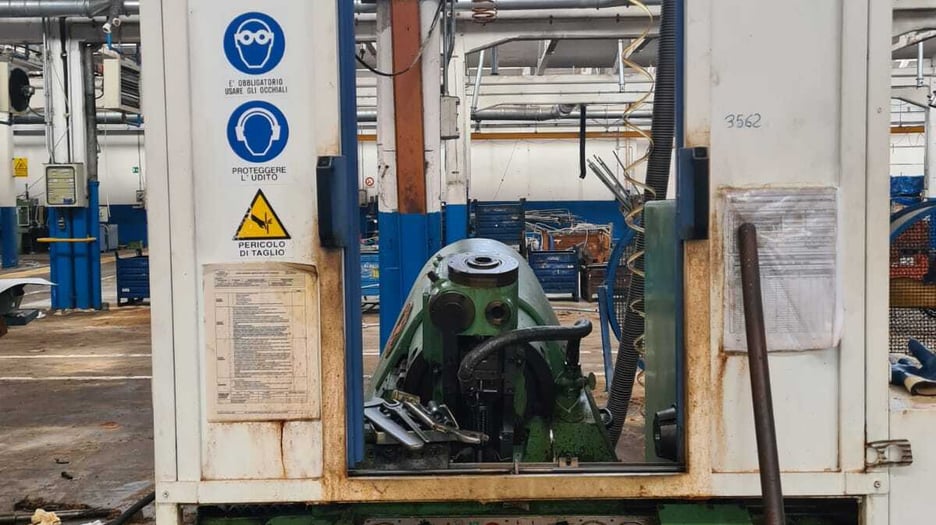

Used Pfauter P 160 H Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Pfauter P 160 H gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobber cuts teeth into gear blanks using a rotating hob.

It takes wheels up to 160 mm in diameter and gear widths up to 710 mm, and cuts modules from 0.5 to 4.5. The milling spindle speed is infinitely variable from 70 to 400 rpm.

Key Features

• Infinitely variable milling spindle speed

Technical Specifications

• Model: P 160 H
• Max. wheel diameter: 160 mm
• Gear width: 710 mm
• Module range: 0.5–4.5
• Milling spindle speed: 70–400 rpm, infinitely variable
• Centre distance: 800 mm
• Total power requirement: 11 kW
• Machine weight: approx. 4.7 t
• Machine dimensions: approx. 3.6 x 3.0 x 2.0 m

Applications

• Cutting spur and helical gears for general engineering
• Producing small gears and gear shafts for gearboxes
• Machining gear wheels in small to medium batches

Commercial Details

• Make: Pfauter
• Model: P 160 H
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It handles wheels up to 160 mm in diameter, gear widths up to 710 mm and modules from 0.5 to 4.5.
• What is the spindle speed range? The milling spindle runs at 70–400 rpm, infinitely variable.
• What power does it need? Total power requirement is 11 kW.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and confirm which hobs, tooling, change gears and accessories are included. Also check the control and electrics, and arrange loading and shipping for a machine of about 4.7 t.
