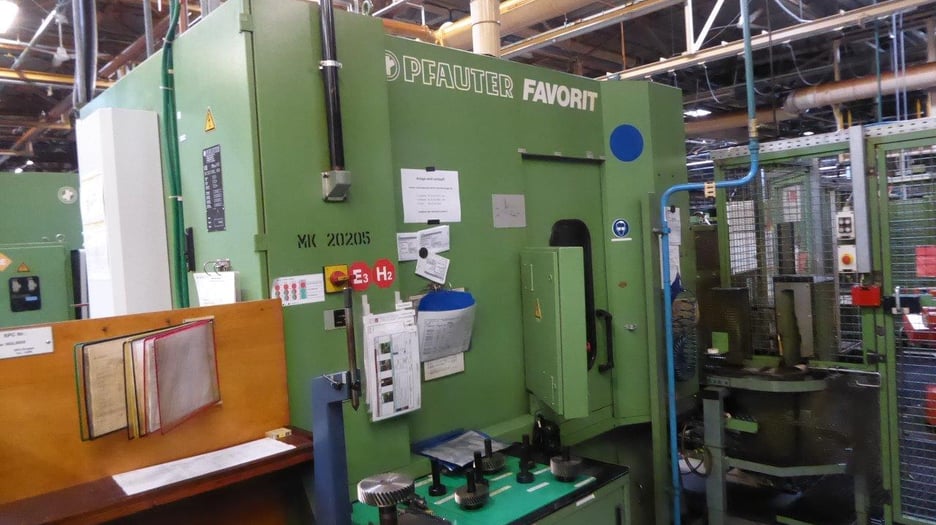

Used Pfauter P 200 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Pfauter P 200 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear wheels.

It has six-axis CNC control and handles wheels up to 200 mm in diameter and 250 mm gear width, in modules from 0.5 to 3.

Key Features

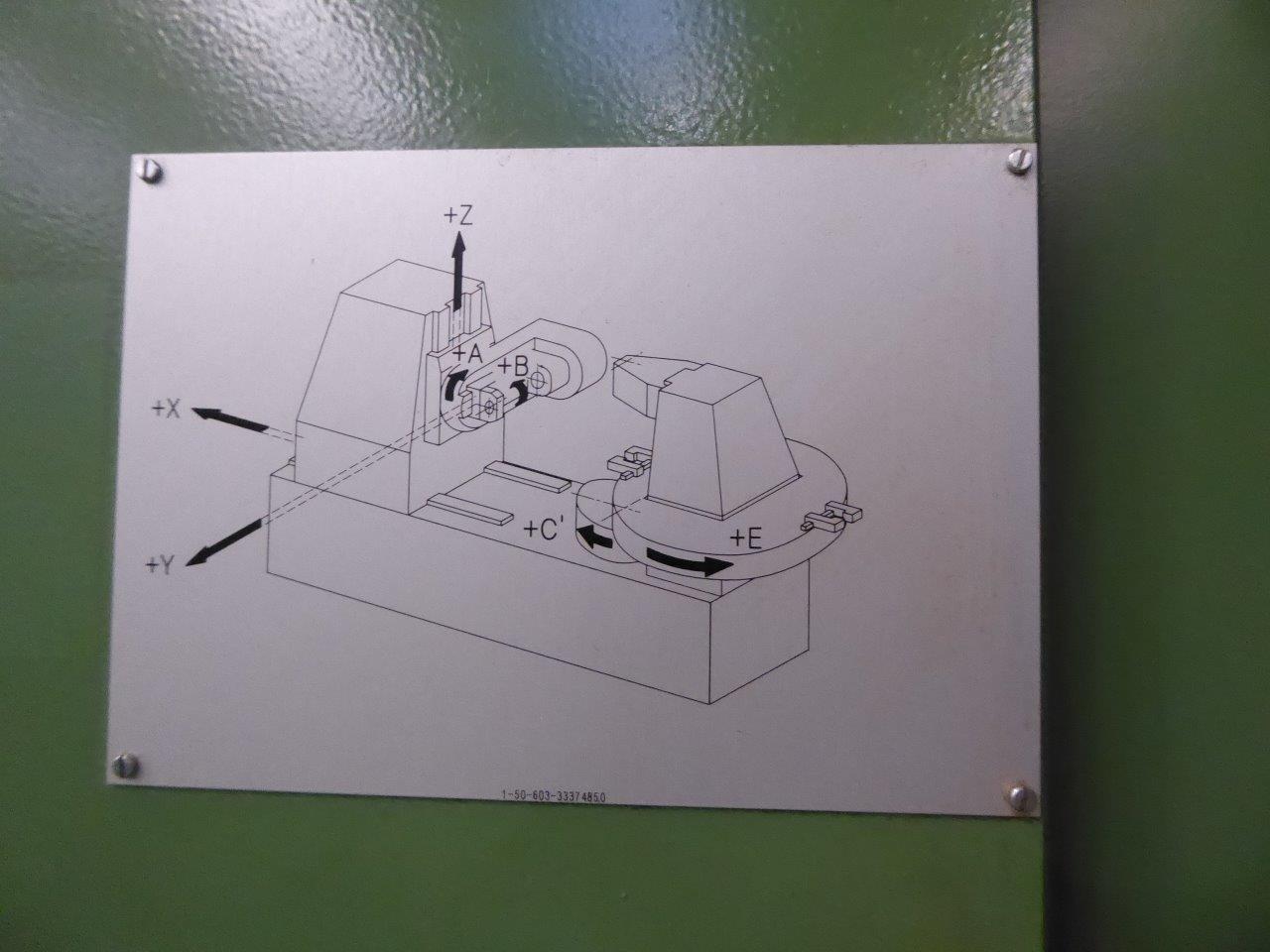

• Six-axis CNC control

Technical Specifications

• Model: Pfauter P 200
• Control: Six-axis CNC
• Max. wheel diameter: 200 mm
• Gear width: 250 mm
• Module range: 0.5–3
• Total power requirement: 45 kW
• Machine dimensions: approx. 4.4 x 2.4 x 2.7 m
• Machine weight: approx. 8.5 t

Applications

• Small spur and helical gears
• Gears for gearboxes and transmissions
• Toothed wheels for machinery and automotive parts

Commercial Details

• Make: Pfauter
• Model: P 200
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It takes wheels up to 200 mm in diameter with a gear width of 250 mm.
• What module range does it cover? It cuts modules from 0.5 to 3.
• What power and space does it need? Total power requirement is 45 kW, and the machine measures approx. 4.4 x 2.4 x 2.7 m and weighs approx. 8.5 t.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, hobs and accessories are included, the condition of the CNC control and electrics, and loading and shipping arrangements.
