Used Pfauter P 400 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

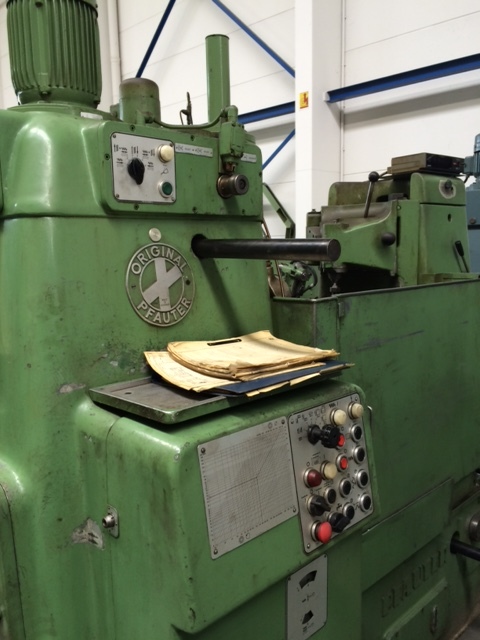

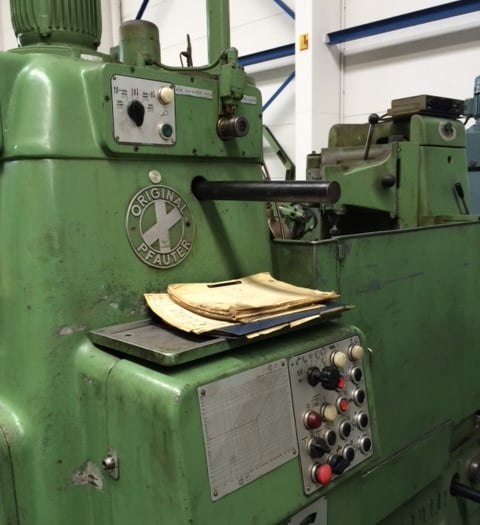

This used Pfauter P 400 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobber cuts gear teeth into round workpieces using a rotating hob cutter.

The P 400 was built by Pfauter in Germany. It takes workpieces up to 400 mm in diameter and cuts up to module 8, on a 400 mm diameter work table. Cutter speed ranges from 80 to 500 rpm.

Key Features

• Mill-holder spindle takes 32 mm and 40 mm arbors as normal accessories
• Special accessories allow 22 mm, 27 mm and 50 mm arbors
• Morse taper 4
• Separate axial, radial and tangential feed ranges

Technical Specifications

• Make: Pfauter (Germany)
• Model: P 400
• Maximum workpiece diameter: 400 mm
• Maximum module: 8
• Work table diameter: 400 mm
• Maximum travel of mill-holder slide: 310 mm
• Minimum number of teeth cut: 6
• Maximum cutter diameter: 160 mm
• Maximum cutter length: 160 mm
• Mill-holder spindle diameter, normal accessory: 32, 40 mm
• Mill-holder spindle diameter, special accessory: 22, 27, 50 mm
• Centre distance, cutter to workpiece: 20–290 mm
• Morse taper: 4
• Cutter movement, tangential cut: 126 mm
• Cutter movement, shifting: 120 mm
• Cutter speed: 80–500 rpm
• Axial feed: 0.4–7.5 mm/min
• Radial feed: 0.1–1.9 mm/min
• Tangential feed: 0.16–3 mm/min
• Machine dimensions: 4,680 x 2,395 x 2,515 mm
• Machine weight: 6,200 kg

Applications

• Cutting spur and helical gears
• Producing gears for gearboxes and transmissions
• Toolroom and general engineering gear manufacture
• Small-batch gear production and repair work

Commercial Details

• Make: Pfauter
• Model: P 400
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece it can cut? It takes workpieces up to 400 mm in diameter, with a maximum module of 8.
• What cutter speeds does it offer? Cutter speed ranges from 80 to 500 rpm.
• How big and heavy is the machine? It measures 4,680 x 2,395 x 2,515 mm and weighs 6,200 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which arbors, accessories and tooling are included, the condition of the electrics and controls, and how loading and shipping will be arranged.
