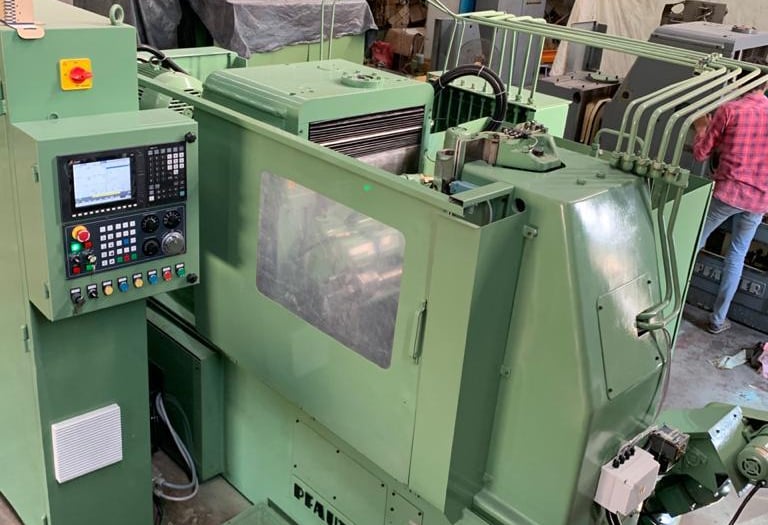

Used Pfauter PA 180 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

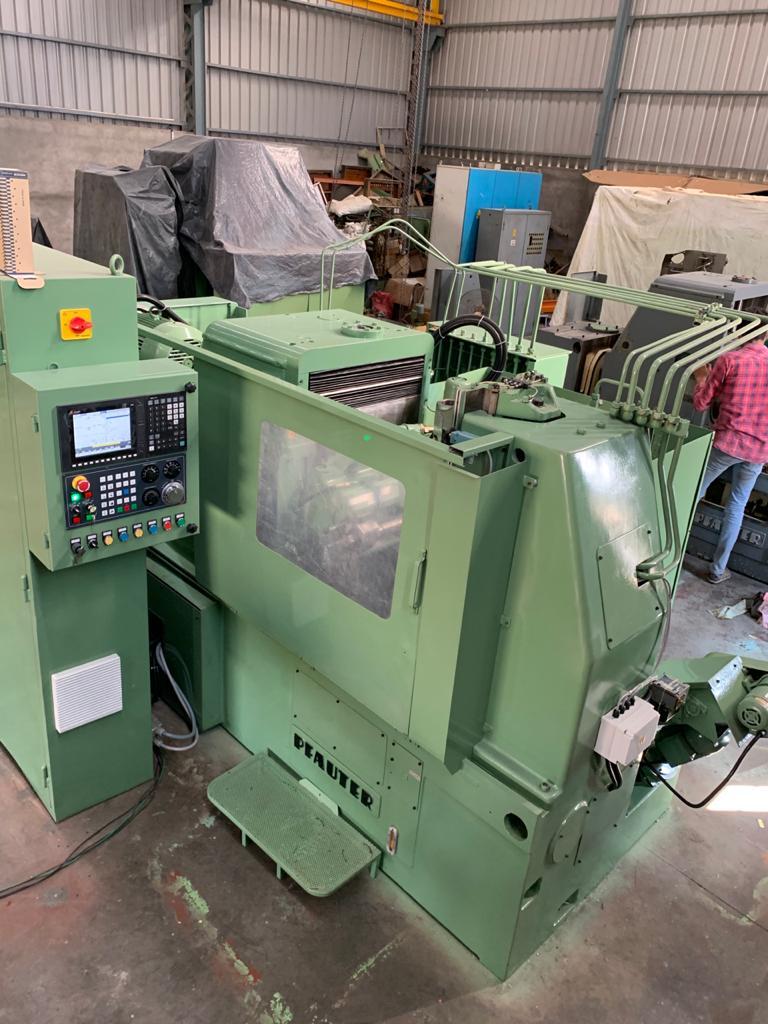

This used Pfauter PA 180 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece using a rotating hob.

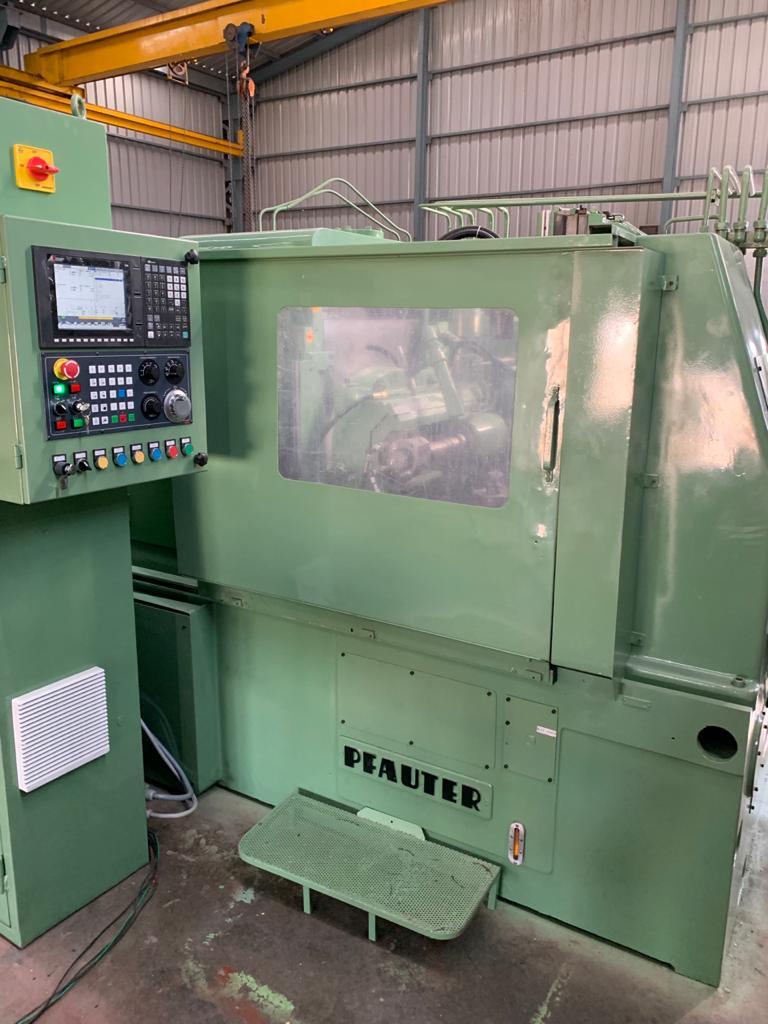

It is controlled by a Mitsubishi CNC and handles gears up to 180/200 mm in diameter at a maximum module of 6, with a milling length of 200 mm and a maximum workpiece length of approx. 715 mm.

Key Features

• Mitsubishi CNC control
• Continuously variable hob spindle speed
• Smoothly adjustable axial, radial and tangential feeds

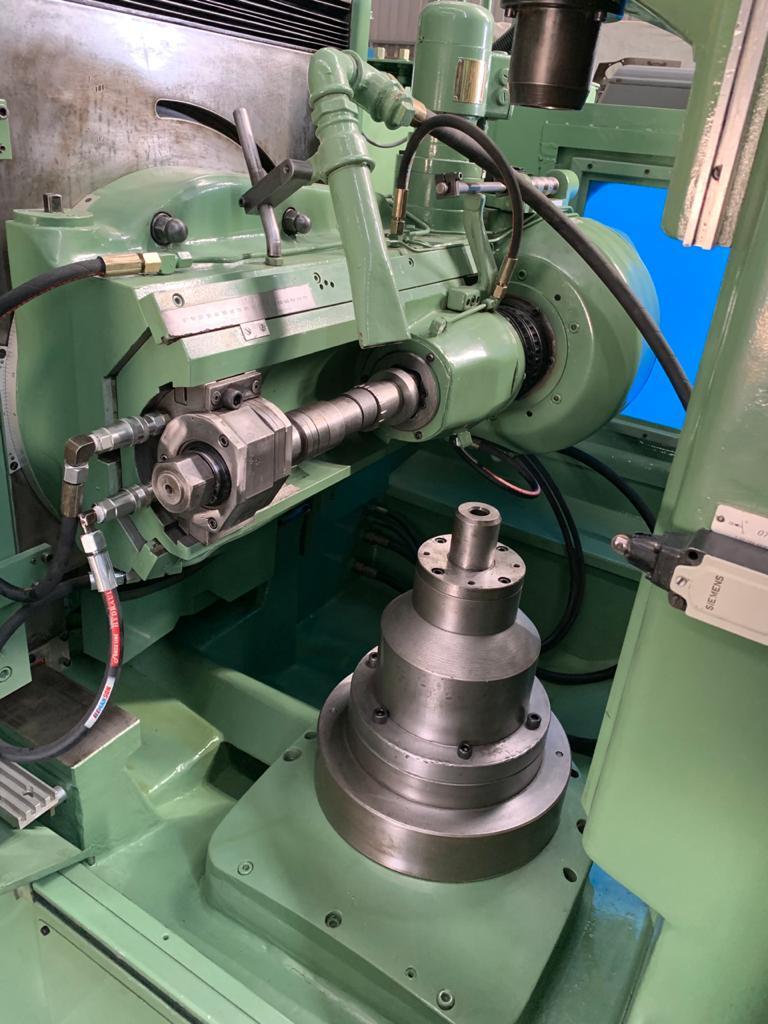

• Hob head swivel of 2×45°

Technical Specifications

• Model: Pfauter PA 180
• Control: Mitsubishi CNC
• Max. wheel diameter: 180/200 mm
• Max. module: 6
• Min. number of teeth: 6
• Milling length: 200 mm
• Max. workpiece length: approx. 715 mm
• Hob centre to table centre distance: 10–180 mm
• Table diameter: 240 mm
• Table hole: approx. 80 mm
• Swivel angle: 2×45°
• Hob size (diameter × length, MK5): 163×220 mm
• Max. tangential hob shift: 170 mm
• Hob spindle speed: 125–280 rpm, continuously variable
• Axial feed: 0.8–5.6 mm/rev
• Radial feed: 0.1–1.7 mm/rev
• Tangential feed: 0.18–2.3 mm/rev
• Spindle drive: approx. 3.75–14 kW
• Total electrical load: approx. 20 kW, 380 V, 50 Hz
• Machine weight: approx. 7,500 kg

Applications

• Spur and helical gears for gearboxes
• Small gear wheels up to module 6
• Splined and toothed shaft components
• Gears for general machinery and transmission work

Commercial Details

• Make: Pfauter
• Model: PA 180
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It takes workpieces up to 180/200 mm in diameter, with a maximum module of 6 and a milling length of 200 mm.
• What control does it have? It has a Mitsubishi CNC control.
• What power and weight should I plan for? Total electrical load is approx. 20 kW at 380 V, 50 Hz, and the machine weighs approx. 7,500 kg.
• What should I ask when enquiring? Ask for photos or a video of the machine running under power, whether an inspection is possible, which hobs, arbors and fixtures are included, the condition of the Mitsubishi control and electrics, and loading and shipping arrangements.
