Used Pfauter PA 320 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

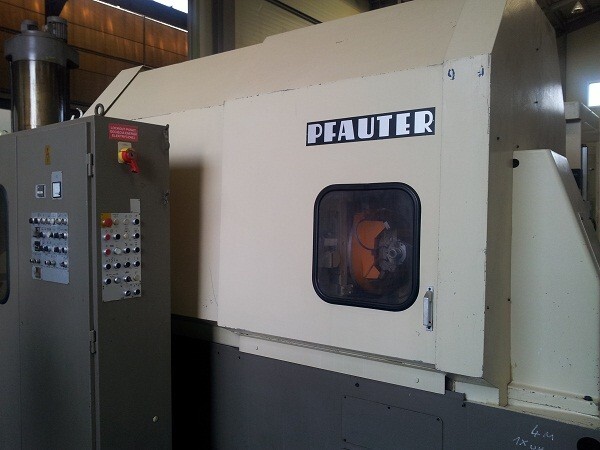

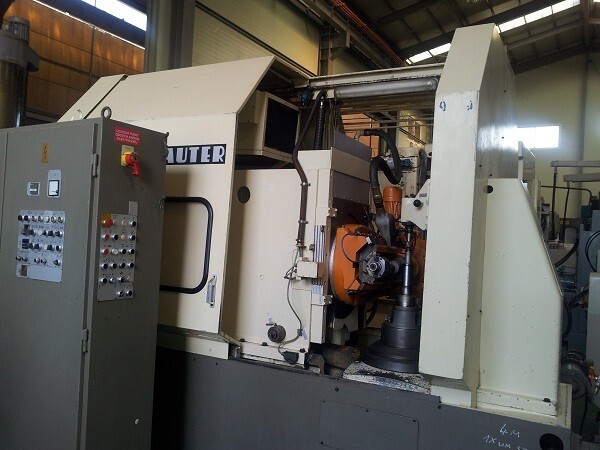

This used Pfauter PA 320 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into round workpieces with a rotating hob.

It cuts up to module 8 mm on parts up to 350 mm in diameter, with helix angles up to 40°. The hob head runs at 80–400 rpm and the machine weighs 9,400 kg.

Key Features

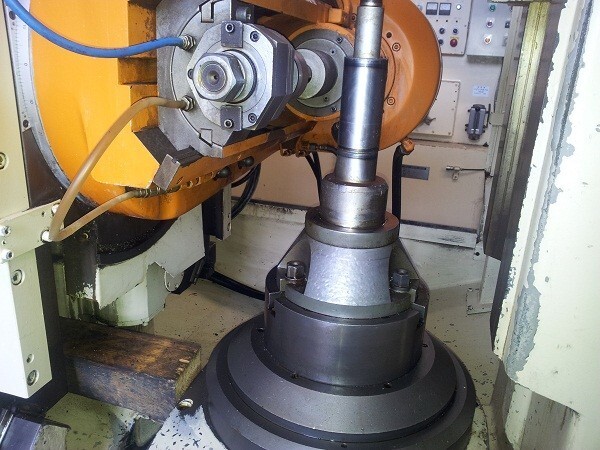

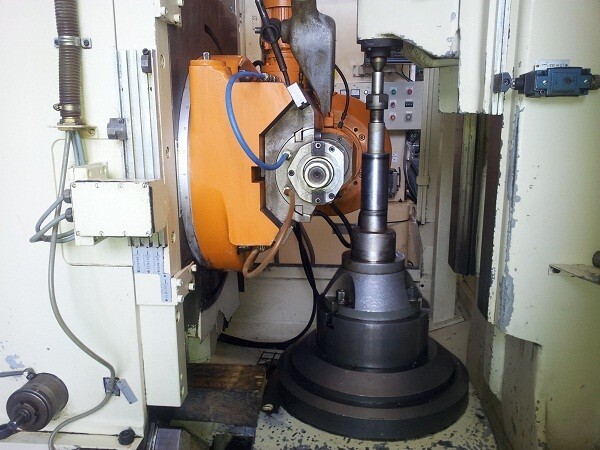

• Hob spindle with Morse 5 driving cone
• Axial slide stroke of 250 mm
• Hob traverse of up to 170 mm

Technical Specifications

• Model: Pfauter PA 320
• Max. module: 8 mm
• Max. part diameter: 350 mm
• Axial slide max. stroke: 250 mm
• Max. helix angle: 40°
• Min. number of teeth: 3
• Workholding table diameter: 300 mm
• Table bore diameter: 80 mm
• Max. hob size (Ø/length): 163 / 230 mm
• Hob-to-part centre distance (min/max): 40/265 mm
• Max. hob traverse: 170 mm
• Hob holder driving cone: Morse 5
• Hob speed: 80–400 rpm
• Power: 60 kVA
• Dimensions (W x L x H): 4,410 x 2,870 x 2,645 mm
• Weight: 9,400 kg

Applications

• Spur and helical gears
• Gearbox and transmission components
• Small-batch and workshop gear production
• Splined and toothed shaft parts

Commercial Details

• Make: Pfauter
• Model: PA 320
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It handles parts up to 350 mm in diameter and up to module 8 mm.
• What helix angle can it cut? The maximum helix angle is 40°.
• What hob speeds are available? Hob speed ranges from 80 to 400 rpm.

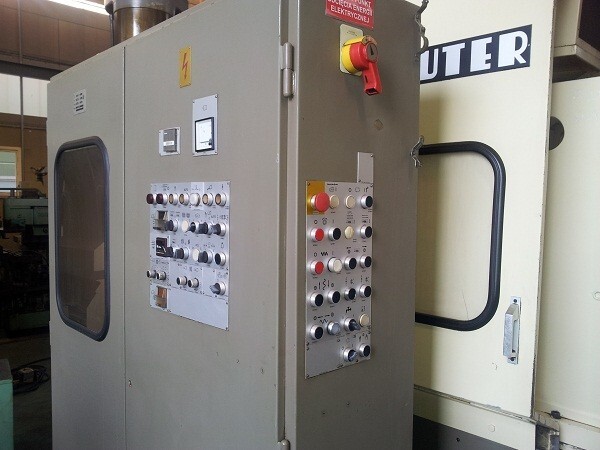

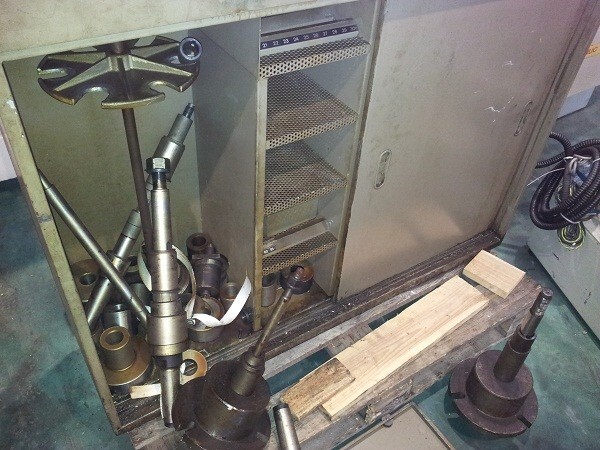

• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which change gears, hobs, arbors and workholding are included, the condition of the electrics and control, and loading and shipping arrangements for its 9,400 kg weight.
