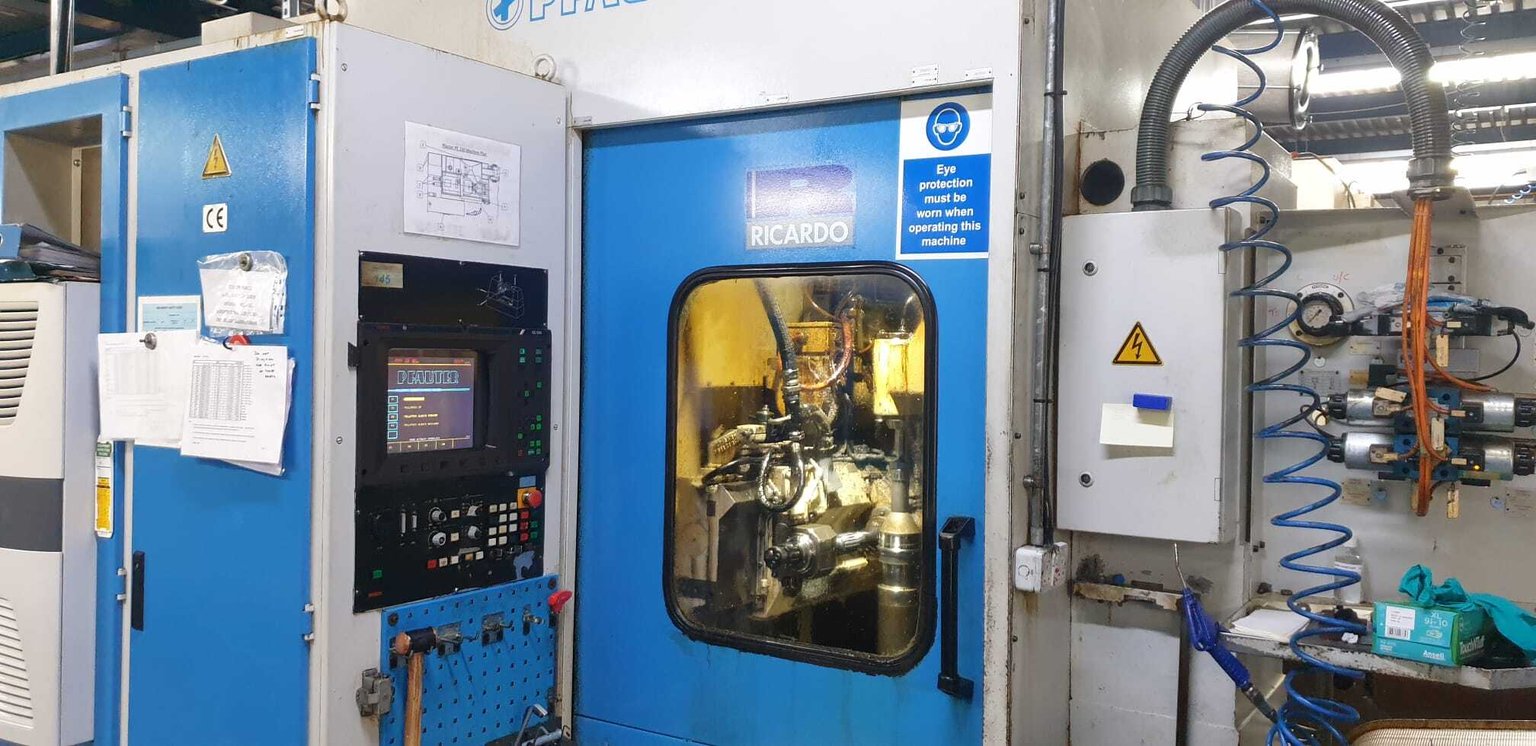

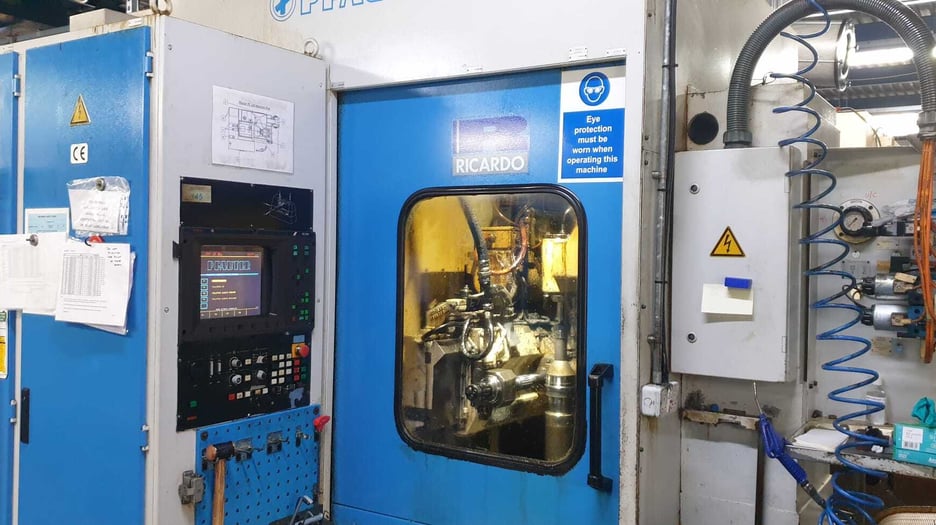

Used Pfauter PE 150 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

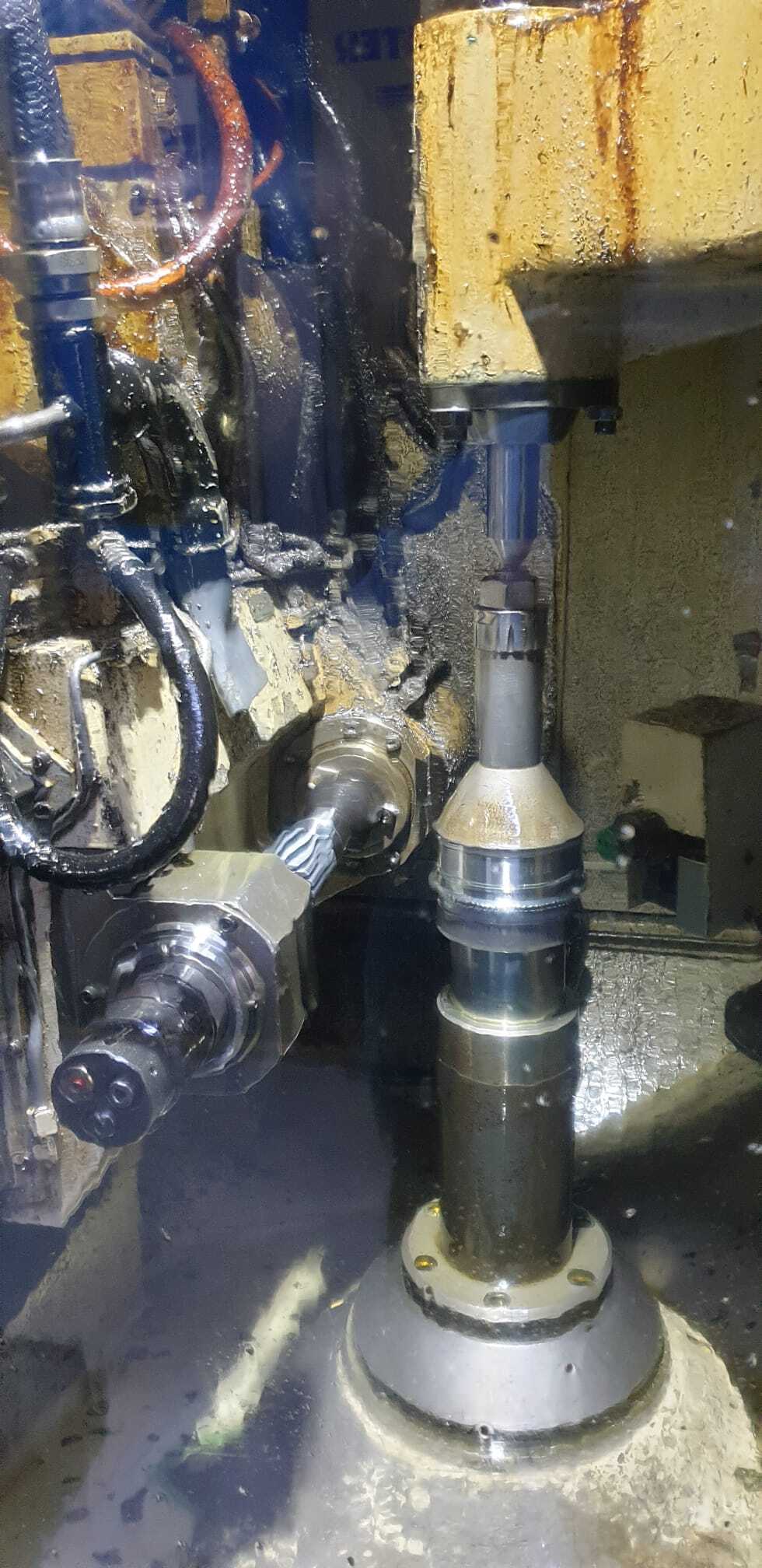

This used Pfauter PE 150 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece with a rotating hob.

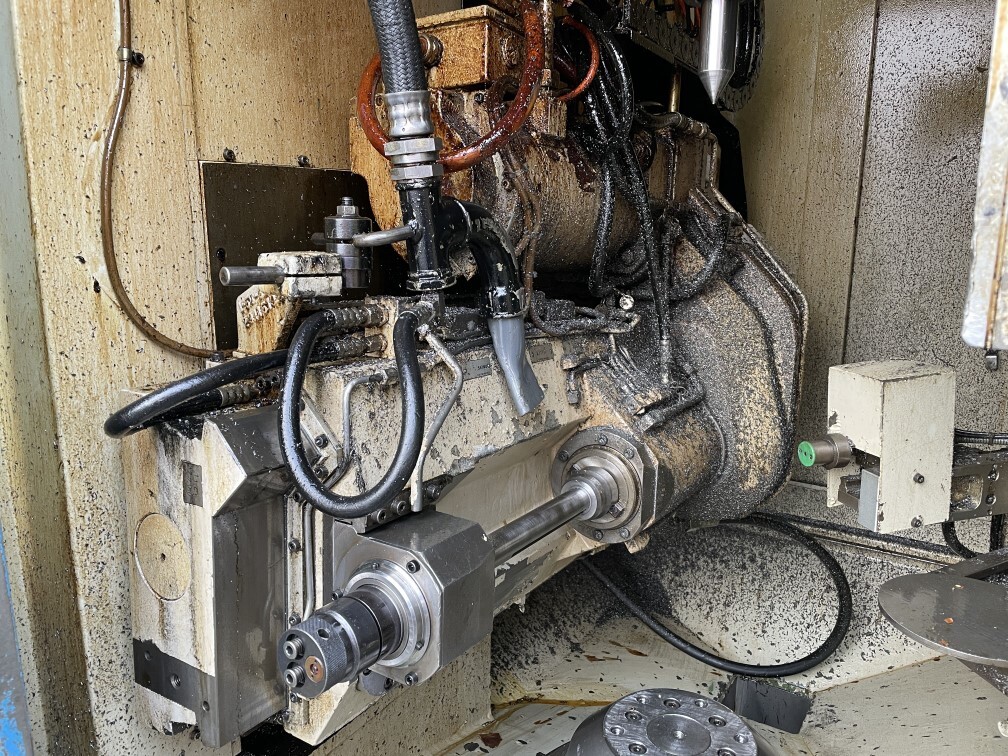

It takes workpieces up to 150 mm in diameter and 150 mm gear width, with a maximum module of 4. The milling slide swivels ±45 degrees, and the machine is controlled by a Fanuc 15M CNC.

Key Features

• Fanuc 15M CNC control
• Milling slide swivels -/+ 45 degrees
• SK 40 milling spindle taper

Technical Specifications

• Model: Pfauter PE 150
• Control: Fanuc 15M
• Max. workpiece diameter: 150 mm
• Gear width: 150 mm
• Max. module: 4
• Distance cutter centre to clamping area: 10–160 mm
• Distance cutter spindle to workpiece spindle: 8–160 mm
• Milling slide swivel: ±45°

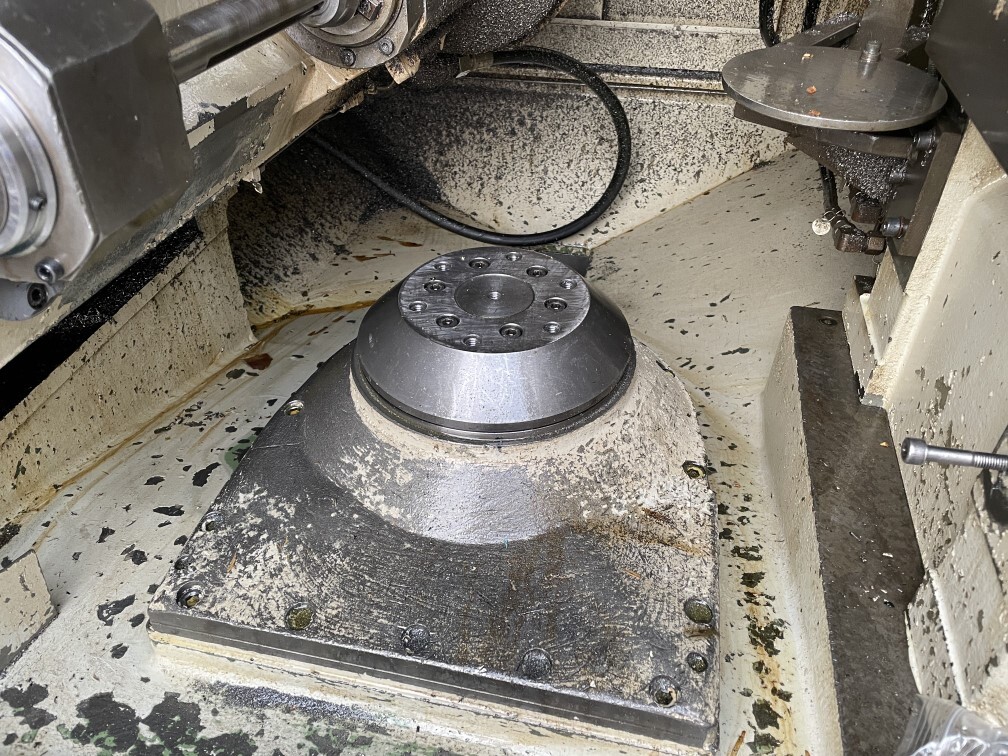

• Table diameter: 160 mm
• Table bore diameter: 63 mm
• Milling arbor diameter: Ø32 mm
• Milling cutter diameter x width: 130 x 220 mm
• Milling spindle taper: SK 40
• Milling spindle speed: 150–600 rpm
• Table rotation speed: 1–80 rpm
• Feed range: 1–1,500 mm/min
• Feed range per workpiece revolution: 0.001–40 mm
• Rapid speed: 3,000 mm/min
• Shifting: 170 mm
• Electrics: 380 V, 50 Hz
• Total power requirement: 50 kVA
• Weight: approx. 5.8 t
• Dimensions: approx. 5.0 x 3.8 x 2.8 m

Applications

• Cutting spur and helical gears in small to medium sizes
• Gear production for gearboxes and transmissions
• Toothed components for general engineering
• Small-batch and workshop gear manufacture

Commercial Details

• Make: Pfauter
• Model: PE 150
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It handles workpieces up to 150 mm in diameter and 150 mm gear width, with a maximum module of 4.
• What control does it have? It is fitted with a Fanuc 15M CNC control.
• What power supply does it need? It runs on 380 V, 50 Hz with a total power requirement of 50 kVA.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, hobs and accessories are included, the condition of the Fanuc control and electrics, and loading and shipping arrangements.
