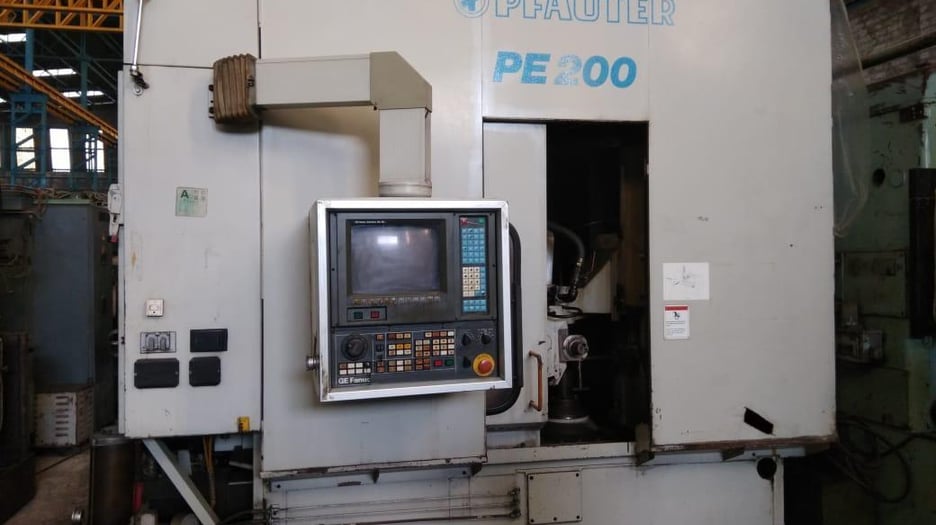

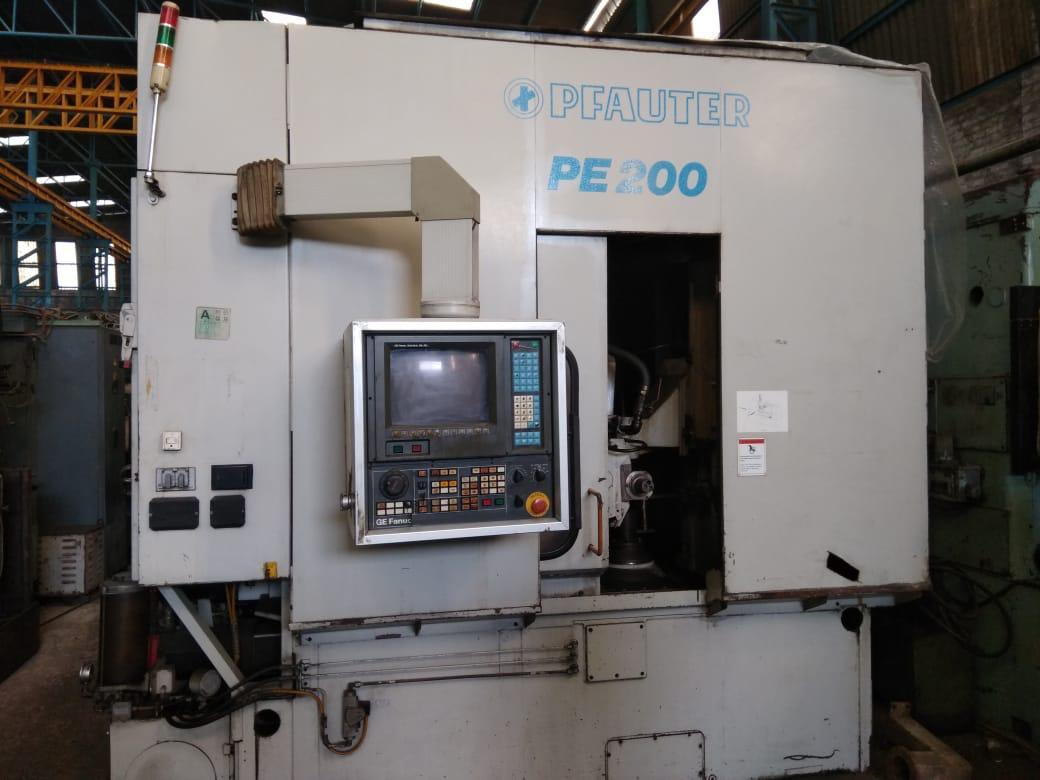

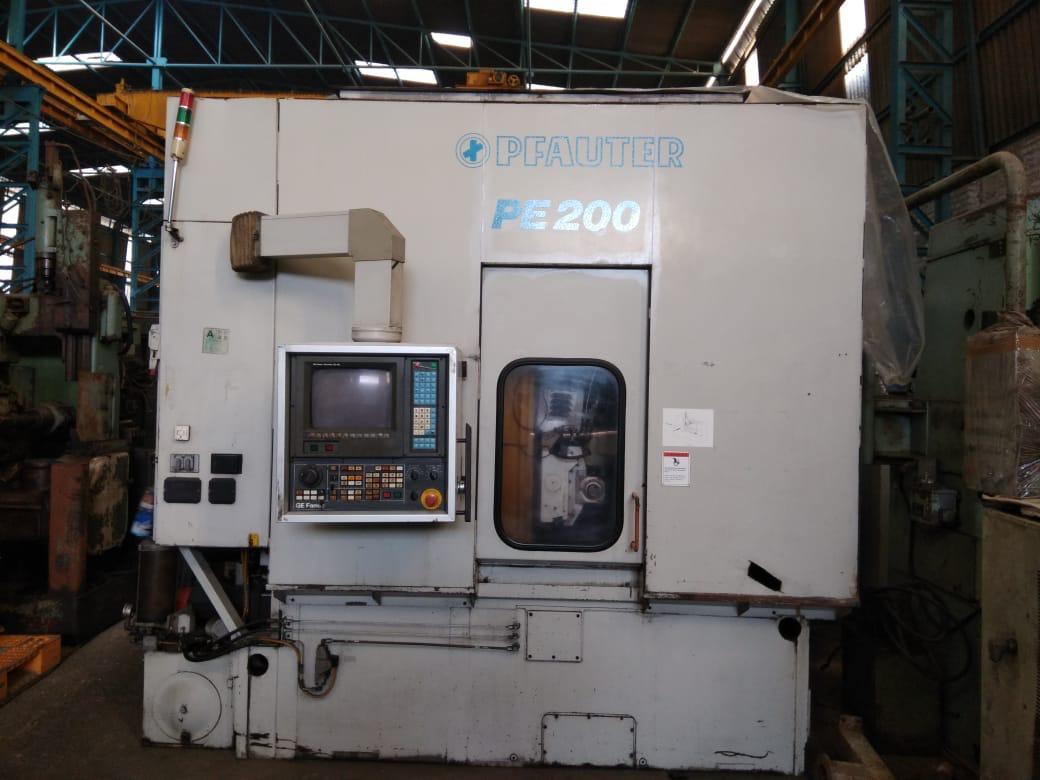

Used Pfauter PE 200 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Pfauter PE 200 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a blank using a rotating hob.

It is a vertical machine with a Fanuc CNC control. It handles gears up to 200 mm in diameter at a pitch rating of 6 DP (4 module), and takes parts up to 870 mm long.

Key Features

• Vertical machine layout

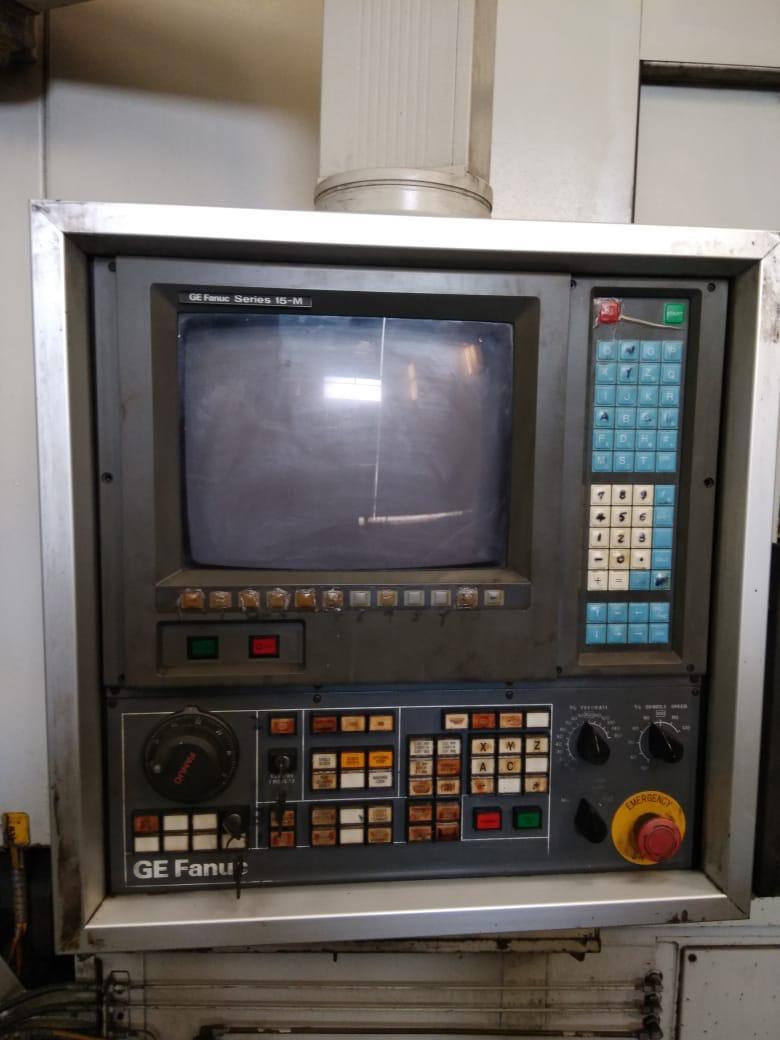

• Fanuc CNC control

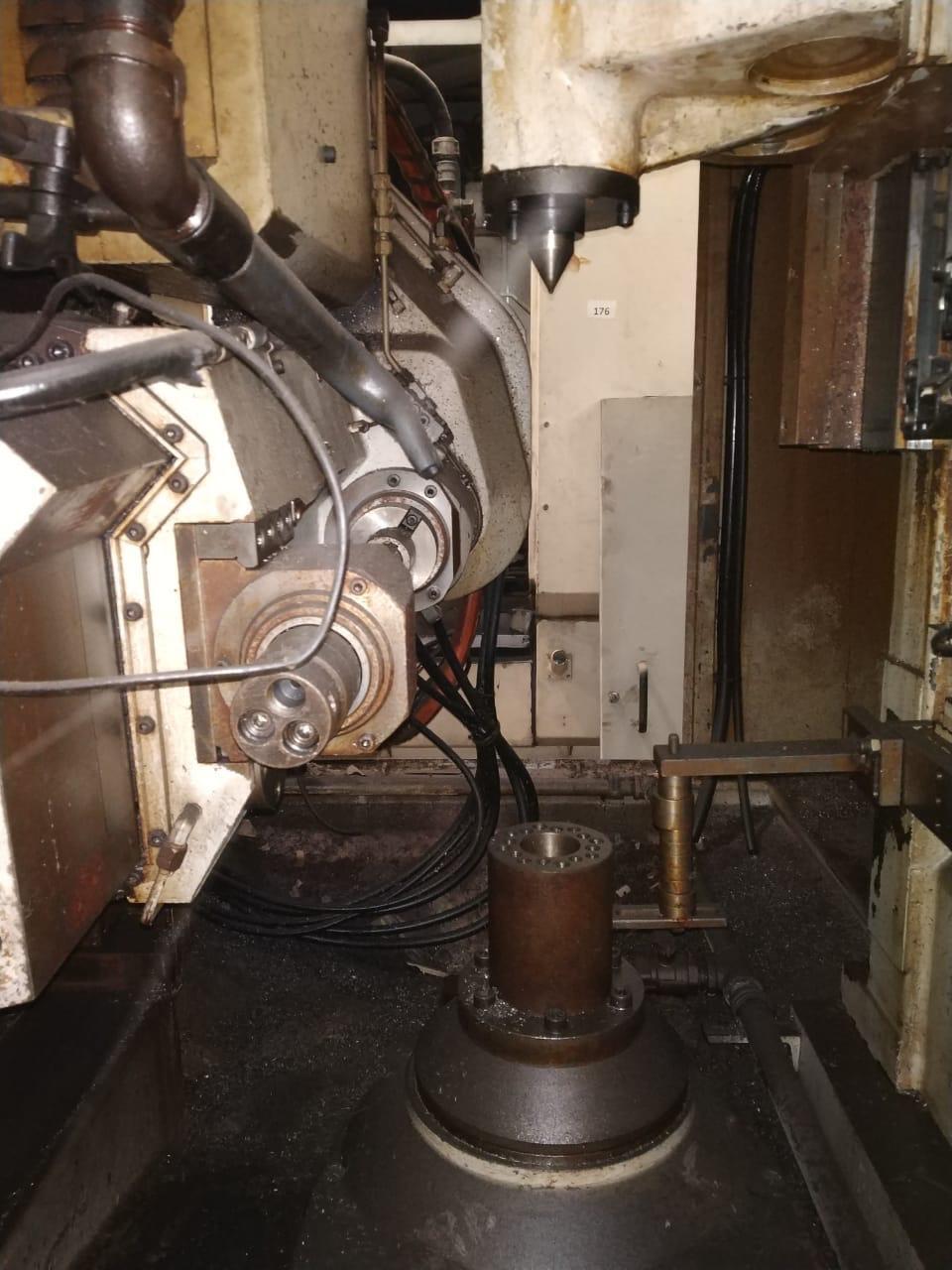

• Hob head swivels from -30° on the left to 90° on the right
• ISO 40 taper in the hob spindle

Technical Specifications

• Model: Pfauter PE 200
• Type: CNC gear hobbing machine, vertical
• Control: CNC (Fanuc)
• Max gear diameter: 200 mm
• Max pitch diameter: 200 mm (7.88″)
• Max diametral pitch: 6
• Pitch rating: 6 DP – 4 module
• Max hob diameter: 130 mm (5.1″)
• Max hob length: 220 mm (8.7″)
• Max hob shift travel: 170 mm (6.7″)
• Hob head swivel: Left -30°, right 90°
• Hob spindle taper: ISO 40
• Hob spindle speed: 150–600 rpm
• Table diameter: 6.3″
• Max work table rotation: 80 rpm
• Max face travel: 200 mm (7.88″)
• Max part length: 870 mm (34.25″)
• Dimensions (L x W x H): 12′ x 6′ x 10′
• Weight: 18,000 lbs

Applications

• Cutting spur and helical gears up to 200 mm in diameter
• Small and medium gear production
• Gear cutting for gearboxes and power transmission parts
• Toolroom and job-shop gear work

Commercial Details

• Make: Pfauter
• Model: PE 200
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It cuts gears up to 200 mm in diameter at a pitch rating of 6 DP (4 module).
• What control does it have? It has a Fanuc CNC control.
• What hob sizes does it take? It takes hobs up to 130 mm in diameter and 220 mm long, with 170 mm of hob shift travel.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which hobs, fixtures and accessories are included, the condition of the Fanuc control and electrics, and loading and shipping arrangements.
