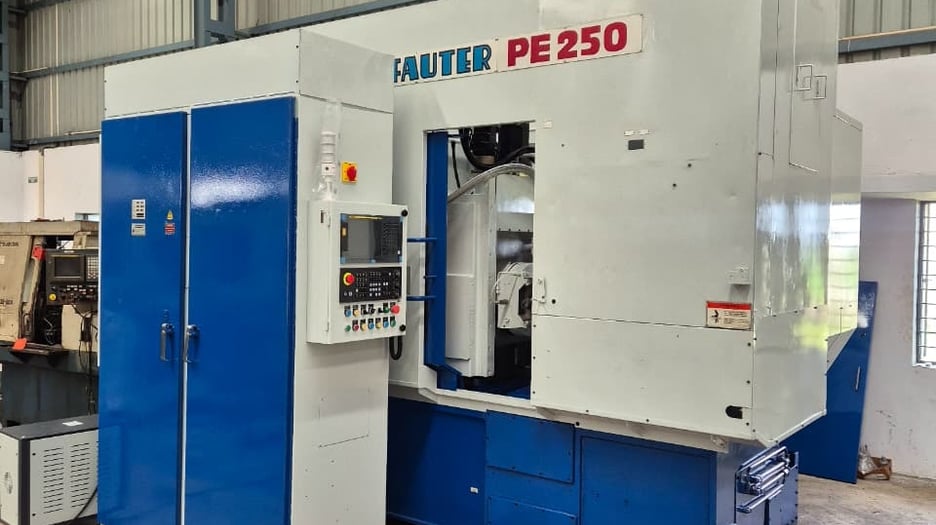

Used Pfauter PE 250 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Pfauter PE 250 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece using a rotating hob cutter.

It handles gears up to module 5 mm and workpieces up to Ø250 mm, with a machining length of 200 mm. It is listed as reconditioned with a new Fanuc control.

Key Features

• Reconditioned with a new Fanuc control
• Cutter swivel angle of ±30/45°
• Tangential path of 170 mm

Technical Specifications

• Manufacturer: Pfauter
• Model: PE 250
• Control: Fanuc
• Maximum module: 5 mm
• Maximum workpiece Ø: 250 mm
• Machining length: 200 mm
• Table diameter: 300 mm
• Cutter axis to table axis distance: 25–225 mm
• Cutter axis to table surface distance: 210–410 mm
• Maximum cutter Ø: 150 mm
• Maximum cutter length: 220 mm
• Cutter speed: 150–600 rpm
• Tangential path: 170 mm
• Maximum swivel angle: ±30/45°
• Dimensions (L × W × H): 6.8 × 4.1 × 3.2 m
• Weight: 10 t
• Total connected load: 49 kVA

Applications

• Spur and helical gears for gearboxes
• Gear blanks for general engineering
• Small-module gears for automotive and industrial drives
• Splined shafts and similar toothed parts

Commercial Details

• Make: Pfauter
• Model: PE 250
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It cuts up to module 5 mm on workpieces up to Ø250 mm, with a machining length of 200 mm.
• What control does it use? It has a Fanuc control, listed as new following reconditioning.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection can be arranged, which hobs, fixtures and accessories are included, the condition of the Fanuc control and electrics, and loading and shipping arrangements for a 10 t machine.
