Used Pfauter PE 300 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Pfauter PE 300 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece using a rotating hob.

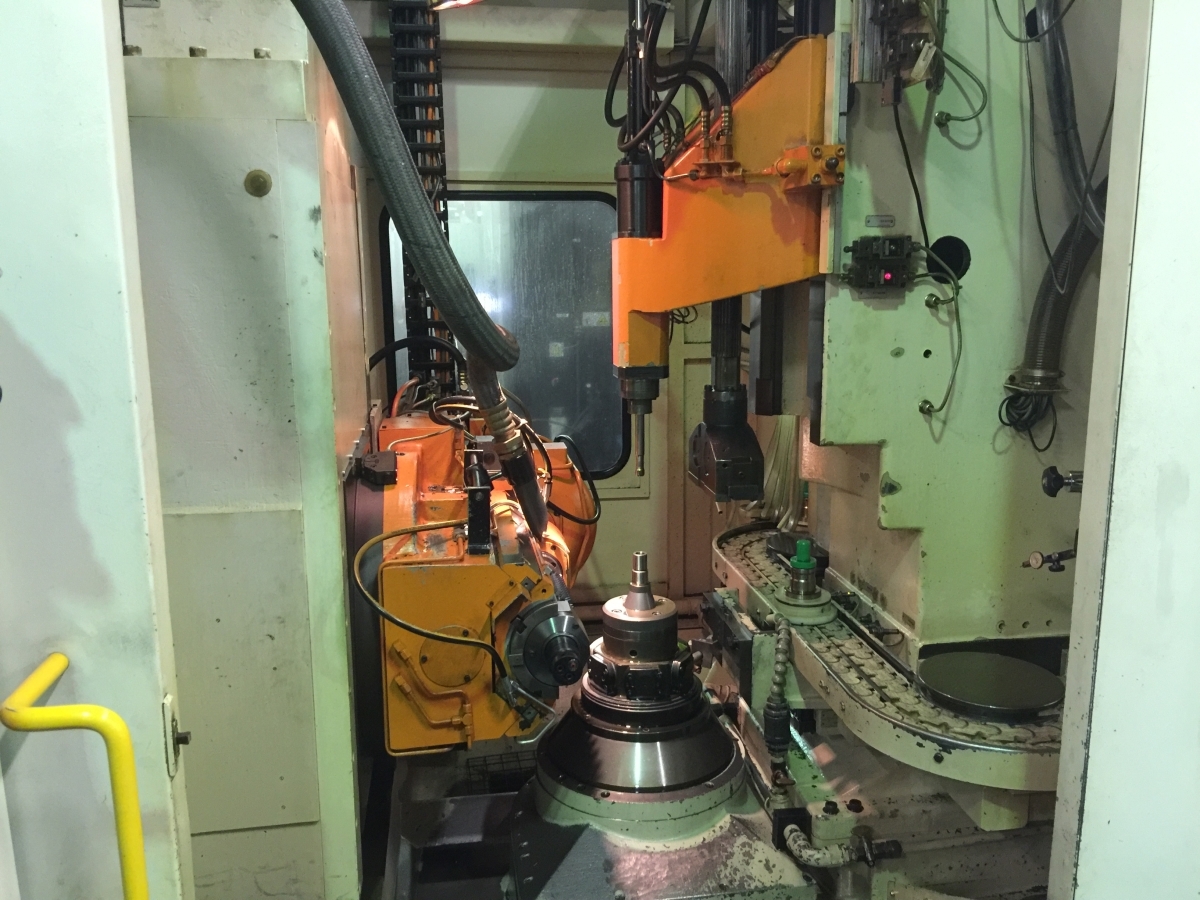

It is a vertical machine with a Siemens CNC control, a 300 mm maximum gear diameter and a 300 mm work table. It is fitted with an automatic work loading and unloading device for mass production of a workpiece.

Key Features

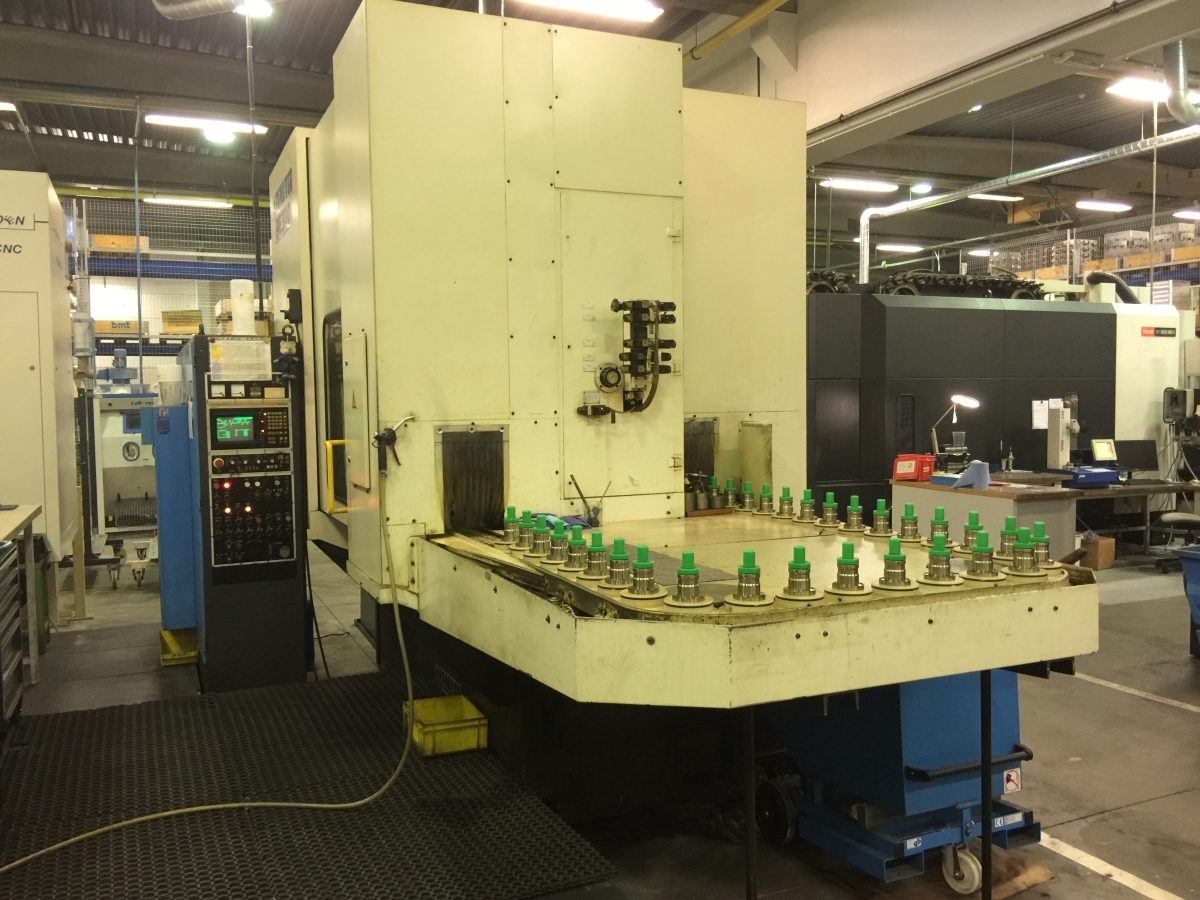

• Automatic work loading and unloading device
• Equipped for mass production of a workpiece
• Can be converted for hobbing other types of work with advice on the loading and unloading equipment
• Vertical machine layout

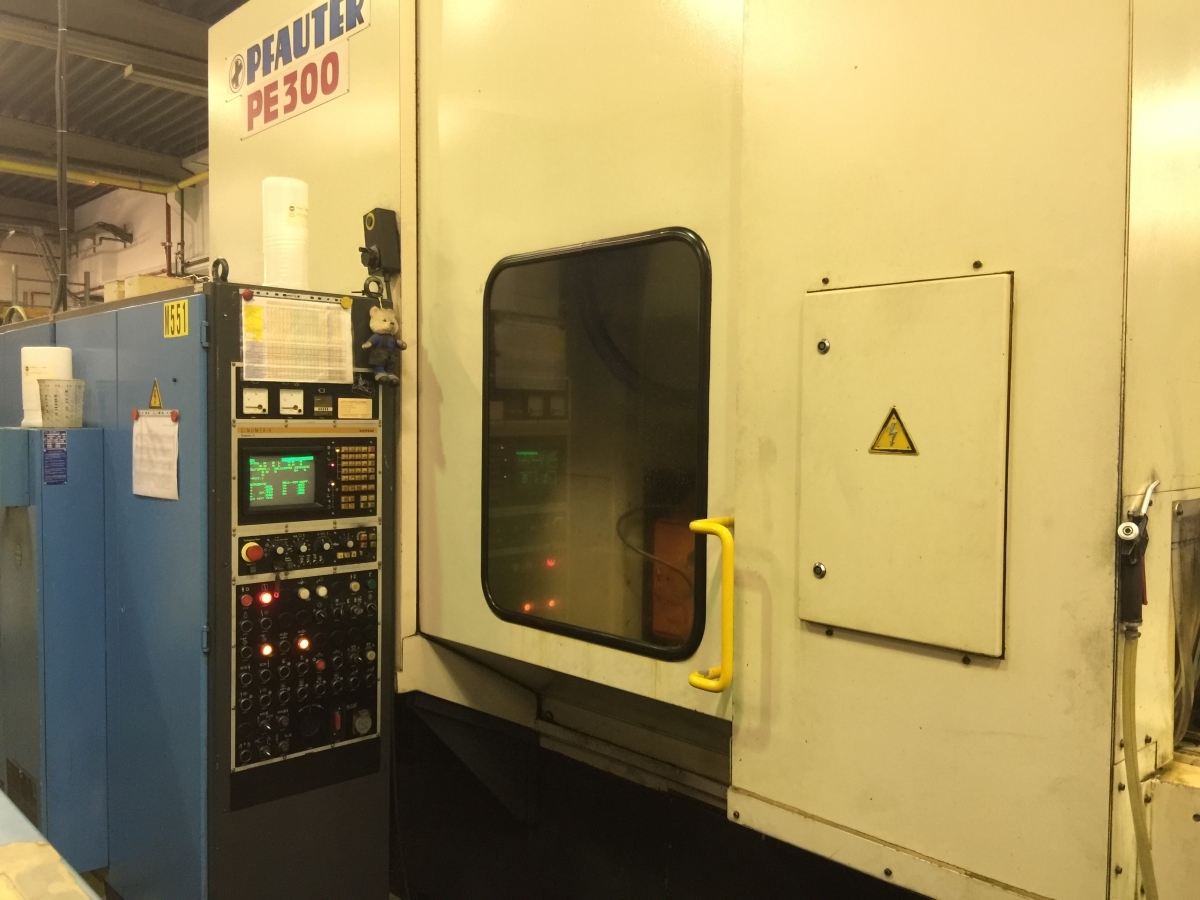

• Siemens CNC control

Technical Specifications

• Make and model: Pfauter PE 300
• Layout: Vertical
• Maximum gear diameter: 300 mm
• Maximum diametral pitch: 175
• Work table diameter: 300 mm
• Table bore diameter: 80 mm
• Maximum hob diameter: 175 mm
• Maximum hob length: 250 mm
• Control: CNC (Siemens)
• Dimensions: 6,190 × 4,050 × 3,280 mm
• Weight: 11,000 kg

Applications

• Cutting gears for series production
• Producing small to medium gear wheels up to 300 mm diameter
• Gear manufacturing for automotive and general engineering components

Commercial Details

• Make: Pfauter
• Model: PE 300
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum gear size this machine can cut? It handles gears up to 300 mm in diameter on a 300 mm work table with an 80 mm table bore.
• What hob size does it accept? It takes hobs up to 175 mm in diameter and 250 mm in length.
• Does it have automatic loading? Yes, it has an automatic work loading and unloading device for mass production of a workpiece.
• What should I ask when enquiring? Ask for photos or video of the machine under power, an inspection opportunity, the accessories, hobs and loading equipment included, the condition of the Siemens CNC control and electrics, and loading and shipping arrangements for an 11,000 kg machine.
