Used Pfauter PE 80 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

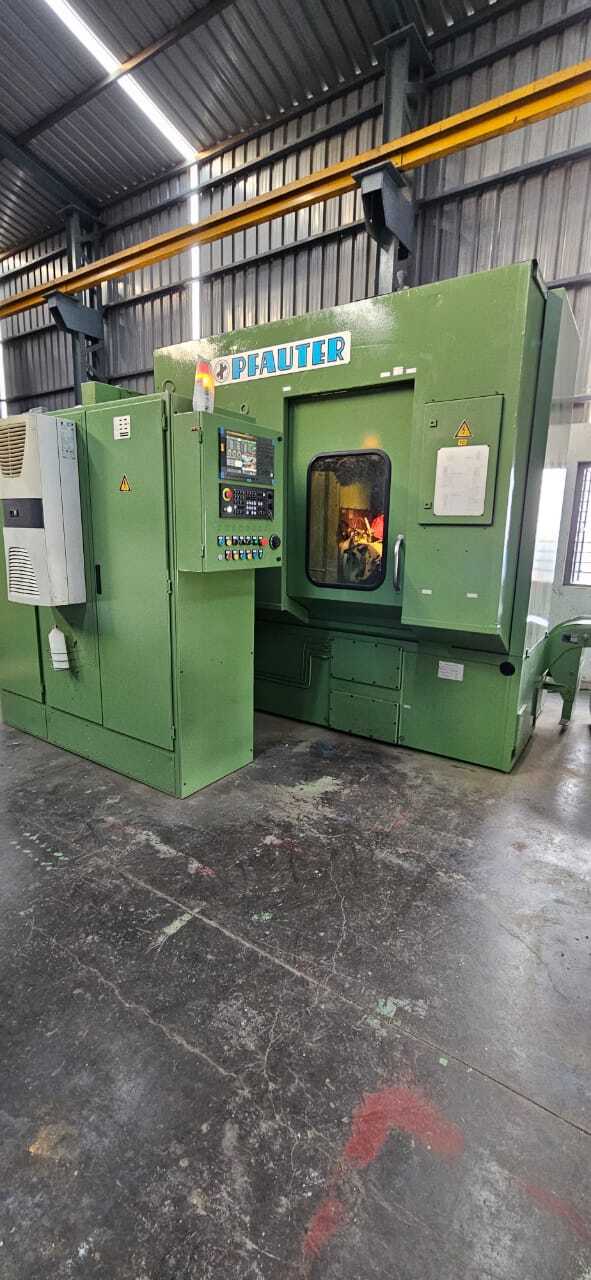

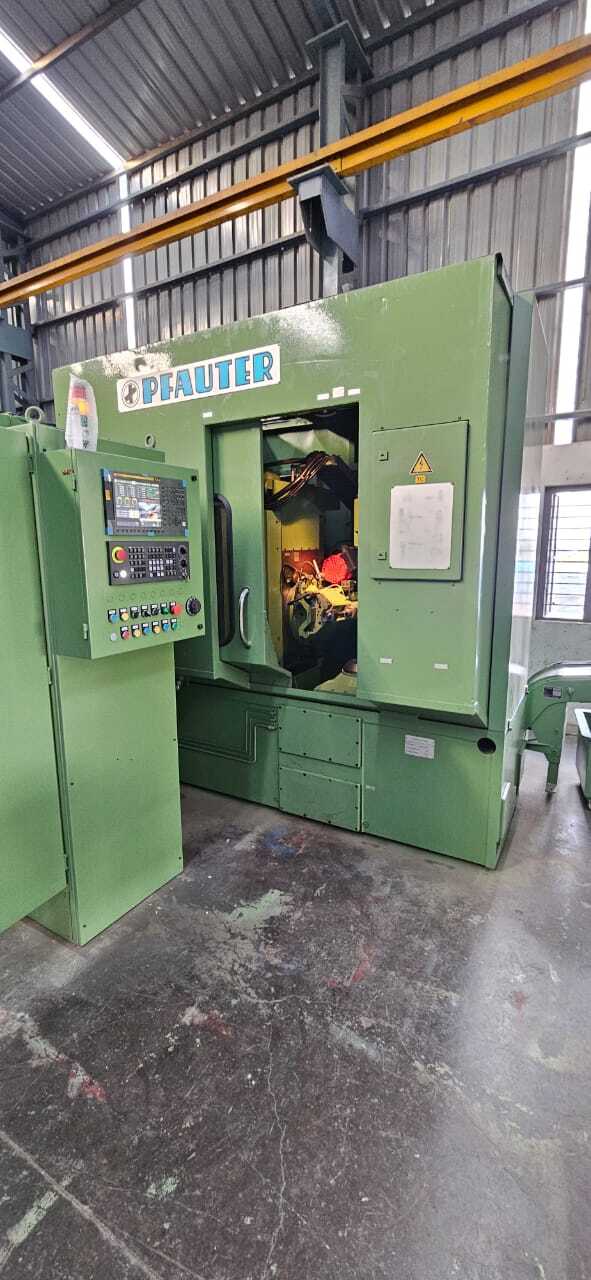

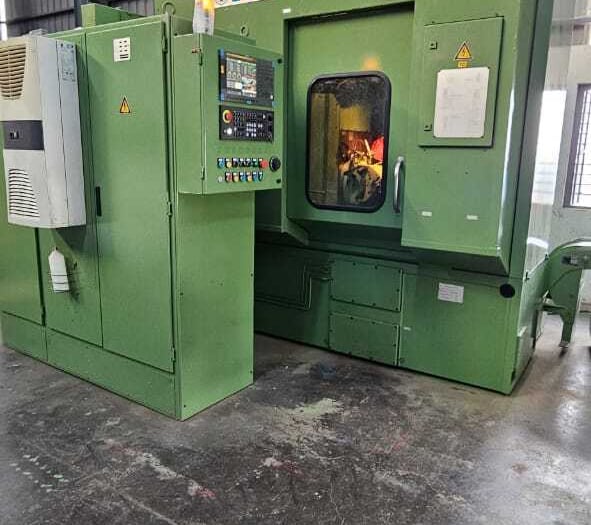

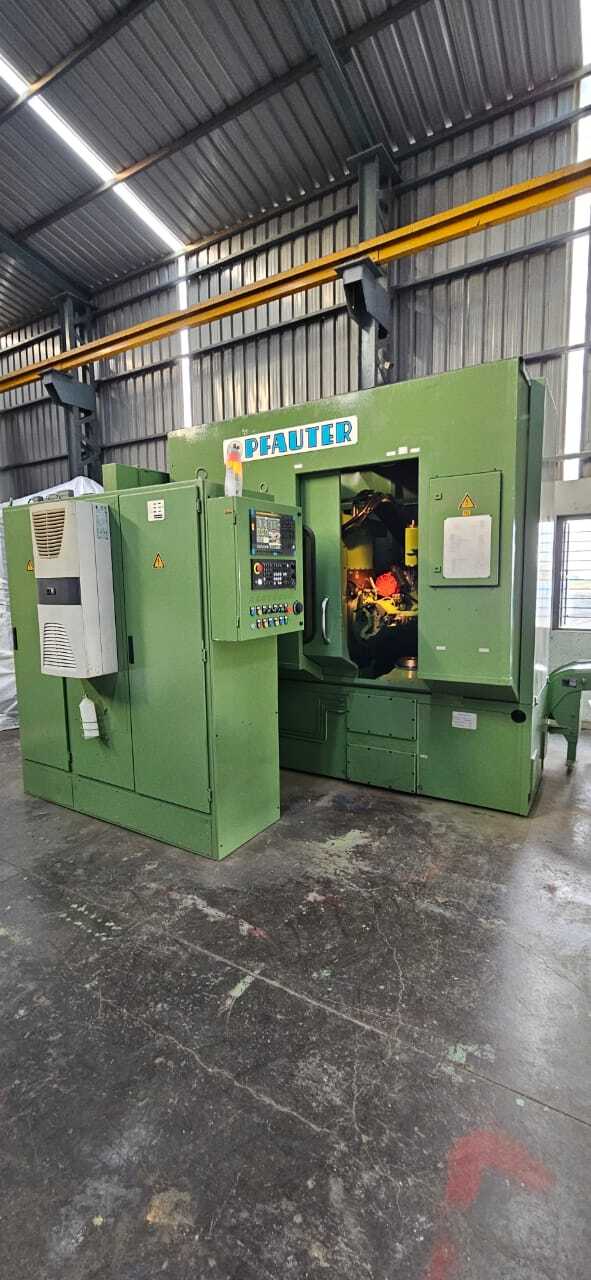

This used Pfauter PE 80 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece using a rotating hob.

It is rated for pitches up to 10 DP depending on the application and handles workpieces up to 3.2 in (3.2″) in diameter. The hob spindle is driven by a 10 HP motor with an infinitely variable speed range of 500–3000 RPM, and the machine is fitted with a Fanuc control.

Key Features

• CNC-controlled hobbing with a new Fanuc control
• Infinitely variable hob spindle speed
• Hob swivel from -30 to +45 degrees left/right
• ISO 30 taper in the hob spindle

Technical Specifications

• Model: Pfauter PE 80 CNC
• Pitch rating: 10 DP, depending on application
• Max. workpiece diameter: 3.2″
• Max. axial travel: 7.9″
• Max. swivel angle LH/RH: -30/+45 deg
• Max. hob dimensions, diameter/length: 3.2″/5.1″
• Max. hob shift travel: 4.3″
• Hob spindle taper: ISO 30
• Max. worktable rotation: 400 RPM
• Number of starts of worktable worm: 6
• Centre distance workpiece/hob, min./max.: 0.4″/4″
• Hob spindle motor: 10 HP
• Hob spindle speed range: 500–3000 RPM, infinitely variable
• Rapid traverse rate (radial, axial, tangential): 118 IPM
• Approx. machine weight: 16,500 lbs
• Control: New Fanuc

Applications

• Cutting spur and helical gears
• Small gears for gearboxes and transmissions
• Gear production for general engineering
• Splined and toothed components

Commercial Details

• Make: Pfauter
• Model: PE 80 CNC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it cut? It takes workpieces up to 3.2″ in diameter, with up to 7.9″ of axial travel.
• What control does it have? It is fitted with a new Fanuc CNC control.
• What hob size does it accept? Hobs up to 3.2″ in diameter and 5.1″ in length, with an ISO 30 taper in the hob spindle.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling, hobs and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
