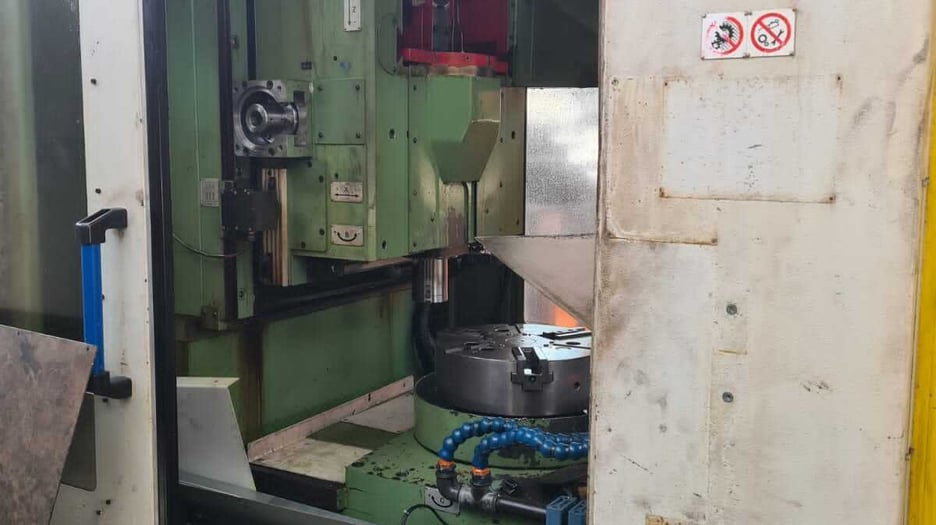

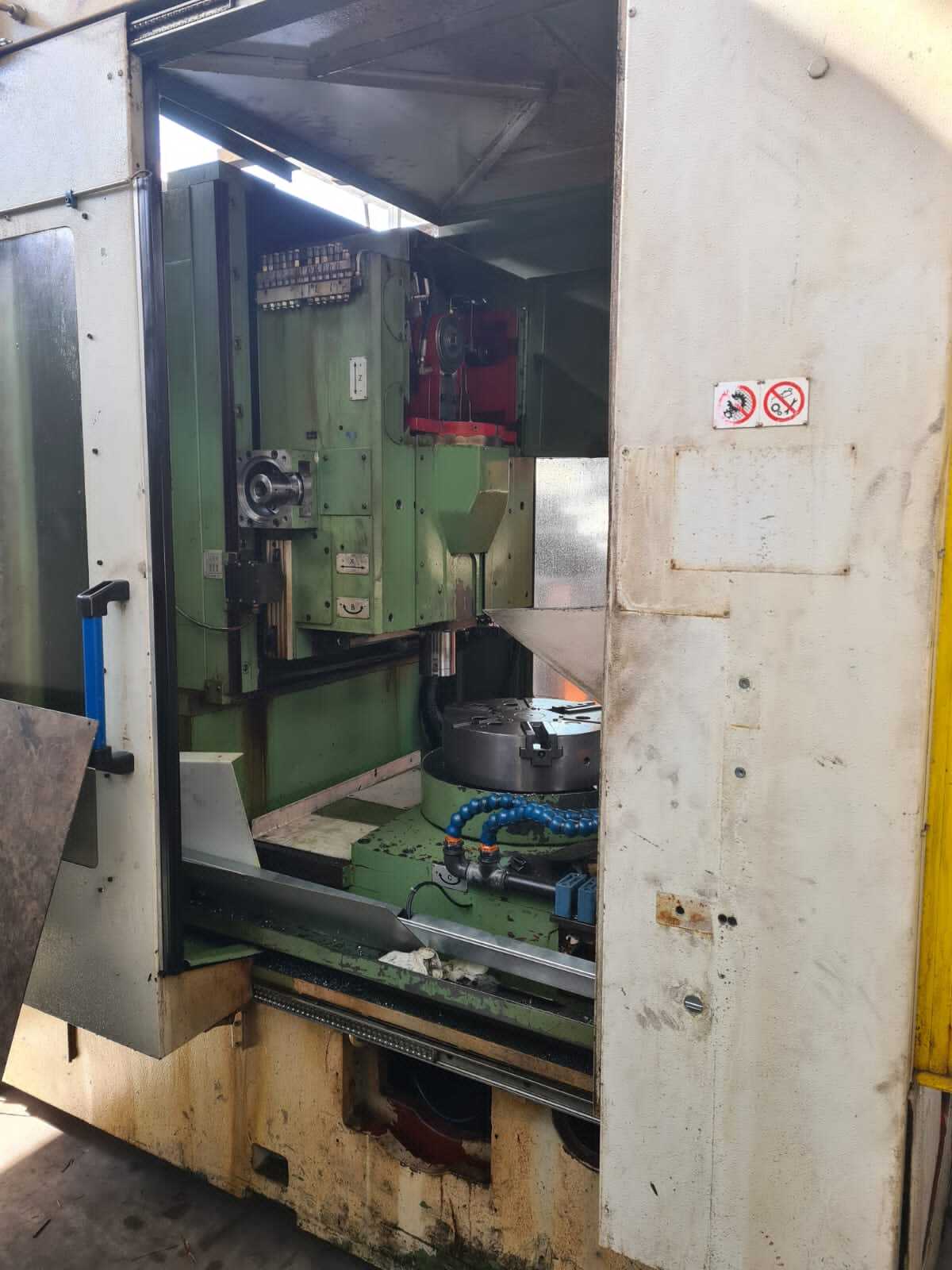

Used Pfauter PSA 300 CNC Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

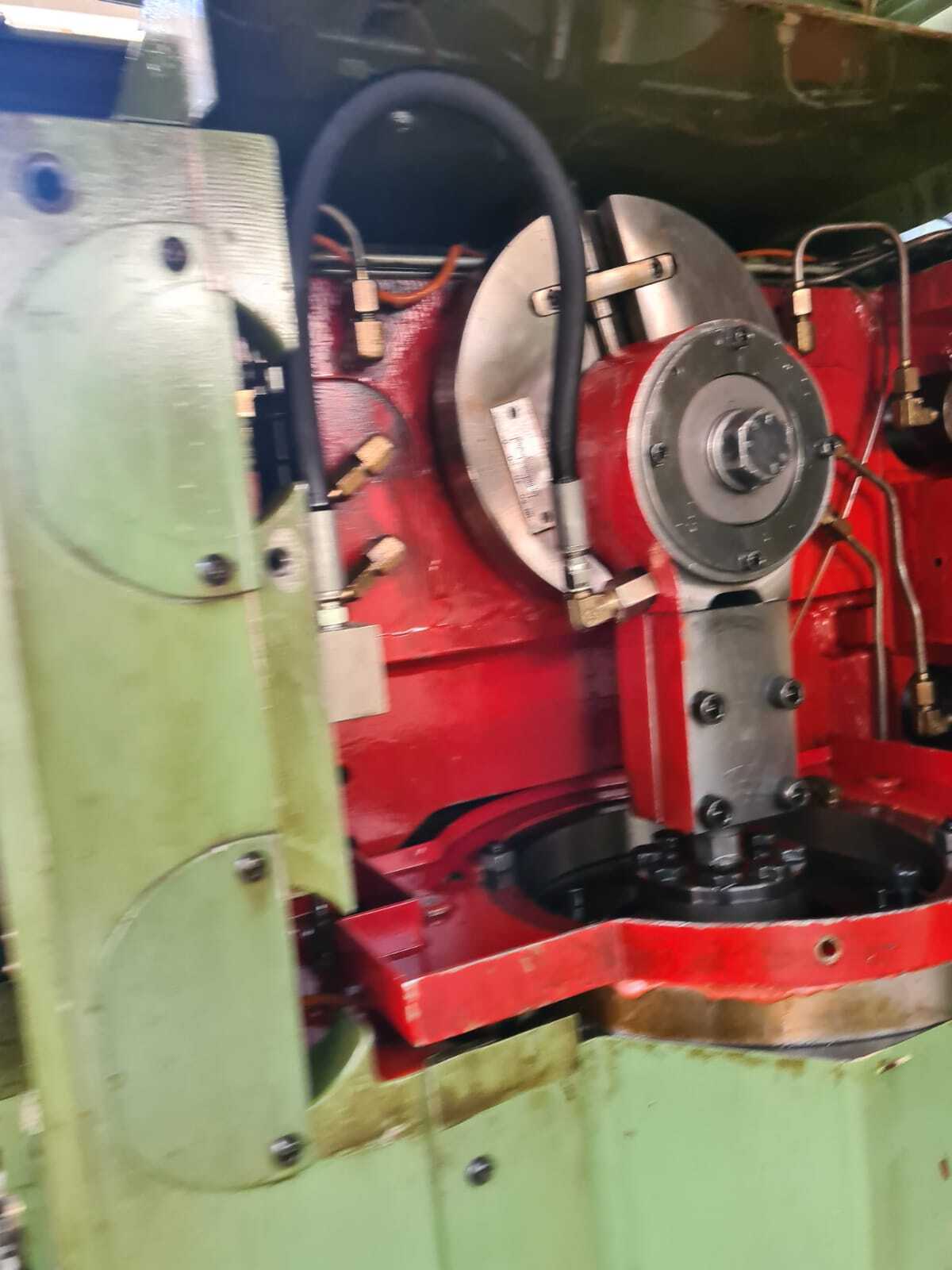

This used Pfauter PSA 300 CNC gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth with a reciprocating cutter.

It handles gear wheels up to 300 mm in diameter and 50 mm wide, to a maximum module of 6, with a maximum tooth angle of ±45°. The table is 300 mm in diameter with a 40 mm opening, and the machine takes workpieces up to 1,000 kg.

Key Features

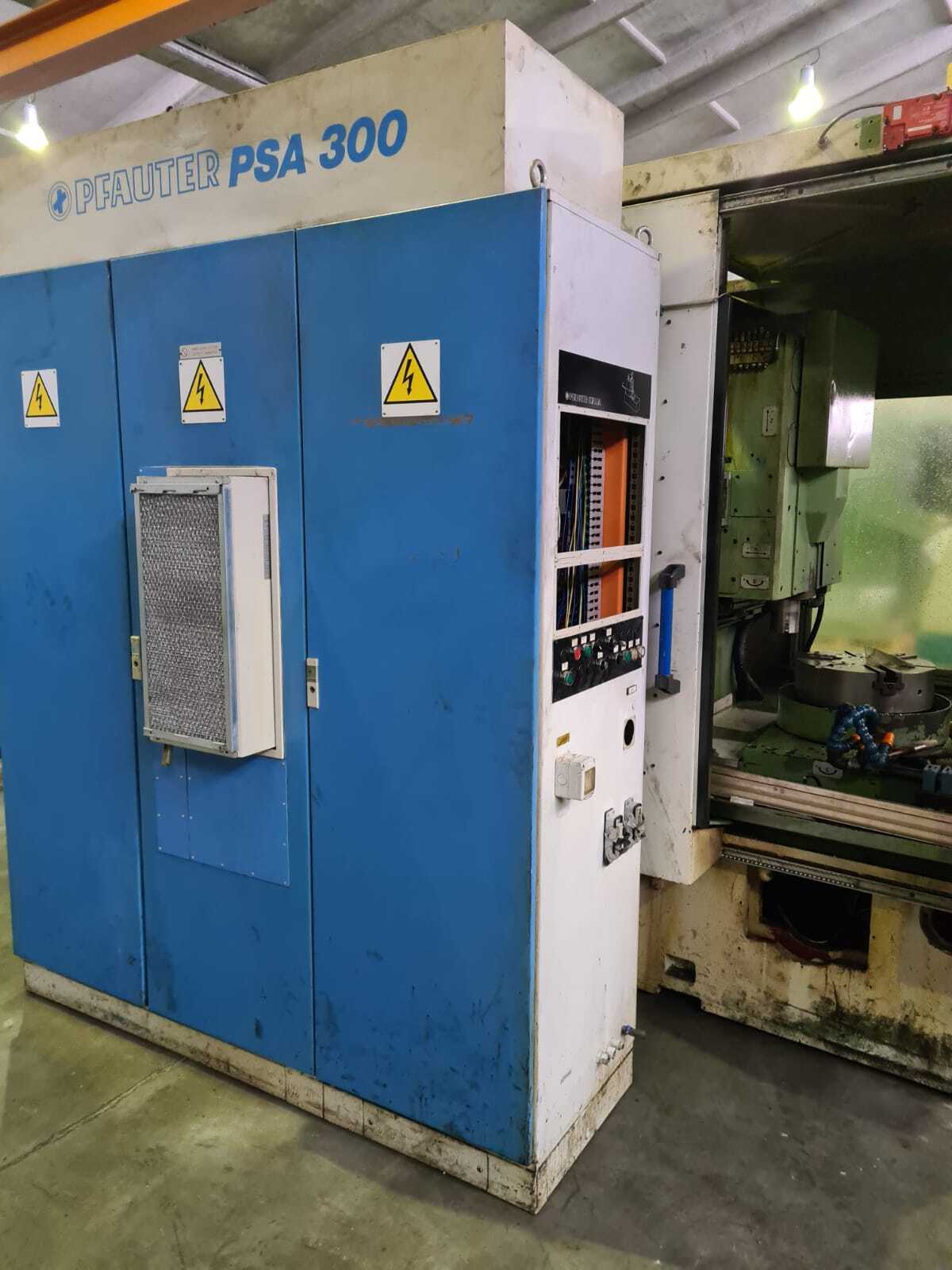

• CNC control
• Stepless stroke rate adjustment from 180 to 1,800 strokes/min

Technical Specifications

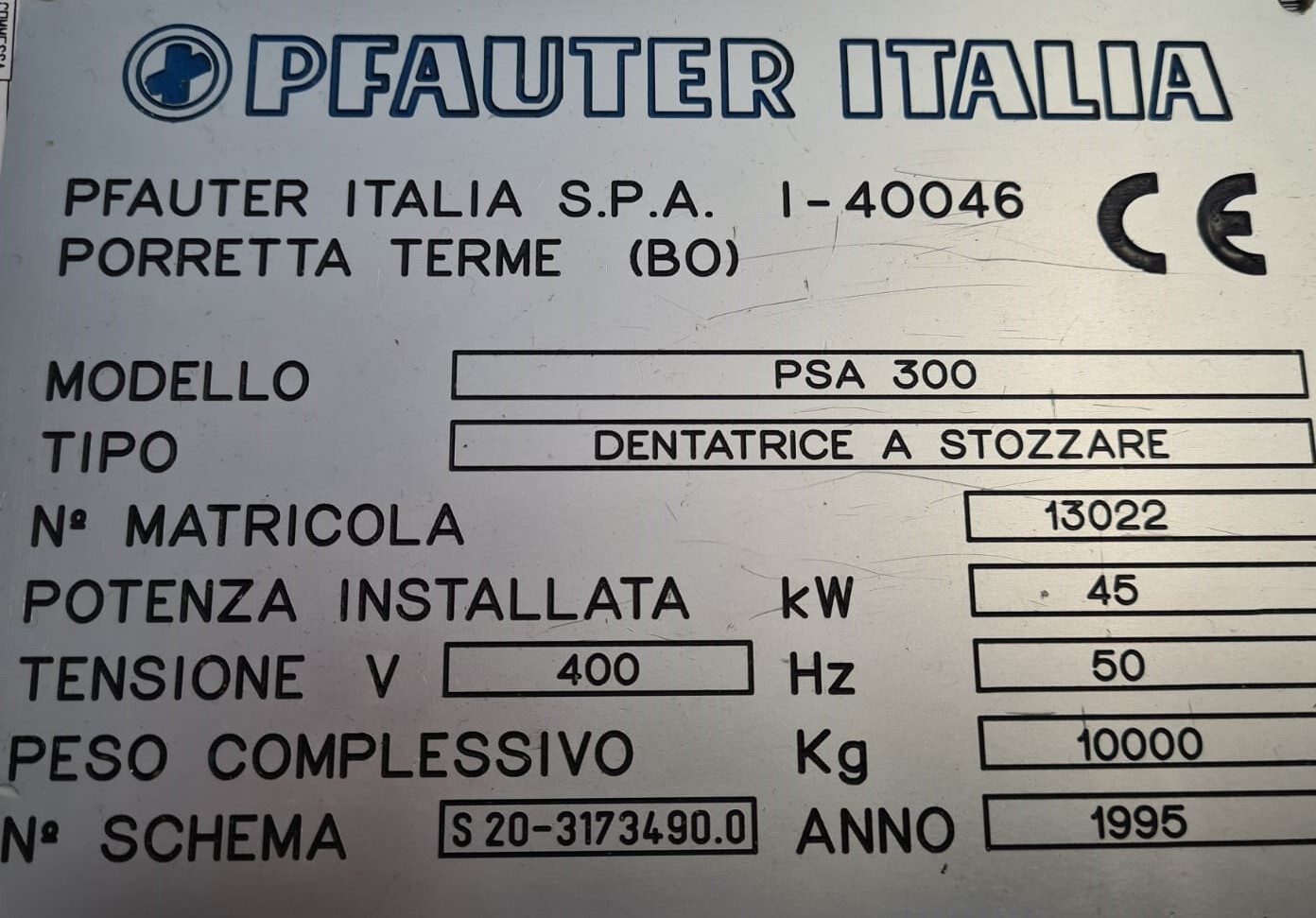

• Model: PSA 300 CNC
• Maximum module: 6
• Maximum gear wheel diameter: 300 mm
• Wheel width: 50 mm
• Maximum tooth angle: ±45°
• Stroke rate (stepless): 180–1,800 strokes/min
• Stroke length: 0–55 mm

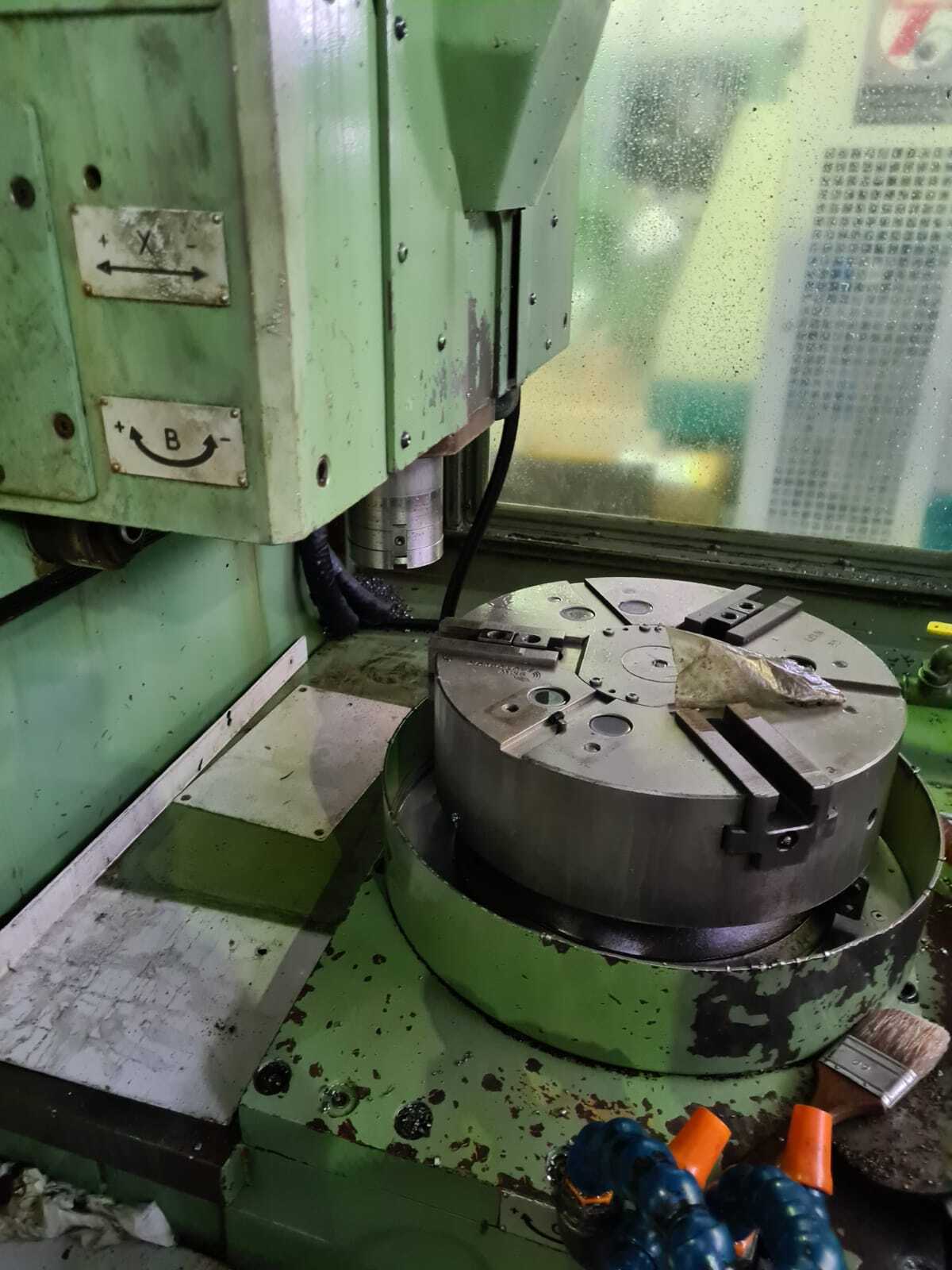

• Table diameter: 300 mm
• Opening in work table: 40 mm
• Maximum workpiece weight: 1,000 kg
• Total power requirement: 48 kW
• Overall dimensions: 3.8 x 2.5 x 2.6 m
• Machine weight: 11 t

Applications

• Spur and helical gears for gearboxes
• Internal gears
• Gear wheels for general engineering and machinery
• Small to medium production and toolroom gear cutting

Commercial Details

• Make: Pfauter
• Model: PSA 300 CNC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It cuts gear wheels up to 300 mm in diameter and 50 mm wide, to a maximum module of 6.
• What power does it need? The total power requirement is 48 kW.
• How big and heavy is the machine? It measures 3.8 x 2.5 x 2.6 m and weighs 11 t.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which cutters, fixtures and accessories are included, the condition of the CNC control and electrics, and how loading and shipping will be handled.
