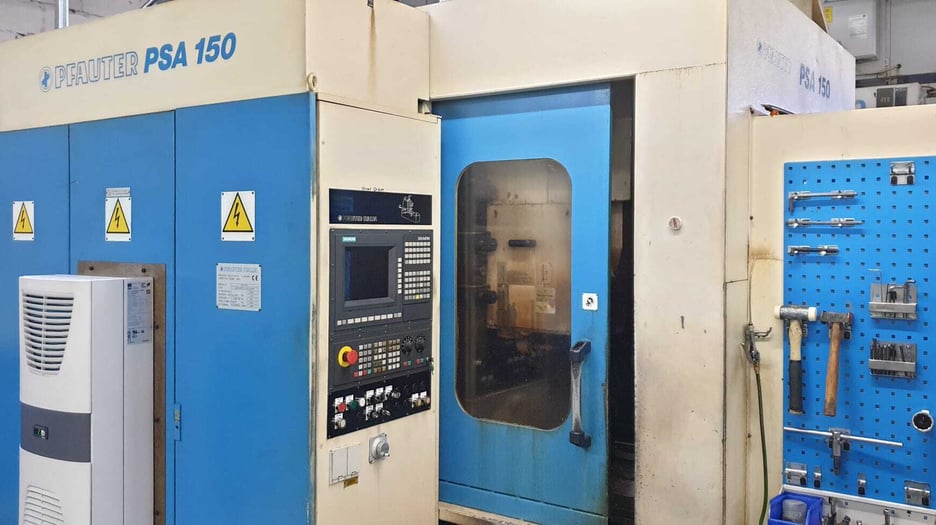

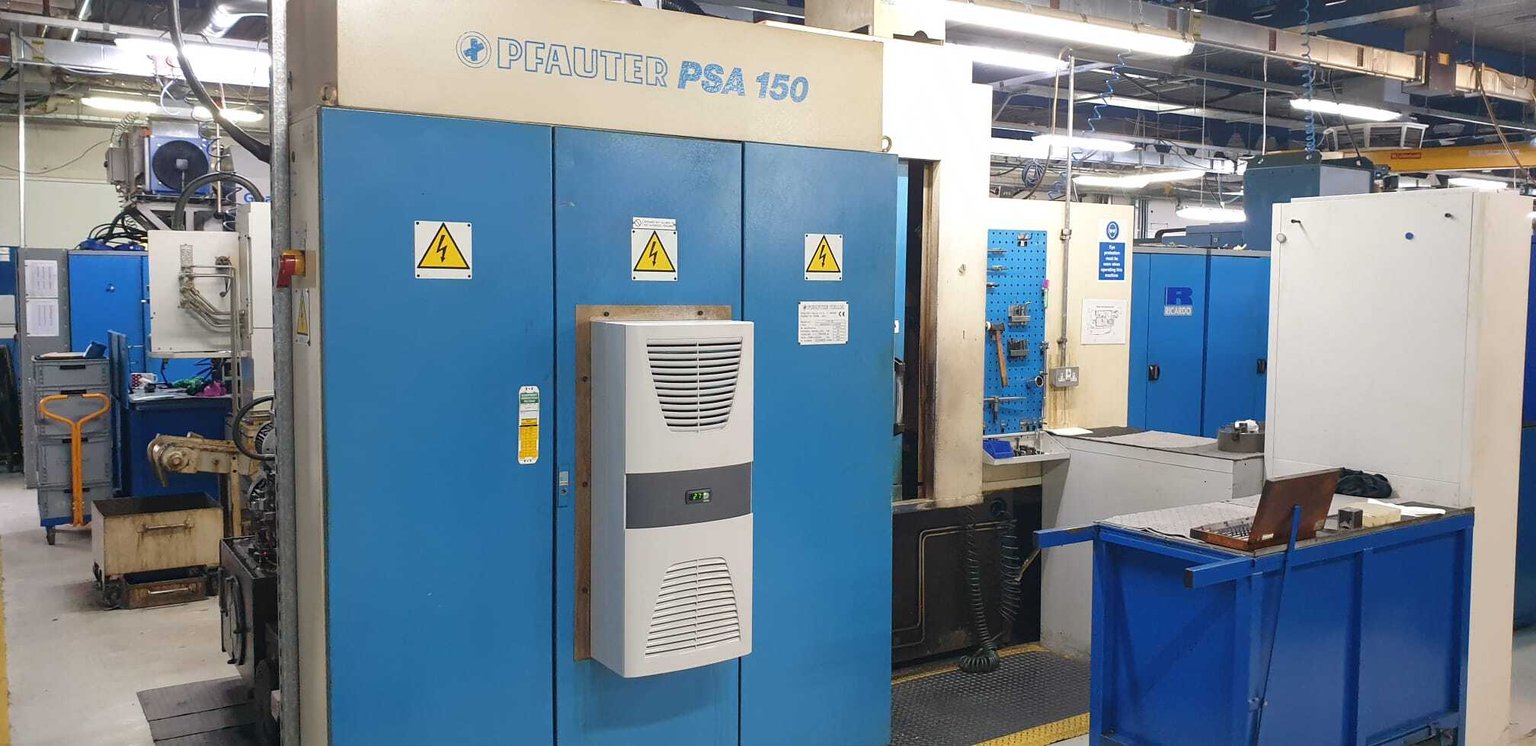

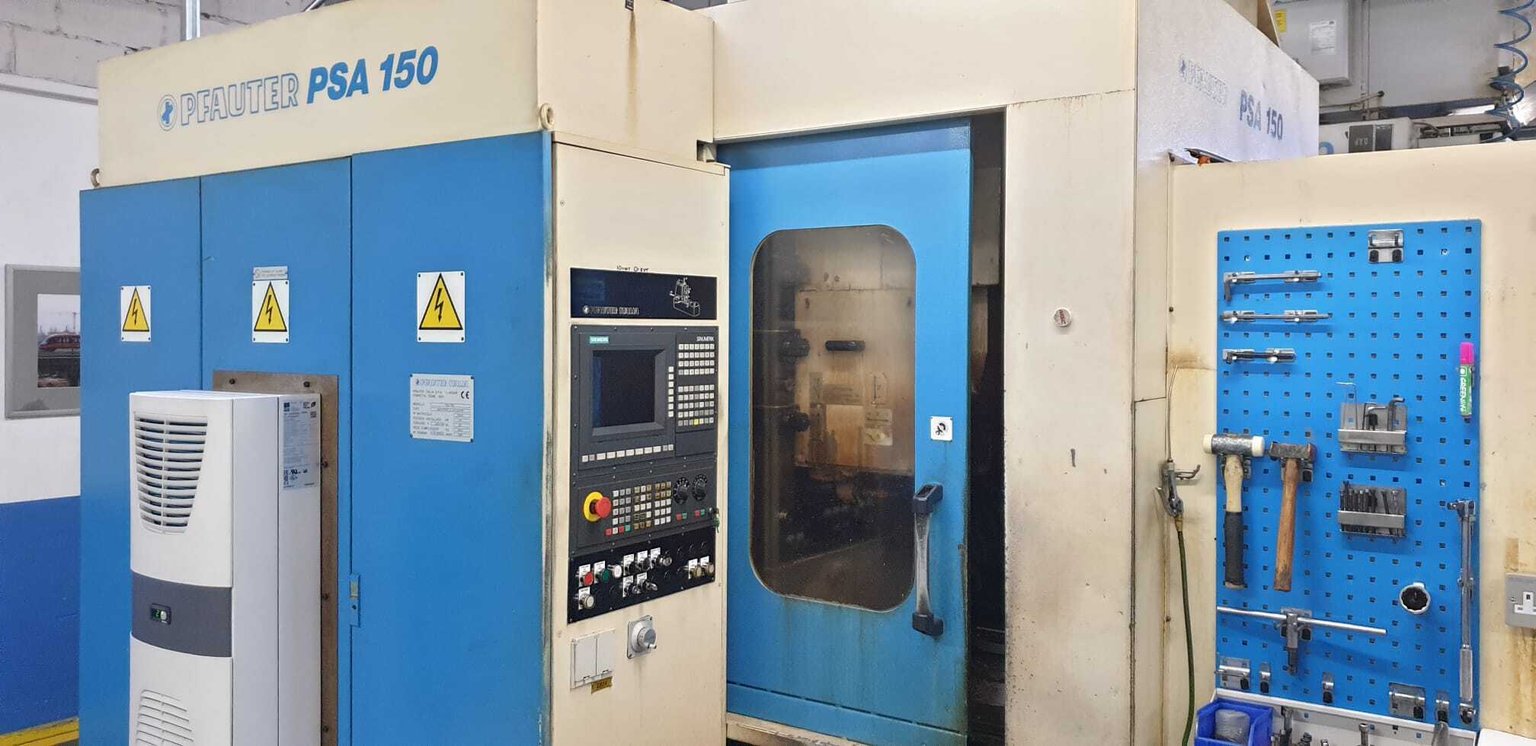

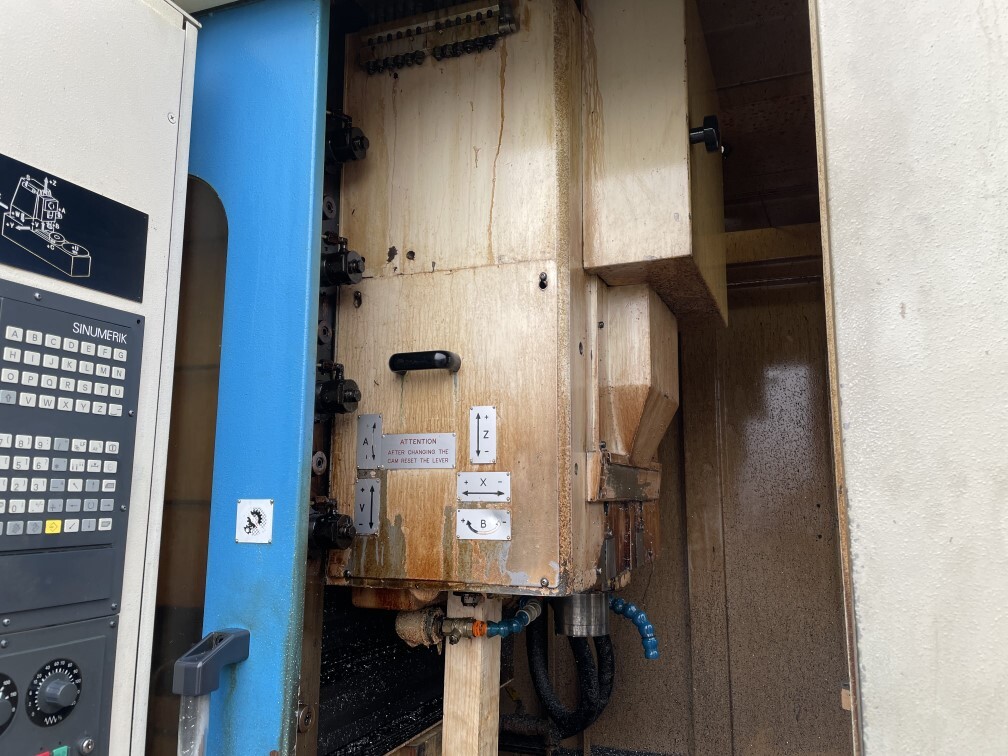

Used Pfauter PSA150 CNC Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

This used Pfauter PSA150 CNC gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts external and internal gear teeth using a reciprocating cutter.

It takes wheels up to 150 mm outside Ø, or internal-tooth workpieces up to approximately 300 mm, with a maximum wheel width of 50 mm. Stroke rate is stepless from 130 to 1,300 double strokes per minute, and the table carries up to 1,000 kg.

Key Features

• CNC-controlled axes, including the C-axis table
• Stepless stroke rate adjustment
• Push spindle mount
• Radial adjustment of the slotting carriage (X-axis) of 290 mm
• Stand side shift of 25 mm

Technical Specifications

• Model: Pfauter PSA150
• Max. wheel outside Ø (also internal toothing Ø): 150 mm
• Max. workpiece with internal teeth: approx. 300 mm
• Max. wheel width: 50 mm
• Module area: 4
• Axis distance, tool to workpiece: -50/+180 mm
• Stroke length (Z2 axis): 0–50 mm
• Axial stroke position adjustment / sliding carriage (Z-axis): 250 mm
• Number of strokes (stepless): 130–1,300 DH/min
• Throat, spindle centre to column guide, max.: 350 mm
• Installation height, table to butt head housing, max.: approx. 250/580 mm

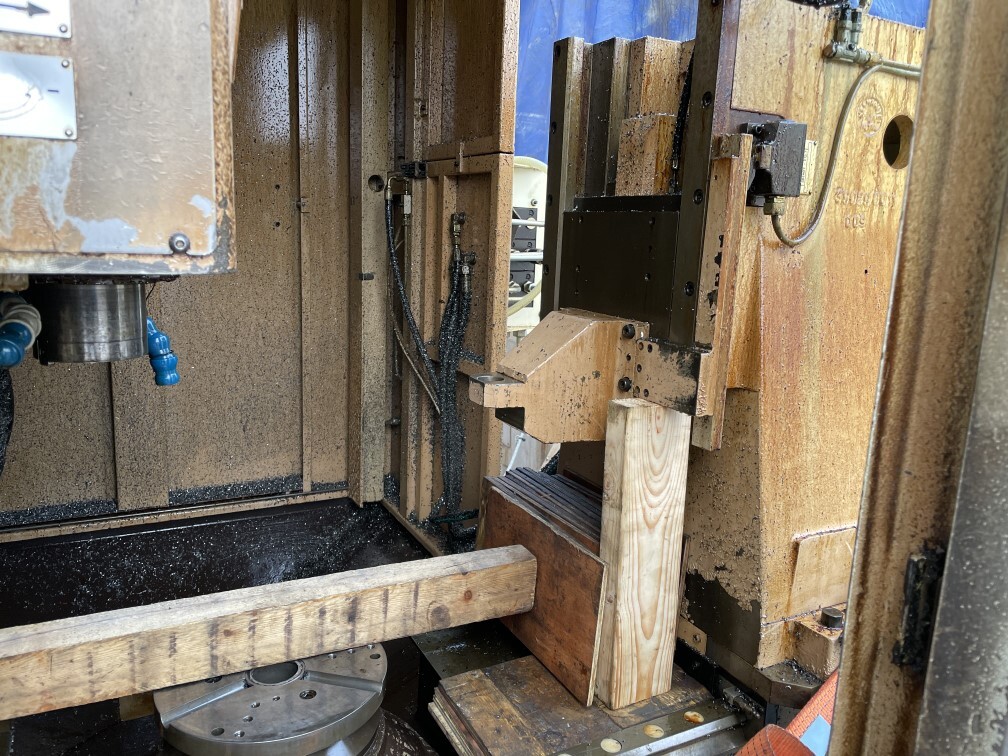

• Slotting carriage radial adjustment (X-axis): 290 mm
• Stand side shift: 25 mm

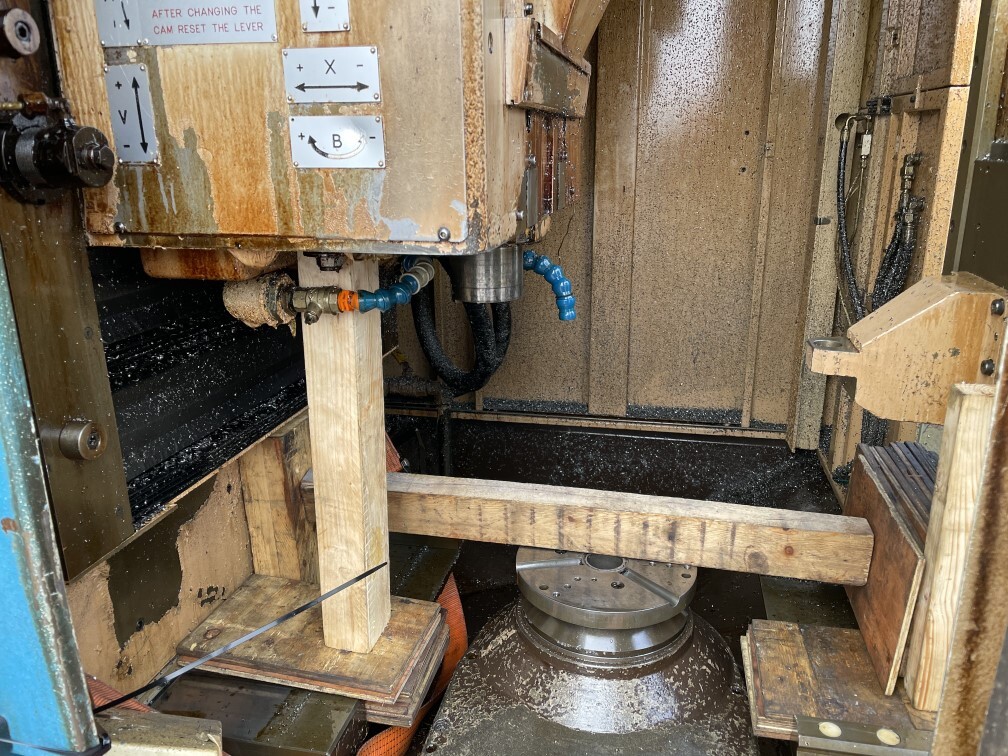

• Table size / table bore (C-axis): approx. 160 / 63 mm
• Max. table load: 1,000 kg
• Radial feed, machine column: 0.1–5,000 mm/min
• Rotation feed, tool or workpiece: 15 / 125 rpm
• Vertical feed, butting head slide (Z-axis): 1.0–2,500 mm/min

Applications

• Internal and external gears
• Small gear wheels up to 150 mm outside Ø
• Internal-toothed workpieces up to approximately 300 mm
• Gear components for general engineering and transmissions

Commercial Details

• Make: Pfauter
• Model: PSA150
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest wheel this machine can cut? It handles wheels up to 150 mm outside Ø and 50 mm wide, or workpieces with internal teeth up to approximately 300 mm.
• What is the stroke rate? Stroke rate is stepless from 130 to 1,300 double strokes per minute.
• How much can the table carry? The maximum table load is 1,000 kg.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the condition of the CNC control and electrics, and loading and shipping arrangements.
