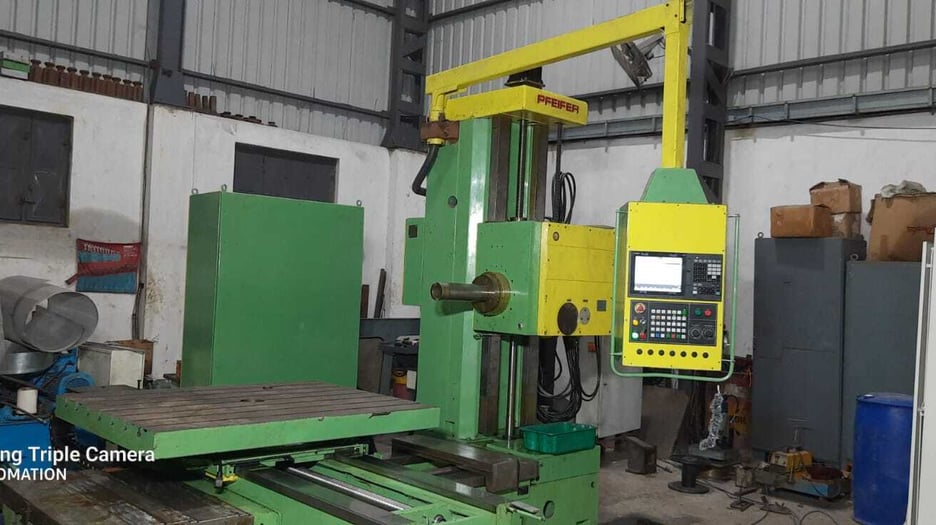

Used Pfeiffer 105 NC Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used Pfeiffer 105 NC boring machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a horizontal boring machine for machining bores and faces on large, heavy workpieces.

It has 1,600 mm of X travel and 1,000 mm each in Y and Z, with a Ø105 mm spindle in an ISO 50 mounting. The table takes workpieces up to 4,000 kg and is fitted with a Mitsubishi CNC control.

Key Features

• Mitsubishi CNC control
• Actual-value display for X, Y, Z and W axes
• Ball screws on X, Y, Z and W axes
• Hydraulic clamping
• Automatic central lubrication
• Liquid cooling device and oil cooling
• Electronic handwheel HR 250 and mechanical handwheel
• Fixators and ampere-meter

Technical Specifications

• Model: 105 NC
• X travel: 1,600 mm
• Y travel: 1,000 mm
• Z travel: 1,000 mm
• Spindle diameter: Ø105 mm
• Spindle mounting: ISO 50
• Quill stroke: 500 mm
• Spindle centre to clamping surface: 0–1,000 mm
• Maximum workpiece weight: 4,000 kg
• Slewing ring diameter: 830 mm
• Clamping surface: 1,000 x 1,200 mm
• Table height above floor: 875 mm
• Control: Mitsubishi CNC
• Outer dimensions: 4,830 x 3,040 x 2,700 mm
• Weight: 10,850 kg

Applications

• Boring large bores in heavy castings and fabrications
• Machining housings and gearbox casings
• Facing and milling large workpieces
• Machining parts for general engineering and heavy machinery

Commercial Details

• Make: Pfeiffer
• Model: 105 NC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the travel of this boring machine? It travels 1,600 mm in X and 1,000 mm in both Y and Z, with a 500 mm quill stroke.
• How heavy a workpiece can it take? The maximum workpiece weight is 4,000 kg on a 1,000 x 1,200 mm clamping surface.
• What control does it have? It has a Mitsubishi CNC control, with electronic and mechanical handwheels.
• What should I ask when enquiring? Ask for photos or video of the machine under power, an inspection report, the accessories and fixtures included, the condition of the control and electrics, and loading and shipping arrangements.
