Used Pinnacle AX 320 5 Axis Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

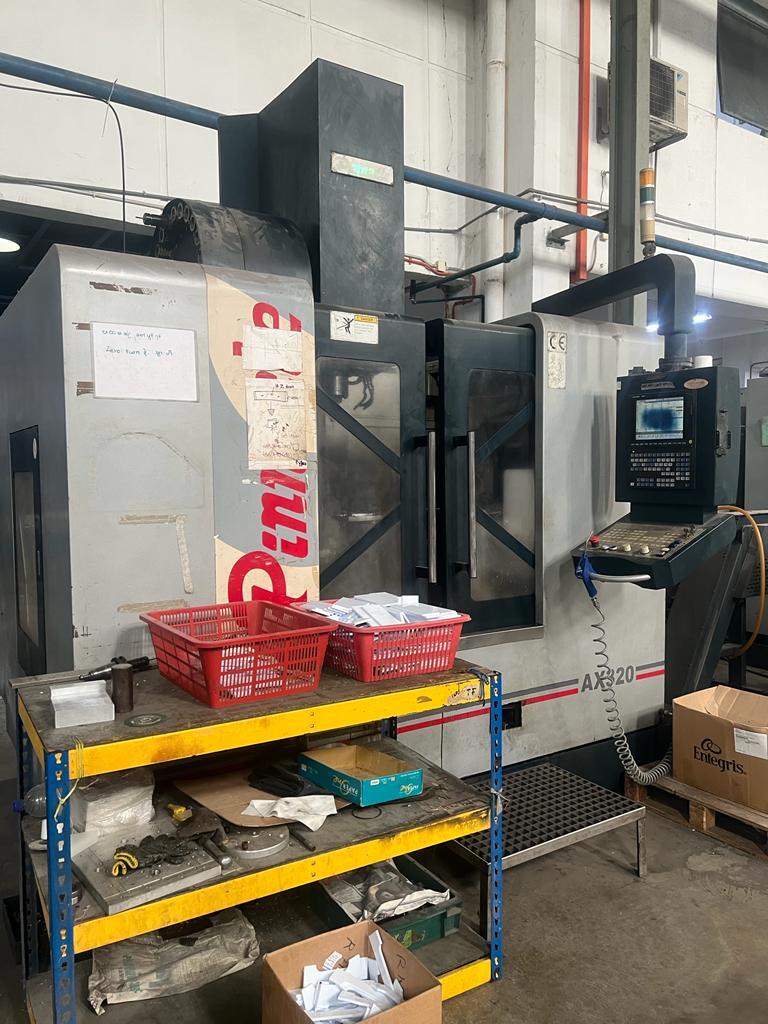

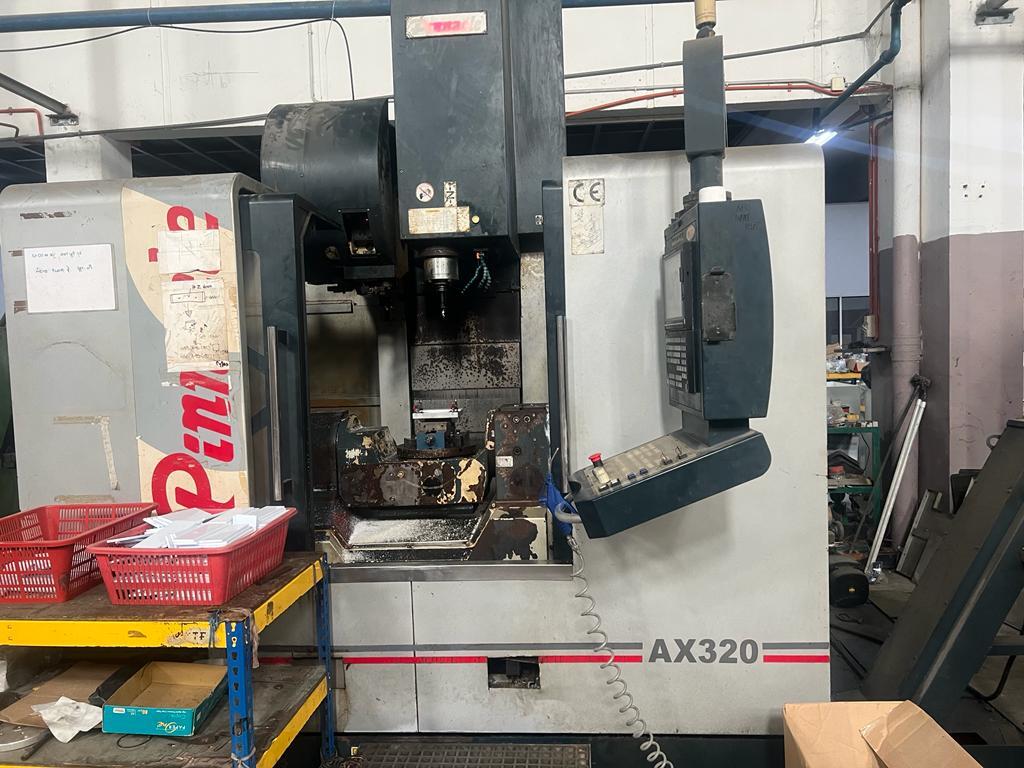

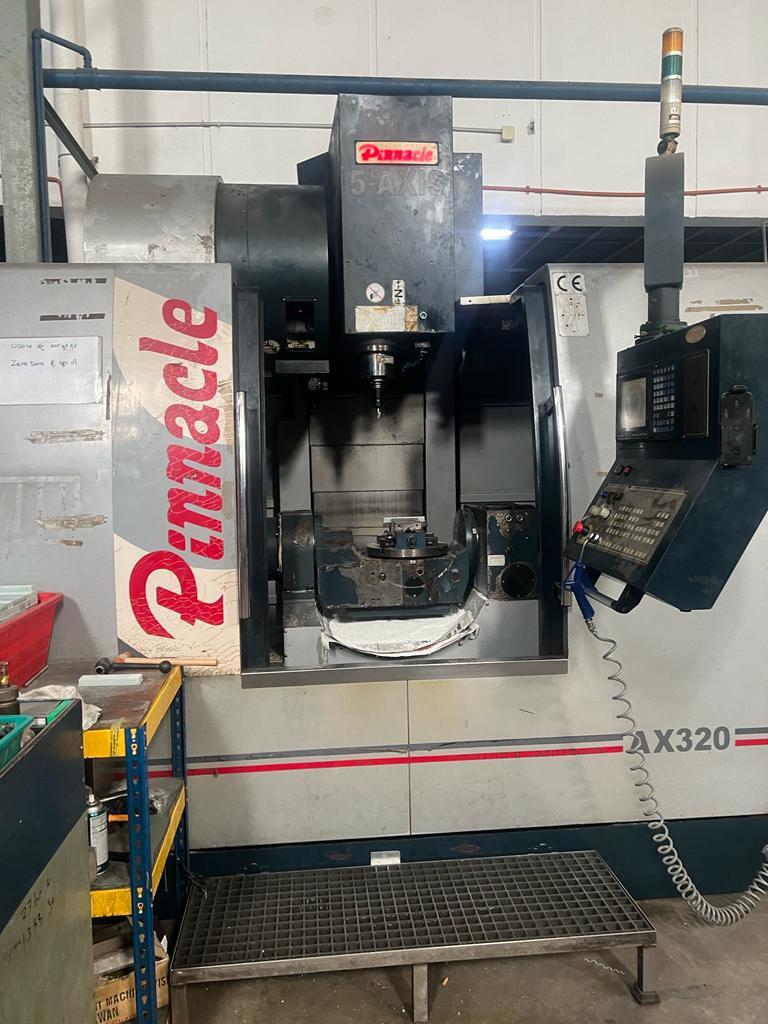

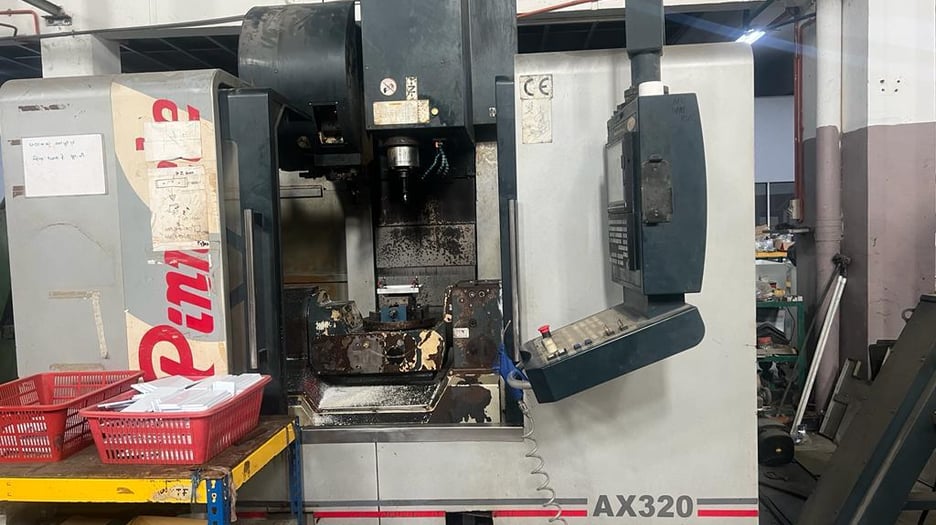

This used Pinnacle AX 320 5-axis CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It machines parts in a single setup using a tilting and rotating table alongside the three linear axes.

The AX 320 has a Ø320 mm table and travels of 660 x 610 x 610 mm. It uses an ISO40 spindle, offered in direct-drive and built-in versions, and a 24-tool automatic tool changer, with 30 or 40 tools as options.

Key Features

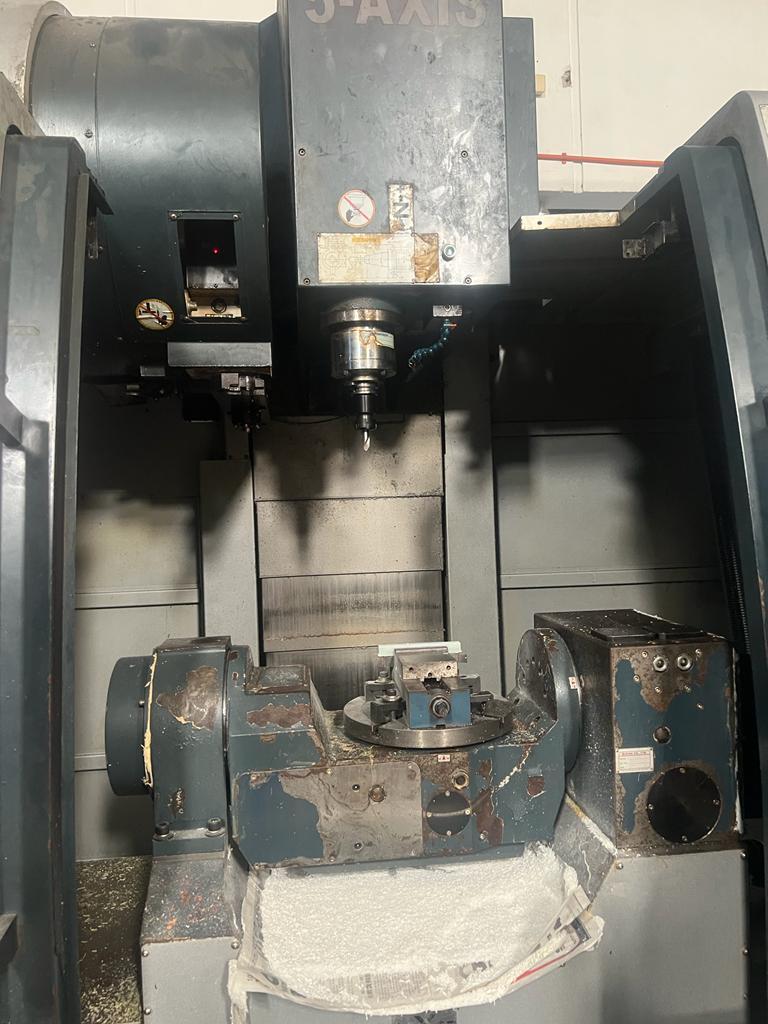

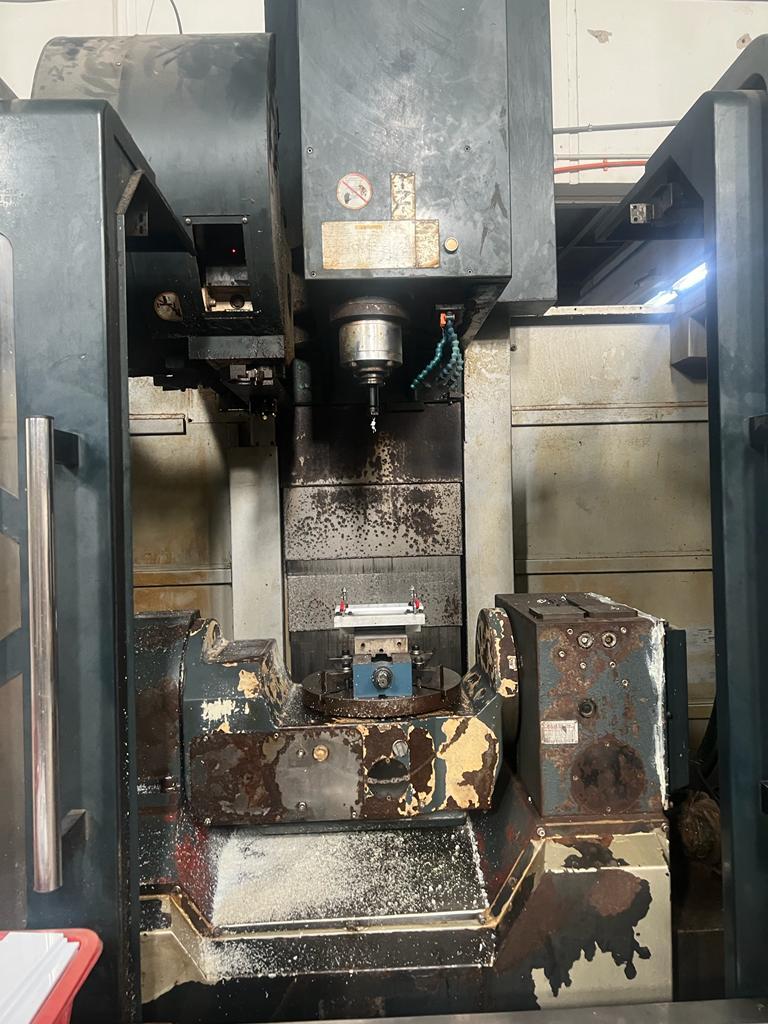

• Tilting A axis and rotary C axis for 5-axis machining
• Spindle offered in direct-drive and built-in versions
• Disc-type tool changer with arm-type cam and random bi-directional tool selection
• Tool magazine of 24 tools, with 30 or 40 tool options
• Table with 12 mm T-slots and a Ø50 mm centre hole

Technical Specifications

• Model: Pinnacle AX 320
• Table size: Ø320 mm
• Travels (X x Y x Z): 660 x 610 x 610 mm
• T-slot size: 12 mm, 90°
• Max. table load (0°/90°): 150/150
• Max. workpiece size: Ø420 x 300 mm
• Table hole diameter: Ø50 mm
• Spindle nose to table: 50–605 mm
• A axis tilt: 150° (-120°/+30°)
• C axis rotation: 360°
• Tool shank and pull stud: ISO40
• Spindle inner diameter: Ø70 mm
• Spindle speed, direct drive: 10,000 rpm (12,000/15,000 rpm options)
• Spindle speed, built-in: 18,000 rpm (20,000/24,000 rpm options)
• Main motor (continuous/30 min): 9/12 kW
• Rapid feed (X/Y/Z): 30/30/24 m/min
• Feed rate (X/Y/Z): 10 m/min
• Feed rate (A/C): 5.5/11.5 rev/min
• Axis rated torque (X/Y/Z): 10 Nm each
• Axis rated torque (A/C): 5/3.8 Nm
• Tool changer: Disc type for 24 or 30 tools (chain type for 40), arm cam, random selection
• Tool capacity: 24 (30, 40) tools
• Max. tool diameter: 90 (76) mm
• Max. tool length: 300 mm
• Max. tool weight: 8 kg
• Air requirement: 6 kg/cm²
• Hydraulic requirement: 40 kg/cm², 30 L
• Voltage: 380 V
• Power requirement: 40 kVA
• Coolant tank capacity: 300 L
• Machine weight: 6,500 kg
• Machine height: 2,900 mm
• Floor space (L x W): 2,660 x 2,230 mm
• Packing size (L x W x H): 2,660 x 2,230 x 2,560 mm

Applications

• Complex machined components needing several faces cut in one setup
• Mould and die parts with angled or contoured surfaces
• Aerospace and automotive prototype and production parts
• General precision engineering and toolroom work

Commercial Details

• Make: Pinnacle
• Model: AX 320
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the travel of the Pinnacle AX 320? The X, Y and Z travels are 660 x 610 x 610 mm, with a tilting A axis of 150° and a 360° rotary C axis.
• What spindle speeds are available? The direct-drive spindle runs at 10,000 rpm, with 12,000 and 15,000 rpm options, and the built-in spindle at 18,000 rpm, with 20,000 and 24,000 rpm options.
• How many tools does the tool changer hold? It holds 24 tools, with 30 and 40 tool options, up to 90 mm in diameter (76 mm for the larger magazines), 300 mm long and 8 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which spindle and tool magazine are fitted, the control and electrics, any tooling and accessories included, and loading and shipping arrangements.
