Used Pinnacle LV 105 Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

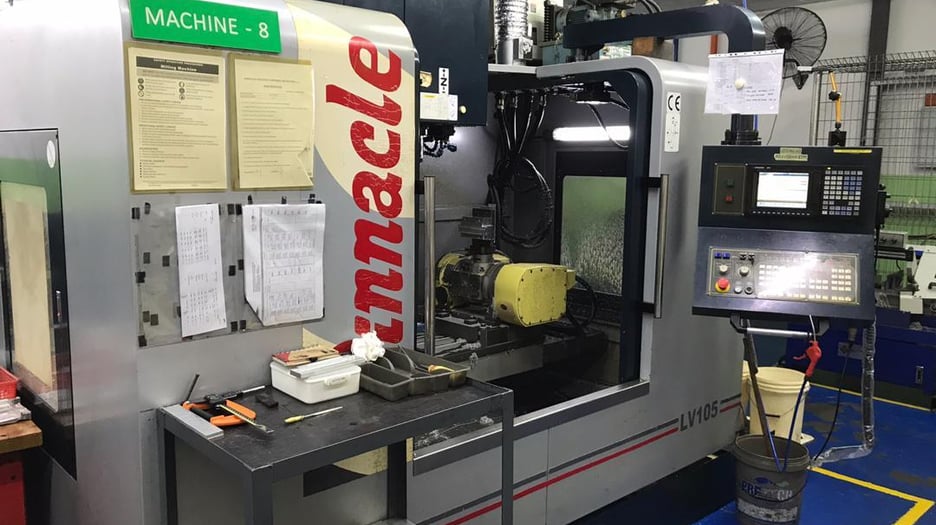

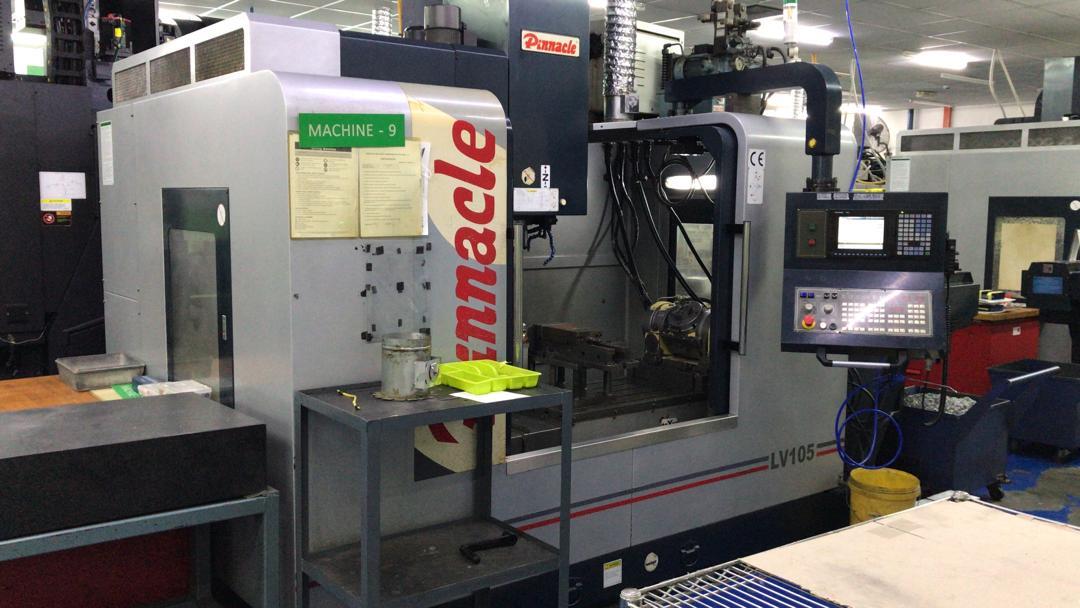

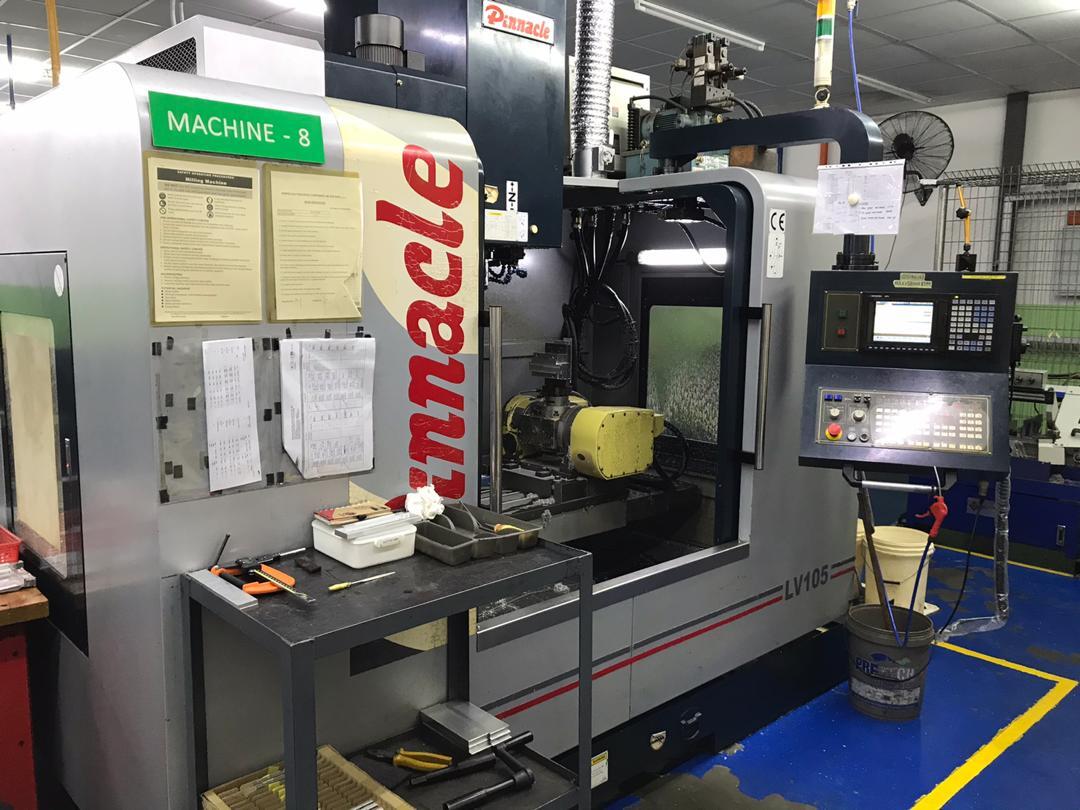

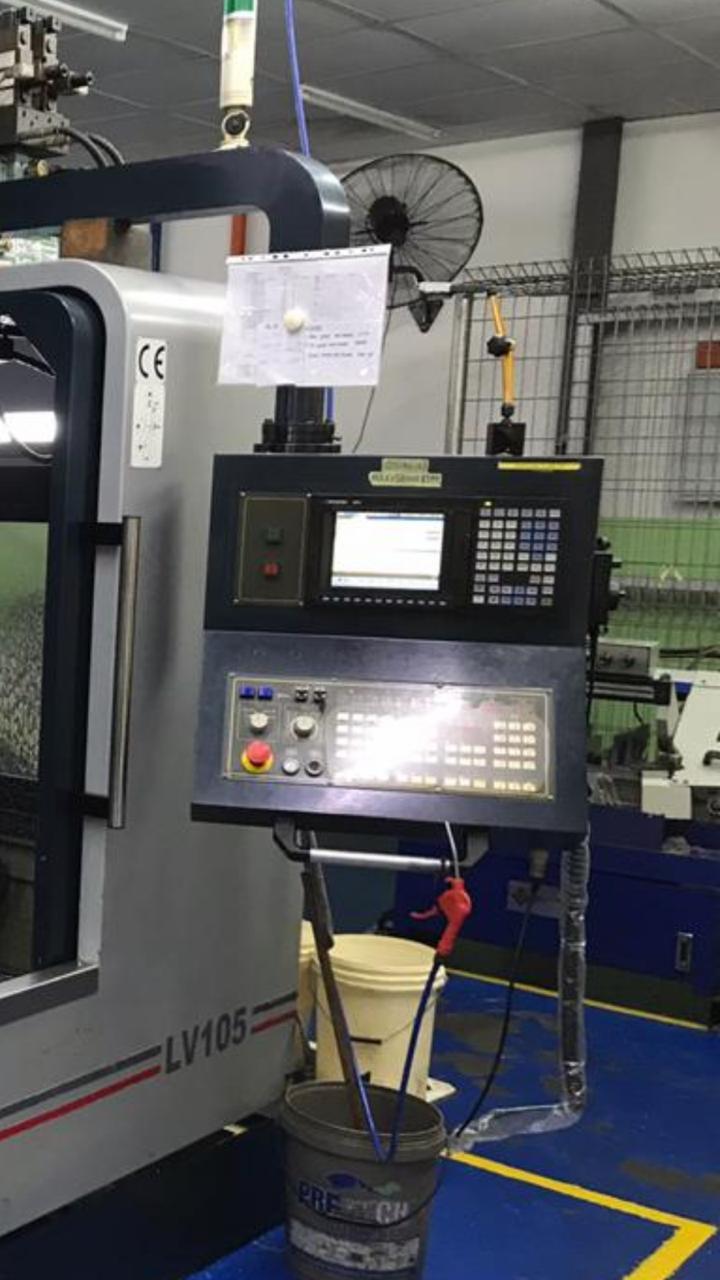

This used Pinnacle LV 105 vertical machining center is available from A.K. Machine Traders in Navi Mumbai, India. It is a 2011-built machine that cuts and drills parts held on its table, with the tool moving in X, Y and Z.

It has a 1,200 x 510 mm table that takes up to 600 kg, and travels of 1,020 x 560 x 560 mm. The ISO40 spindle is offered in belt, gear and direct-drive versions, and a 24-tool disc changer is fitted. The listing title also refers to a 4+1 Triunion axis.

Key Features

• Disc-type automatic tool changer with dual-arm cam and random bi-directional tool selection
• Mitsubishi HF354 servo motors on the X, Y and Z axes
• Spindle offered in belt, gear and direct-drive versions
• Draw bar force of 700 kgf
• 200 L coolant tank

Technical Specifications

• Model: Pinnacle LV 105
• Year of manufacture: 2011
• Table size: 1,200 x 510 mm
• Travel (X x Y x Z): 1,020 x 560 x 560 mm
• Max. table load: 600 kg
• Spindle nose to table: 100–660 mm
• T-slots (width x pitch x number): 18 x 100 x 5 mm
• Tool shank and pull stud: ISO40
• Spindle inner diameter: Ø60 mm
• Spindle centre to column: 620 mm
• Spindle speed, belt drive: 60–8,000 rpm (10,000 / 12,000 rpm options)
• Spindle speed, gear drive: Low 40–2,000 rpm; high 2,001–8,000 rpm
• Spindle speed, direct drive: 10,000 / 12,000 / 15,000 rpm
• Draw bar force: 700 kgf
• Main motor (continuous / 30 min): 7.5 / 11 kW
• Rapid feed rate (X/Y/Z): 36 / 36 / 24 m/min
• Feed rate (X/Y/Z): 10,000 mm/min
• Axis servo motors: Mitsubishi HF354, 3.5 kW (X/Y/Z)
• Tool changer: Disc type, dual-arm cam, random selection
• Tool storage capacity: 24 tools
• Max. tool diameter: Ø90 mm
• Max. tool length: 250 mm
• Air requirement: 6 kg/cm²
• Voltage: 220 V
• Power requirement: 25 kVA
• Coolant tank capacity: 200 L
• Machine weight: 5,700 kg
• Machine height: 2,750 mm
• Floor space (L x W): 2,820 x 2,230 mm
• Packing size (L x W x H): 2,900 x 2,230 x 2,450 mm

Applications

• Milling and drilling of machined components
• Mould and die work
• General engineering and job-shop parts
• Production of prismatic parts from metal blocks

Commercial Details

• Make: Pinnacle
• Model: LV 105
• Year: 2011
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and load capacity? The table measures 1,200 x 510 mm and carries up to 600 kg.
• How many tools does the changer hold? The disc-type changer holds 24 tools, up to Ø90 mm in diameter and 250 mm in length.
• What spindle speeds are available? Belt drive runs 60–8,000 rpm with 10,000 and 12,000 rpm options, gear drive covers 40–8,000 rpm, and direct drive is offered at 10,000, 12,000 or 15,000 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, the spindle version fitted, whether the 4th-axis unit is included, which tooling and accessories come with it, the control and electrical condition, and loading and shipping arrangements.
