Used Pinnacle LV 85 Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

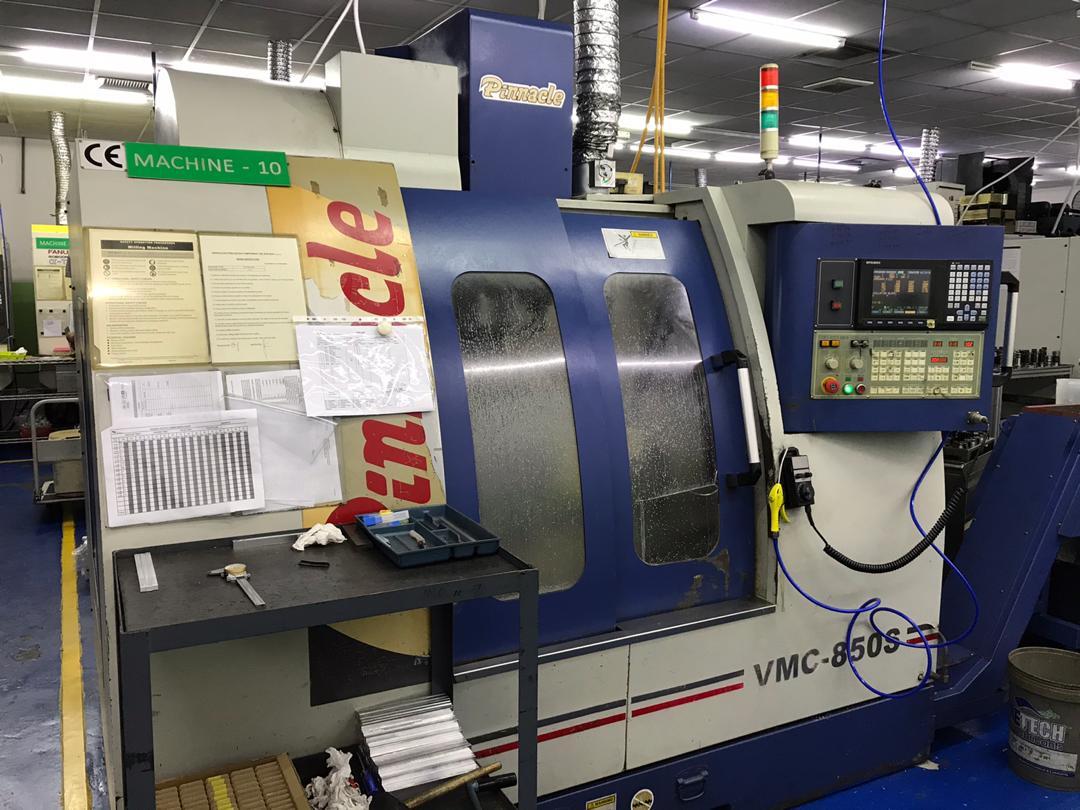

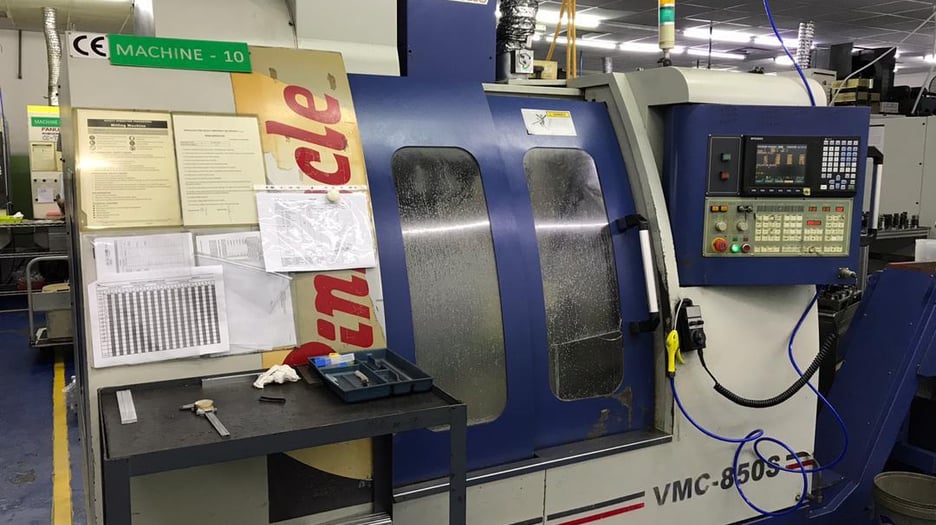

This used Pinnacle LV 85 vertical machining centre with 4th axis is available from A.K. Machine Traders in Navi Mumbai, India. It is a vertical machining centre, which cuts parts from solid material using a rotating tool held in a vertical spindle.

It has travels of 850 x 560 x 560 mm on linear ways in all three axes, a 1,000 x 510 mm table that carries up to 600 kg, and an ISO40 spindle. The tool magazine holds 20 tools, with 24 shown as an option.

Key Features

• Linear ways on the X, Y and Z axes
• ISO40 tool shank and pull stud
• Belt, gear and direct-drive spindle options
• Mitsubishi axis motors, HF354 3.5 kW
• 200 L coolant tank

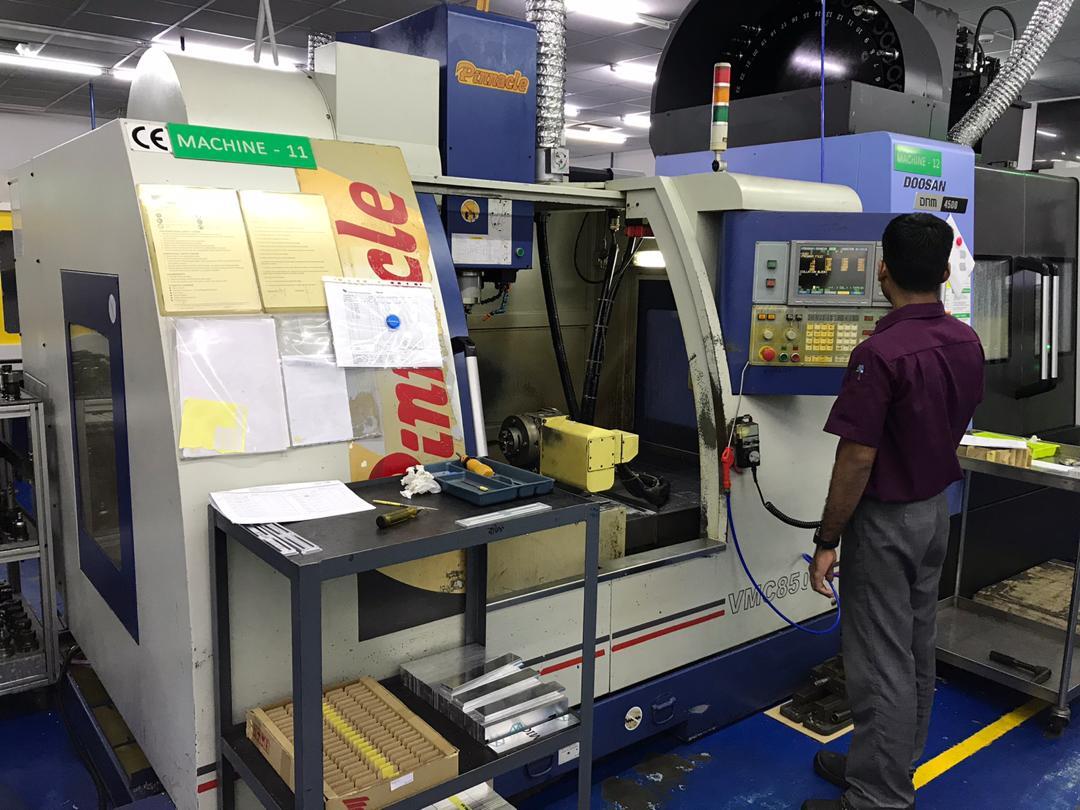

• 4th axis included, as shown in the listing title

Technical Specifications

• Model: Pinnacle LV 85
• Table size: 1,000 x 510 mm
• Travels (X x Y x Z): 850 x 560 x 560 mm
• Maximum table load: 600 kg
• Spindle nose to table: 100–660 mm
• Spindle centre to column: 620 mm
• T-slots (width x pitch x number): 18 x 100 x 5 mm
• Spindle taper: ISO40
• Spindle motor: 10 HP
• Main motor (continuous / 30 min): 5.5 / 7.5 kW
• Spindle speed, belt: 60–8,000 rpm
• Spindle speed, gear: L 40–2,000 rpm, H 2,001–8,000 rpm
• Spindle speed, direct drive: 10,000 (12,000) rpm
• Draw bar force: 700 kgf
• Rapid feed rate (X/Y/Z): 36 / 36 / 24 m/min
• Cutting feed rate: 10,000 mm/min
• Axis motors: Mitsubishi HF354, 3.5 kW
• Tool storage: 20 / 20 (24) tools
• Power requirement: 20 kVA
• Voltage: 220 V
• Coolant tank capacity: 200 L
• Machine height: 2,750 mm
• Floor space (L x W): 2,600 x 2,230 mm
• Machine weight: 5,500 kg

Applications

• Machining of moulds, dies and fixtures
• Milling and drilling of engineering components
• Toolroom and general job-shop work
• Production of small to medium metal parts

Commercial Details

• Make: Pinnacle
• Model: LV 85
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the work area of the Pinnacle LV 85? Travels are 850 x 560 x 560 mm on a 1,000 x 510 mm table that takes up to 600 kg.
• How many tools does it hold? The magazine holds 20 tools, with 24 shown as an option.
• What spindle speeds are available? Belt drive runs 60–8,000 rpm, gear drive up to 8,000 rpm, and direct drive 10,000 (12,000) rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm the 4th axis unit, its controller and any tooling or accessories included, the control type and electrics (220 V, 20 kVA), and loading and shipping arrangements for a 5,500 kg machine.
