Used Pinnacle QV117 CNC Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

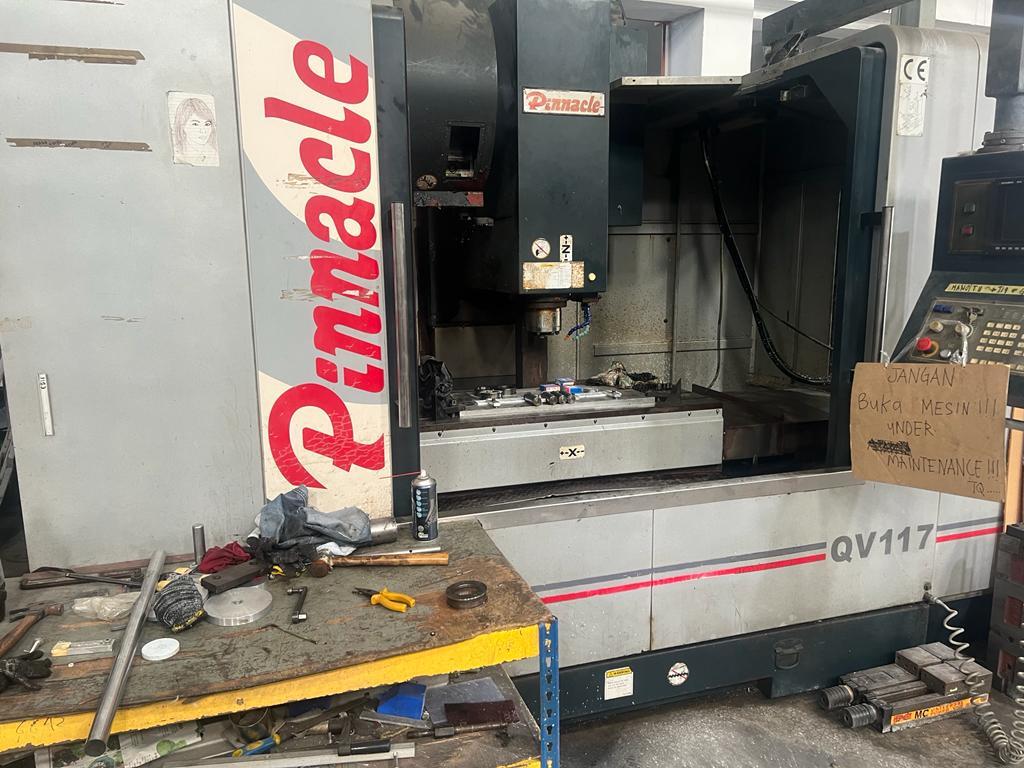

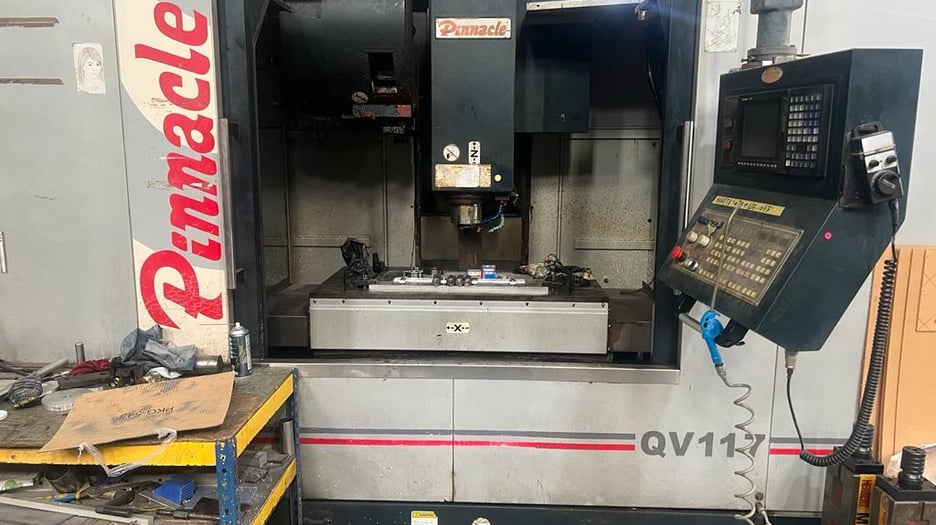

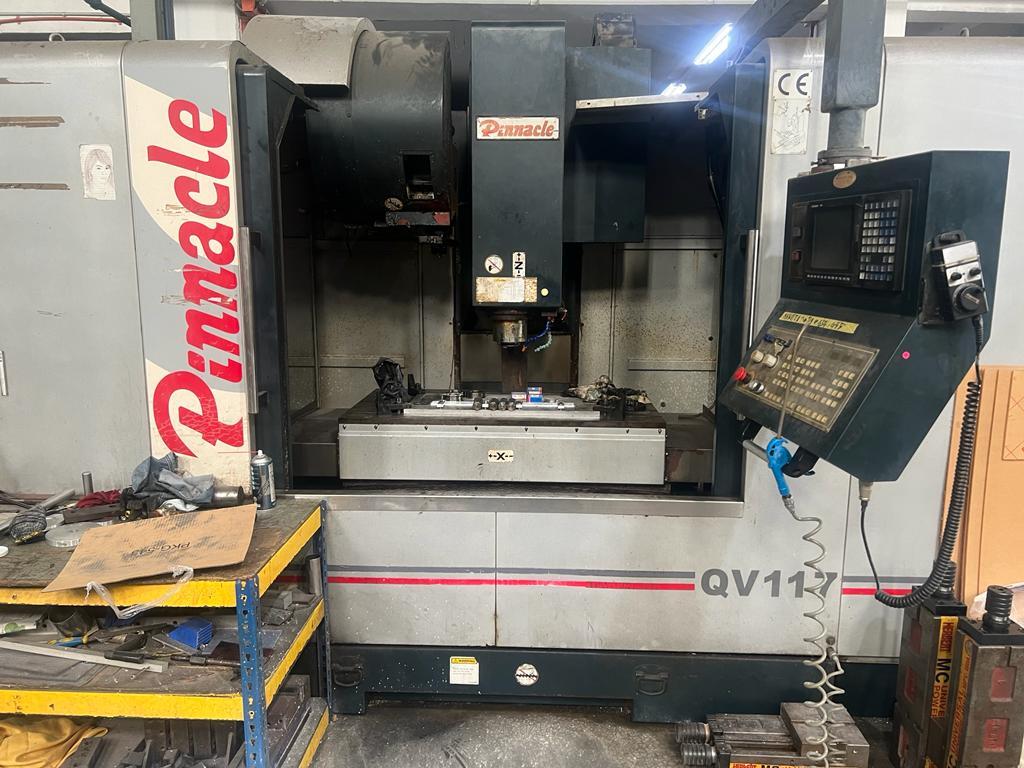

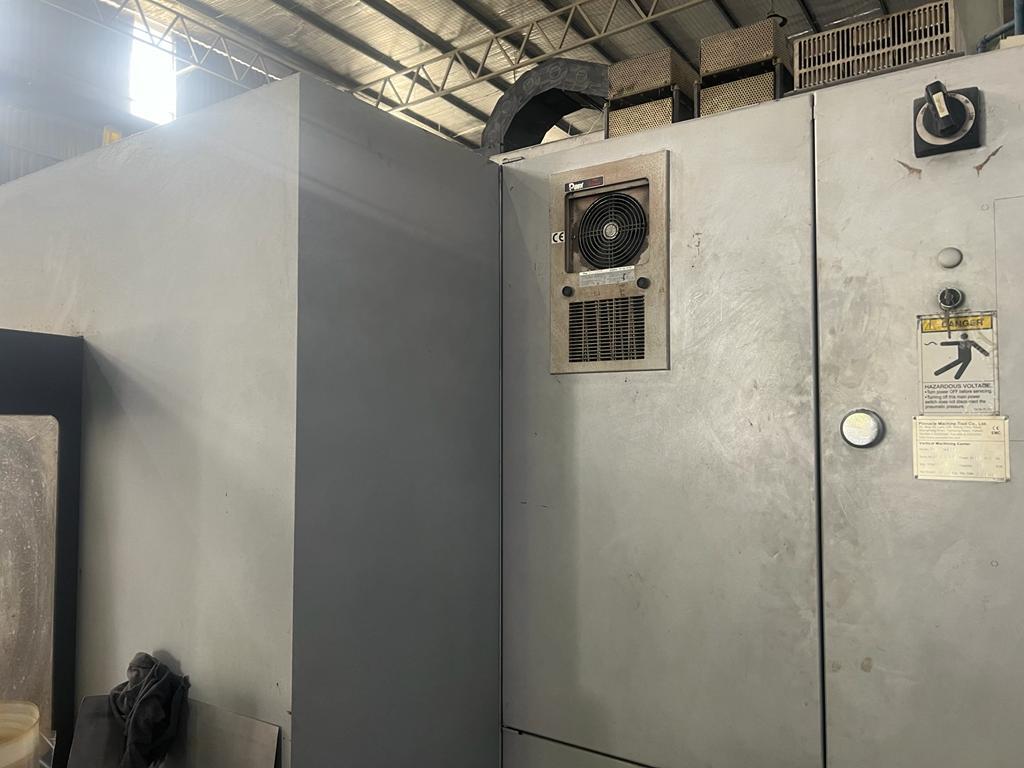

This used Pinnacle QV117 CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC machine that cuts metal parts with rotating tools on a vertical spindle.

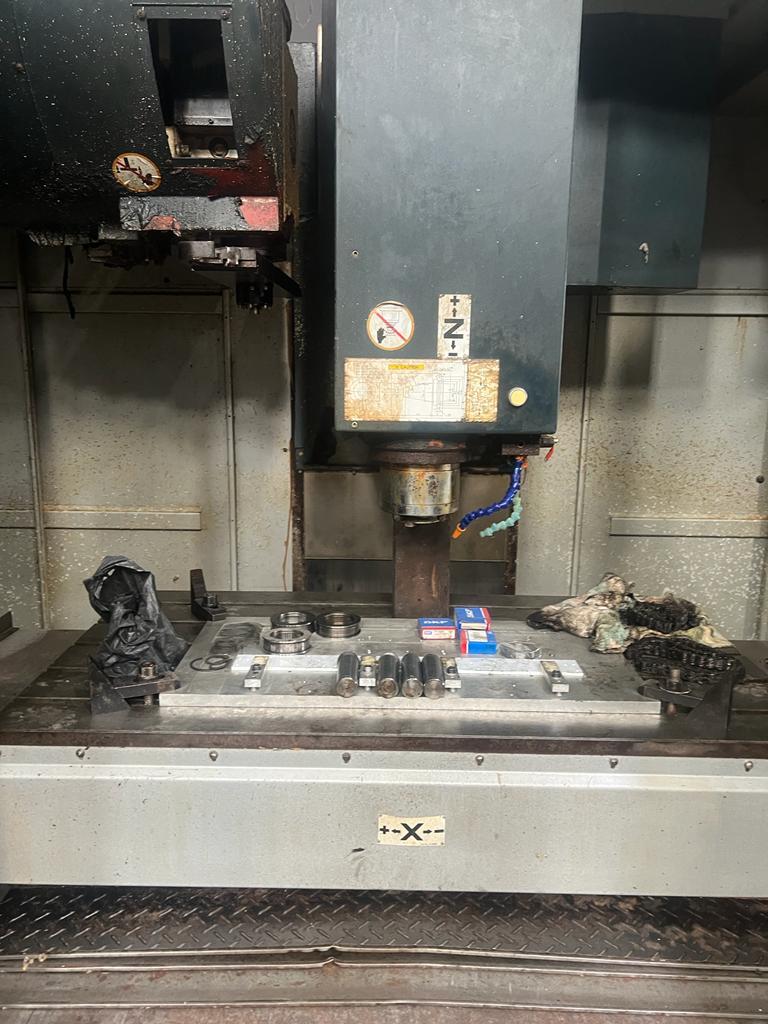

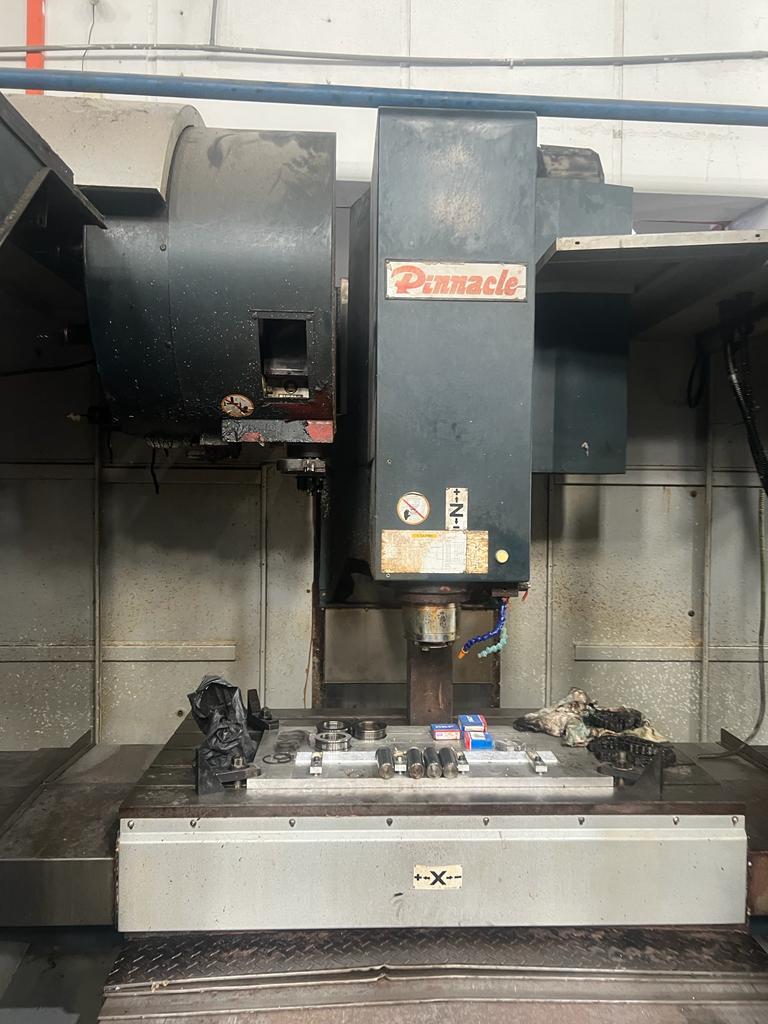

It has a 1,300 x 700 mm table carrying up to 1,000 kg, with X/Y/Z travels of 1,140 / 710 / 610 mm. The ISO40 spindle is offered in belt, gear and direct-drive versions, and a 24-tool disc magazine is fitted.

Key Features

• Disc-type automatic tool changer with dual-arm cam and random bi-directional tool selection
• Spindle drive offered as belt, gear or direct-drive

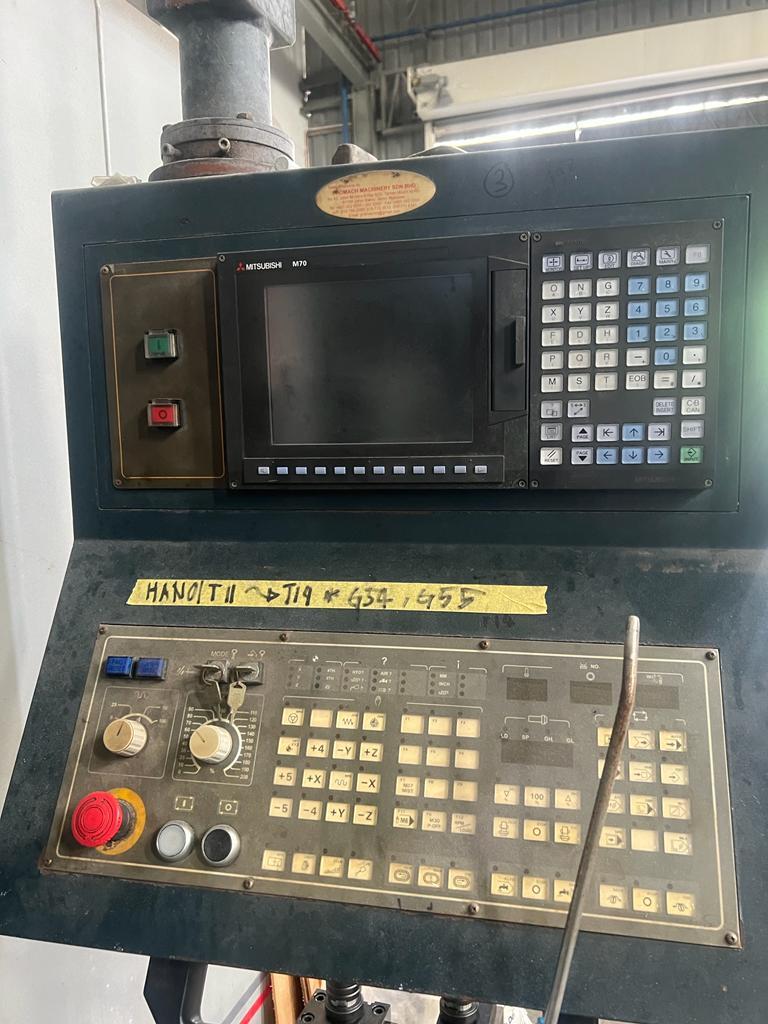

• Axis servo motors listed for Mitsubishi, Fanuc, Siemens, Fagor and Heidenhain systems
• Five T-slots in the table for workholding

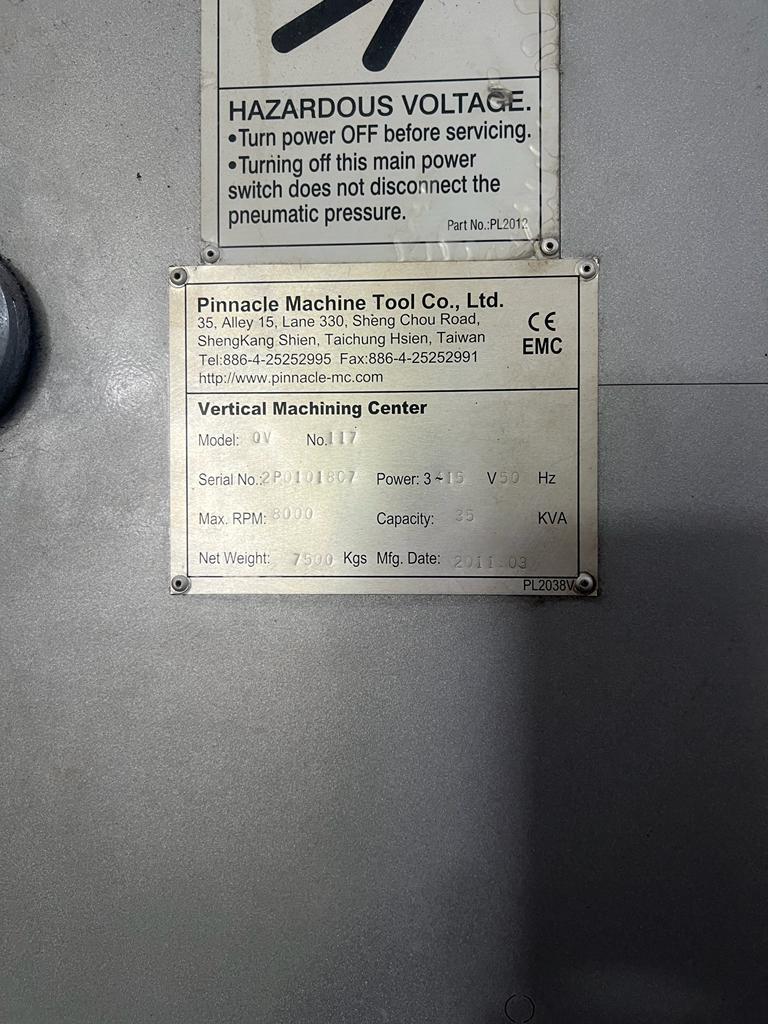

Technical Specifications

• Model: QV117
• Table size: 1,300 x 700 mm
• Travel X / Y / Z: 1,140 / 710 / 610 mm
• Maximum table load: 1,000 kg
• Spindle nose to table: 110–720 mm
• T-slots (width x pitch x number): 18 x 125 x 5 mm
• Tool shank and pull stud: ISO40
• Spindle bore: Ø70 mm
• Spindle centre to column: 760 mm
• Spindle speed, belt drive: 40–8,000 rpm (10,000 / 12,000 rpm options)
• Spindle speed, gear drive: Low 40–1,750 rpm; high 1,751–8,000 rpm
• Spindle speed, direct drive: 10,000 / 12,000 / 15,000 rpm
• Draw bar force: 950 kgf
• Main motor (continuous / 30 min): 7.5 / 11 kW
• Rapid feed X / Y / Z: 20 / 20 / 16 m/min
• Cutting feed rate: 10,000 mm/min
• Tool magazine: 24 tools, disc type
• Maximum tool diameter: Ø90 mm
• Maximum tool length / weight: 250 mm / 8 kg
• Air requirement: 6 kg/cm²
• Voltage: 220 V, 3-phase, 50 / 60 Hz
• Power requirement: 30 kVA
• Coolant tank capacity: 350 L
• Machine weight: 9,000 kg
• Machine height: 3,000 mm
• Floor space (L x W): 3,250 x 3,235 mm

Applications

• Machining of moulds and dies
• General metal part production
• Machine components and housings
• Prototype and job-shop milling, drilling and tapping work

Commercial Details

• Make: Pinnacle
• Model: QV117
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and travel? The table measures 1,300 x 700 mm and the X/Y/Z travels are 1,140 / 710 / 610 mm.
• What spindle speeds are available? Belt drive runs 40–8,000 rpm with 10,000 / 12,000 rpm options, gear drive covers 40–8,000 rpm in two ranges, and direct drive is offered at 10,000 / 12,000 / 15,000 rpm.
• How many tools does the changer hold? The disc magazine holds 24 ISO40 tools, up to Ø90 mm diameter, 250 mm long and 8 kg each.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, which spindle drive and CNC control are fitted, whether an inspection is possible, what tooling and accessories are included, and the loading and shipping arrangements for a 9,000 kg machine.
