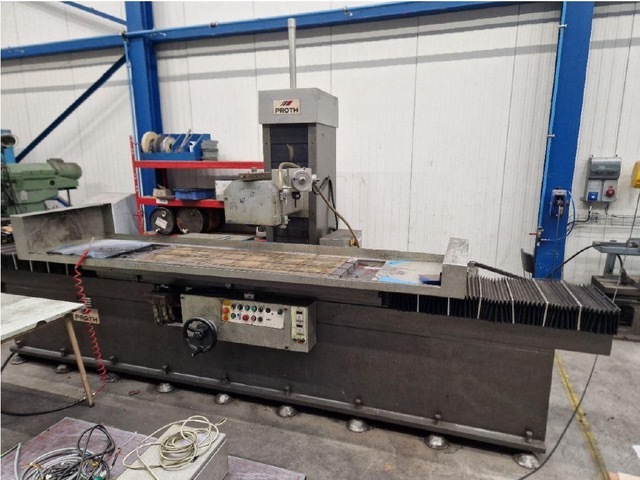

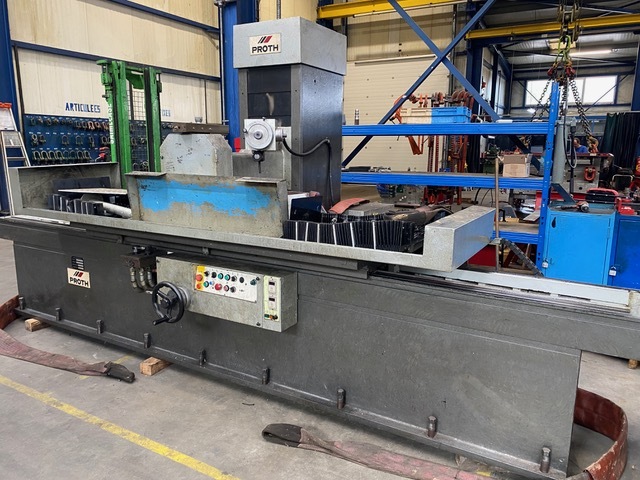

Used Proth PSGC 60150 AHR Surface Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Proth PSGC 60150 AHR surface grinder is available from A.K. Machine Traders in Navi Mumbai, India. A surface grinder produces flat, finely finished surfaces on workpieces.

It has a 1,500 x 600 mm grinding surface with a matching electromagnetic plate, and travels of 1,650 mm longitudinally and 660 mm transversely. The spindle is driven by a 7.5 kW motor, with wheel speeds of 1,500 or 1,800 rpm.

Key Features

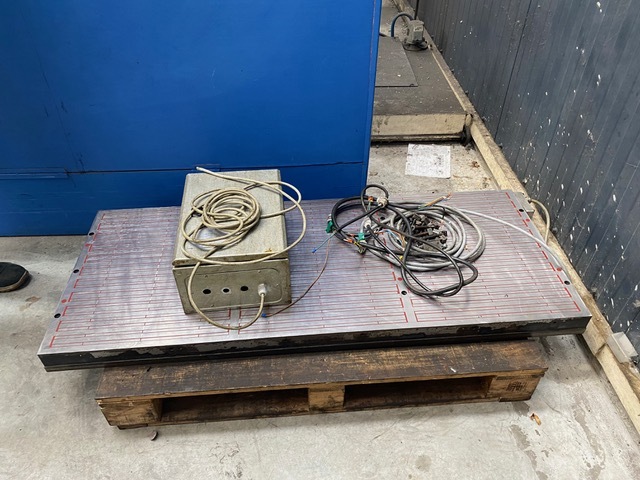

• Electromagnetic plate holds workpieces on the table

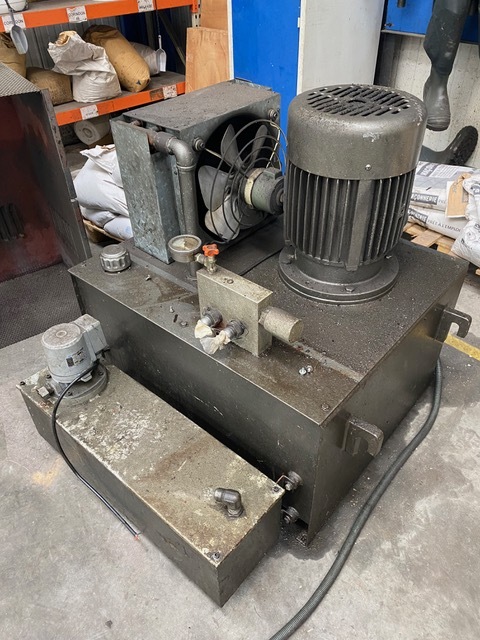

• Hydraulic drive powered by a 3.7 kW motor
• Fast traverse on the X, Y and Z axes
• Two selectable grinding wheel speeds

Technical Specifications

• Model: Proth PSGC 60150 AHR
• Grinding surface: 1,500 x 600 mm

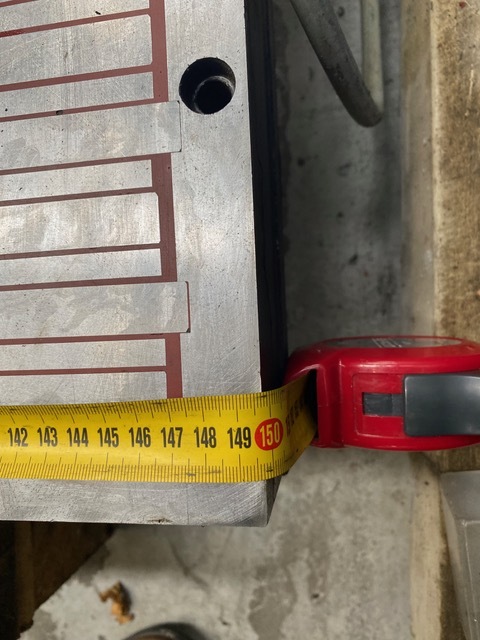

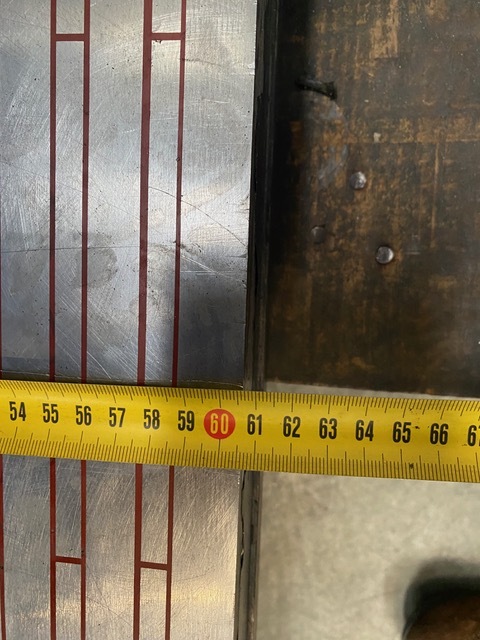

• Electromagnetic plate: 1,500 x 600 mm
• Longitudinal stroke: 1,650 mm
• Transverse stroke: 660 mm
• Travels: 1,650 x 660 mm
• Fast traverse (X, Y, Z): 2,000 mm/min
• Grinding wheel speed: 1,500 / 1,800 rpm
• Spindle motor power: 7.5 kW
• Hydraulic motor power: 3.7 kW

Applications

• Grinding flat surfaces on large steel parts
• Finishing tool and die plates
• Machining machine-tool components and bases
• General toolroom and workshop surface grinding

Commercial Details

• Make: Proth
• Model: PSGC 60150 AHR
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the grinding area of this machine? The grinding surface and electromagnetic plate are both 1,500 x 600 mm.
• What are the axis travels? Longitudinal travel is 1,650 mm and transverse travel is 660 mm.
• How powerful is the spindle? The spindle motor is 7.5 kW, with wheel speeds of 1,500 or 1,800 rpm.
• What should I ask when enquiring? Ask for photos or video of the grinder running, whether an inspection is possible, which wheels, flanges and accessories are included, the condition of the magnetic plate, control and electrics details, and loading and shipping arrangements.
