Used Quaser MK 60 II S CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

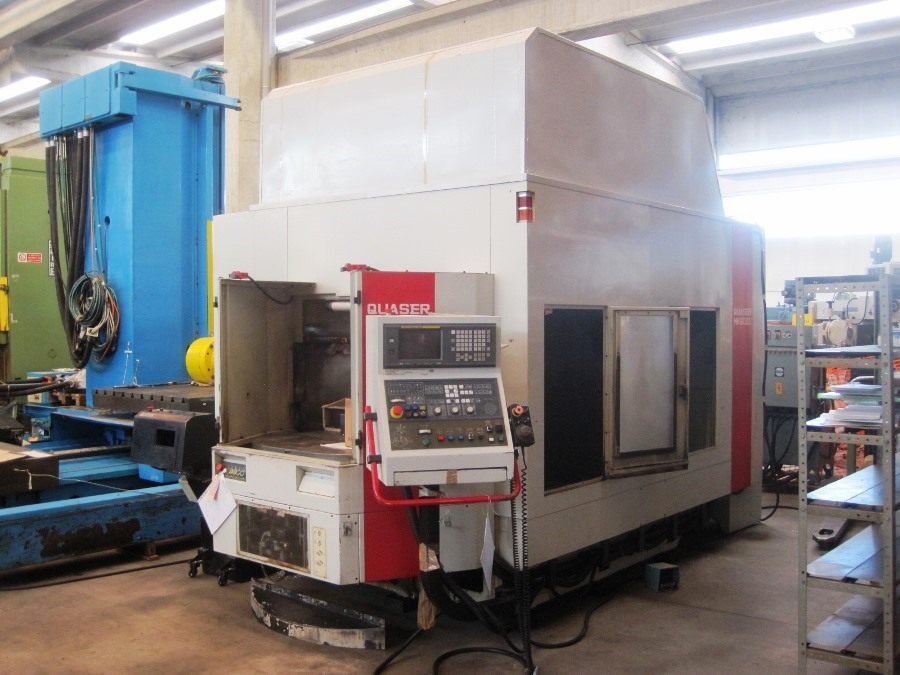

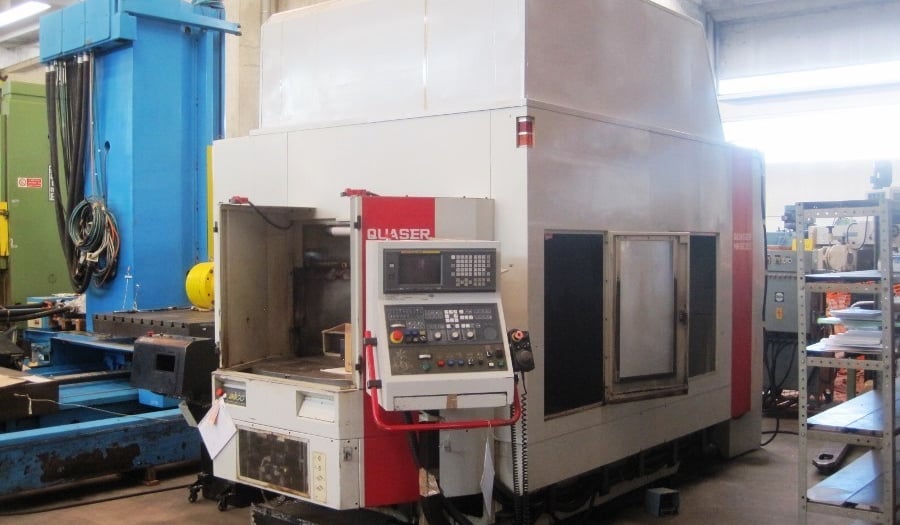

This used Quaser MK 60 II S CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining centre cuts metal parts with a rotating tool held in a vertical spindle.

It has travels of 1,020 mm (X), 610 mm (Y) and 560 mm (Z) and two swing tables, each 1,050 x 550 mm and rated for 300 kg. The spindle runs to 10,000 min-1 with 192 N.m maximum torque, and the tool magazine holds 40 tools (60 optional).

Key Features

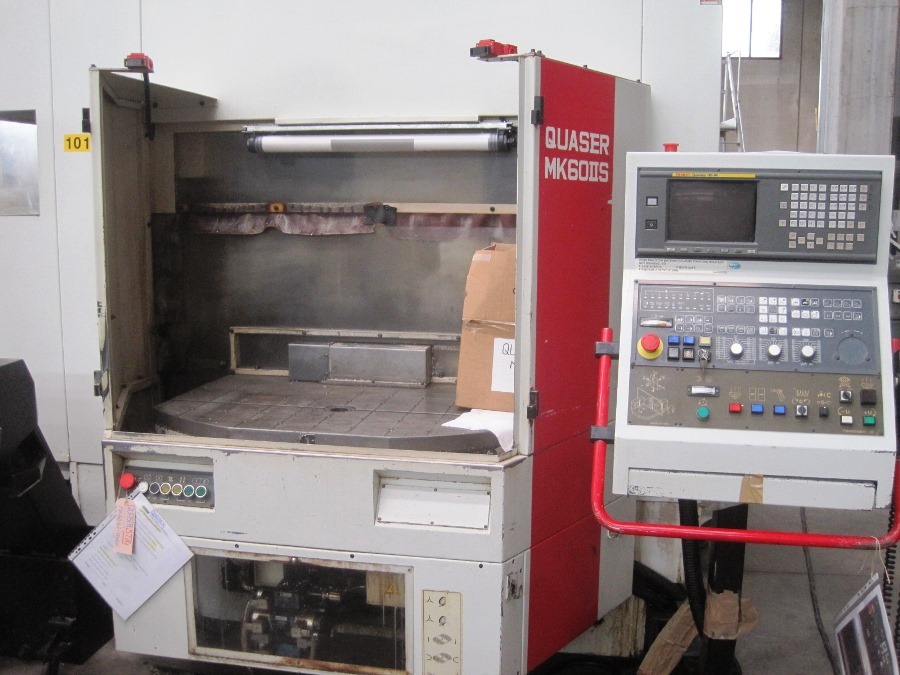

• Two swing tables, with a table change time of 7 sec
• Automatic tool changer with random-access tool selection, fixed address and shorter route
• Through-spindle coolant at 20 bar
• Table surface with Ø50 centre holes and M12 tapped holes at 100 mm pitch, plus an 18 H8 groove

Technical Specifications

• Model: Quaser MK 60 II S
• X-axis travel: 1,020 mm
• Y-axis travel: 610 mm
• Z-axis travel: 560 mm
• Table surface to spindle gauge plane: 125–685 mm
• Table size: 1,050 x 550 mm, two tables
• Table loading capacity: 300 kg per table (2 tables)
• Swing table change time: 7 sec
• Maximum spindle speed: 10,000 min-1
• Spindle speed ranges: 1
• Maximum spindle torque: 192 N.m
• Spindle taper: 7/24
• Spindle bearing inner diameter: 70 mm
• Rapid traverse rate (X, Y, Z): 32,000 mm/min
• Feed rate: 1–20,000 mm/min
• Jog feed rate: 4,000 mm/min
• Thrust: 13,500 N
• Ballscrew: Ø45 x 16 mm pitch
• Tool shank: ISO 40 / BT40
• Tool storage capacity: 40 (60 optional)
• Maximum tool diameter: 100 mm (150 mm optional)
• Maximum tool length: 300 mm
• Maximum tool mass: 10 kg
• Tool change time, tool to tool: 2.5 sec
• Tool change time, chip to chip: 6 sec
• Spindle motor (30 min / continuous): 15 kW / 11 kW
• Servo motor: 3.8 kW
• Hydraulic pump motor: 3.7 kW
• Coolant pump motor: 1.4 + 3.0 kW
• Power source: 45 kVA
• Hydraulic oil tank: 200 L
• Lubricant tank: 4 L
• Coolant tanks: 200 L dirty, 500 L clean
• Drilling capacity in ST60: Ø54 mm
• Tapping capacity: M36 x 4P
• Face milling: 576 cc/min
• Through-spindle coolant pressure: 20 bar
• Positioning accuracy (VDI 3441 / JIS B6338): 10/5 µm
• Machine height: 3,080 mm
• Floor space: 2,660 x 4,670 mm
• Machine mass: 12,000 kg

Applications

• Milling, drilling and tapping of steel components
• Machined parts for general engineering and toolroom work
• Batch production of prismatic parts using the twin swing tables

Commercial Details

• Make: Quaser
• Model: MK 60 II S
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? X is 1,020 mm, Y is 610 mm and Z is 560 mm.
• How many tools does the magazine hold? It holds 40 tools, with a 60-tool capacity offered, using ISO 40 / BT40 shanks.
• What spindle does it have? The spindle reaches 10,000 min-1 with 192 N.m maximum torque and is driven by a 15 kW (30 min) / 11 kW (continuous) motor.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the control type and electrical condition, and loading and shipping arrangements for its 12,000 kg mass.
