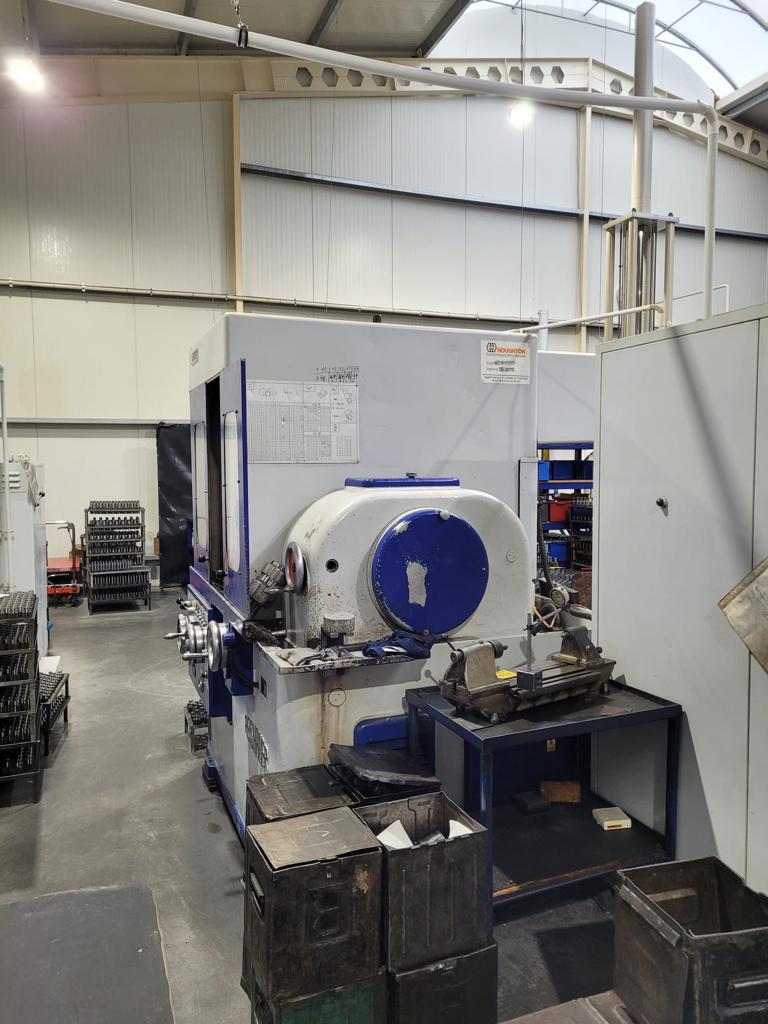

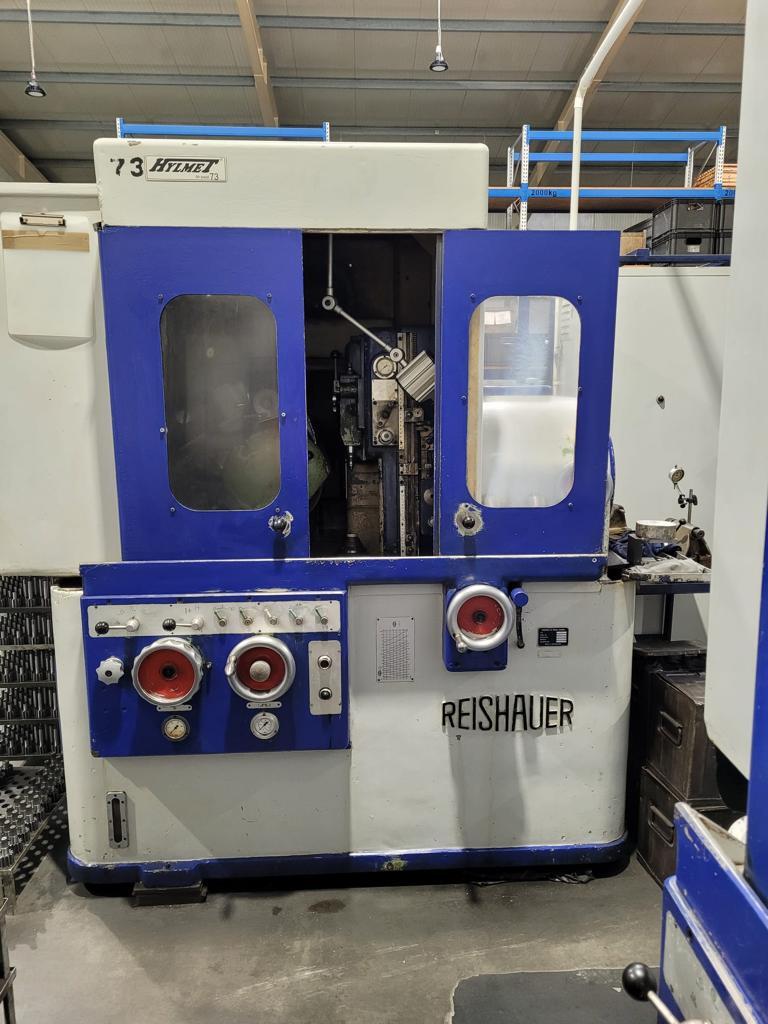

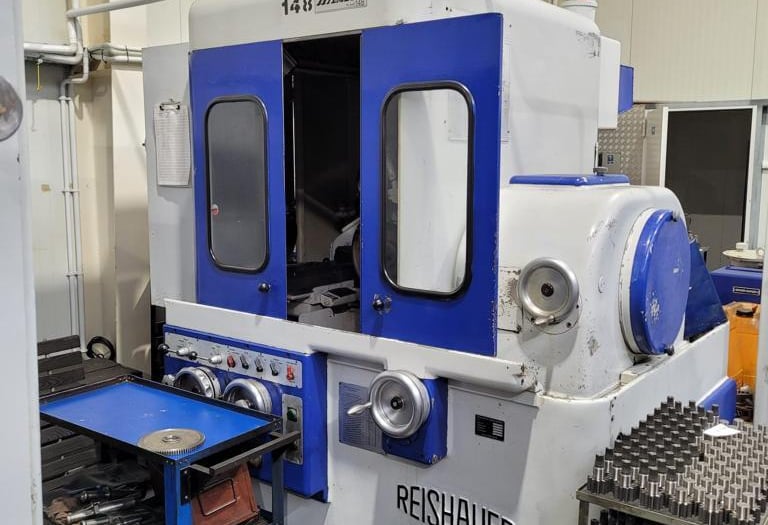

Used Reishauer NZA Gear Grinder | A.K. Machine Traders, Navi Mumbai, India

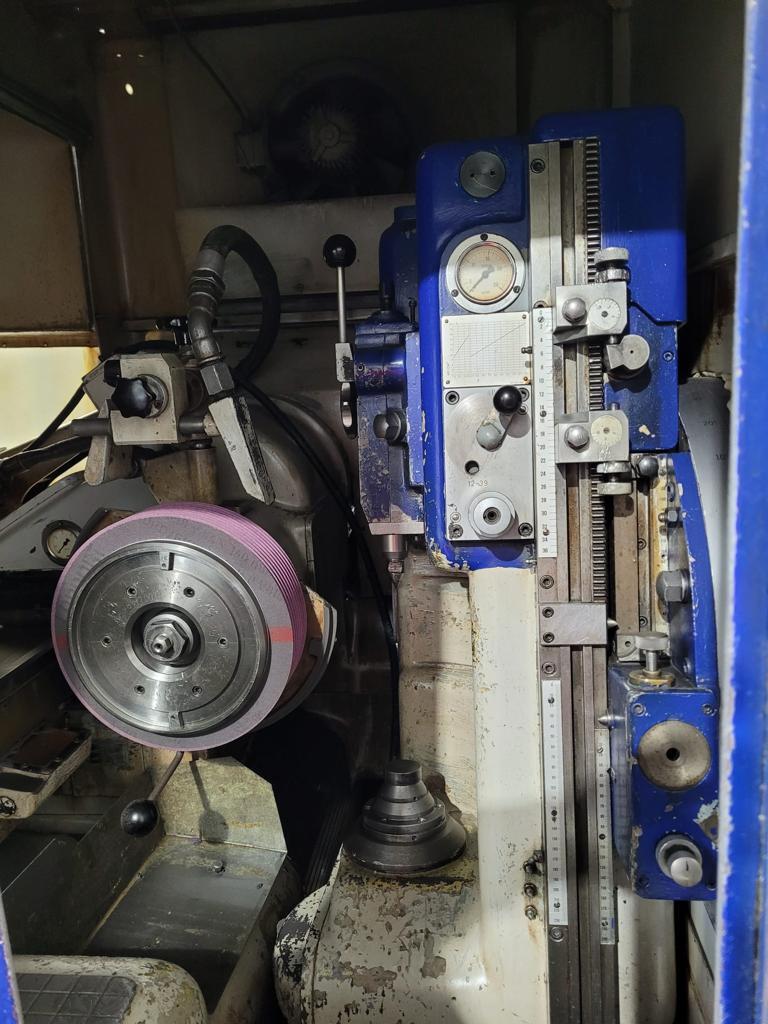

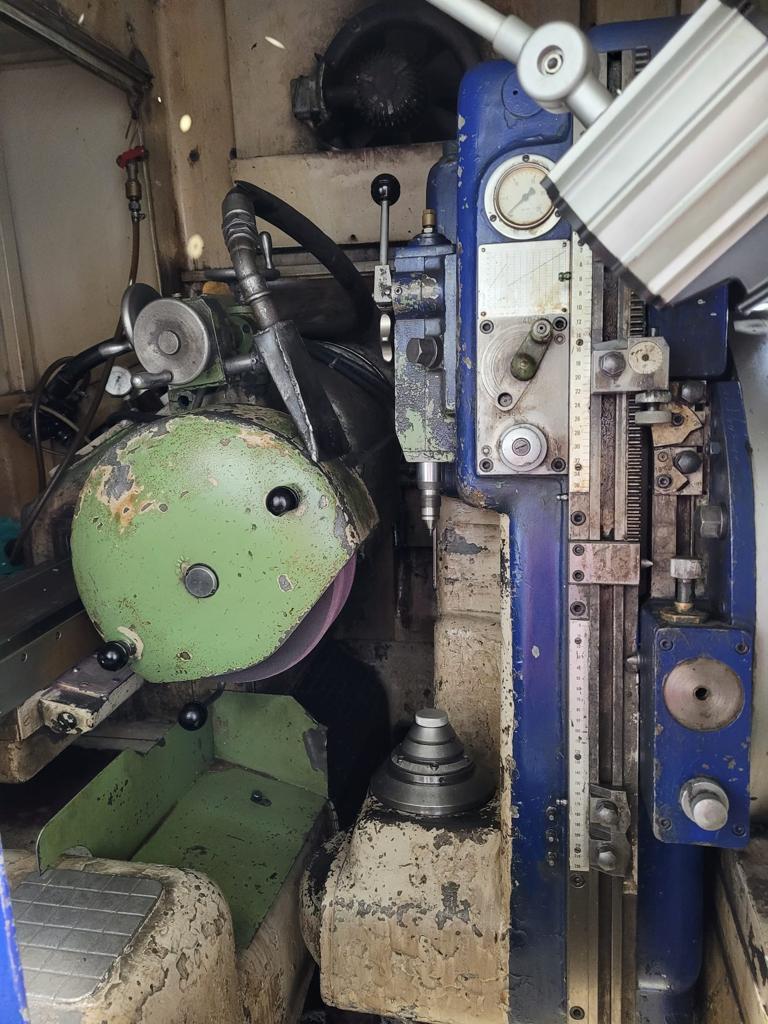

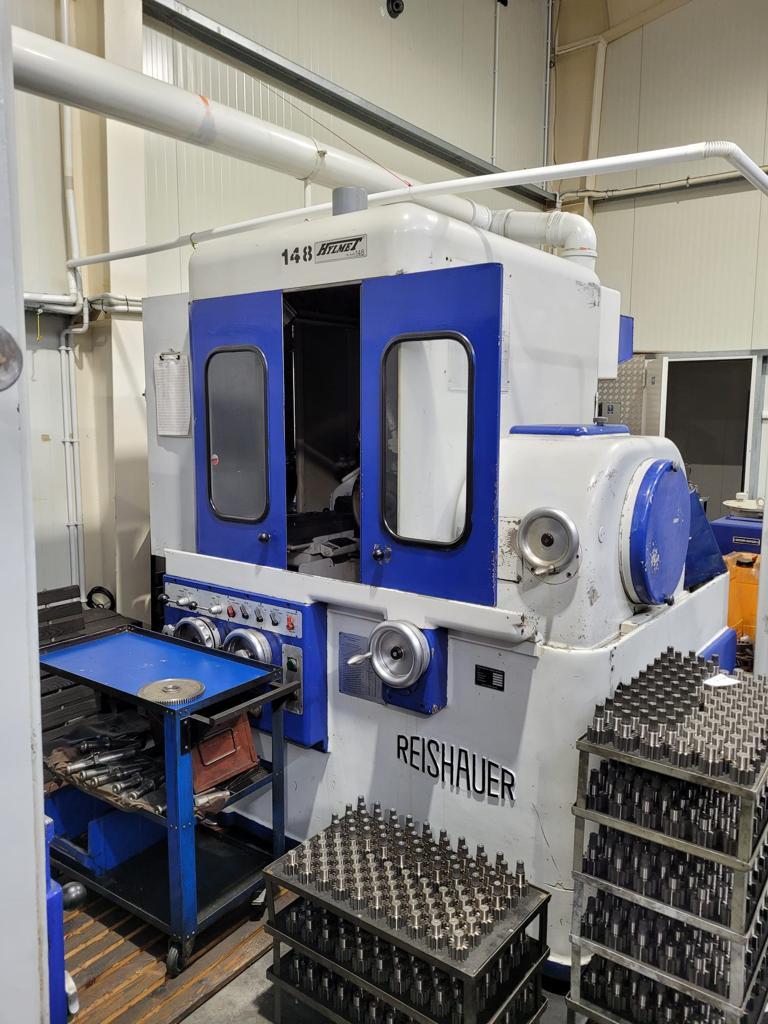

This used Reishauer NZA gear grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds gear teeth to finish them, and handles modules from 0.5 to 5.

It takes gears up to 170 mm wide with 12–130 teeth, and a maximum clamping length of 420 mm. The machine needs 9 kW in total and weighs 4,600 kg.

Technical Specifications

• Model: Reishauer NZA
• Module: 0.5–5
• Number of teeth: 12–130
• Maximum gear width: 170 mm
• Maximum clamping length: 420 mm
• Maximum tooth angle: 45°
• Slide stroke: 200 mm
• Helical lead: 200–6,000 mm
• Maximum wheel diameter: 300 mm
• Maximum grinding wheel diameter: 350 mm
• Maximum grinding wheel width: 84 mm
• Total power requirement: 9 kW
• Dimensions: 2,500 x 2,000 x 2,300 mm
• Weight: 4,600 kg

Applications

• Finish grinding of spur gears
• Finish grinding of helical gears
• Gear production for gearboxes and transmissions
• Precision gear work in toolrooms and workshops

Commercial Details

• Make: Reishauer
• Model: NZA
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What module range does it cover? It grinds gears from module 0.5 to module 5.
• What size of gear can it take? It takes gears up to 170 mm wide with 12–130 teeth, and a maximum clamping length of 420 mm.
• What are its power and weight? Total power requirement is 9 kW and the machine weighs 4,600 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which workholding, grinding wheels and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements.
