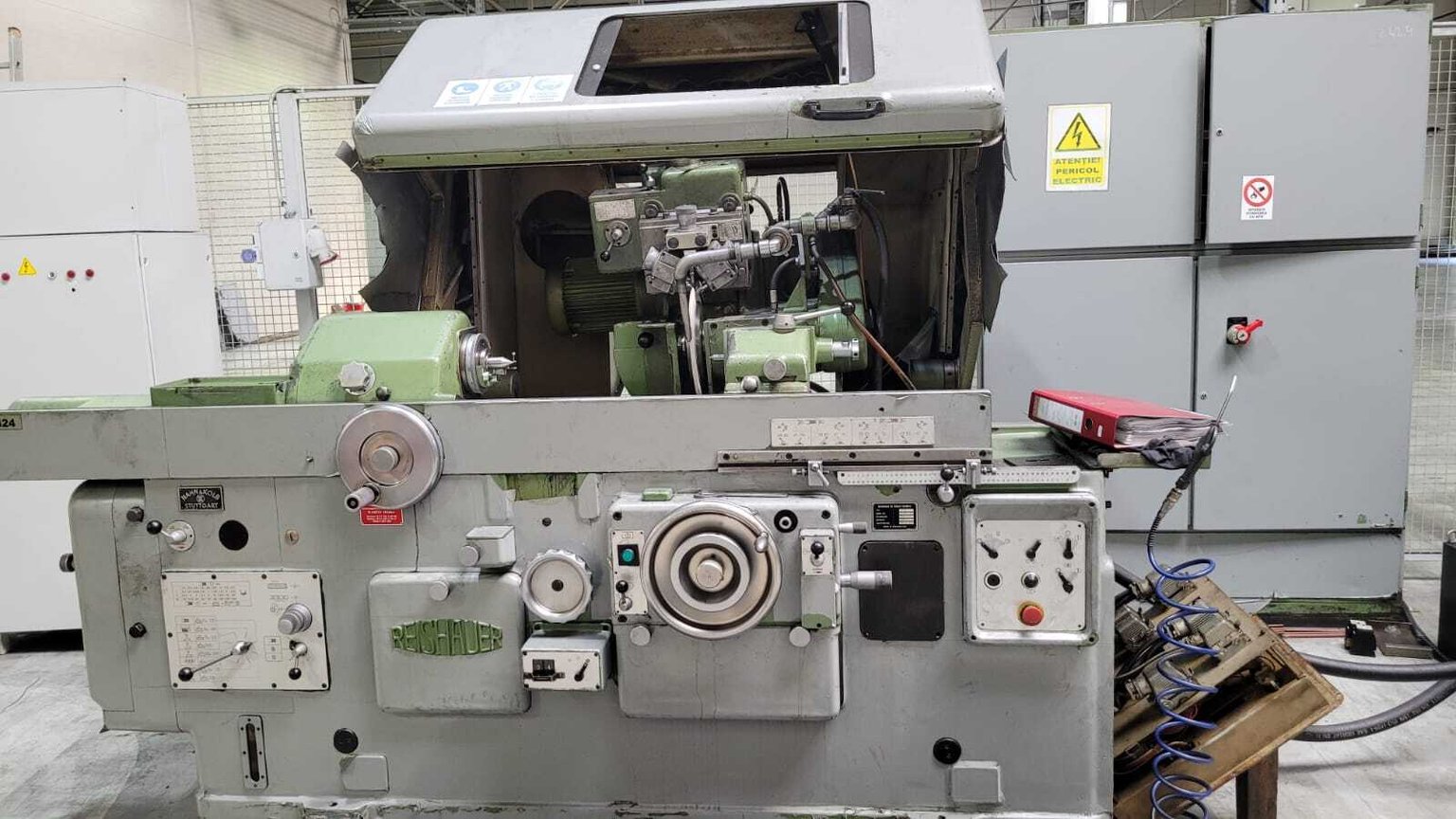

Used Reishauer US Thread Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Reishauer US thread grinder is available from A.K. Machine Traders in Navi Mumbai, India. A thread grinder finishes threads on round parts by grinding them with a wheel.

It grinds a length of 450 mm between centres set 870 mm apart, and takes parts up to Ø250 mm and 50 kg. The work-holder spindle offers 27 speeds from 0.4–160 rpm.

Technical Specifications

• Model: US
• Grinding length: 450 mm
• Distance between centres: 870 mm
• Part diameter: 2–4 mm minimum, 250 mm maximum
• Maximum part weight: 50 kg
• Maximum orientation angle: 40 degrees

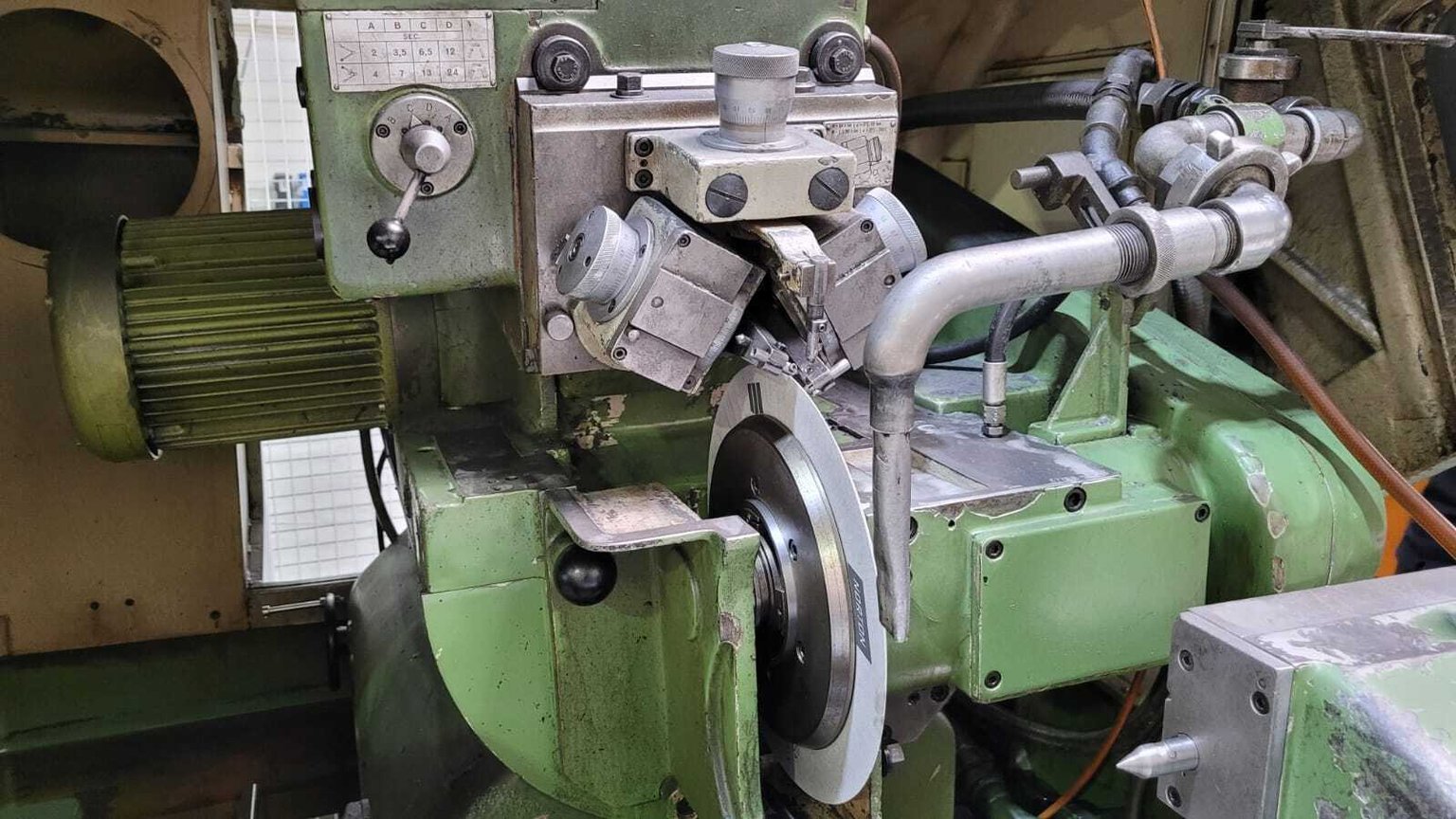

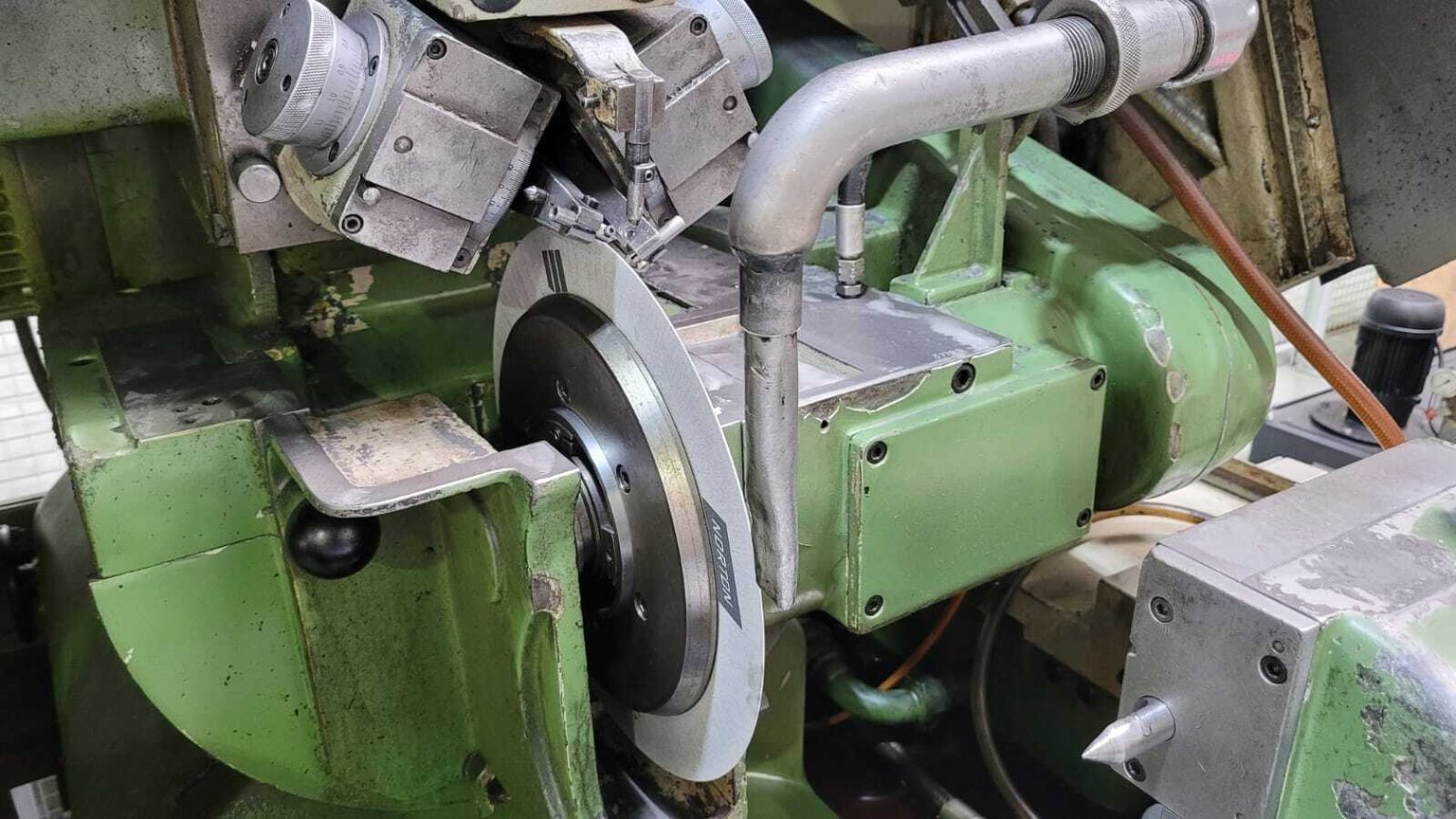

• Grinding wheel diameter: 275–350 mm
• Ceramic/organic grinding wheel bore: 160/230 mm
• Grinding/rolling wheel speed: 1,700–2,540/72 rpm
• Work-holder spindle speeds: 27 speeds
• Work-holder spindle speed range: 0.4–160 rpm
• Work-holder spindle bore: 45 mm
• Dimensions (H × W × L): 1,700 × 3,500 × 1,855 mm
• Weight: 4,850 kg

Applications

• Threaded shafts and spindles
• Precision screws and leadscrews
• Taps and thread gauges
• Worms and similar threaded round parts

Commercial Details

• Make: Reishauer
• Model: US
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the grinding length? The grinding length is 450 mm, with 870 mm between centres.
• What size and weight of part can it take? It takes parts up to Ø250 mm and 50 kg.
• What work-holder spindle speeds are available? There are 27 speeds across a range of 0.4–160 rpm.

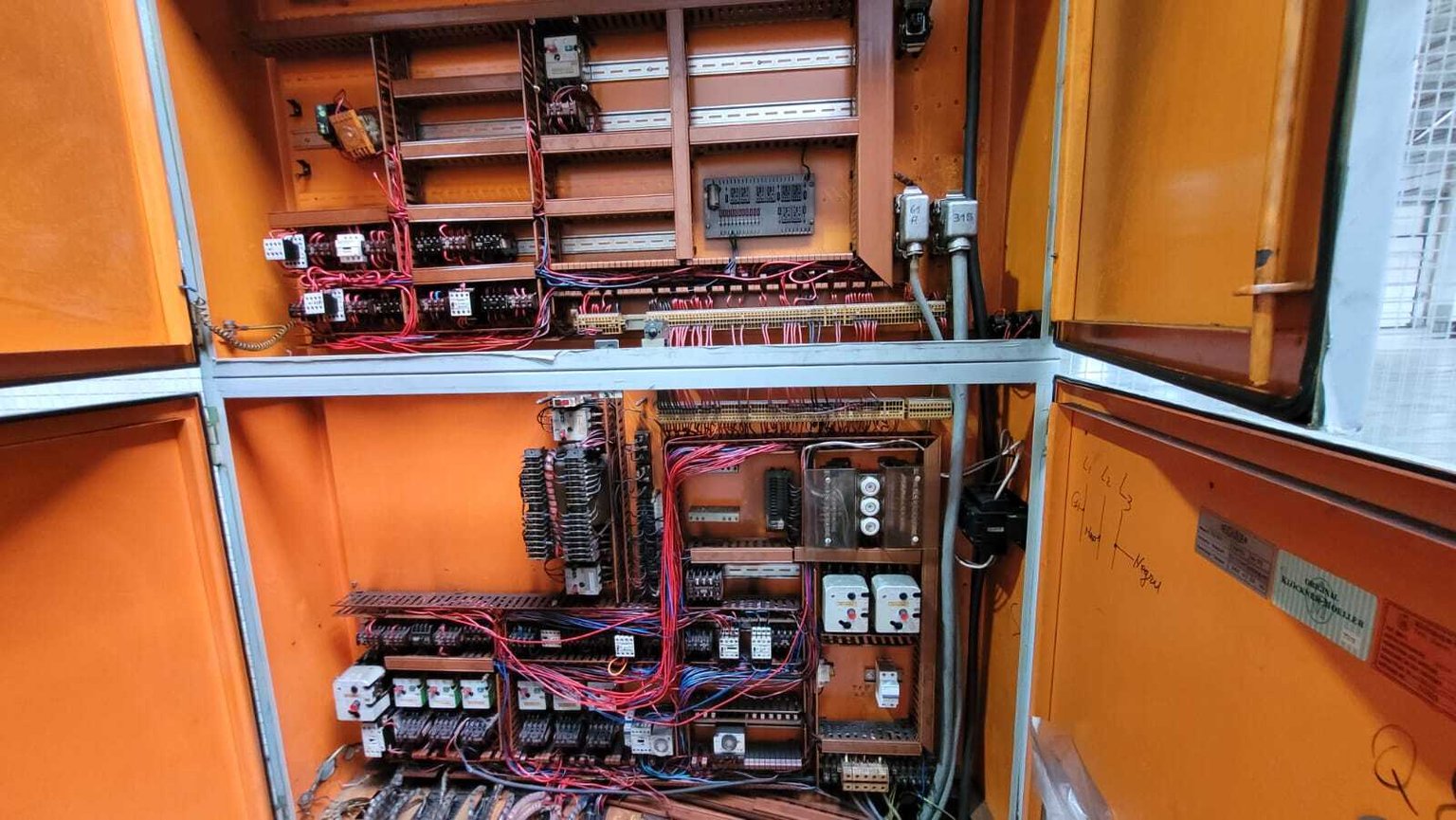

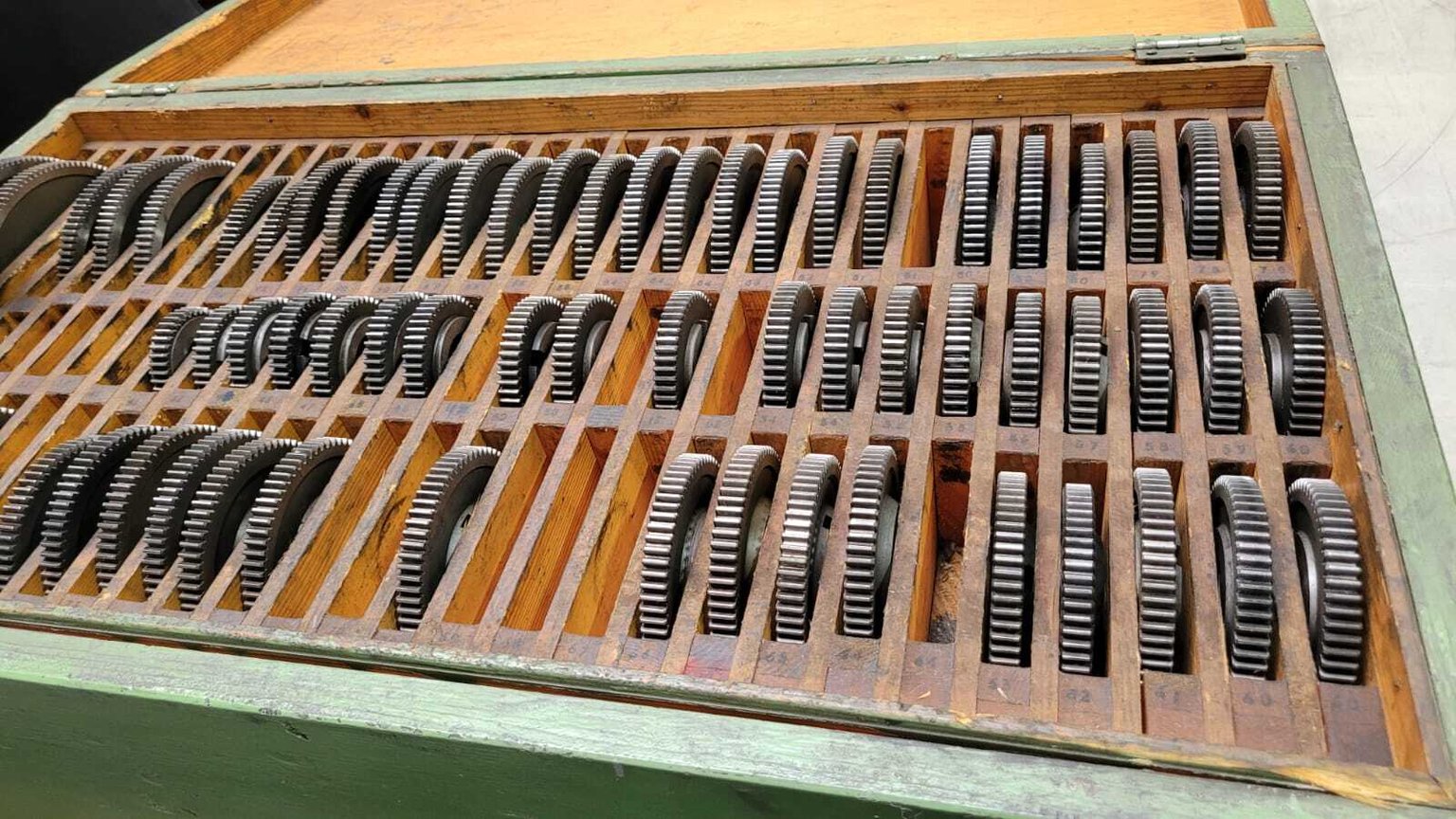

• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm which wheels, work-holding and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements for a machine weighing 4,850 kg.
