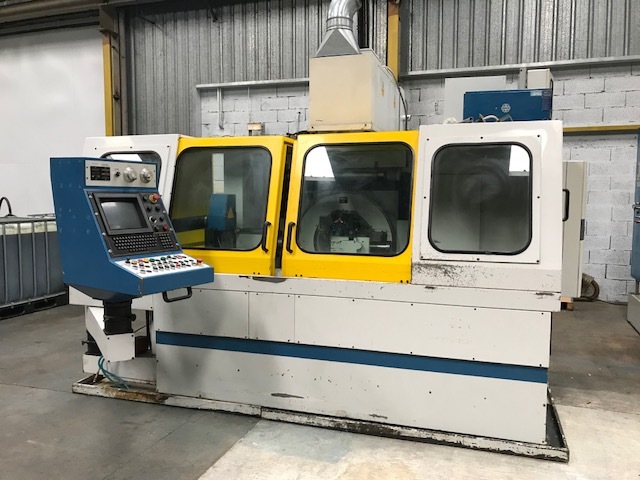

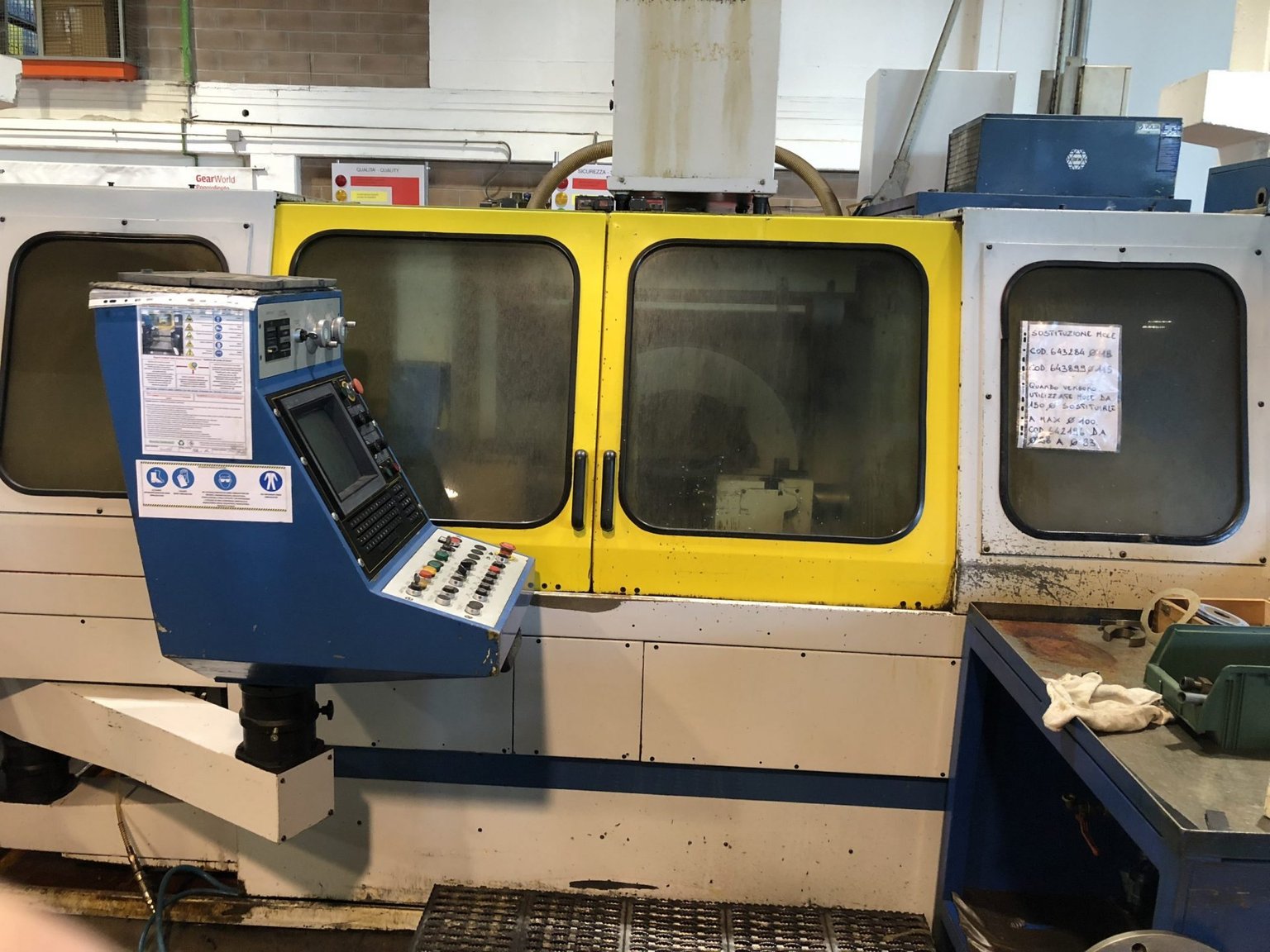

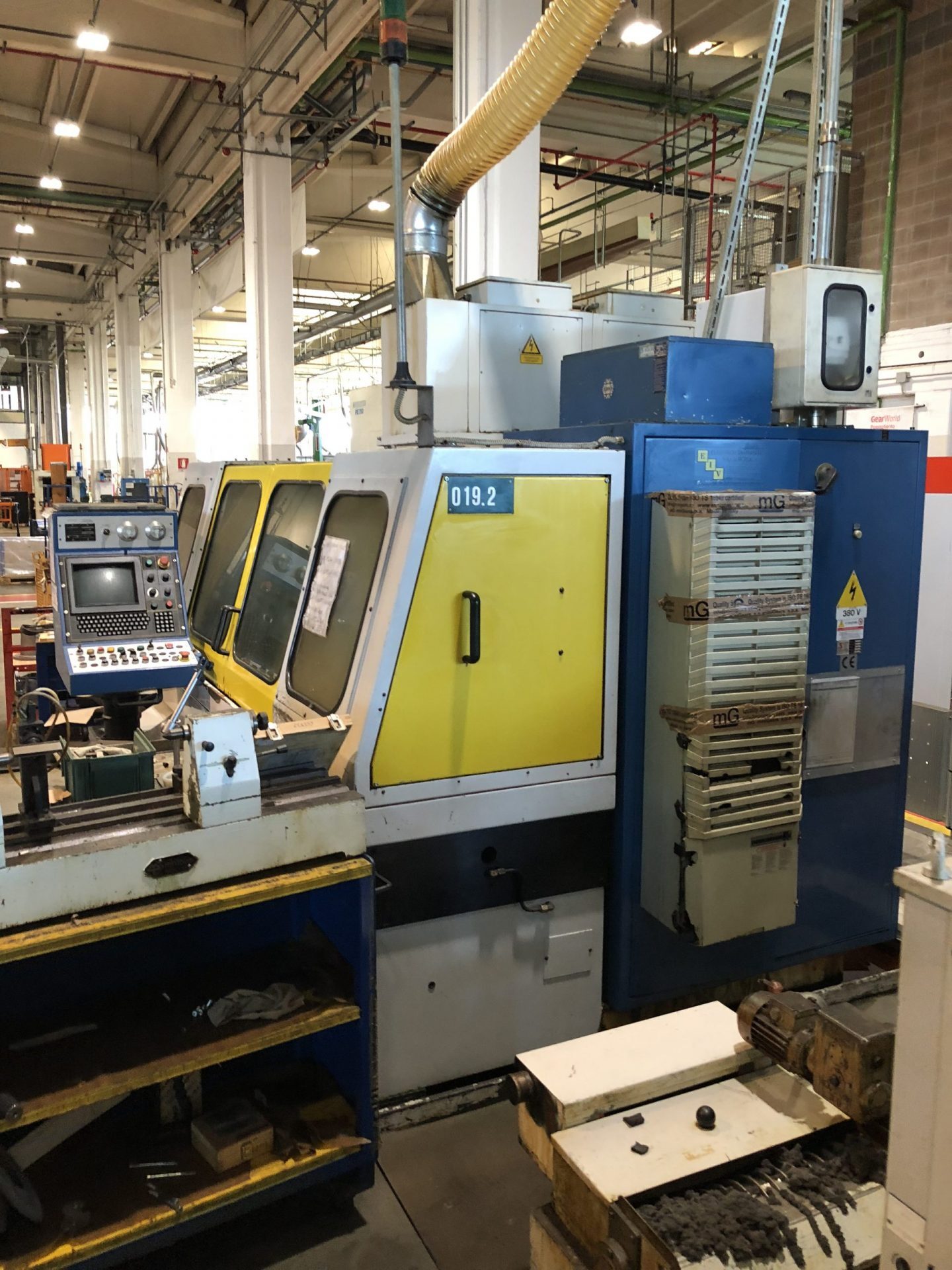

Used Samputensili RI 370 CNC Gear Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Samputensili RI 370 CNC gear grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds gear teeth to finish size on a CNC-controlled machine.

It takes workpieces from Ø 30 mm up to Ø 375 mm, with up to 1,020 mm clamping length between centres and a maximum grinding length of 500 mm.

Key Features

• CNC-controlled gear grinding

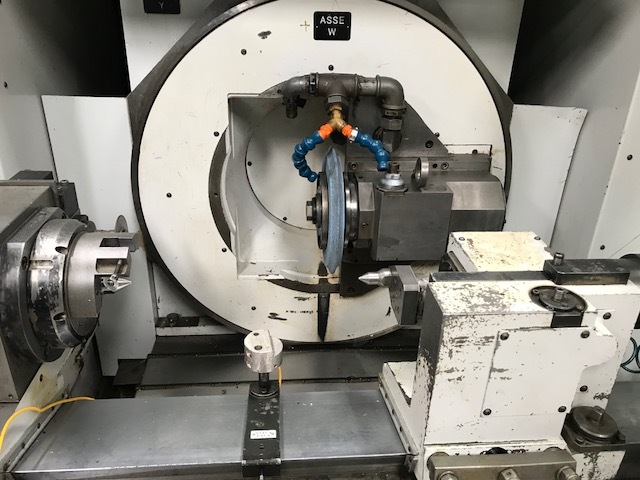

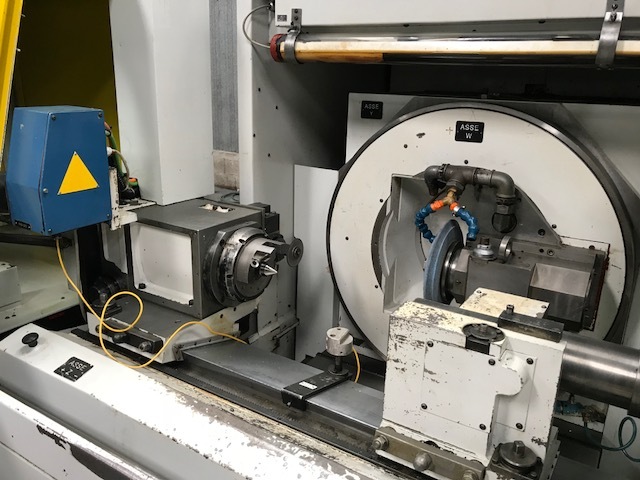

• Work held between centres

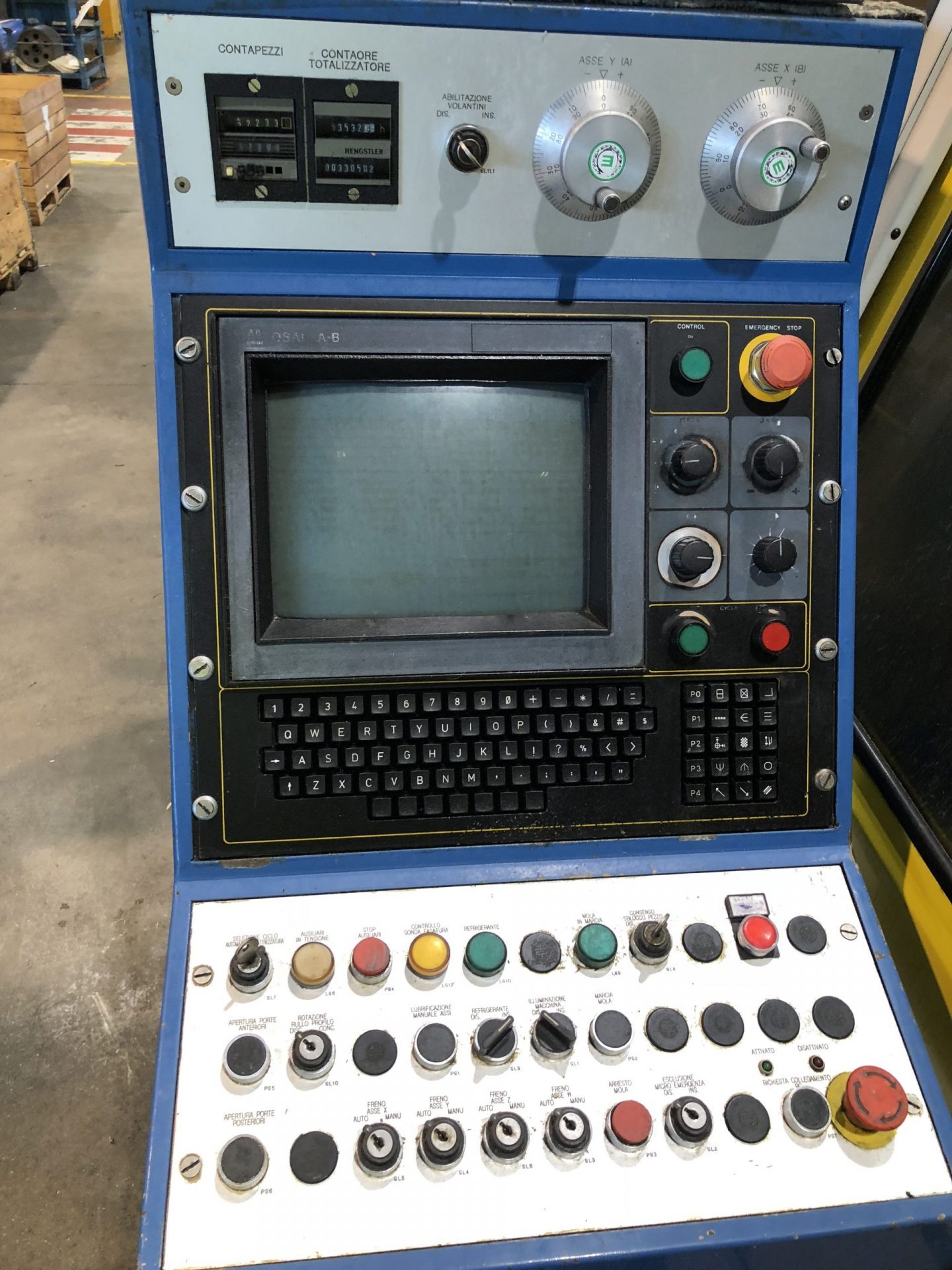

• Separate manual and rapid speed settings on the C, X, Z and A axes

Technical Specifications

• Model: Samputensili RI 370
• Working diameter (min./max.): Ø 30–375 mm
• Max. clamping length between centres: 1,020 mm
• Max. grinding length: 500 mm
• C axis speed, manual/rapid: 25/50 rpm
• X axis speed, manual/rapid: 4,000/10,000 rpm
• Z axis speed, manual/rapid: 4,000/10,000 rpm
• A axis speed, manual/rapid: 4,000/10,000 rpm
• X axis total stroke: 216 mm
• Z axis total stroke: 690 mm

Applications

• Finish grinding of gears after heat treatment
• Gearbox gears and shafts
• Precision transmission components
• Gear production and tool room work

Commercial Details

• Make: Samputensili
• Model: RI 370
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it grind? It works on diameters from Ø 30 mm to Ø 375 mm, with a maximum grinding length of 500 mm.
• How much can it hold between centres? The maximum clamping length between centres is 1,020 mm.
• How far do the X and Z axes travel? The X axis has a total stroke of 216 mm and the Z axis 690 mm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, and which accessories, fixtures and tooling are included. Also confirm the CNC control and electrics, and arrangements for loading and shipping.
