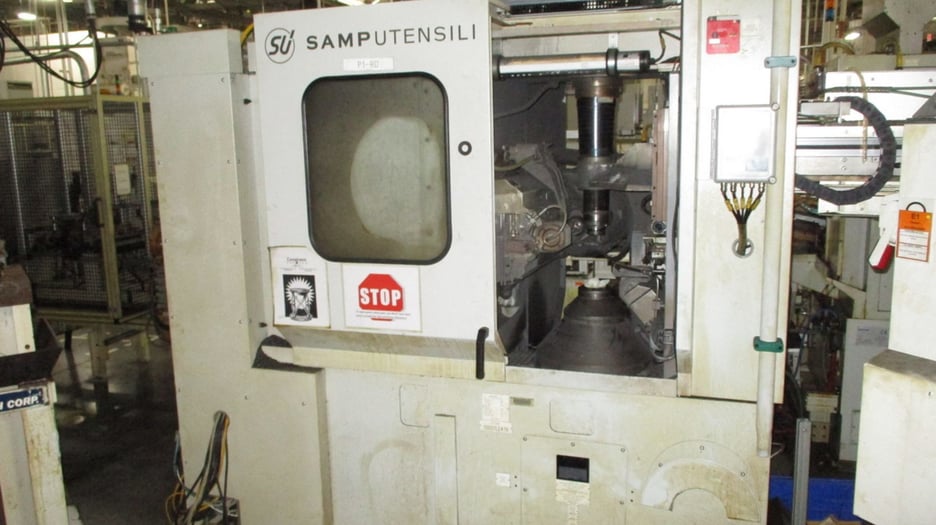

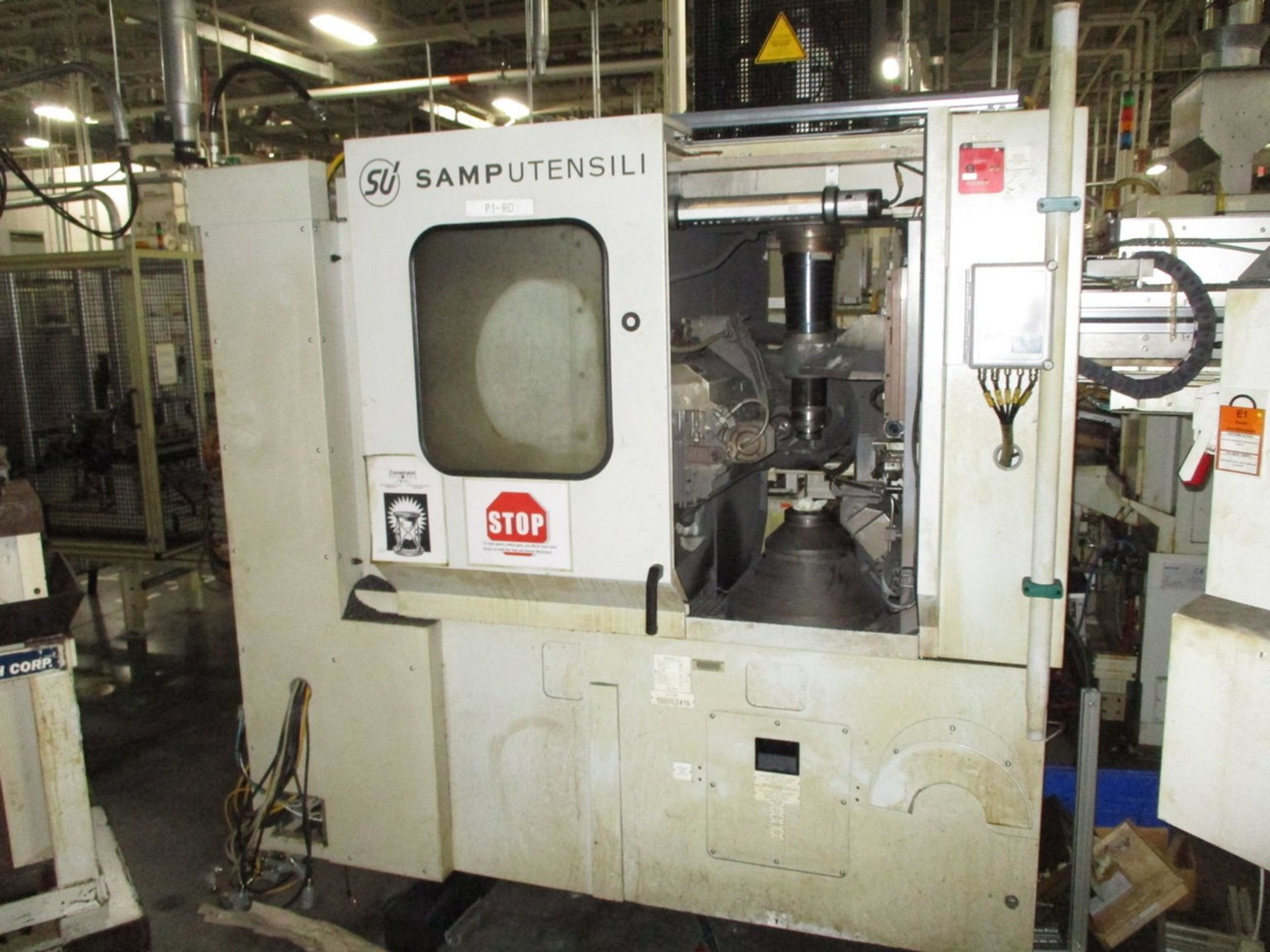

Used Samputensili S100 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Samputensili S100 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gears and pinions using a rotating hob.

It handles parts up to 100 mm in diameter with tools up to 80 mm in diameter and a maximum module of 3. It has Siemens control, motors and drives, and is set up for dry hobbing with dust and swarf evacuation.

Key Features

• Siemens control, motors and drives
• Direct drive, liquid-cooled spindle drive
• Zero backlash compensation
• Dust and swarf evacuation for dry hobbing
• Loading systems designed for gears and pinions

Technical Specifications

• Model: Samputensili S100
• Control: CNC, Siemens
• Max part diameter: 100 mm
• Max tool diameter: 80 mm
• Max module: 3

Applications

• Small gears and pinions
• Precision gear manufacturing
• Dry hobbing of small toothed components

Commercial Details

• Make: Samputensili
• Model: S100
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It takes parts up to 100 mm in diameter, with hobs up to 80 mm in diameter, at a maximum module of 3.
• Does it support dry hobbing? Yes, it includes dust and swarf evacuation for a dry hobbing system.
• Which control does it use? It has Siemens control, motors and drives, with a direct drive liquid-cooled spindle drive.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, hobs and loading systems are included, the condition of the Siemens control and electrics, and how loading and shipping will be handled.
