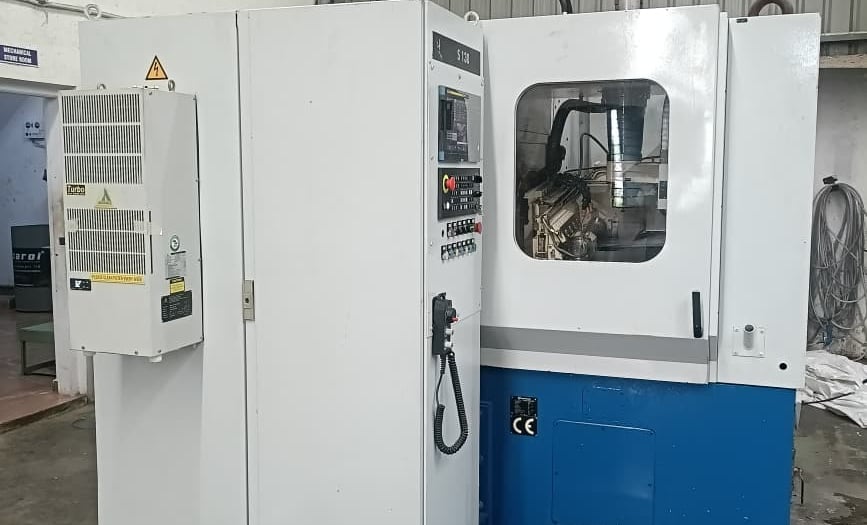

Used Samputensili S130 CNC Gear Hobber | A.K. Machine Traders, Navi Mumbai, India

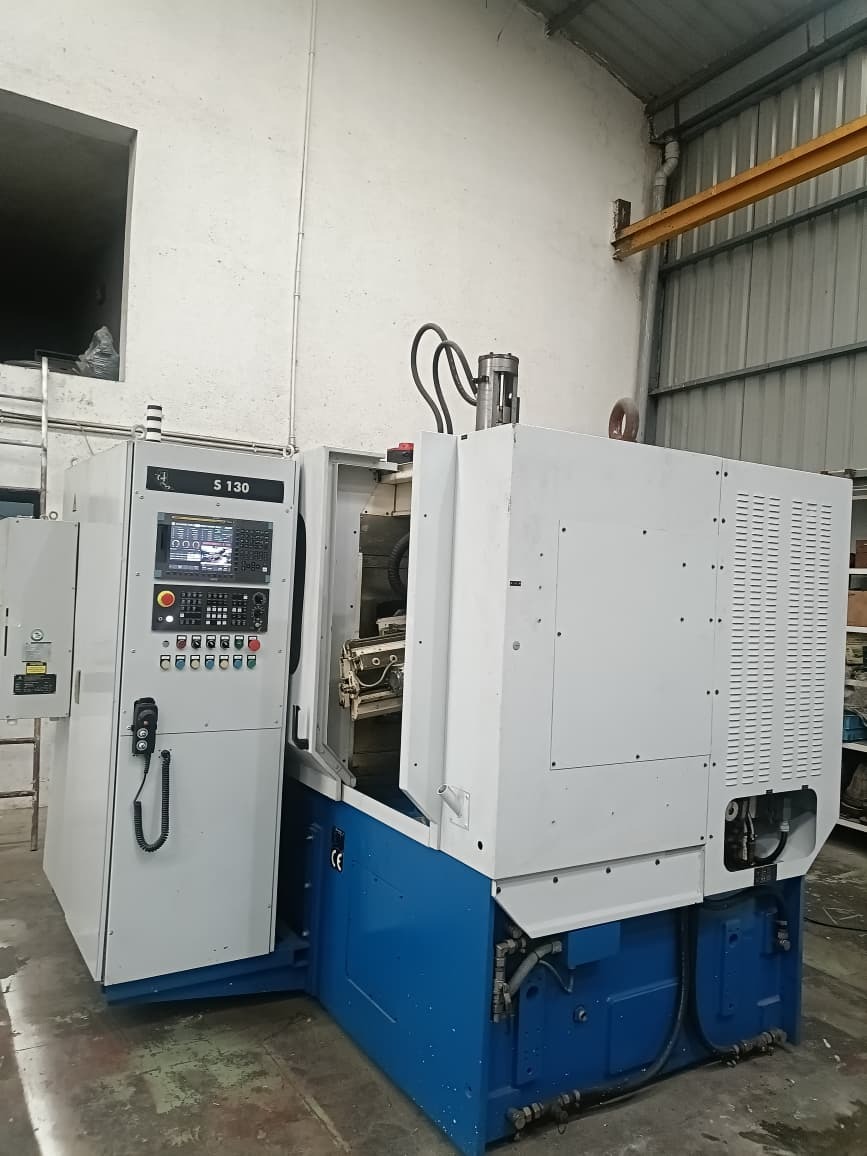

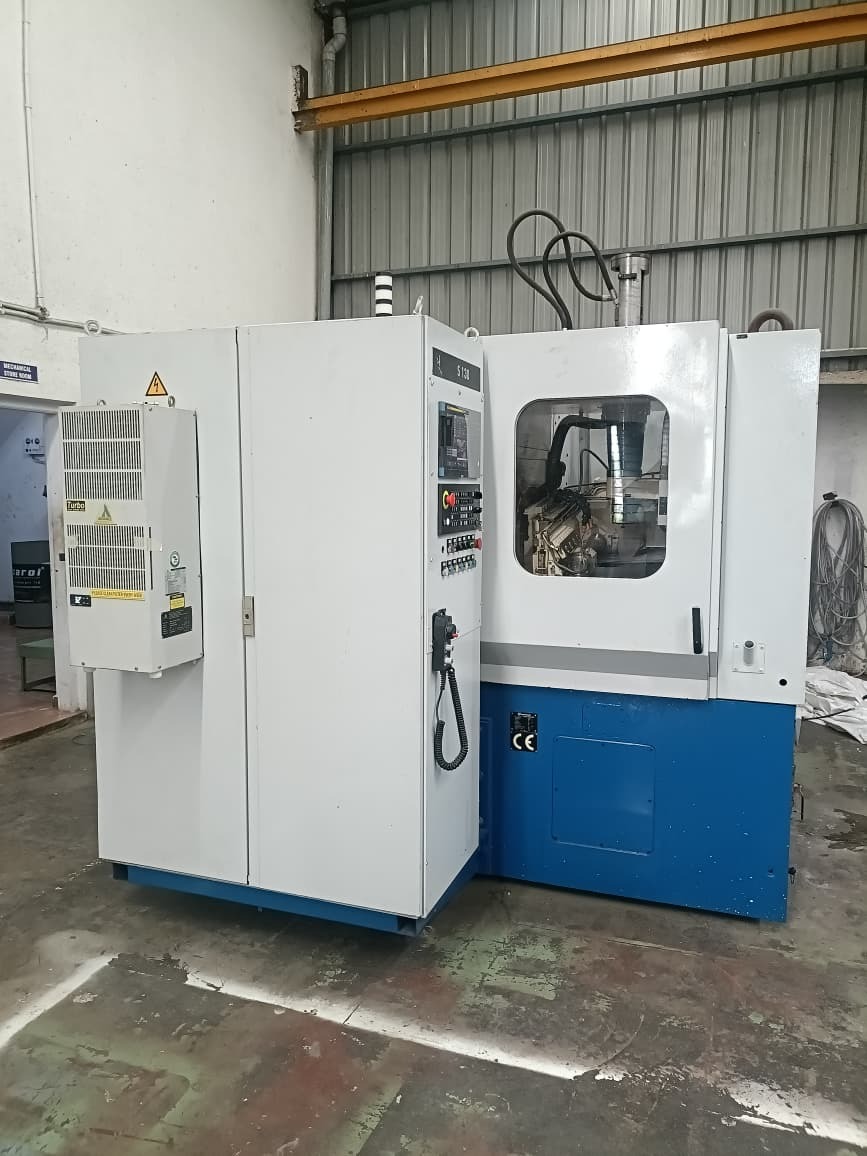

This used Samputensili S130 CNC gear hobber is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear blanks, and this vertical machine handles a maximum module of 3 mm.

It takes workpieces up to Ø130 mm and 200 mm long, with a 132 mm table and a cutter speed of 3,500 rpm. The page lists the year of manufacture / overhaul as 2003.

Key Features

• Vertical gear hobbing layout

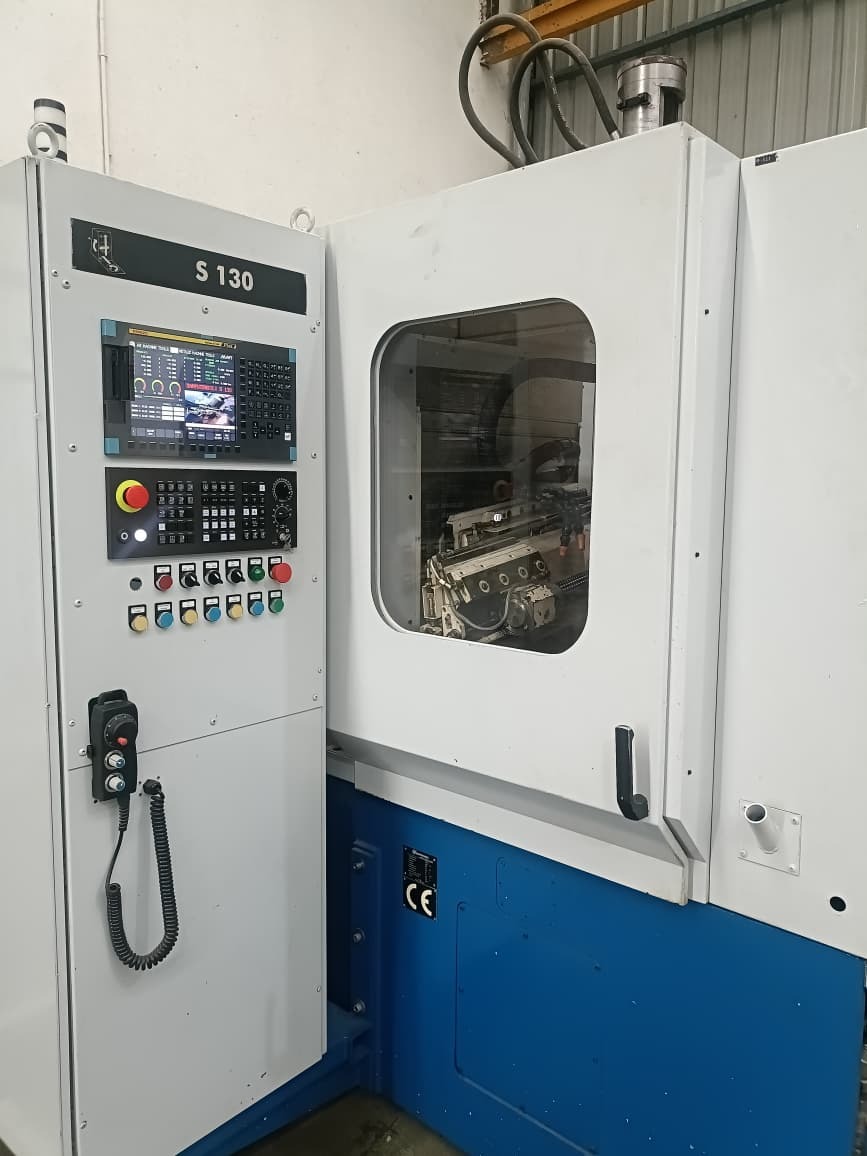

• CNC controlled
• Tangential path of 200 mm

Technical Specifications

• Manufacturer: Samputensili
• Model: S 130
• Machine type: CNC gear hobbing machine, vertical
• Year of manufacture / overhaul: 2003
• Maximum module: 3 mm
• Maximum workpiece diameter: Ø130 mm
• Machining length: 200 mm
• Table diameter: 132 mm
• Distance, cutter axis to table axis: 10–100 mm
• Distance, cutter axis to table surface: 100–300 mm
• Maximum cutter diameter: Ø80 mm
• Maximum cutter length: 240 mm
• Cutter speed: 3,500 rpm
• Tangential path: 200 mm
• Dimensions (L × W × H): 3.2 × 2.5 × 2.2 m
• Weight: 6.5 t
• Total connected load: 35 kVA

Applications

• Small spur and helical gears up to module 3 mm
• Gear blanks up to Ø130 mm
• Gearbox and transmission components
• Small-batch and workshop gear production

Commercial Details

• Make: Samputensili
• Model: S 130
• Year: 2003
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It handles workpieces up to Ø130 mm, 200 mm machining length, and a maximum module of 3 mm.
• What cutter sizes does it take? It accepts cutters up to Ø80 mm in diameter and 240 mm in length, running at up to 3,500 rpm.
• What are the machine's size and weight? It measures 3.2 × 2.5 × 2.2 m and weighs 6.5 t, with a total connected load of 35 kVA.

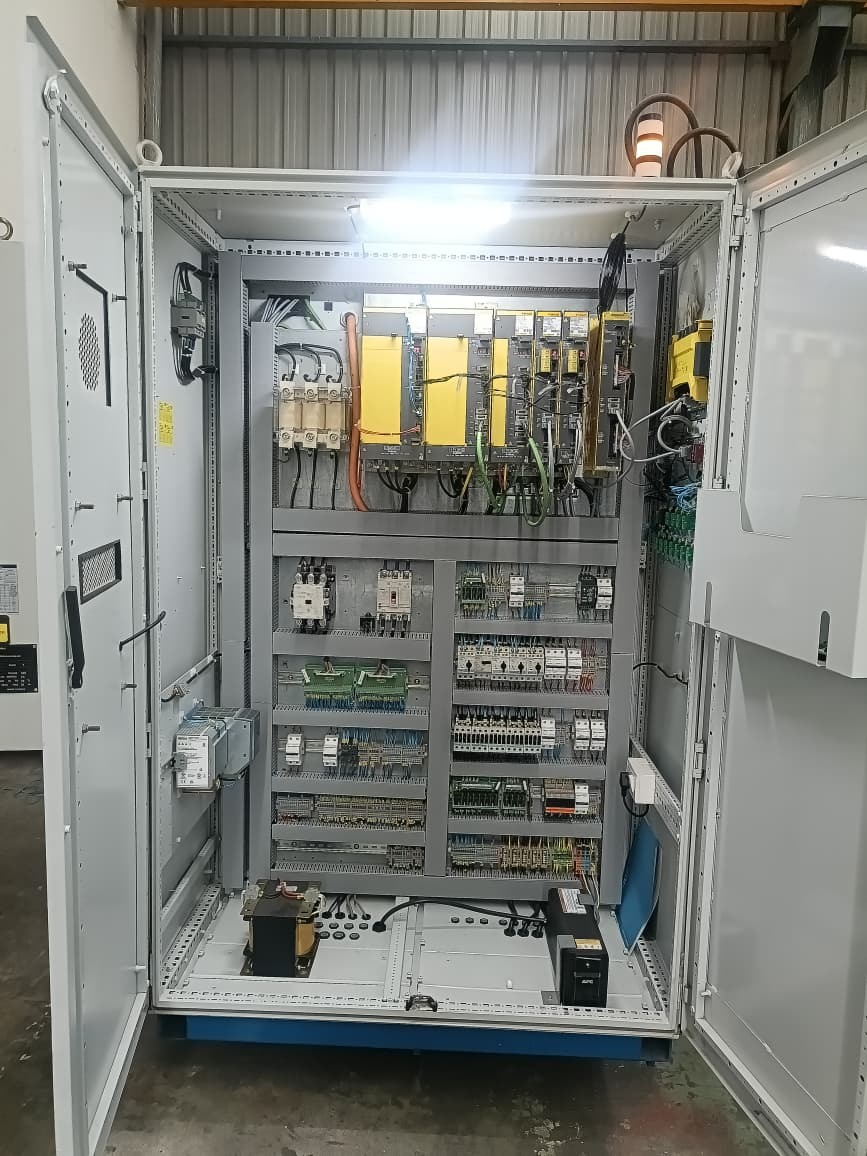

• What should I ask when enquiring? Ask for photos or video of the machine running under power, the condition of the CNC control and electrics, which cutters, arbors and fixtures are included, and the loading and shipping arrangements.
