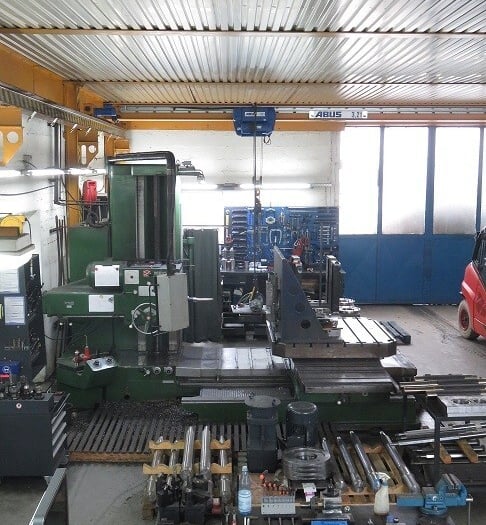

Used San Rocco MEC 4 Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used San Rocco MEC 4 boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A boring machine enlarges and finishes holes in large workpieces with a rotating spindle.

It has a 101.6 mm spindle with an ISO 50 taper and travels of 2,000 mm in X, 1,200 mm in Y and 1,600 mm in Z. The table measures 1,200 × 1,500 mm and carries up to 3,000 kg, with spindle speeds of 9–1,000 rpm.

Technical Specifications

• Model: MEC 4
• Spindle diameter: 101.6 mm
• Spindle taper: ISO 50
• X travel: 2,000 mm
• Y travel: 1,200 mm
• Z travel: 1,600 mm
• Table surface area: 1,200 × 1,500 mm
• Table load: 3,000 kg
• Spindle speed: 9–1,000 rpm
• Total power requirement: 12 kW
• Machine dimensions: approx. 5.2 × 3.8 × 3.12 m
• Machine weight: approx. 16 t

Applications

• Boring large holes in heavy fabrications and castings
• Machining housings and gearbox casings
• Machining machine frames and structural components
• General heavy-part milling and drilling work

Commercial Details

• Make: San Rocco
• Model: MEC 4
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the working travels of the San Rocco MEC 4? Travels are 2,000 mm in X, 1,200 mm in Y and 1,600 mm in Z.
• How much can the table carry? The table measures 1,200 × 1,500 mm and takes a load of up to 3,000 kg.
• What spindle does it have? It has a 101.6 mm diameter spindle with an ISO 50 taper, running at 9–1,000 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling and accessories are included, the condition of the control and electrics, and how loading and shipping of the roughly 16 t machine will be handled.
