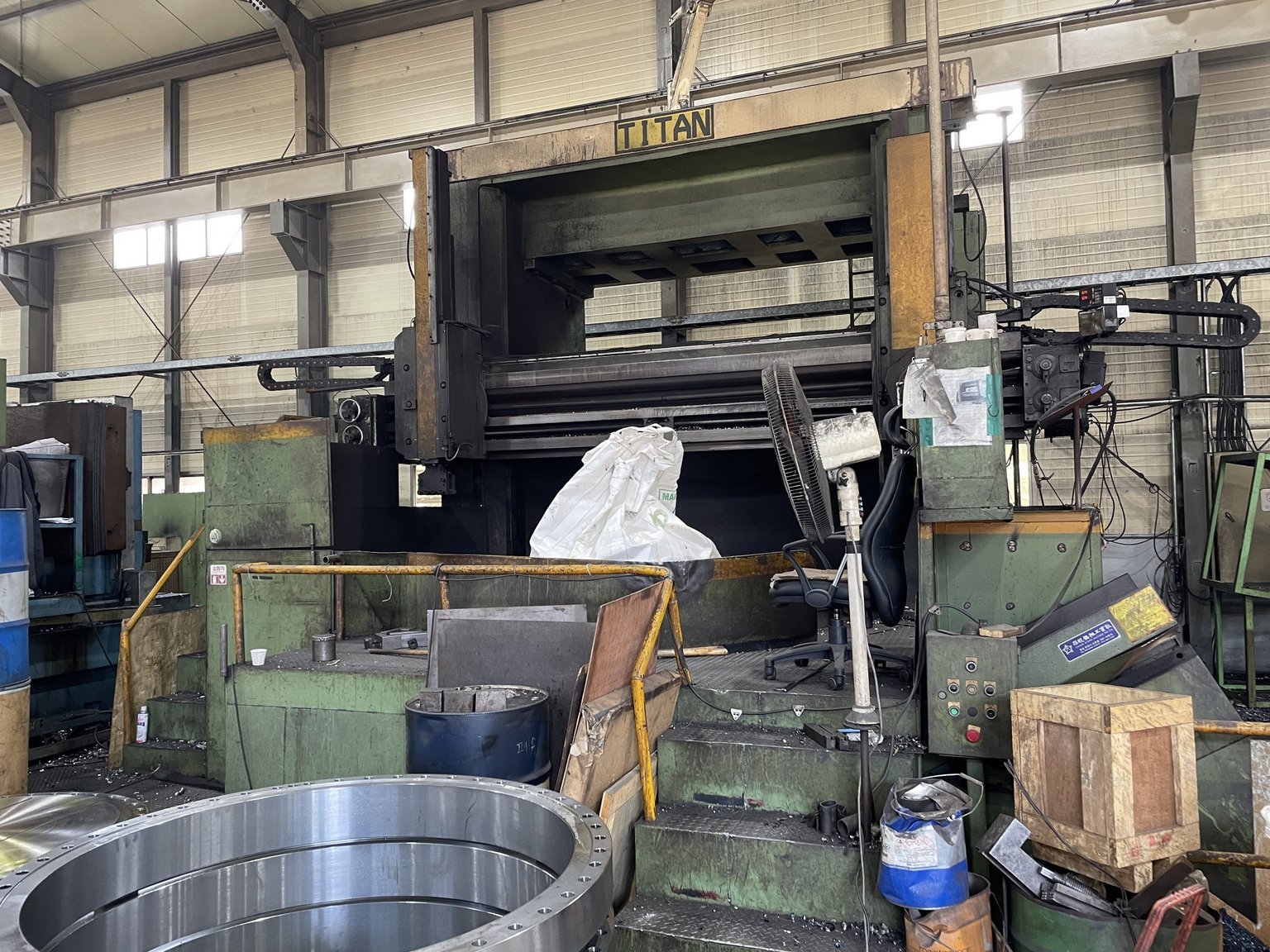

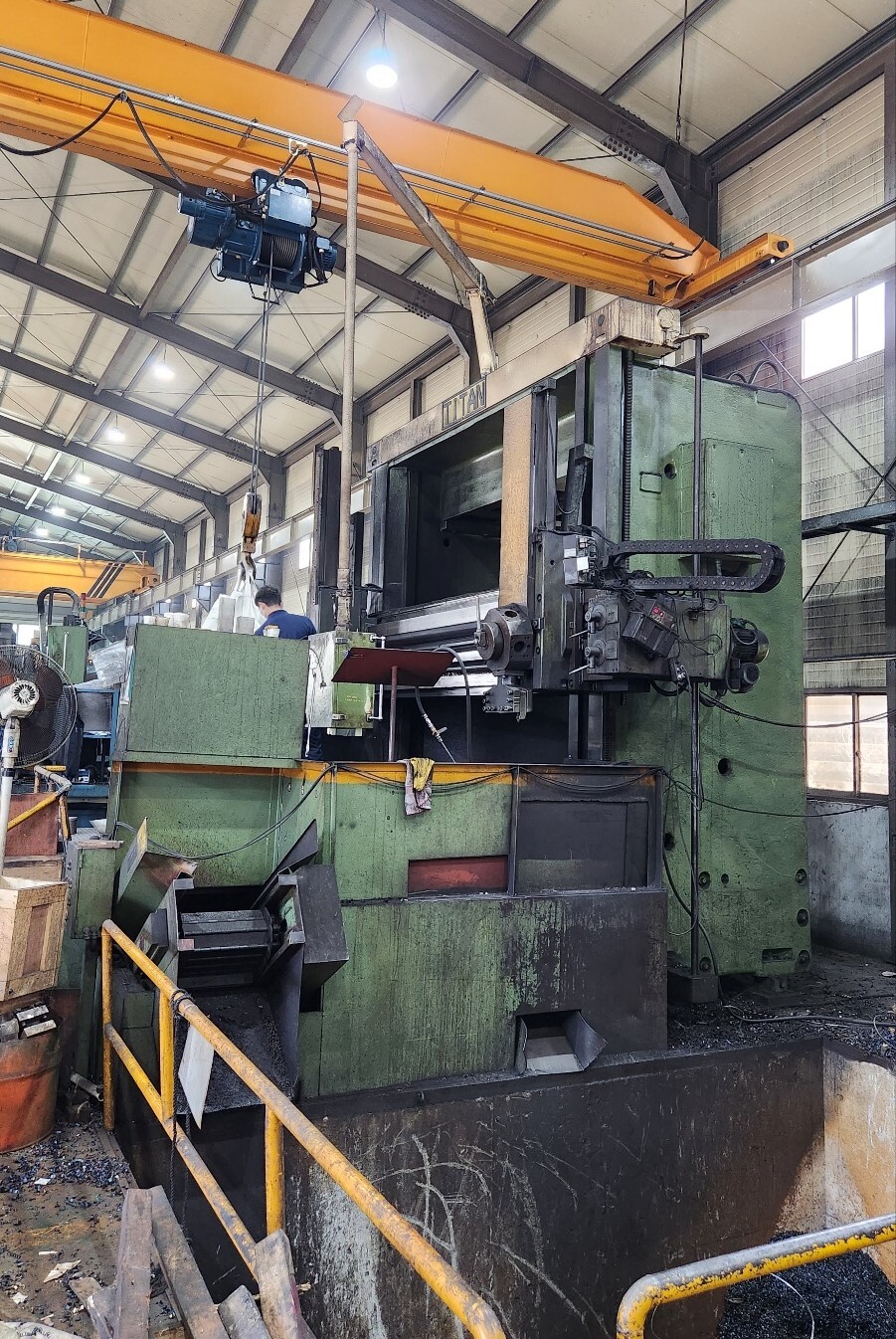

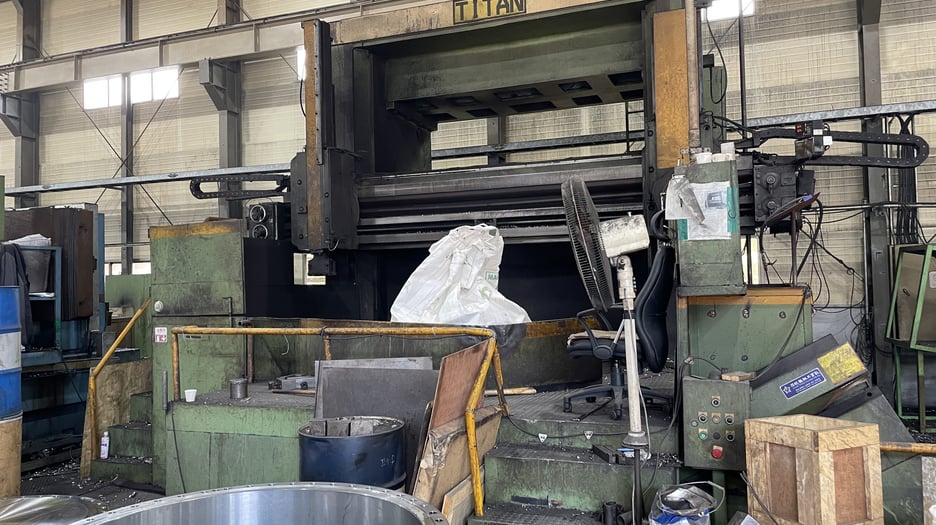

Used SC33 Titan Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used SC33 Titan vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held on a horizontal rotating table.

It has a 3,300 mm swing and a 3,000 mm diameter table, and takes workpieces up to 2,300 mm high and 18 t in weight. A 55 kW D.C. main motor drives the table, and the machine weighs 48 t.

Key Features

• Cross-rail with 2,100 mm vertical travel
• Vertical rail heads with a head tilting angle of ±35 deg
• Horizontal side rail head with 1,000 mm travel
• 16 feed steps on both the vertical and side rail heads
• Slow feedbox for table slow feeds of 1–360 deg/min

Technical Specifications

• Model: SC33 Titan
• Swing: 3,300 mm
• Max. workpiece height: 2,300 mm
• Max. workpiece weight: 18 t

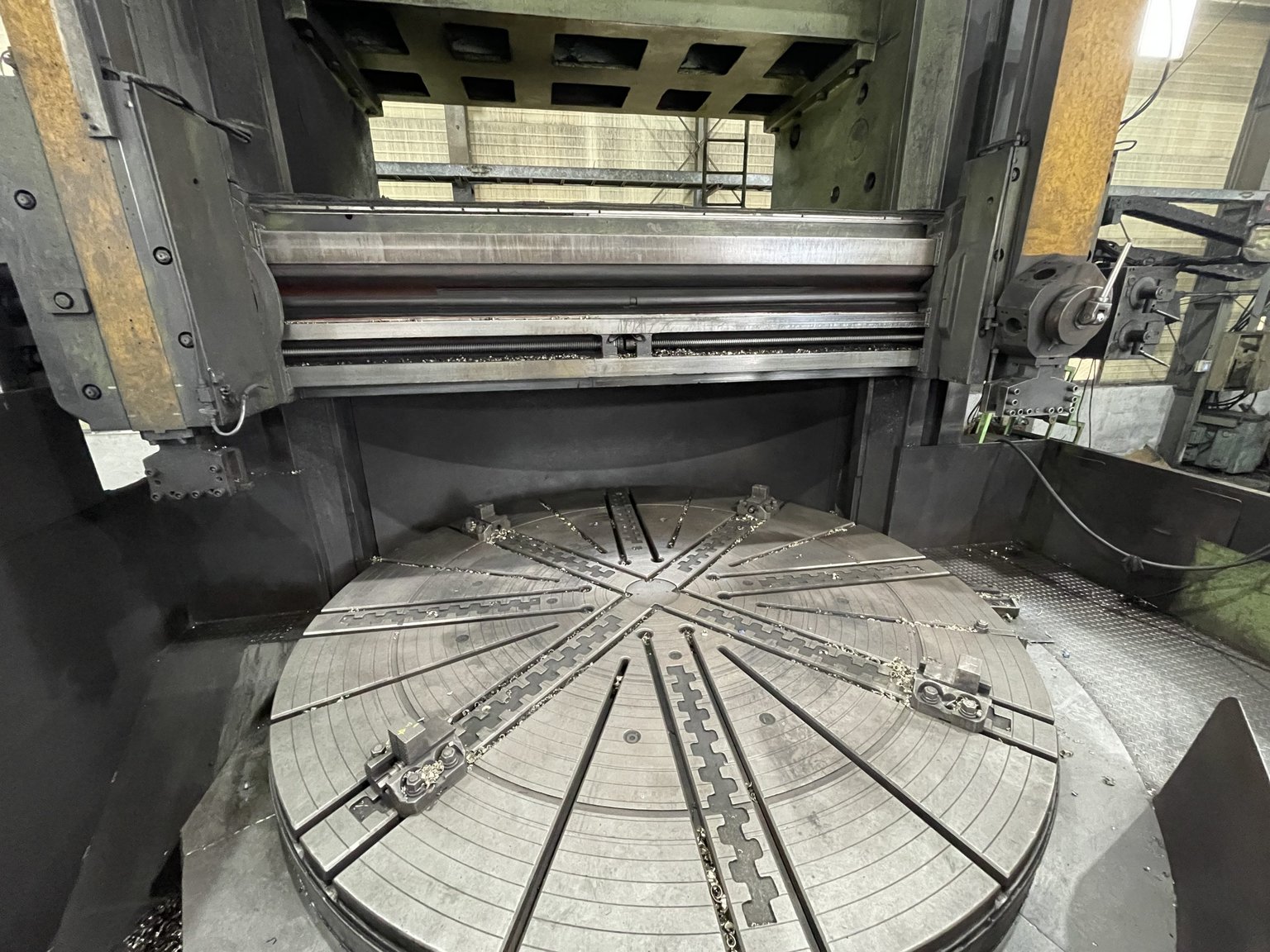

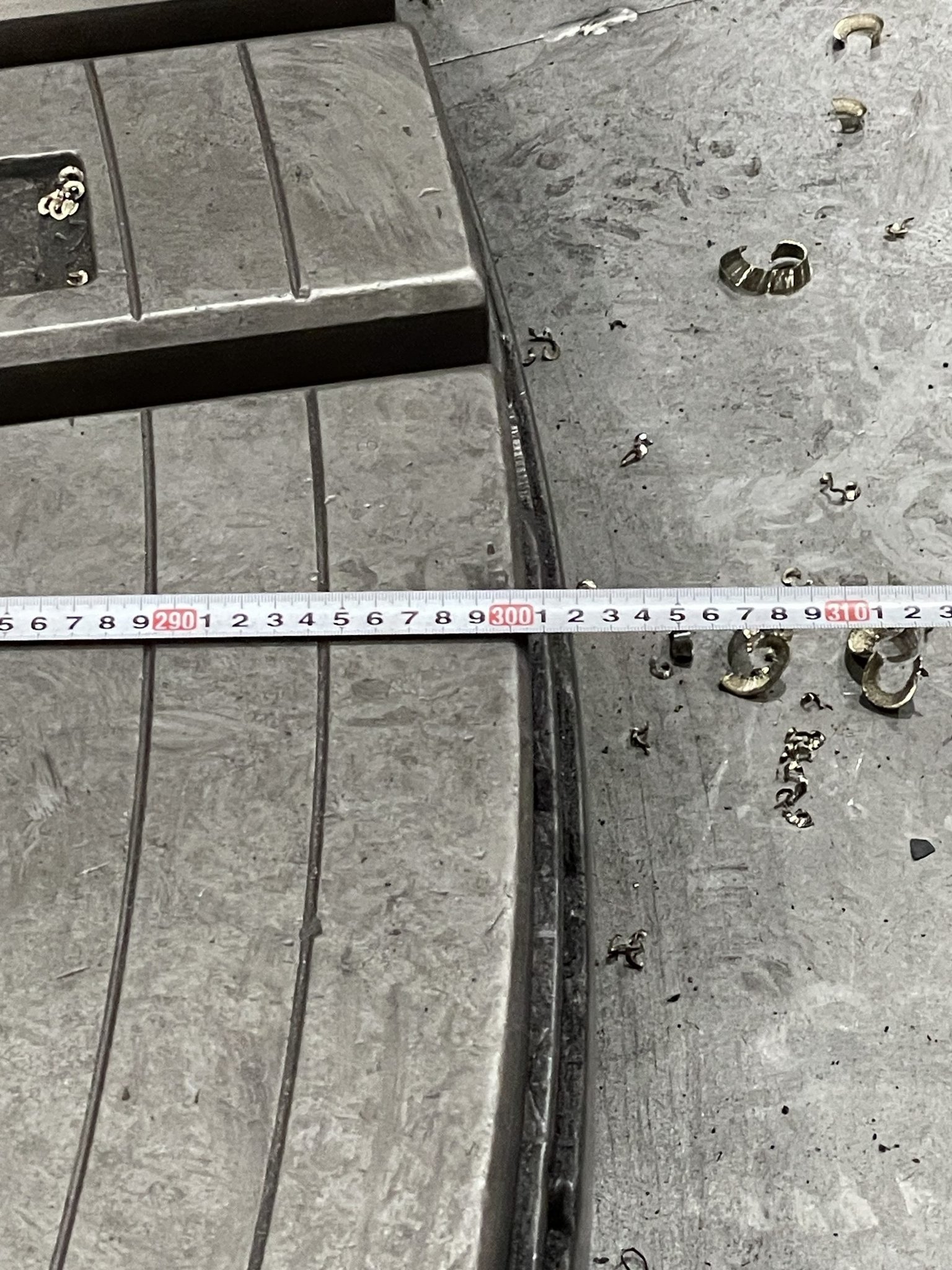

• Table diameter: 3,000 mm
• Table speed range: 1.02–92 rpm
• Increased table speed range: 1.5–150 rpm
• Cross-rail vertical travel: 2,100 mm
• Cross-rail rapid positioning feed: 400 mm/min
• Vertical ram travel: 760 mm
• Right rail head travel: 1,000 mm
• Vertical rail head feed steps: 16
• Vertical rail head feed range: 0.05–5 mm/rev
• Vertical rail head rapid positioning feed: 2,500 mm
• Head tilting angle: ±35 deg
• Tool holder diameter: 80 mm

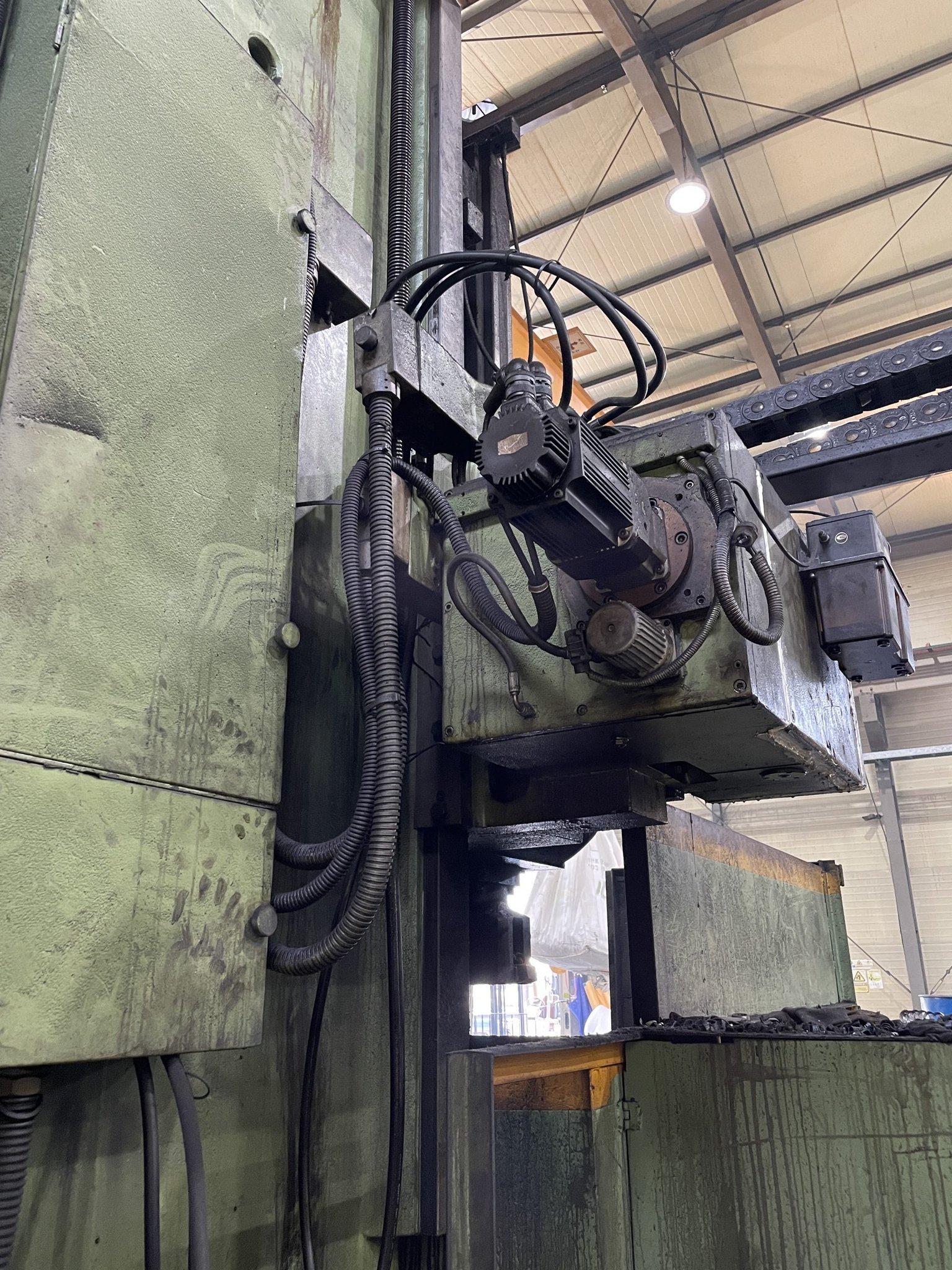

• Side rail head horizontal travel: 1,000 mm
• Side rail head feed steps: 16
• Side rail head feed range: 0.05–5 mm/rev
• Side rail head rapid positioning feed: 2,500 mm
• Table slow feeds: 1–360 deg/min
• Table slow feed motor torque: 45–55 Nm
• Main motor: 55 kW, D.C.
• Machine length: 5,600 mm
• Machine width: 5,300 mm
• Machine height: 5,400 mm
• Machine weight: 48 t

Applications

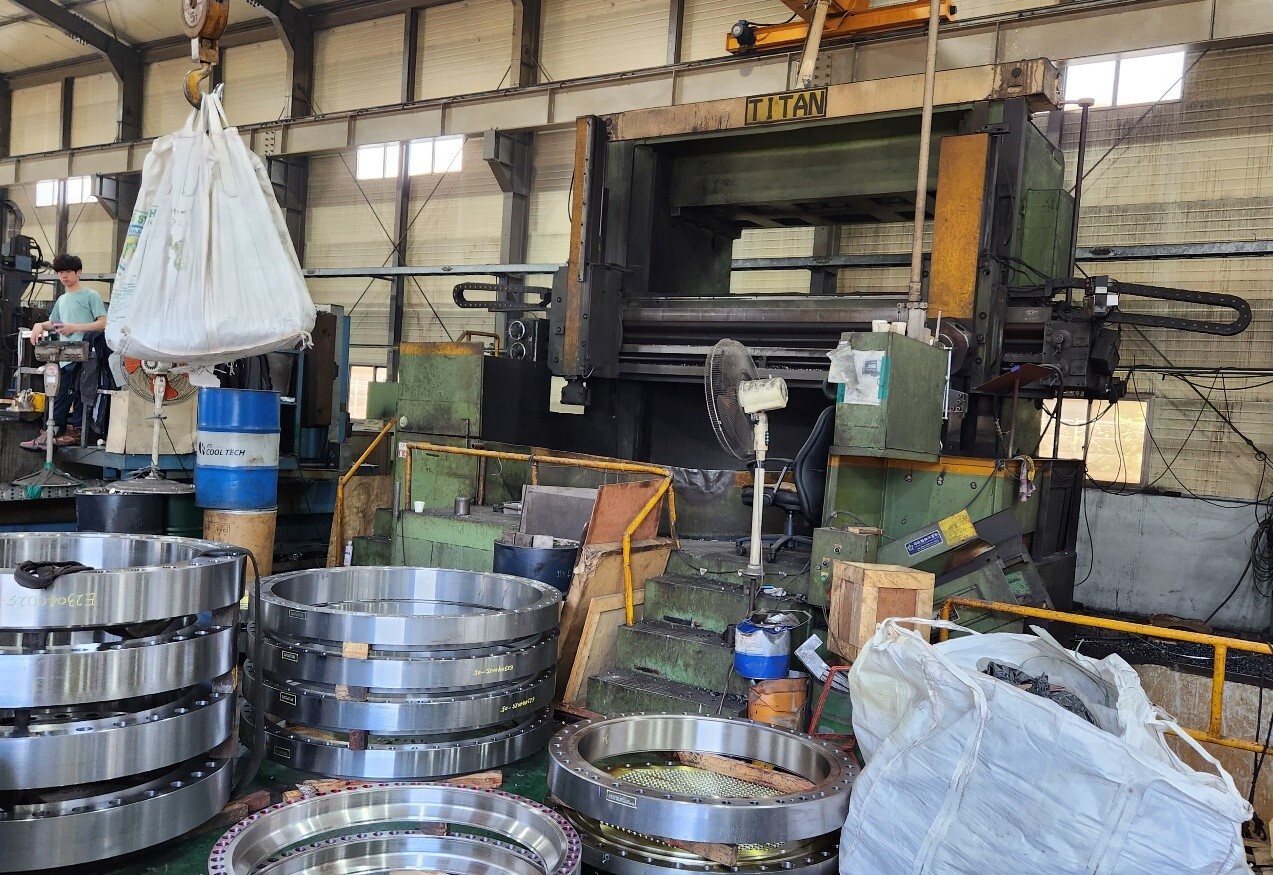

• Large turned discs, rings and flanges
• Heavy castings and forgings
• Wheels, housings and large bearing components
• Heavy engineering and power generation components

Commercial Details

• Model: SC33 Titan
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece it can take? It takes workpieces up to 3,300 mm swing, 2,300 mm high and 18 t in weight.
• What is the table speed range? The table runs at 1.02–92 rpm, with an increased range of 1.5–150 rpm.
• How big and heavy is the machine? It measures 5,600 mm long, 5,300 mm wide and 5,400 mm high, and weighs 48 t.

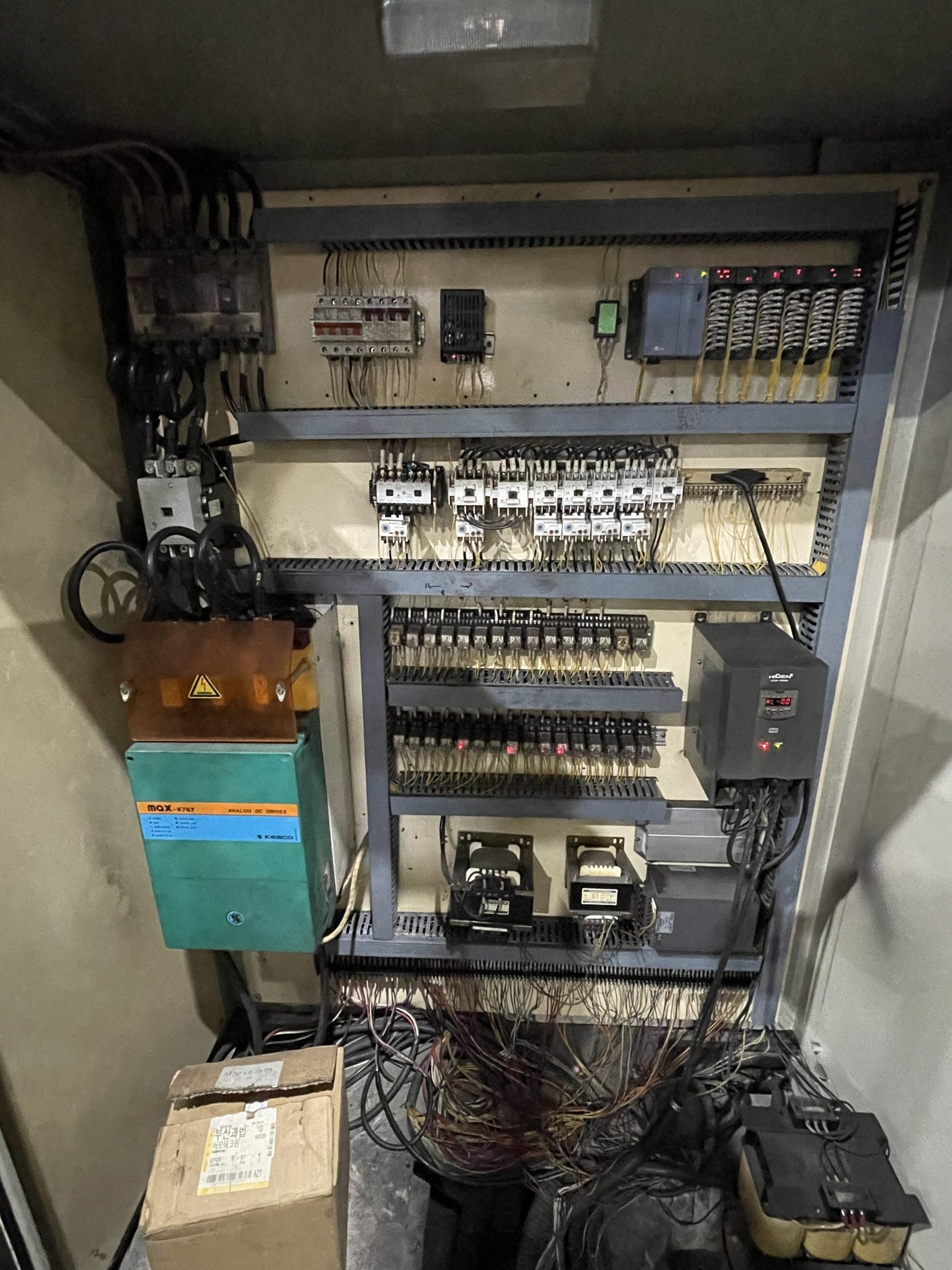

• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which tool holders and accessories are included, the condition of the D.C. drive and electrics, and loading and shipping arrangements for a 48 t machine.
