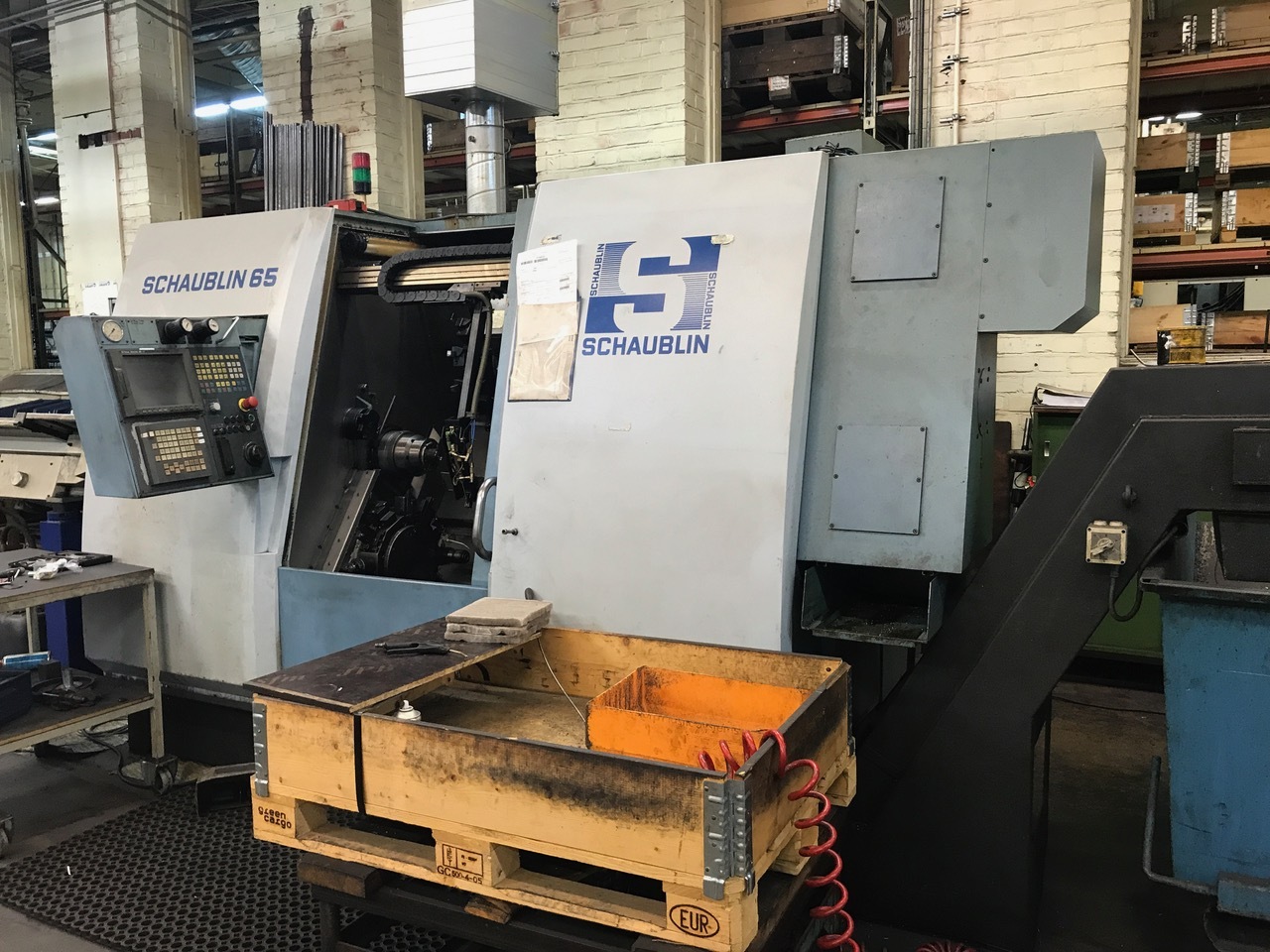

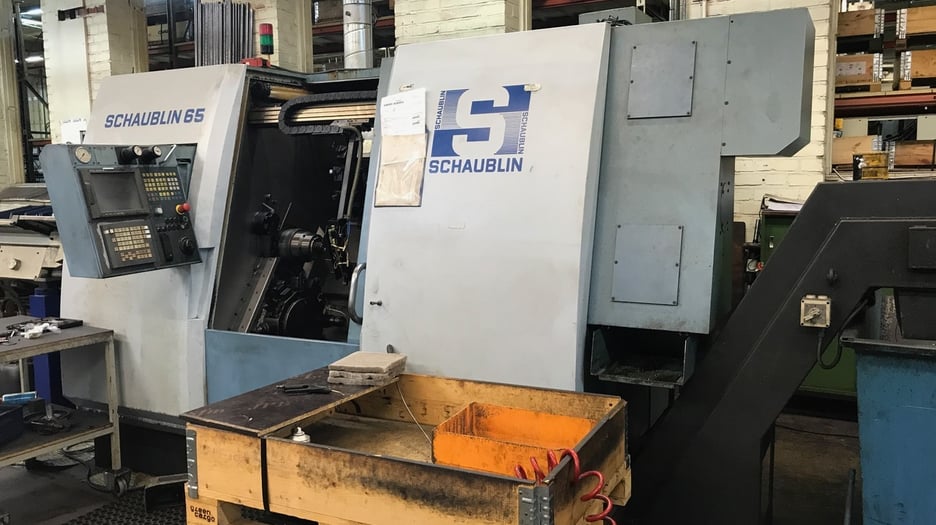

Used Schaubild 65 TM-6 CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

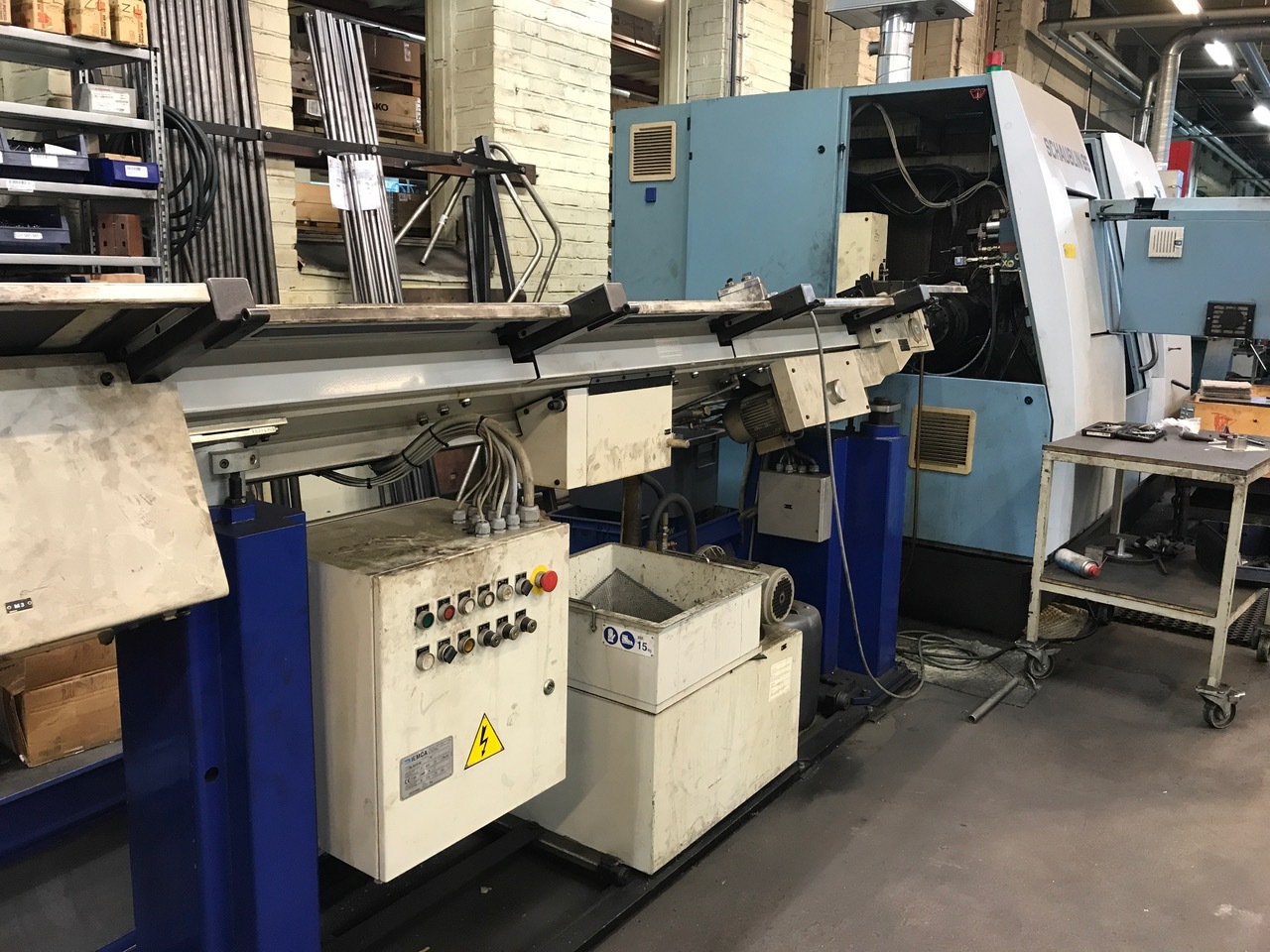

This used Schaubild 65 TM-6 CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a turning centre that cuts round parts from bar or workpieces under CNC control.

It has two tool turrets holding 12 tools in total and a main spindle that runs up to 4000 rpm. It turns parts up to 9.8 in in diameter and 19.7 in in length, and is controlled by a Fanuc 18iT.

Key Features

• Two tool turrets
• 12 tools held in the turrets in total
• Fanuc 18iT CNC control

Technical Specifications

• Model: 65 TM-6
• Year: 1998

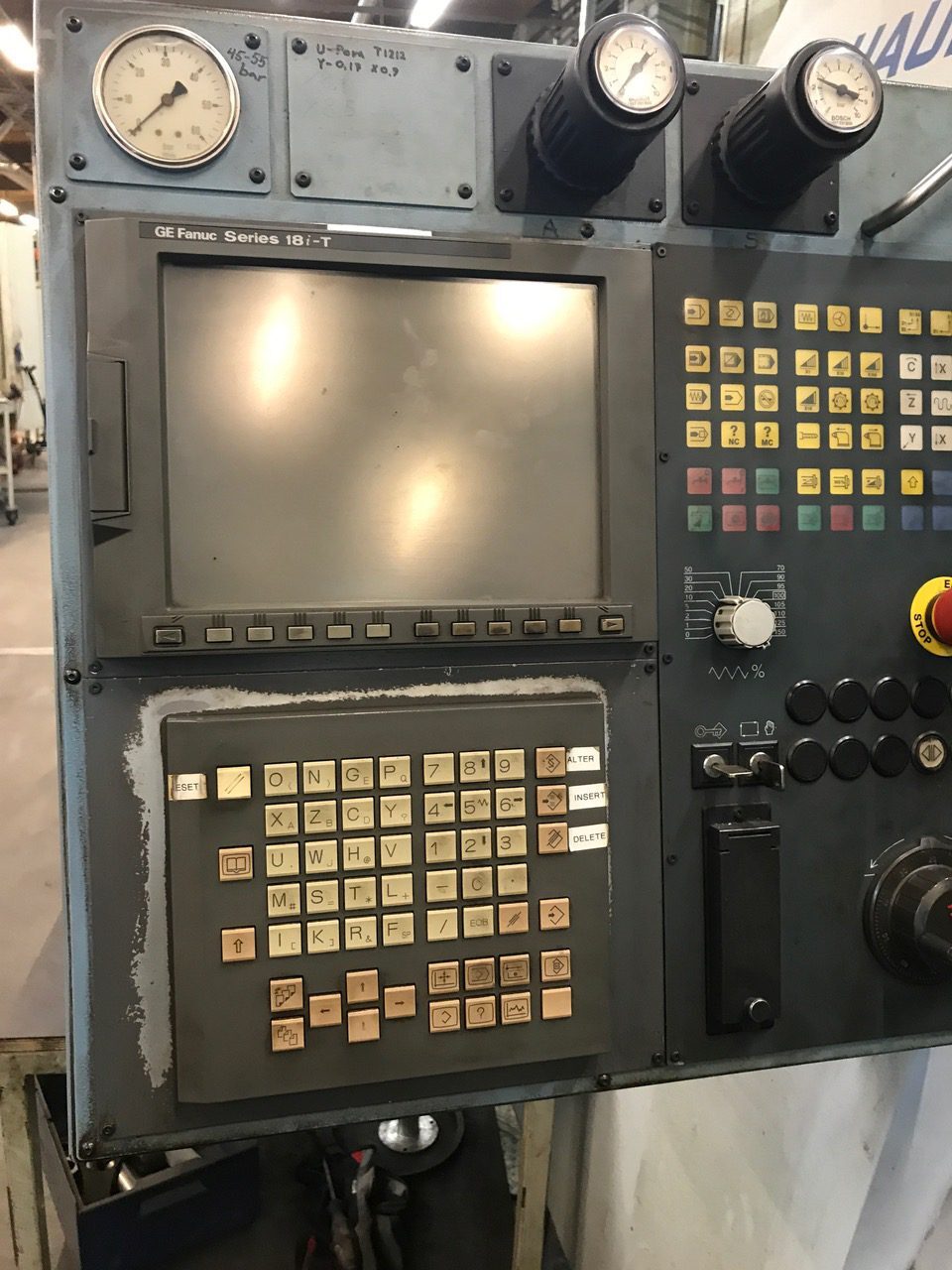

• Control: Fanuc 18iT
• Maximum turning length (Z-axis): 19.7 in
• Maximum turning diameter: 9.8 in
• Maximum main spindle power (turning): 24.8 hp

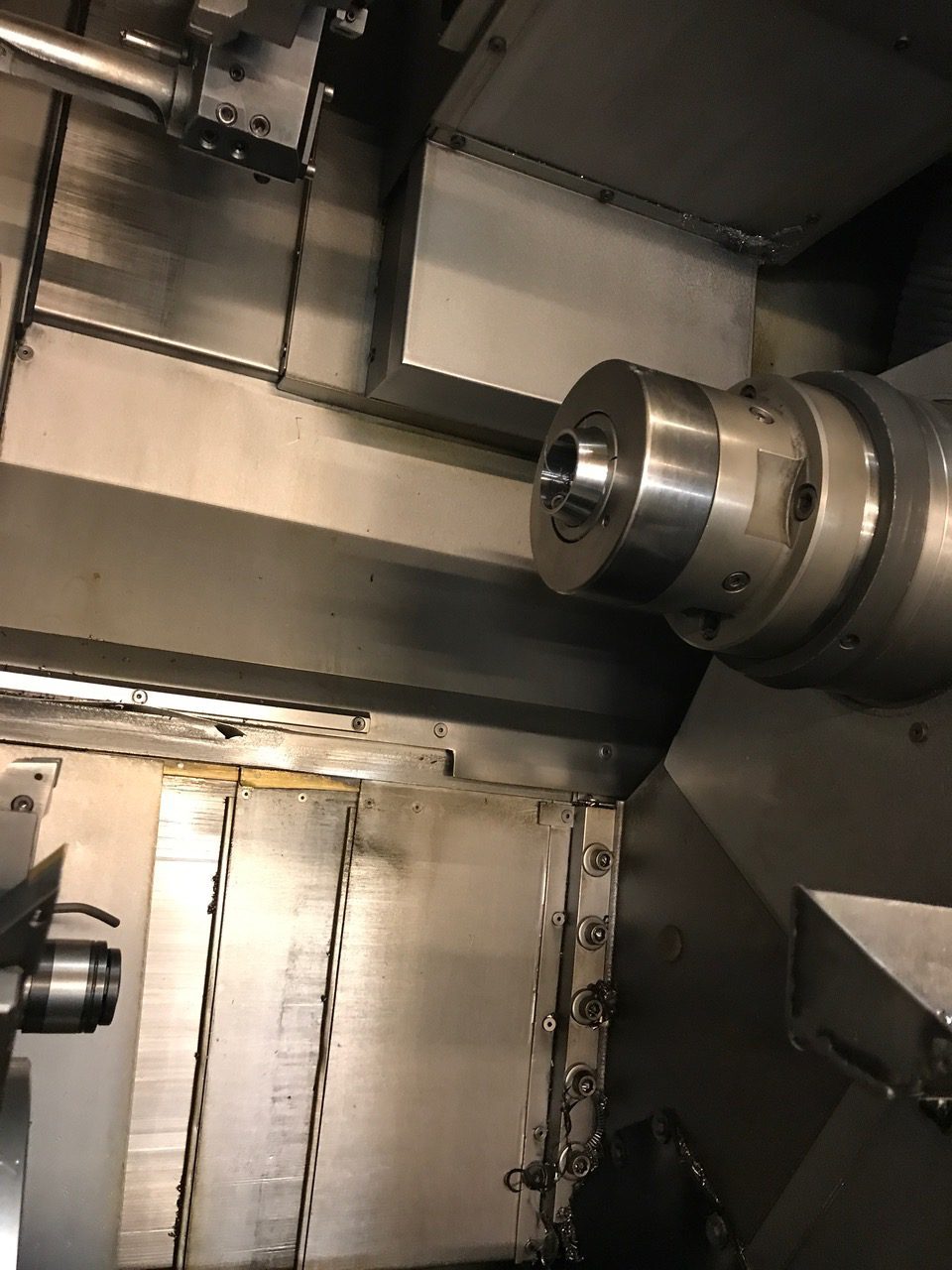

• Maximum main spindle speed: 4000 rpm

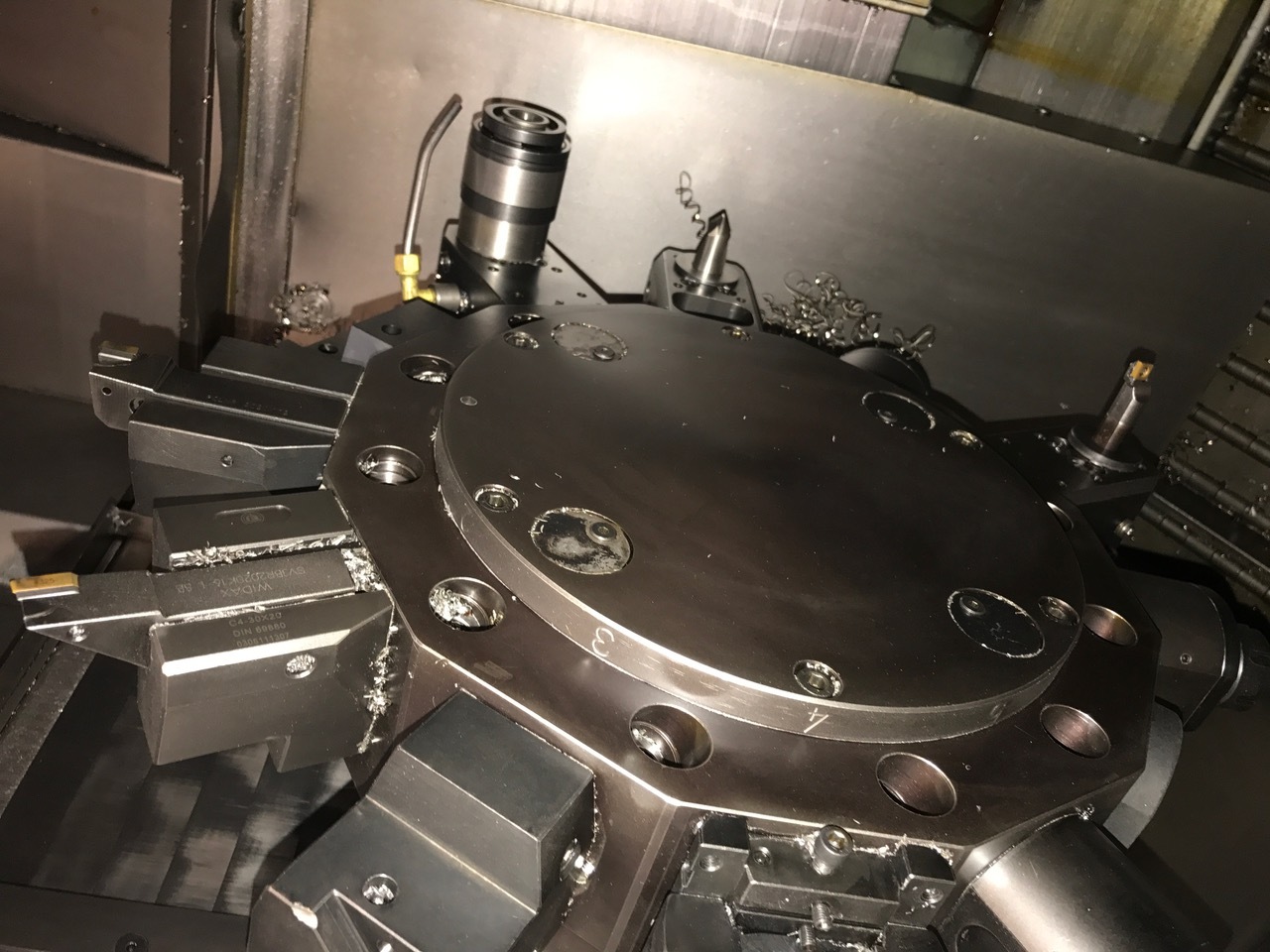

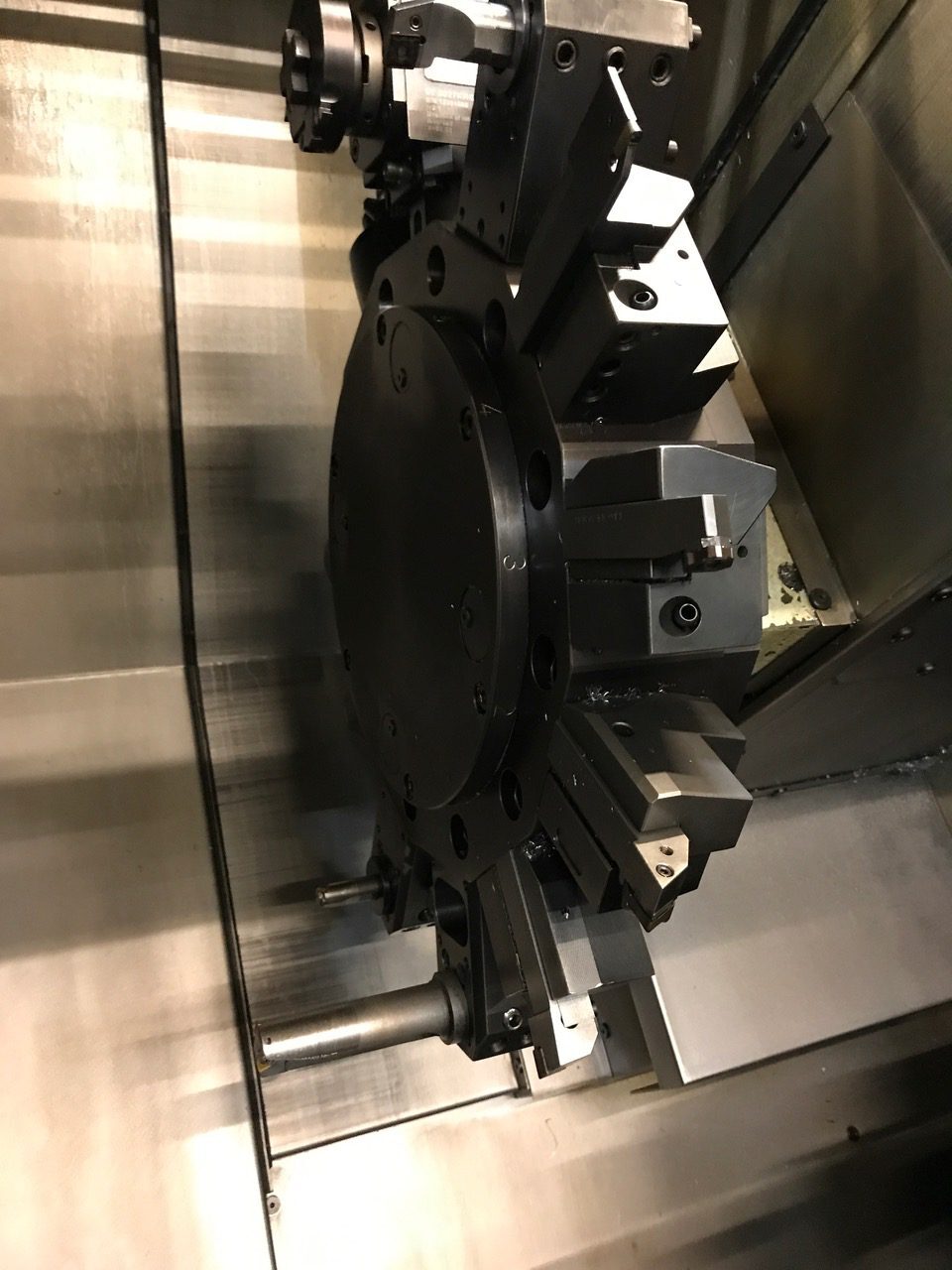

• Number of tool turrets: 2
• Total tools in turrets: 12
• Length: 169.3 in
• Width: 94.5 in
• Height: 82.7 in
• Weight: 8.3 short ton

Applications

• Turned shafts and pins
• Round components for general engineering
• Machined parts needing several tools in one setup
• Batch production of turned parts

Commercial Details

• Make: Schaubild
• Model: 65 TM-6
• Year: 1998
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of part can it turn? It turns up to 9.8 in in diameter and 19.7 in in length.
• What control does it use? It is fitted with a Fanuc 18iT CNC control.
• How many tools does it hold? It has two turrets holding 12 tools in total.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for its 8.3 short ton weight.
