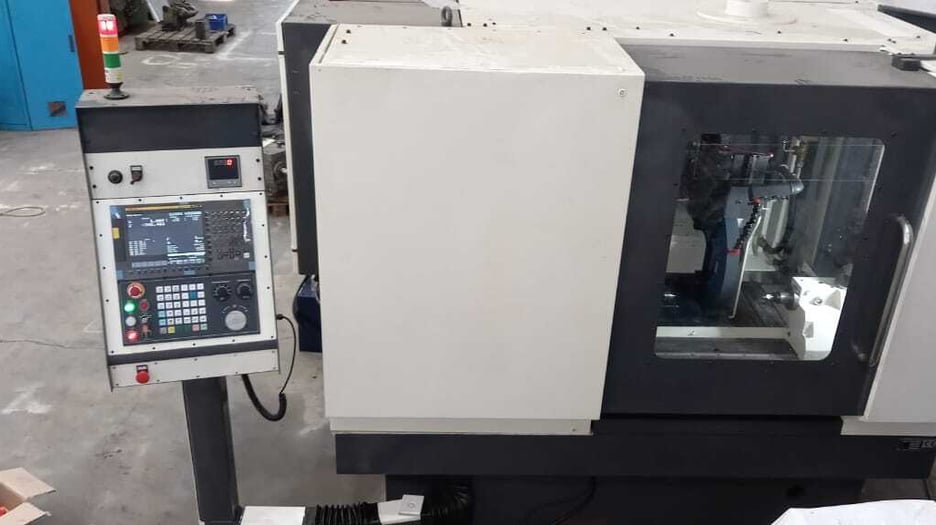

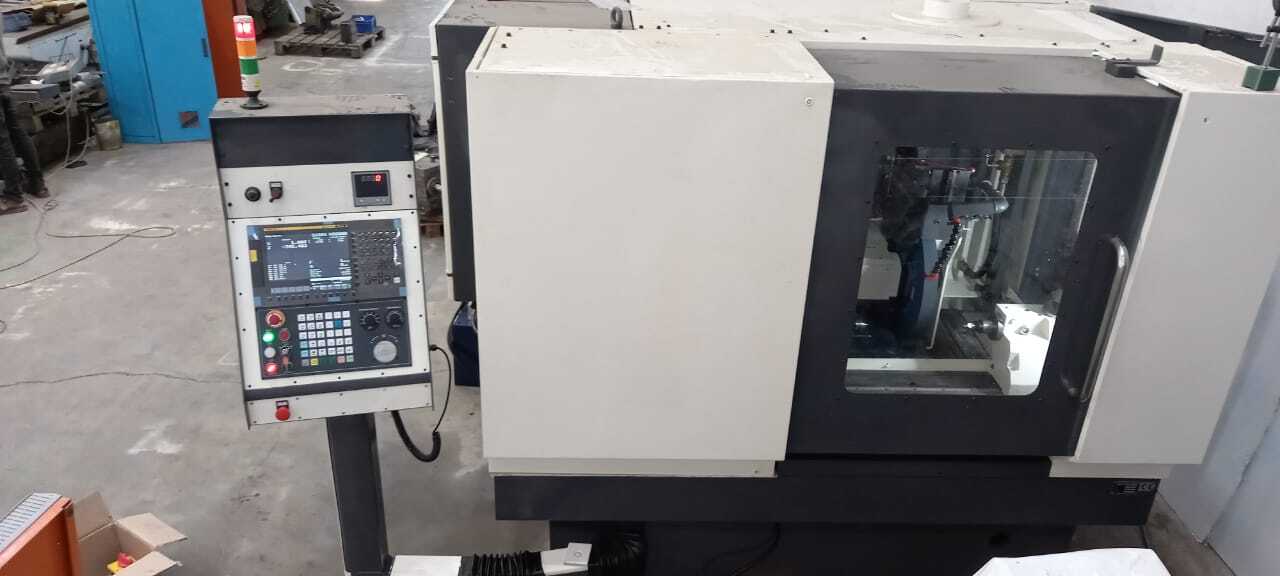

Used Schaudt ZX11 P 600 OD Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Schaudt ZX11 P 600 OD cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds the outside diameter of round workpieces held between centres.

It takes workpieces up to 300 mm in diameter and 1,000 mm clamping length, with a 180 mm centre height. Maximum workpiece weight is 80 kg between centres, or 50 kg without the tailstock. It is controlled by a Fanuc CNC.

Key Features

• Fanuc CNC control

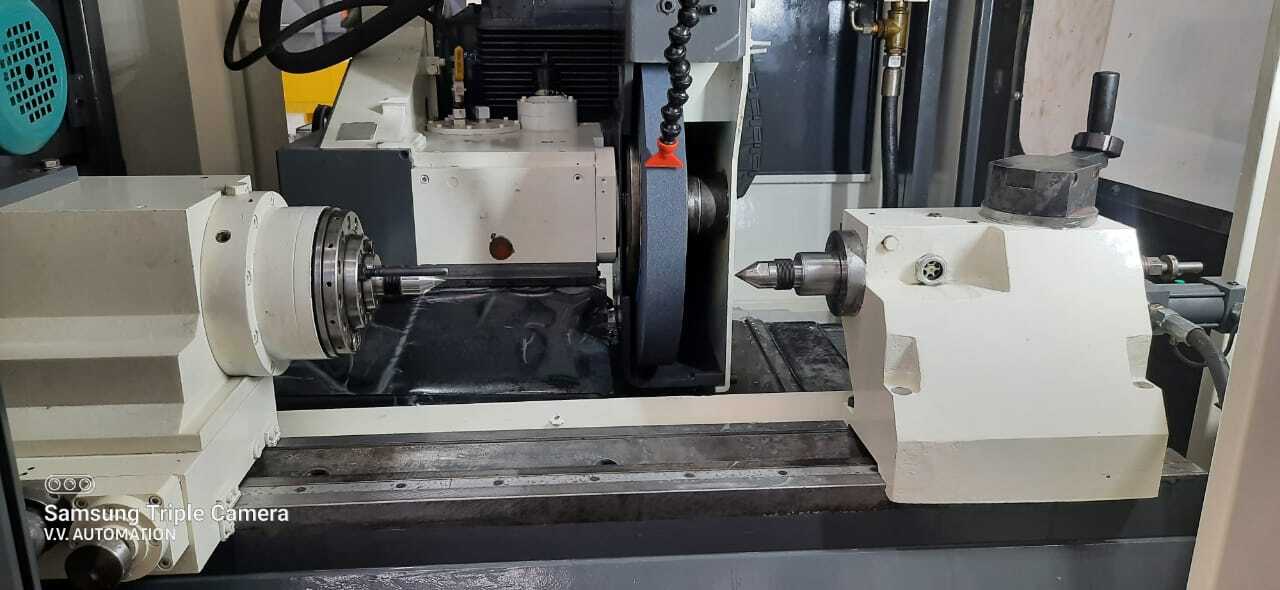

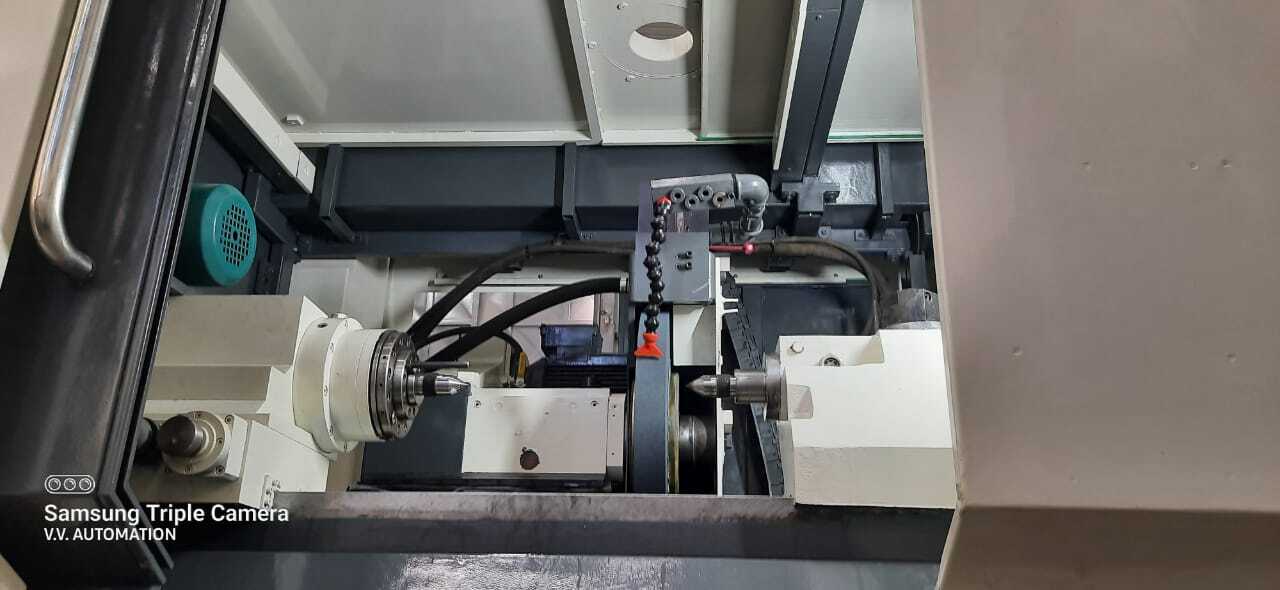

• Workpiece headstock with MK 4 taper
• Tailstock with 40 mm quill stroke

Technical Specifications

• Model: ZX11 P 600
• Max. grinding diameter: 300 mm
• Centre height: 180 mm
• Clamping length: 1,000 mm
• Max. workpiece weight between centres: 80 kg
• Max. workpiece weight without tailstock: 50 kg
• Rapid traverse, Z axis: 10,000 mm/min
• Rapid traverse, X axis: 5,000 mm/min
• Grinding motor: 7.5 kW
• Grinding wheel diameter: 500 mm
• Grinding wheel width: 100 mm
• Grinding wheel hole diameter: 203.2 mm
• Workpiece spindle speed: 1–4,000 rpm
• Workpiece headstock taper: MK 4
• Tailstock quill diameter: 50 mm
• Tailstock taper: MT 4
• Tailstock quill stroke: 40 mm
• Control: Fanuc CNC
• Machine weight: approx. 5.1 t

Applications

• Shafts and spindles
• Precision round components ground between centres
• Toolroom and general engineering parts
• Automotive and machinery drive components

Commercial Details

• Make: Schaudt
• Model: ZX11 P 600
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it grind? It grinds up to 300 mm diameter with a 180 mm centre height and 1,000 mm clamping length.

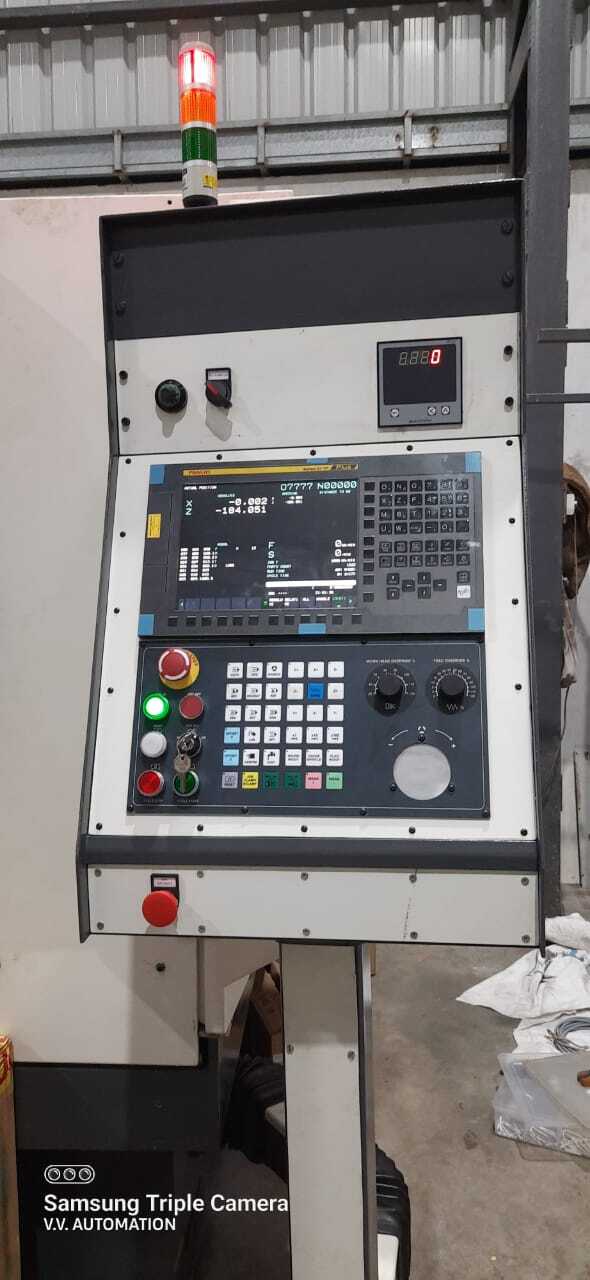

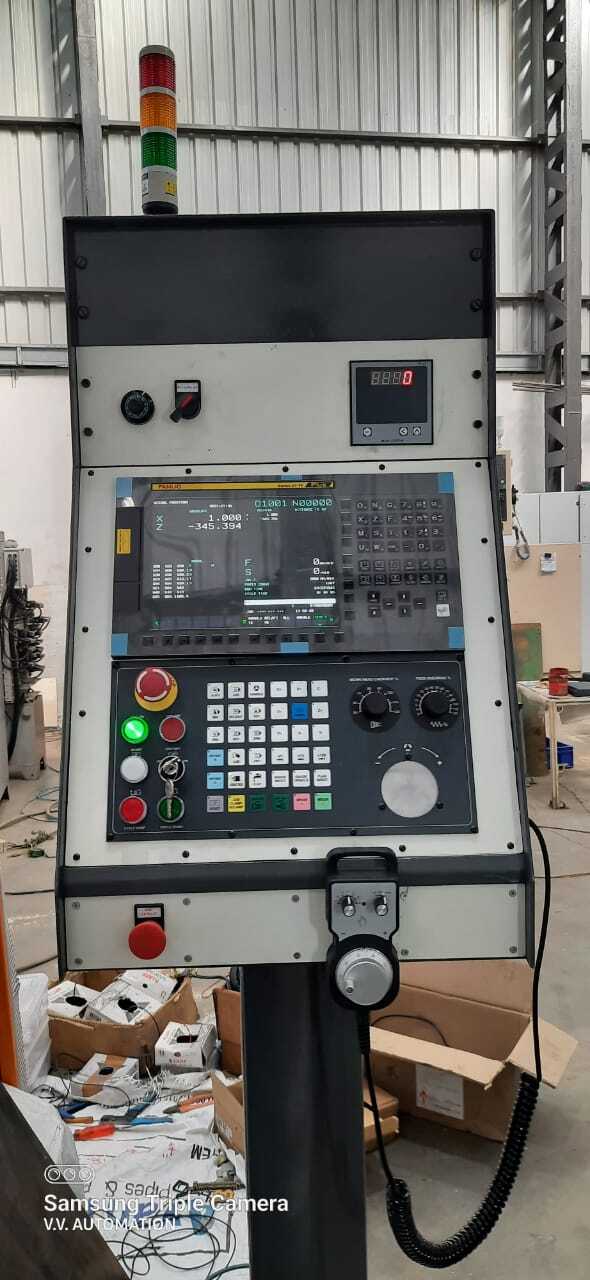

• What control does it have? It uses a Fanuc CNC control.
• How heavy a workpiece can it take? Up to 80 kg between centres, or 50 kg without the tailstock.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether it can be inspected, which wheels, workholding and accessories are included, the condition of the Fanuc control and electrics, and arrangements for loading and shipping.
