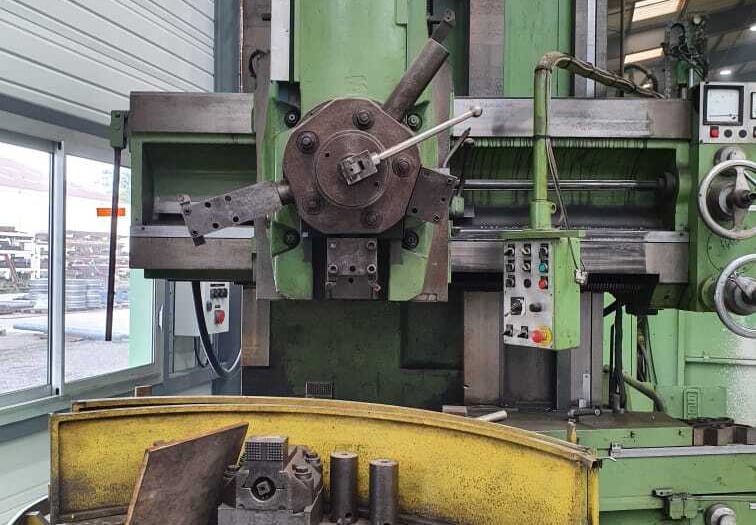

Used Schiess Froriep KE14 Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Schiess Froriep KE14 vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held on a horizontal rotating table.

It has a 1,400 mm chuck and turns up to 1,600 mm in diameter, with 18 speeds from 3.6 to 180 rpm. The machine has conventional control.

Key Features

• Conventional control
• 18 spindle speeds

Technical Specifications

• Model: KE14
• Chuck diameter: 1,400 mm
• Max turning diameter (passage): 1,600 mm
• Max longitudinal travel (X-axis): 700 mm
• Max workpiece height (Z-axis): 1,150 mm
• Number of speeds: 18
• Speed range: 3.6–180 rpm
• Control: Conventional
• Length: 2,800 mm
• Width: 3,200 mm
• Height: 3,550 mm
• Weight: 16,800 kg

Applications

• Large discs, flanges and rings
• Heavy wheels and gear blanks
• Housings and large cylindrical castings
• General heavy engineering turning

Commercial Details

• Make: Schiess Froriep
• Model: KE14
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the chuck size of the Schiess Froriep KE14? The chuck diameter is 1,400 mm.
• What is the largest diameter it can turn? The maximum turning diameter (passage) is 1,600 mm, with a maximum workpiece height of 1,150 mm.
• What is the speed range? It has 18 speeds from 3.6 to 180 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which chucks, tooling and accessories are included, the condition of the electrics and controls, and loading and shipping arrangements for its 16,800 kg weight.
