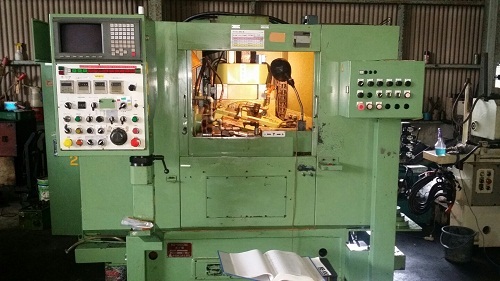

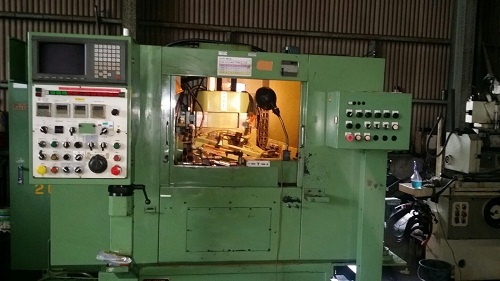

Used Seiwa NS 100 CNC Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Seiwa NS 100 CNC is available from A.K. Machine Traders in Navi Mumbai, India. The specification describes a hobbing machine, which cuts gear teeth, although the listing category is CNC lathe / turning centre.

It handles gears up to 100 mm maximum hobbing diameter at module 2.5, takes hobs up to 100 x 120 mm and runs at a spindle speed of 400 rpm.

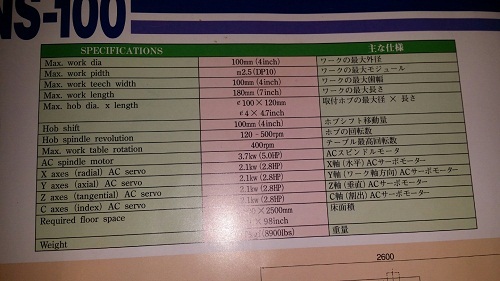

Technical Specifications

• Model: Seiwa NS 100 CNC
• Maximum hobbing diameter: 100 mm
• Module: M2.5
• Maximum hob diameter and length: 100 x 120 mm
• Outer diameter: 140 mm
• Spindle speed: 400 rpm

Applications

• Cutting spur and helical gears
• Small gear production for machinery and gearboxes
• Toothed components such as pinions and splined parts

Commercial Details

• Make: Seiwa
• Model: NS 100 CNC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum hobbing diameter? It hobs up to 100 mm in diameter at module 2.5.
• What hob size does it take? It takes hobs up to 100 x 120 mm (diameter x length).
• What is the spindle speed? The spindle speed is 400 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling and accessories are included, the condition of the CNC control and electrics, and the loading and shipping arrangements.
