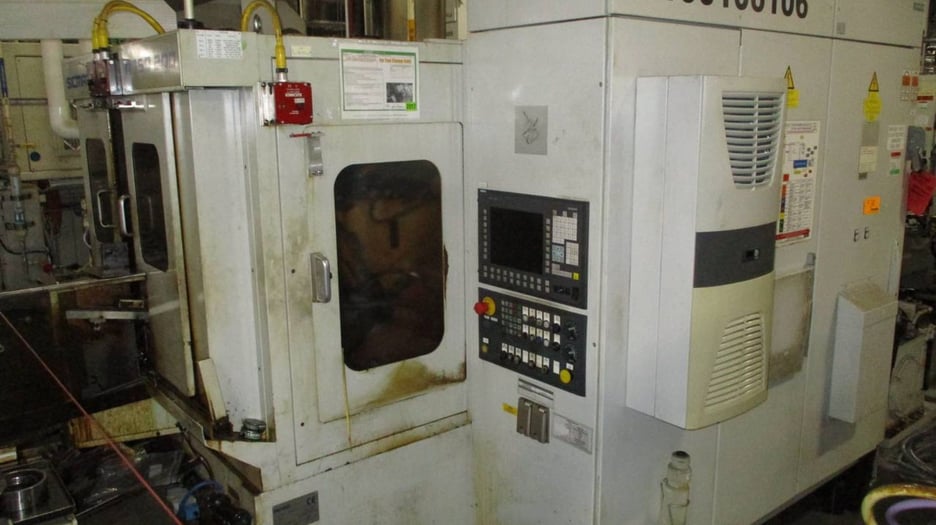

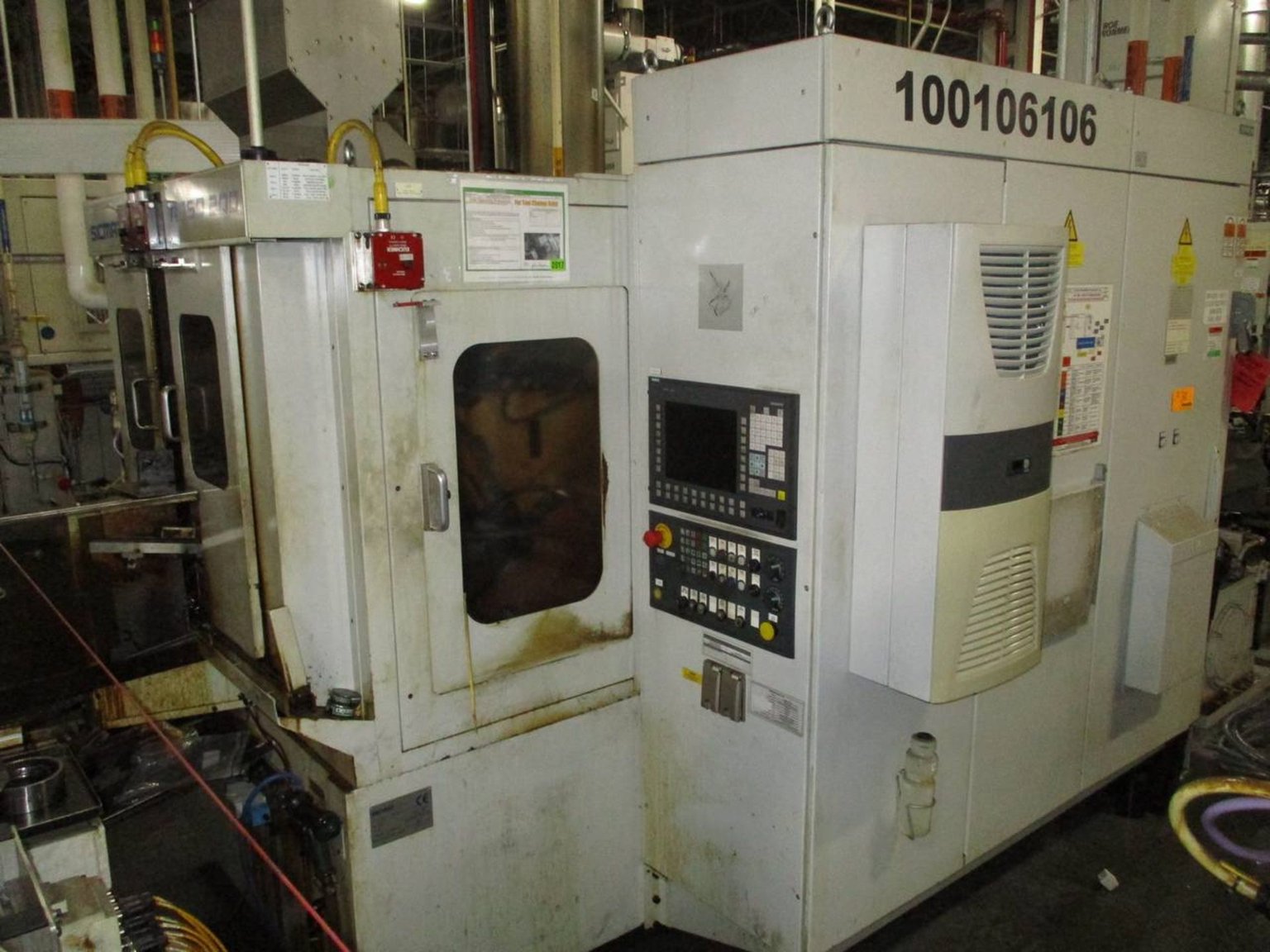

Used Sicmat Raso 200 CNC Gear Shaving Machine | A.K. Machine Traders, Navi Mumbai, India

This used Sicmat Raso 200 CNC gear shaving machine is available from A.K. Machine Traders in Navi Mumbai, India. Gear shaving is a finishing process that refines the tooth surfaces of a gear using a toothed cutter.

The machine takes workpieces up to 200 mm in outside diameter and 100 mm in face width, and covers a module range of 0.5–5 mm. The cutter spindle runs at 10–400 RPM. It was built in 2009.

Technical Specifications

• Make: Sicmat
• Model: Raso 200 CNC
• Year of manufacture: 2009
• Workpiece outside diameter: 200 mm
• Module range: 0.5–5 mm
• Max workpiece face width: 100 mm
• Shaving cutter diameter (min/max): 178/245 mm
• Shaving cutter width (min/max): 19/50.8 mm
• Centre distance, tool to workpiece (min/max): 110/202 mm
• Cutter spindle speed: 10–400 RPM

Applications

• Finishing the teeth of gears for transmissions and gearboxes
• Improving tooth surface quality on hardened-before or soft-stage gears
• Small to medium gear production up to 200 mm diameter

Commercial Details

• Make: Sicmat
• Model: Raso 200 CNC
• Year: 2009
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it shave? It handles workpieces up to 200 mm outside diameter and 100 mm face width, in modules of 0.5–5 mm.
• What cutter sizes does it take? Shaving cutters of 178–245 mm diameter and 19–50.8 mm width.
• What year was it built? It was manufactured in 2009.

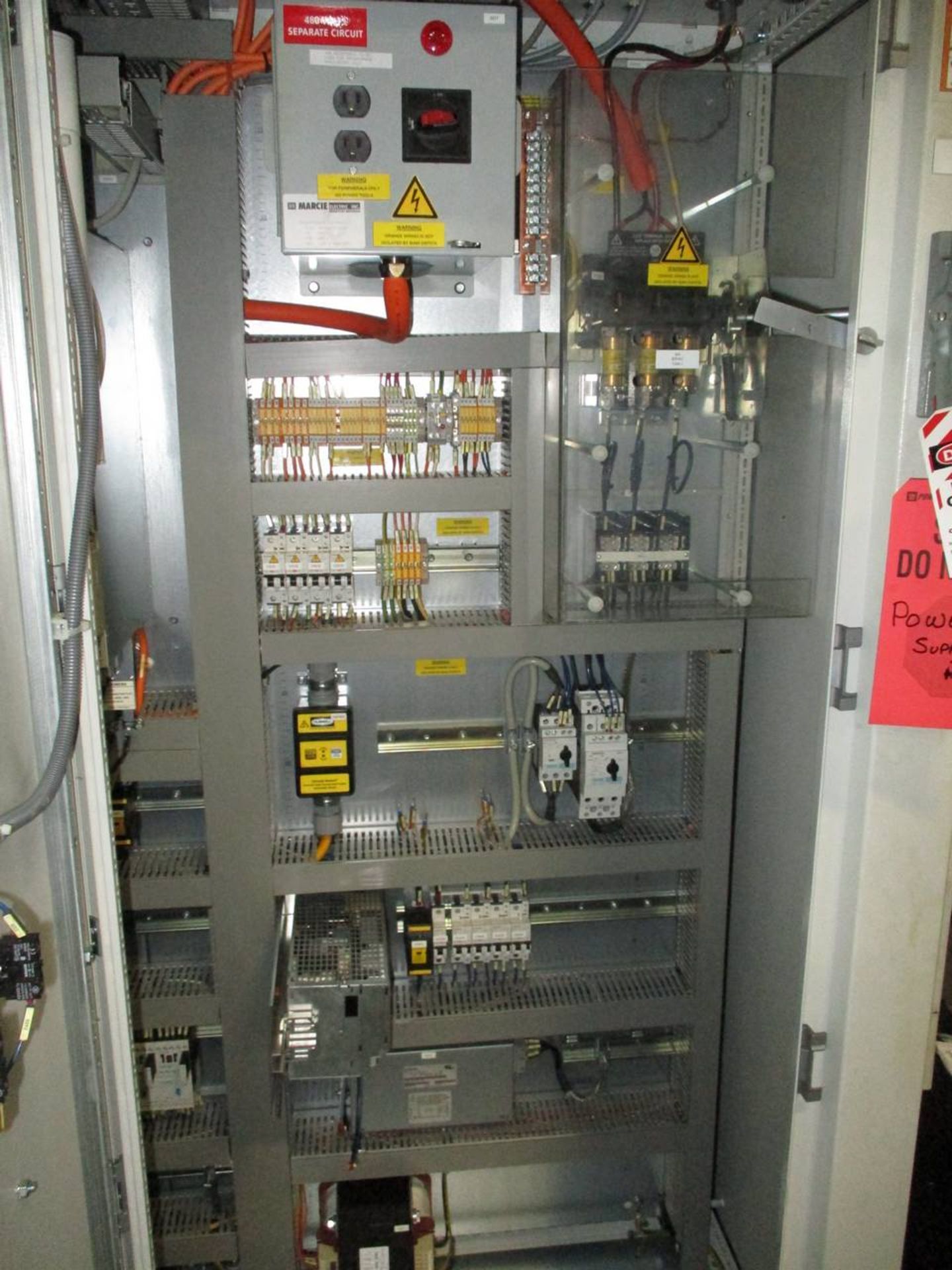

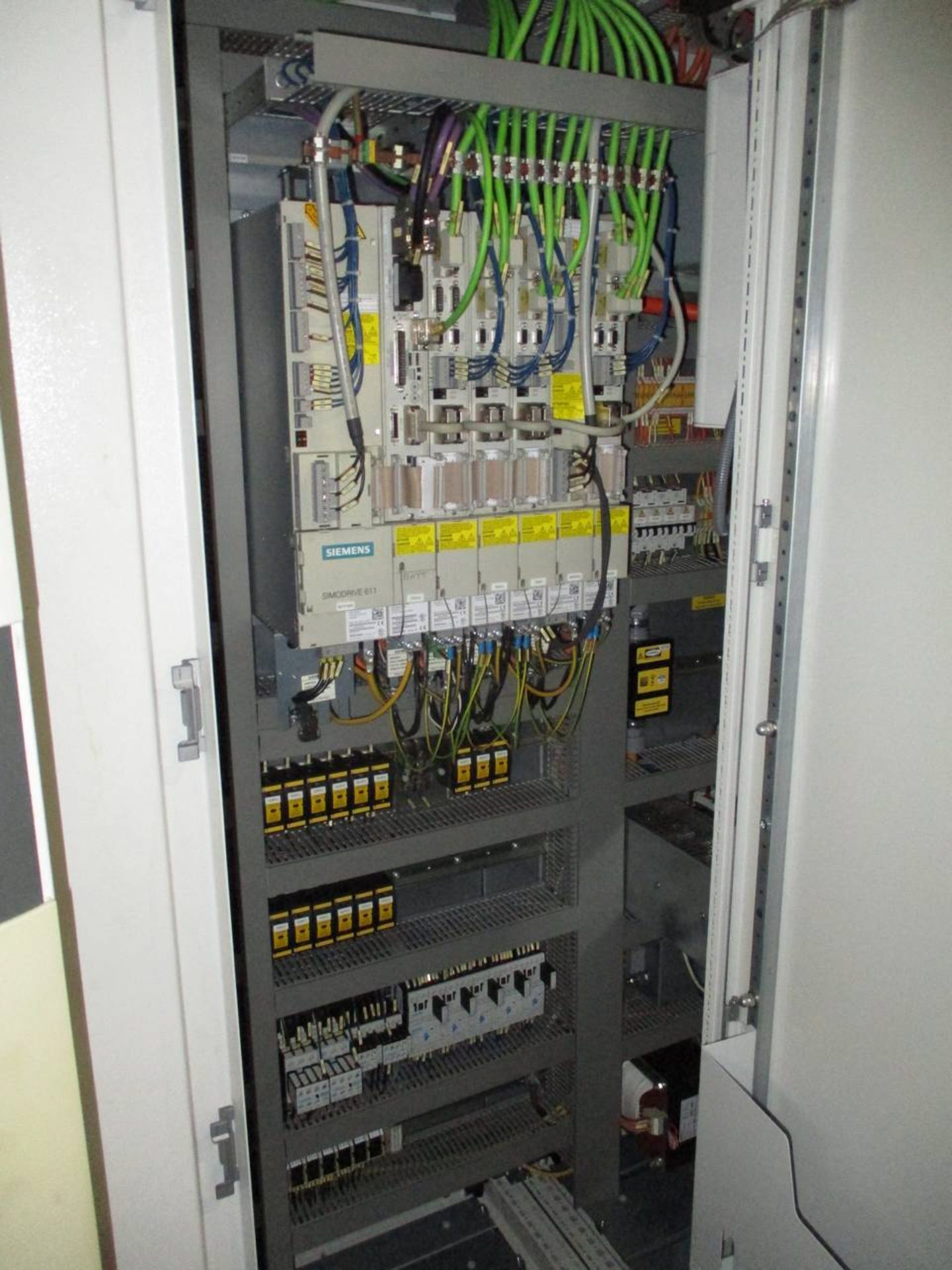

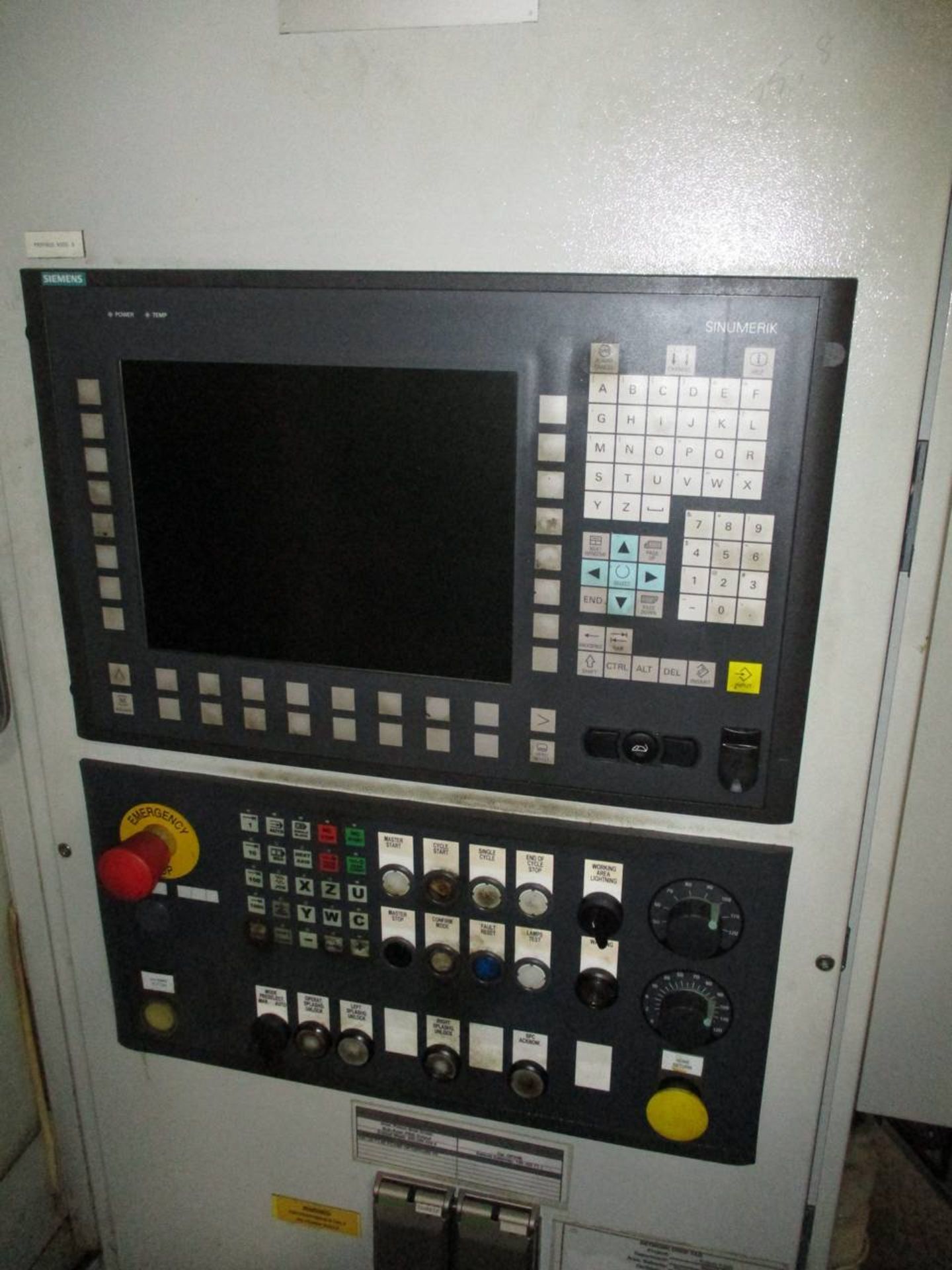

• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, cutters and workholding are included, the condition of the CNC control and electrics, and the loading and shipping arrangements.
