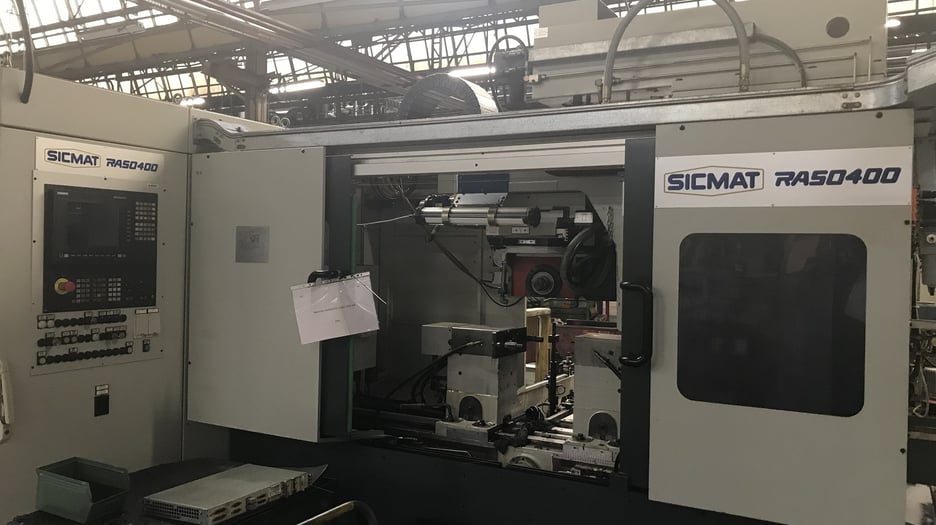

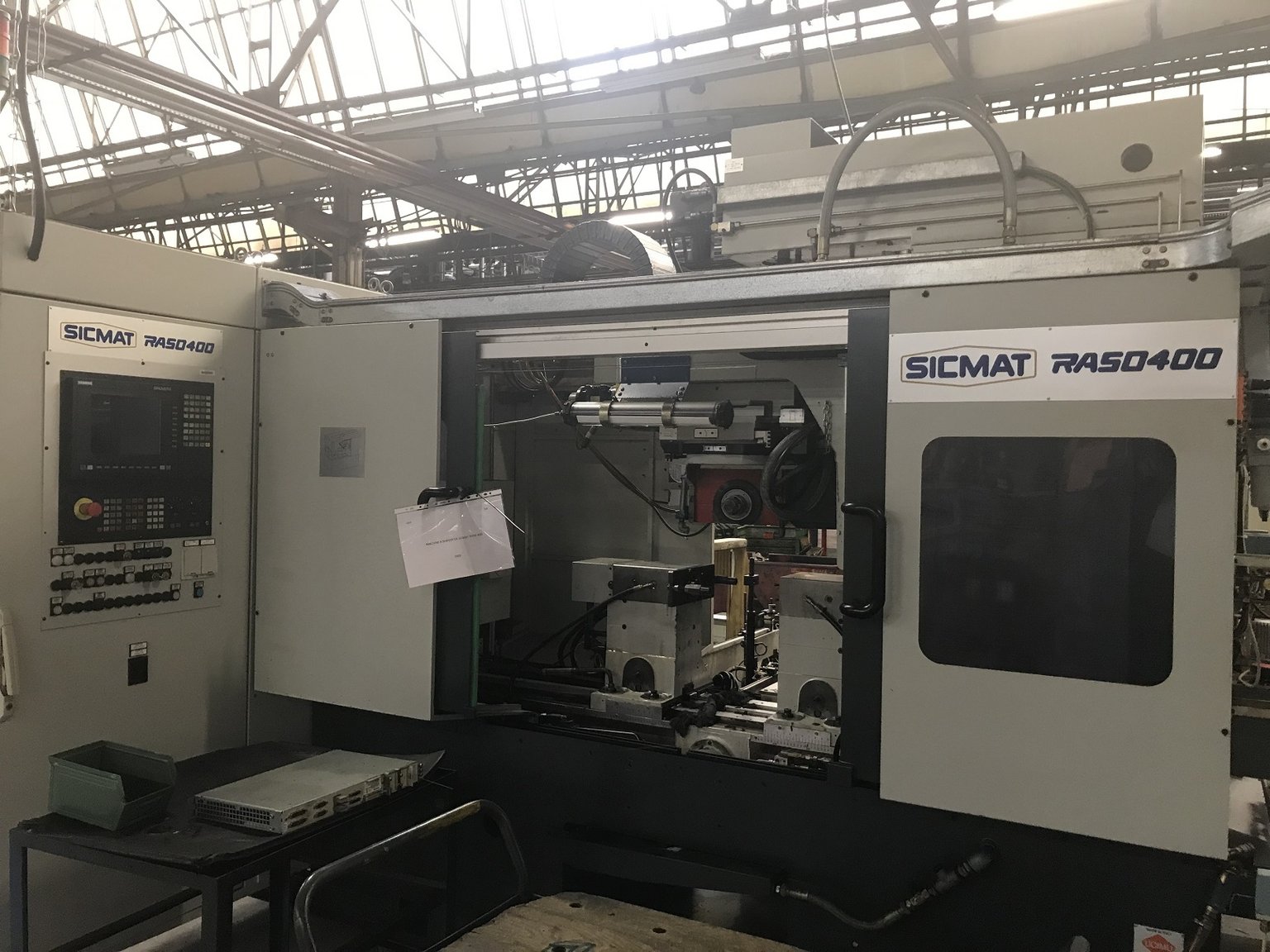

Used Sicmat Raso 400 CNC Gear Shaving Machine | A.K. Machine Traders, Navi Mumbai, India

This used Sicmat Raso 400 CNC gear shaving machine is available from A.K. Machine Traders in Navi Mumbai, India. Gear shaving is a finishing process that removes a small amount of material from the teeth of a cut gear.

It handles modules from 1 to 8 mm and centre distances of 119–329 mm, and takes shaving cutters of 180–254 mm diameter. Motion is CNC-controlled across several axes, and the control is Siemens.

Key Features

• Siemens CNC control
• Cutter speed adjustable from 10 to 400 RPM
• Multi-axis CNC motion on the X, Y, Z, U and W axes

Technical Specifications

• Model: Raso 400 CNC
• Module range: 1–8 mm
• Centre distance: 119–329 mm
• Shaving cutter diameter: 180–254 mm
• Cutter centring diameter: 63.5 mm
• Cutter rotation: 10–400 RPM
• X axis feed: 1–750 mm/min
• X axis stroke: ±35 mm
• U axis feed: 500 degrees/min
• Z axis feed: Rapid 375 mm/min; working 0.1–4 mm/min
• Z axis stroke: 210 mm
• Y axis feed: 1–750 mm/min
• Y axis stroke: ±120 mm
• W axis feed: 1–750 mm/min
• W axis stroke: ±30 mm
• Control: Siemens

Applications

• Finishing of cut gears in module 1–8 mm
• Gears for automotive transmissions
• Gears for industrial gearboxes
• Production gear finishing in machine shops

Commercial Details

• Make: Sicmat
• Model: Raso 400 CNC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What gear sizes can it shave? It covers modules from 1 to 8 mm and centre distances of 119–329 mm.
• What cutter size does it take? It takes shaving cutters of 180–254 mm diameter with a 63.5 mm centring diameter.
• What control does it use? It has a Siemens CNC control.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which cutters, fixtures and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
