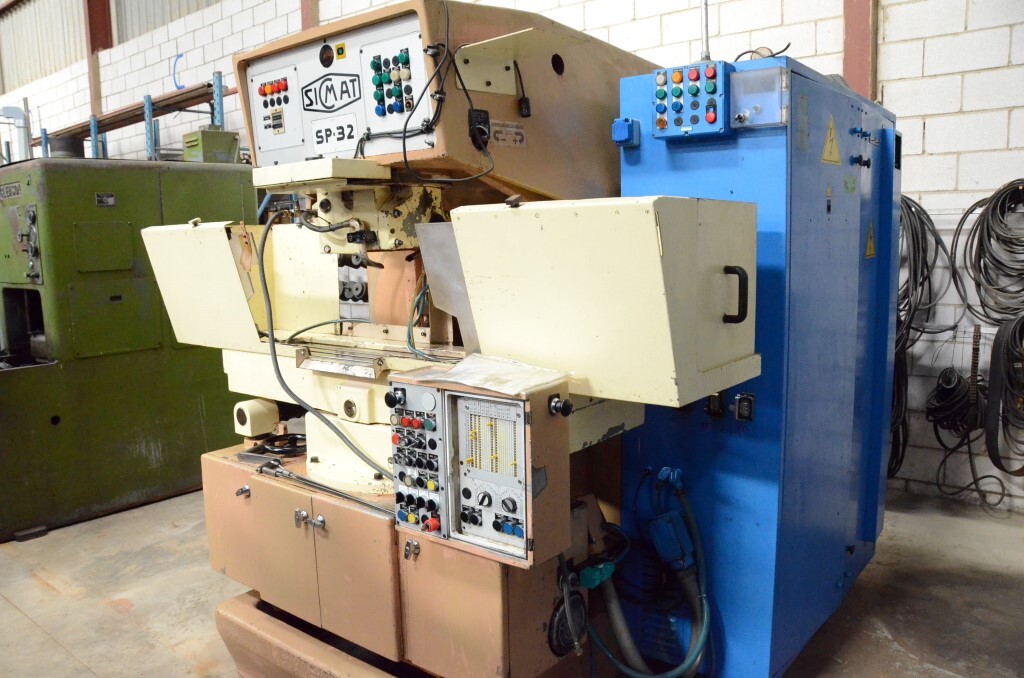

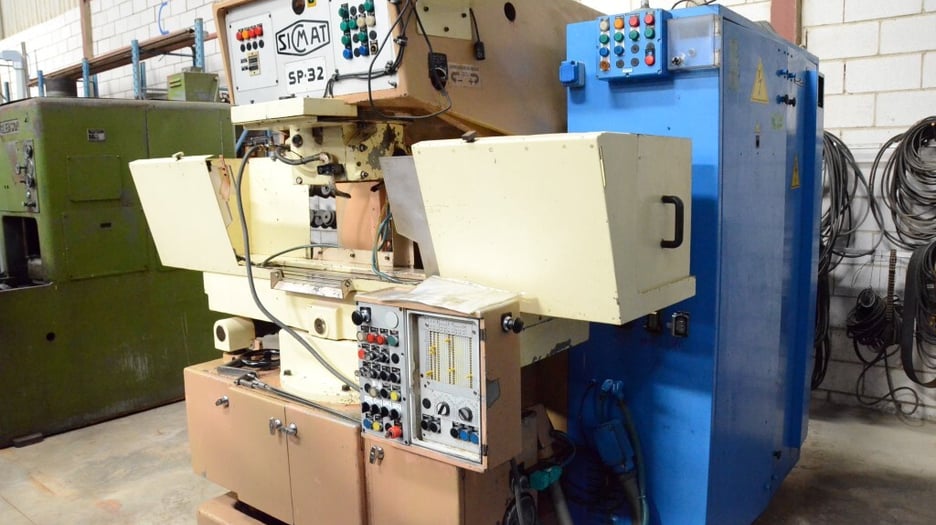

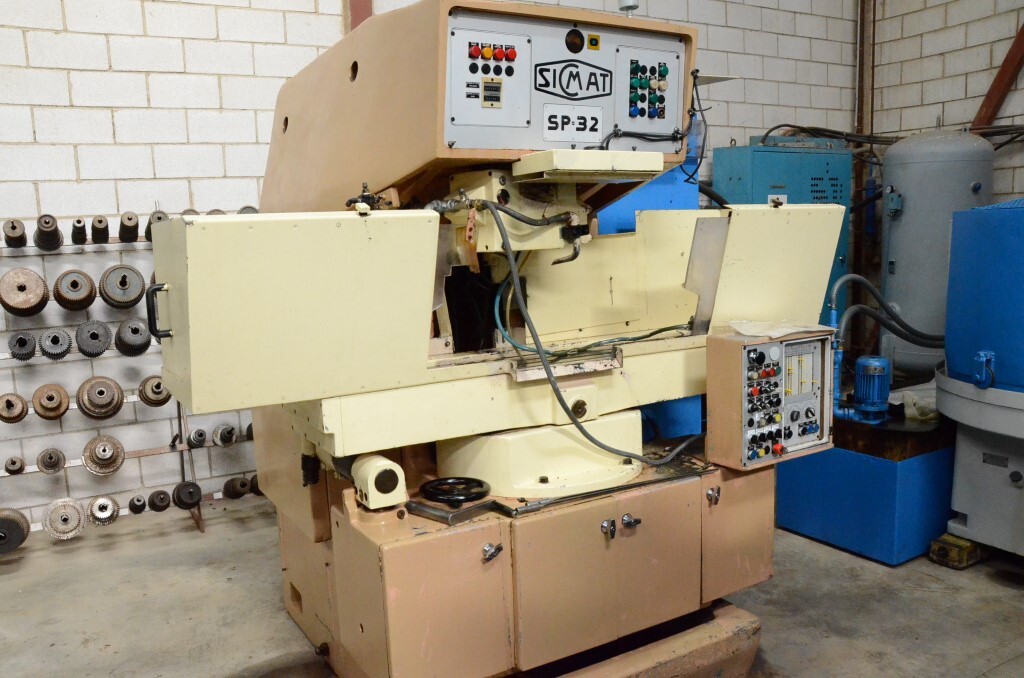

Used Sicmat SP 32 Gear Shaving Machine | A.K. Machine Traders, Navi Mumbai, India

This used Sicmat SP 32 gear shaving machine is available from A.K. Machine Traders in Navi Mumbai, India. Gear shaving is a finishing process for the teeth of gears.

It takes workpieces up to 220 mm in diameter and 50.8 mm in length, and covers modules from 1 to 3.5. It runs on a 3 kW total power supply at 220/380 V.

Technical Specifications

• Model: Sicmat SP 32
• Max workpiece Ø: 220 mm
• Max workpiece length: 50.8 mm
• Module: 1–3.5
• Cutter length: 35 mm
• Cutter Ø (max/min): 254/178 mm
• Total power: 3 kW
• Voltage: 220/380 V
• Height: 2,140 mm
• Length: 2,710 mm
• Width: 2,100 mm
• Weight: 5,900 kg

Applications

• Finishing of spur and helical gear teeth
• Gears for gearboxes and transmissions
• Small to medium gears up to 220 mm in diameter

Commercial Details

• Make: Sicmat
• Model: SP 32
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it shave? It handles workpieces up to 220 mm in diameter and 50.8 mm in length, with modules from 1 to 3.5.
• What cutter sizes does it take? Cutter diameters range from 178 to 254 mm, with a cutter length of 35 mm.
• What are its power and size? It uses 3 kW at 220/380 V, measures 2,710 × 2,100 × 2,140 mm (L × W × H) and weighs 5,900 kg.

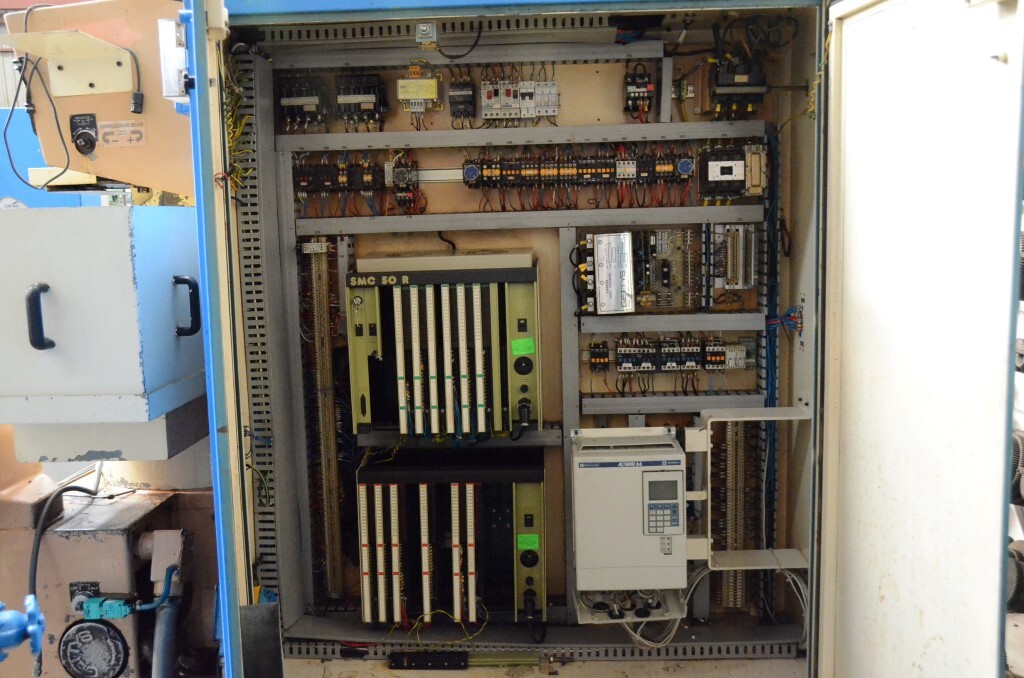

• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which cutters, fixtures and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
