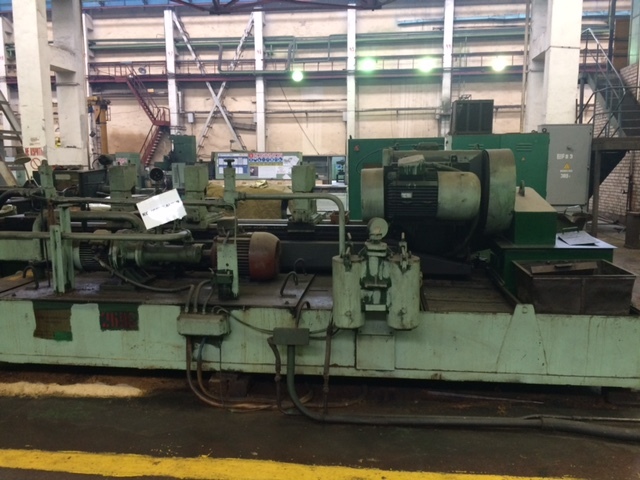

Used SIG B30 Deep Hole Drill | A.K. Machine Traders, Navi Mumbai, India

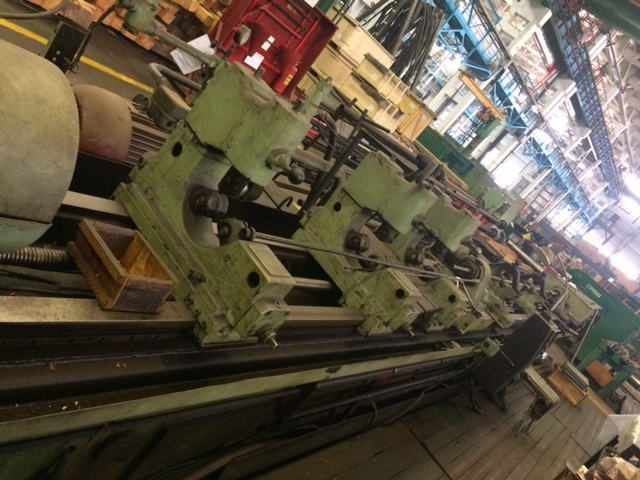

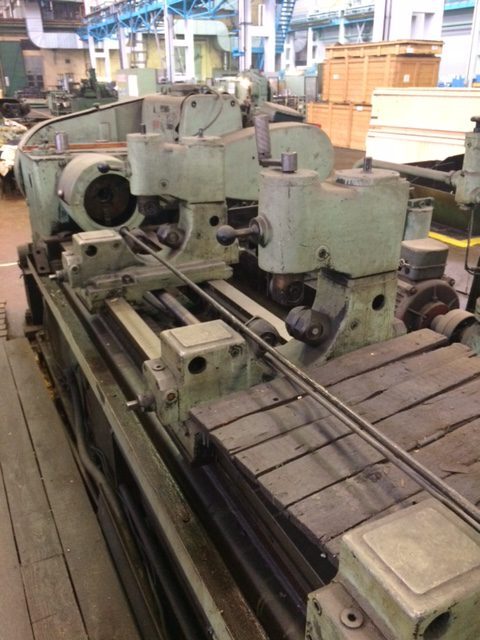

This used SIG B30 deep hole drill is available from A.K. Machine Traders in Navi Mumbai, India. A deep hole drill bores long, straight holes into solid workpieces.

It drills holes up to 120 mm in diameter to a depth of 3,500 mm. The machine weighs 17 t and has a 22 hp spindle drive, with separate motors for wash oil and hydraulics.

Key Features

• Separate wash oil motor supplies the drilling coolant system
• Dedicated hydraulic motor
• Spindle driven by a 380 V, 50 Hz motor

Technical Specifications

• Model: SIG B30
• Drilling diameter: 120 mm
• Drilling depth: 3,500 mm
• Spindle drive type: DW 180L 4
• Spindle drive power: 22 hp
• Spindle drive speed: 1,500 rpm
• Voltage: 380 V
• Frequency: 50 Hz
• Wash oil motor type: QUFA 132M2 / 4B
• Wash oil motor power: 10/8 hp
• Wash oil motor speed: 3,000 / 1,500 rpm
• Hydraulic motor type: 80RFB 2c
• Hydraulic motor power: 1 hp
• Hydraulic motor speed: 3,000 rpm
• Hydraulic motor construction form: B3 / B14
• Dimensions: 1,450 x 10,365 x 2,400 mm
• Weight: 17 t

Applications

• Long bores in shafts and spindles
• Hydraulic cylinder barrels and tubes
• Rolls and heavy cylindrical components
• General engineering parts needing deep, straight holes

Commercial Details

• Make: SIG
• Model: B30
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum drilling diameter and depth? It drills up to 120 mm in diameter and to a depth of 3,500 mm.
• How much space and lifting capacity does it need? The machine measures 1,450 x 10,365 x 2,400 mm and weighs 17 t.
• What is the spindle drive power? The spindle drive is 22 hp at 1,500 rpm on 380 V, 50 Hz.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which tooling and accessories are included, the condition of the control and electrics, and how loading and shipping would be handled.
