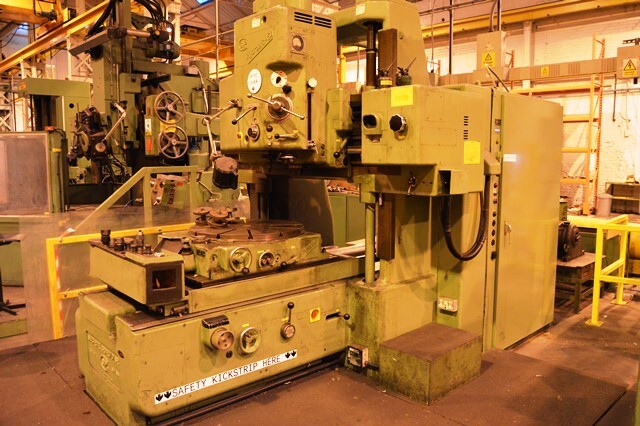

Used SIP 6A Jig Boring and Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used SIP 6A is available from A.K. Machine Traders in Navi Mumbai, India. It is a milling and machining machine with a 1,100 x 842 mm table and X/Y/Z travels of 1,000 x 700 x 800 mm.

The table carries up to 1,000 kg. The spindle has 18 speed steps from 40–2,000 rpm, drills in steel up to 60 mm and bores up to a maximum diameter of 300 mm.

Key Features

• Stepless table feed
• Six feed steps on the drill spindle slide
• 18 spindle speed steps

Technical Specifications

• Model: SIP 6A
• Table size: 1,100 x 842 mm
• Travels X/Y/Z: 1,000 x 700 x 800 mm
• Maximum table load: 1,000 kg
• Drill capacity in steel: 60 mm
• Spindle taper: MT 4
• Drilling spindle diameter: 135 mm
• Drilling spindle stroke (Z-axis): 300 mm
• Maximum bore diameter: 300 mm
• Spindle speeds: 40–2,000 rpm
• Spindle speed steps: 18
• Table feed: Stepless, 25–500 mm/min
• Drill spindle slide feed: 0.04–0.35 mm/r
• Drill spindle feed steps: 6

Applications

• Precision drilling and boring of workpieces
• Milling of machine parts and components
• Toolroom and jig work
• General engineering and workshop machining

Commercial Details

• Make: SIP
• Model: 6A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and load capacity? The table measures 1,100 x 842 mm and takes a maximum load of 1,000 kg.
• What spindle speeds does it offer? It has 18 speed steps covering 40–2,000 rpm.
• What are the axis travels? X/Y/Z travels are 1,000 x 700 x 800 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and how loading and shipping will be arranged.
