Used Skoda SRM 125×6000 Heavy Duty Lathe | A.K. Machine Traders, Navi Mumbai, India

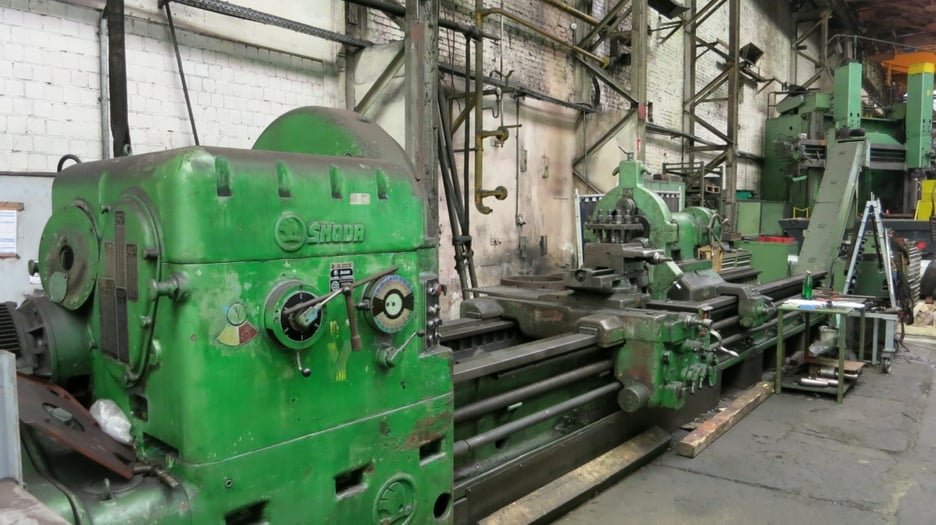

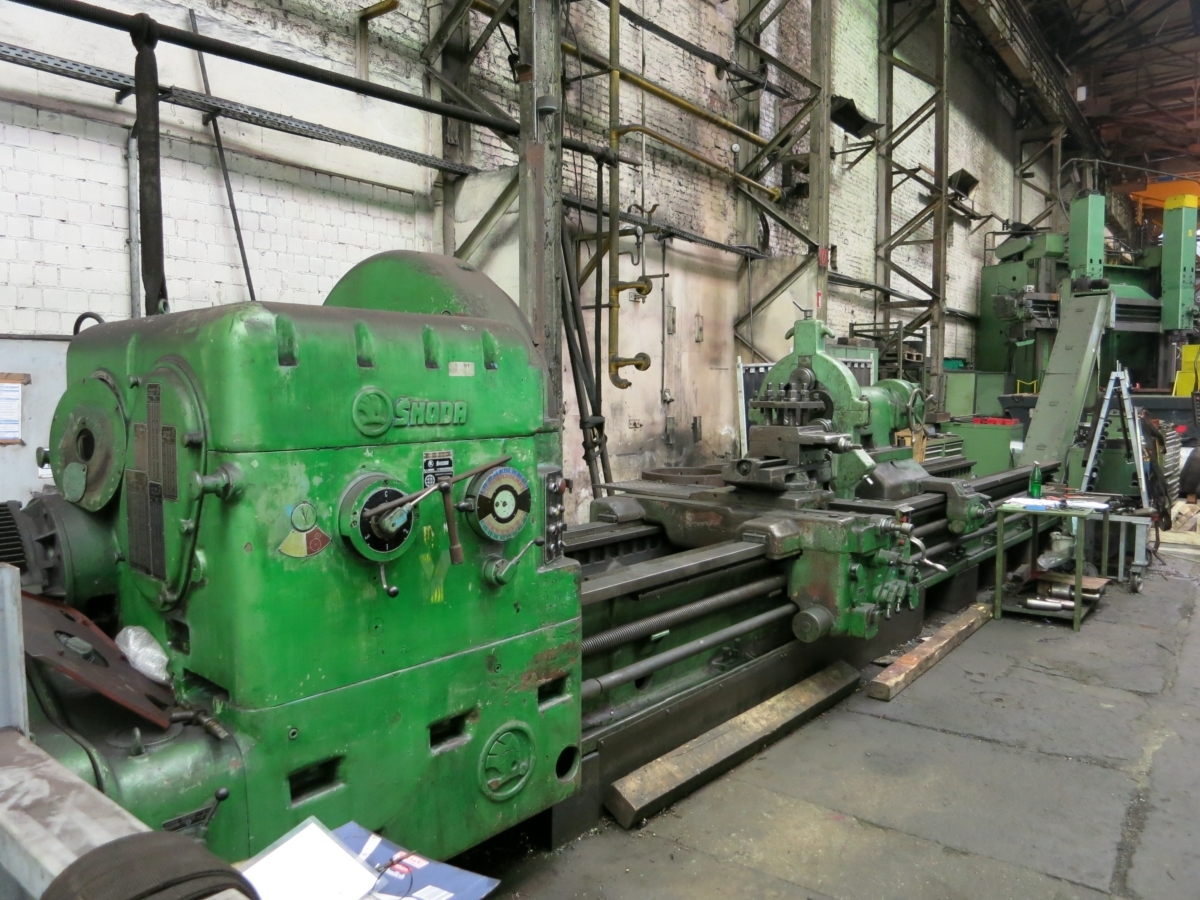

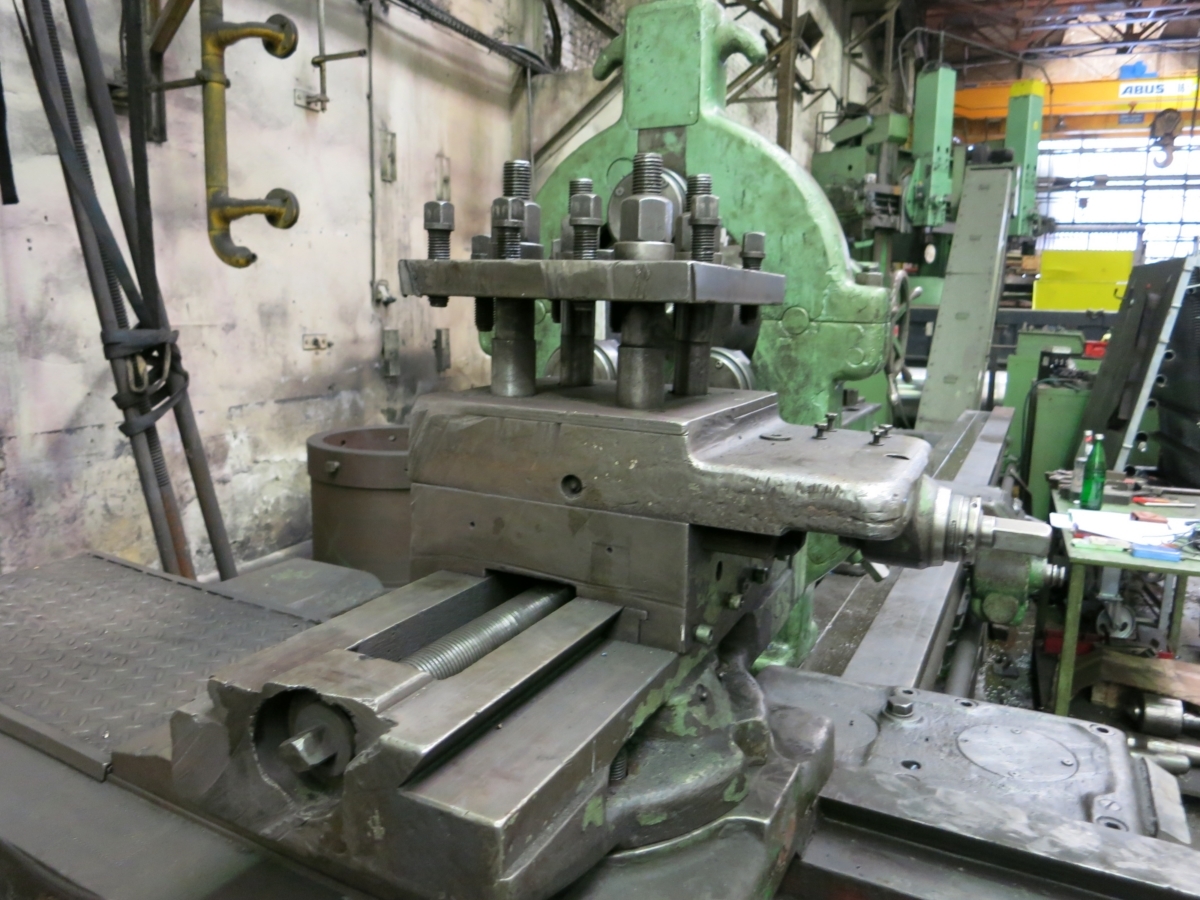

This used Skoda SRM 125×6000 heavy duty lathe is available from A.K. Machine Traders in Navi Mumbai, India. A lathe of this type turns large round workpieces held between centres or on a faceplate.

It swings 1,400 mm over the bed and has a turning length of 6,300 mm. It takes workpieces up to 16,000 kg, or up to 20,000 kg when supported in steadies, and is fitted with a Fanuc 150-M CNC control.

Key Features

• Fanuc 150-M CNC control
• Rapid travel
• Tailstock drive

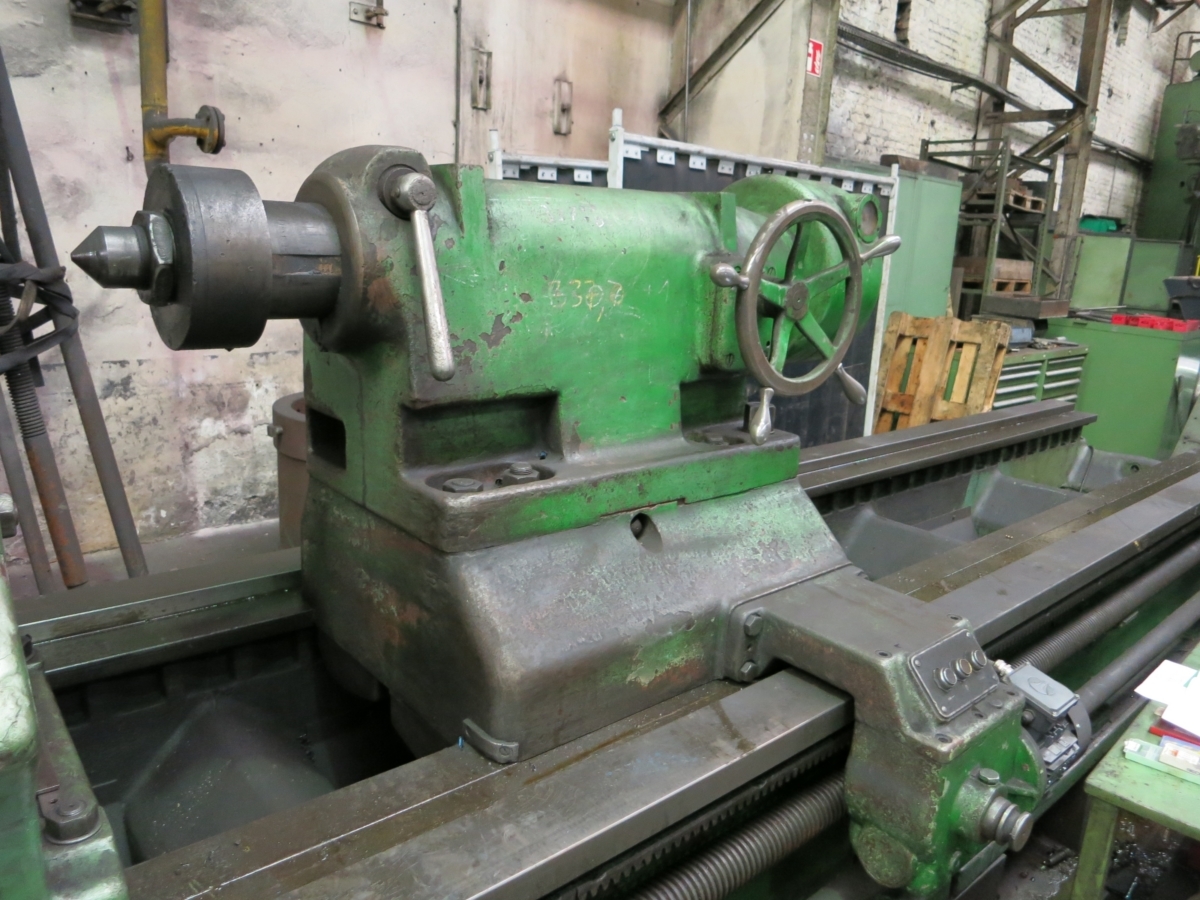

• 180 mm tailstock quill

Technical Specifications

• Model: SRM 125×6000
• Turning diameter over bed: 1,400 mm

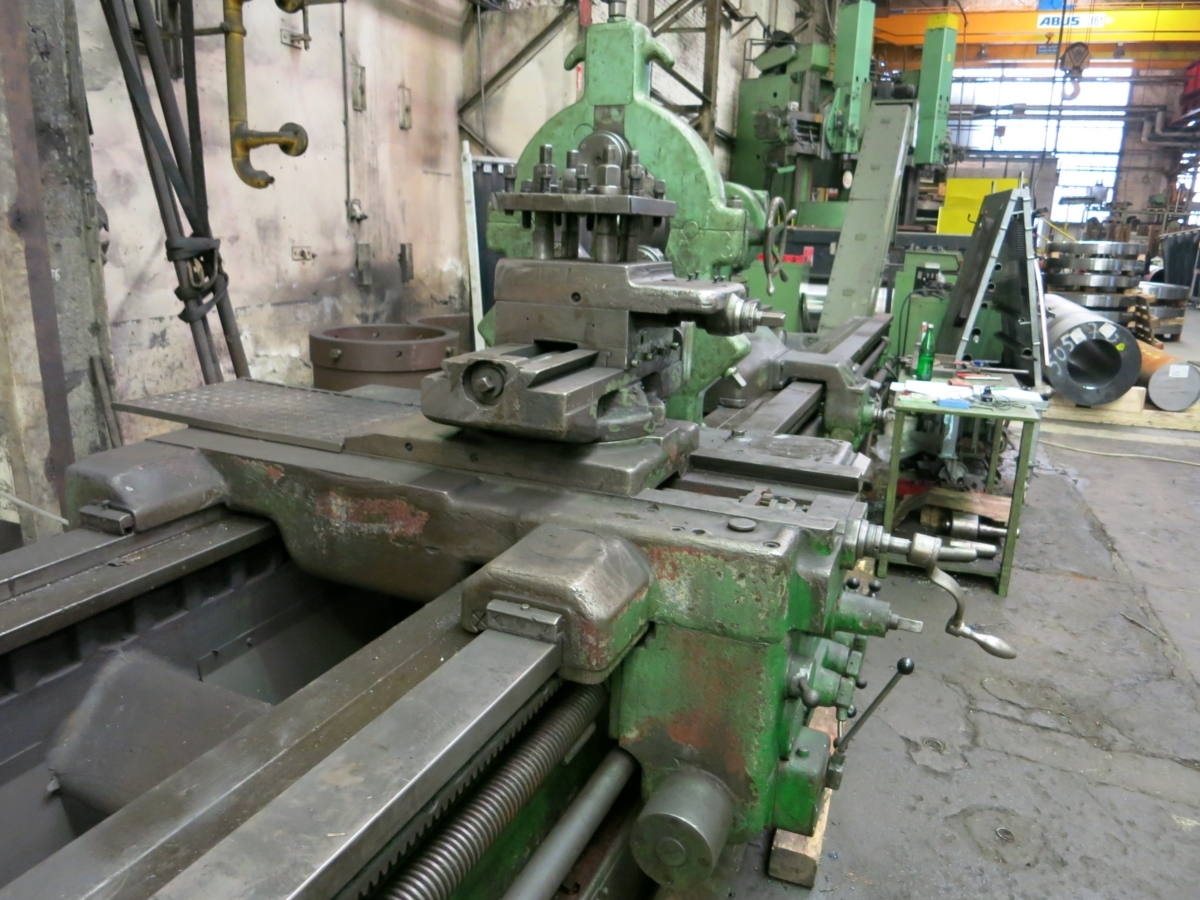

• Turning diameter over slide rest: 1,040 mm
• Turning length: 6,300 mm
• Faceplate: 1,250 mm
• Steady: 420 mm
• Workpiece weight: 16,000 kg
• Workpiece weight in steadies, max.: 20,000 kg
• Turning speeds: 1.1–315 rpm
• Bed width: 1,100 mm
• Tailstock quill: 180 mm
• Total power requirement: 37 kW
• Control: Fanuc 150-M CNC

Applications

• Large shafts and rolls
• Heavy rotors and spindles
• Large cylindrical components for heavy engineering
• Long turned parts for power generation and industrial plant

Commercial Details

• Make: Skoda
• Model: SRM 125×6000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum turning length? The turning length is 6,300 mm.
• How heavy a workpiece can it take? It takes workpieces up to 16,000 kg, or up to 20,000 kg when supported in steadies.
• What control does it have? It is equipped with a Fanuc 150-M CNC control.
• What should I ask when enquiring? Ask for photos or video of the lathe running under power, whether an inspection can be arranged, and which accessories, steadies, faceplate and tooling are included. Also confirm the condition of the Fanuc control and electrics, and the loading and shipping arrangements for a machine of this size.
