Used SMTCL 1000B CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

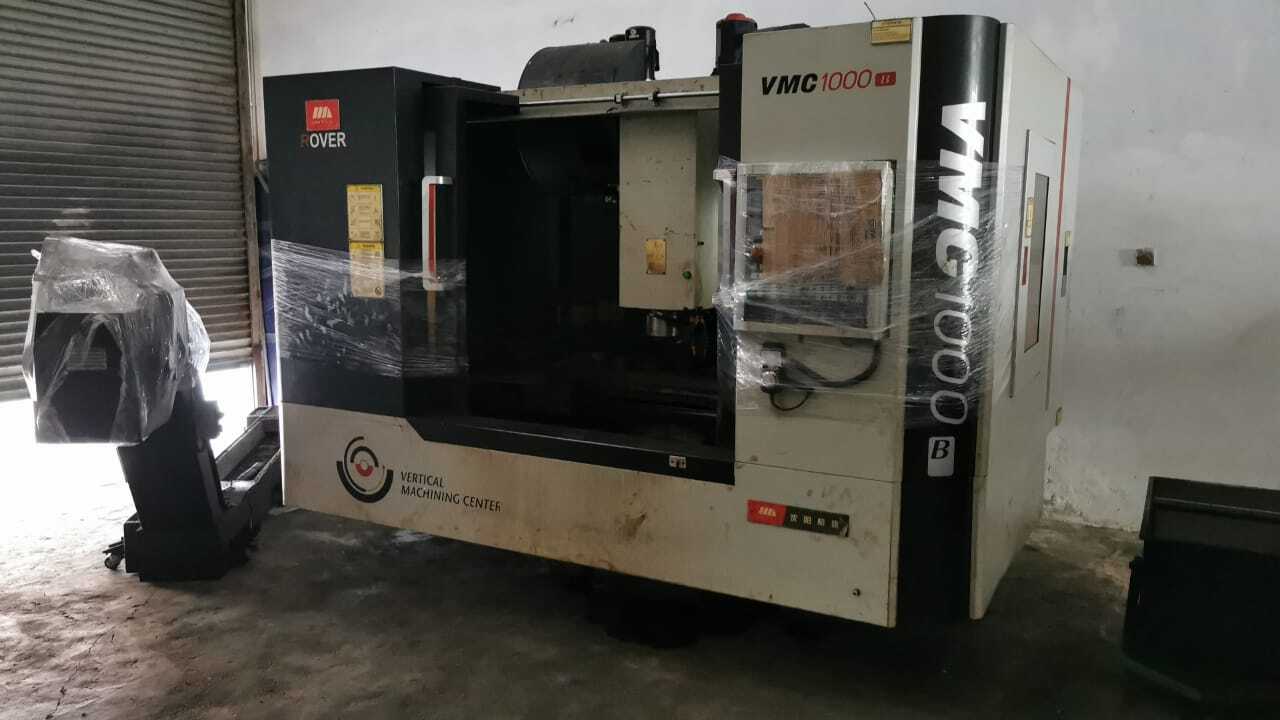

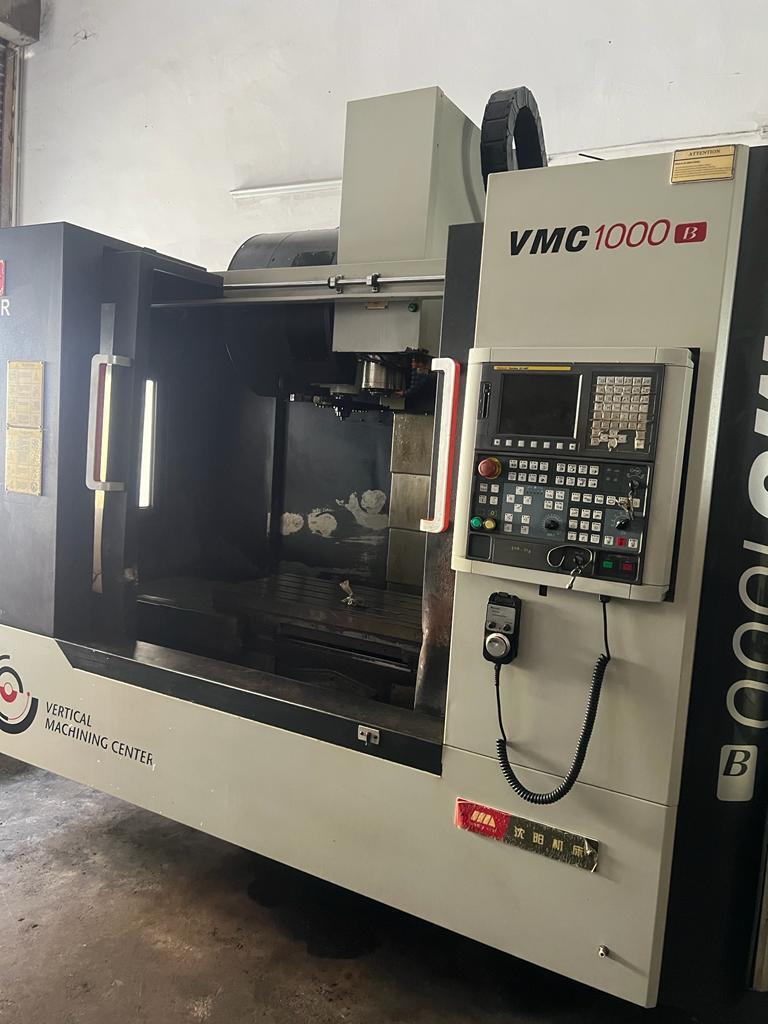

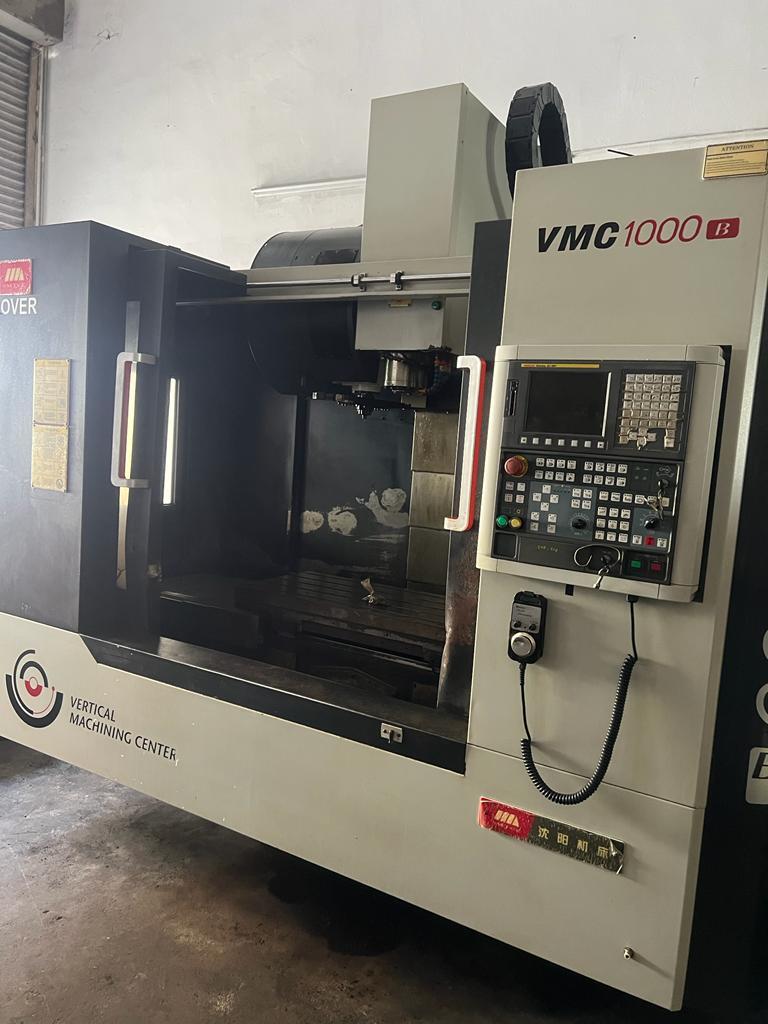

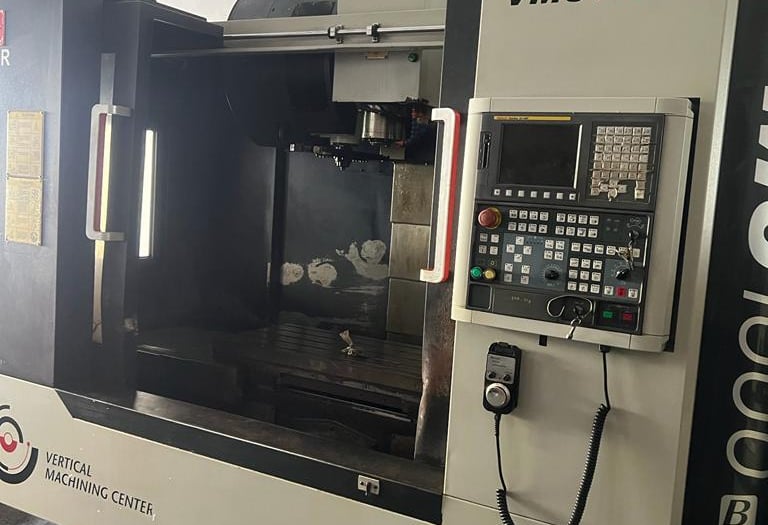

This used SMTCL 1000B CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC machine that cuts parts with a vertically mounted spindle.

It has axis travels of 39.3″ (X), 24.0″ (Y) and 25.5″ (Z) and a 47.2″ x 19.6″ table. The spindle runs at 50–8,000 rpm with a CAT 40 taper and a 21 HP motor, and a 24-station tool changer is fitted. Control is Fanuc i-Series.

Key Features

• Fanuc i-Series control
• 24-station tool changer
• CAT 40 spindle taper

Technical Specifications

• Model: SMTCL 1000B

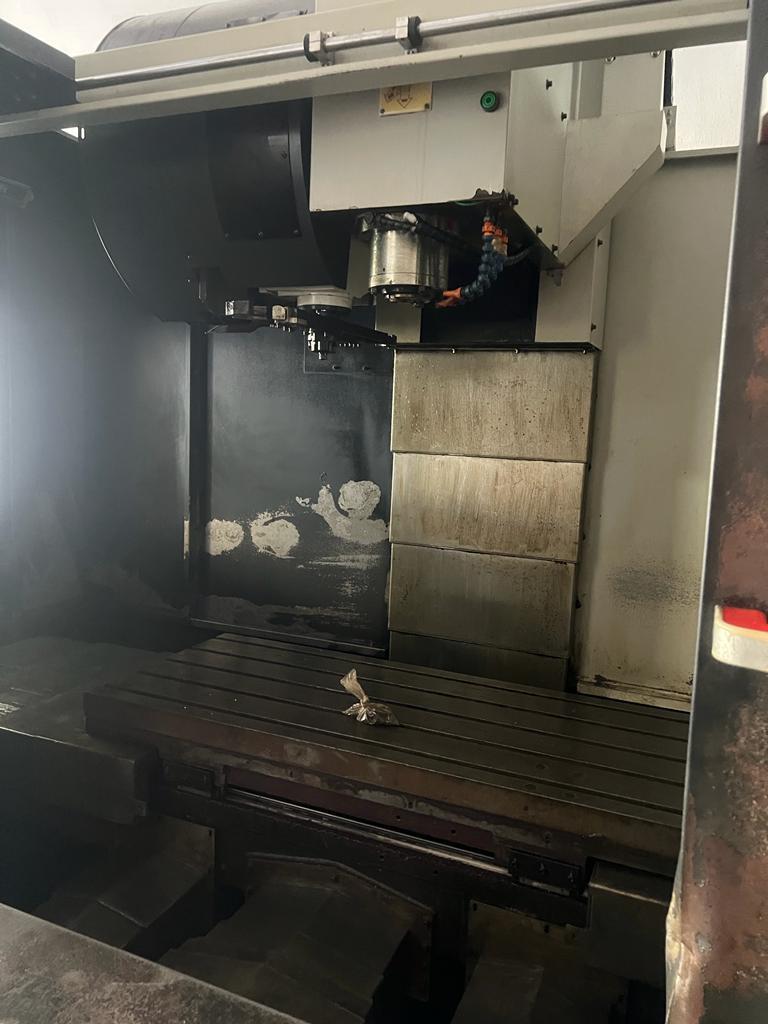

• Table size: 47.2″ x 19.6″
• Max. table load (evenly distributed): 1,320 lbs
• Spindle nose to table top: 5.9″–31.5″
• X axis travel: 39.3″
• Y axis travel: 24.0″
• Z axis travel: 25.5″
• Rapid traverse rate, X and Y axes: 1,260 IPM
• Rapid traverse rate, Z axis: 1,181 IPM
• Cutting feed rate, all axes: 0.04–787 IPM
• Spindle speed: 50–8,000 rpm
• Spindle taper: CAT 40
• Spindle motor: 21 HP
• Tool changer capacity: 24 stations
• Max. tool weight: 17.6 lbs

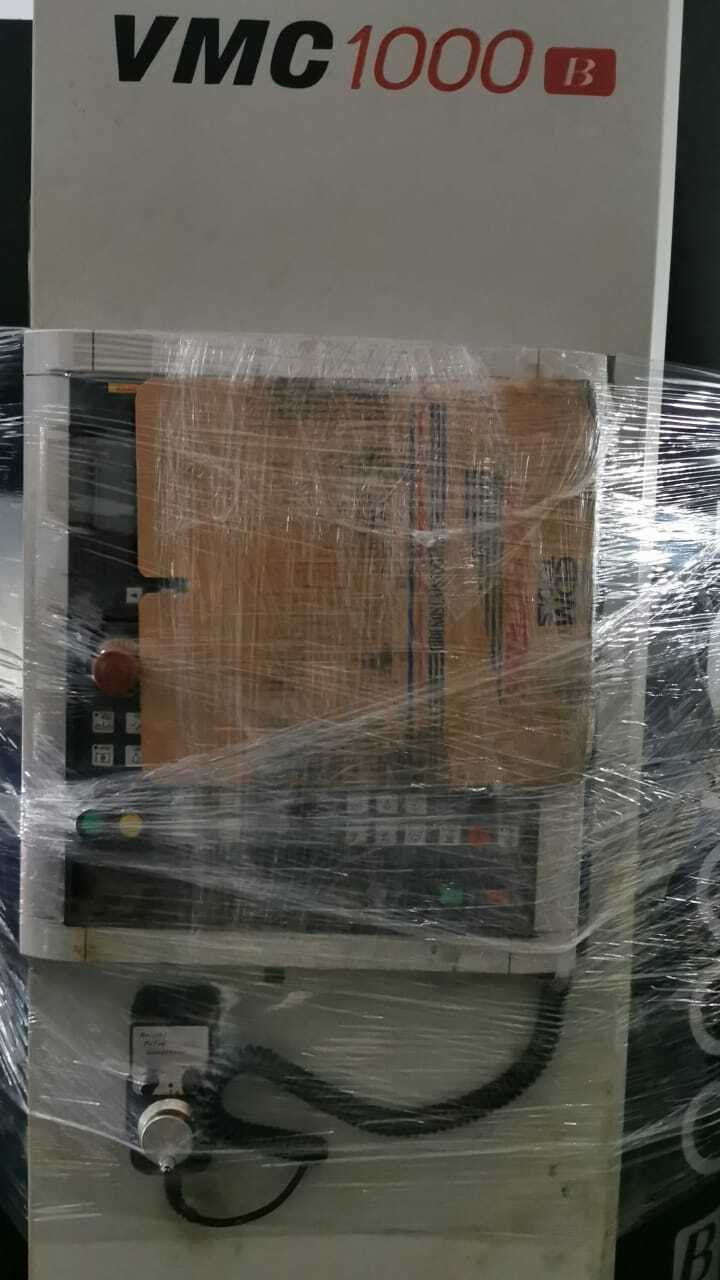

• Control: Fanuc i-Series
• Approx. dimensions: 118″ x 101″ x 116″
• Approx. weight: 15,500 lbs

Applications

• Machining of general engineering components
• Mould, die and fixture work
• Milling, drilling and tapping of prismatic parts
• Batch and job-shop part production

Commercial Details

• Make: SMTCL
• Model: 1000B
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels of the SMTCL 1000B? The X, Y and Z travels are 39.3″, 24.0″ and 25.5″ respectively.
• What spindle does it have? It has a CAT 40 spindle running at 50–8,000 rpm, driven by a 21 HP motor.
• Which control and tool changer are fitted? It has a Fanuc i-Series control and a 24-station tool changer.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
