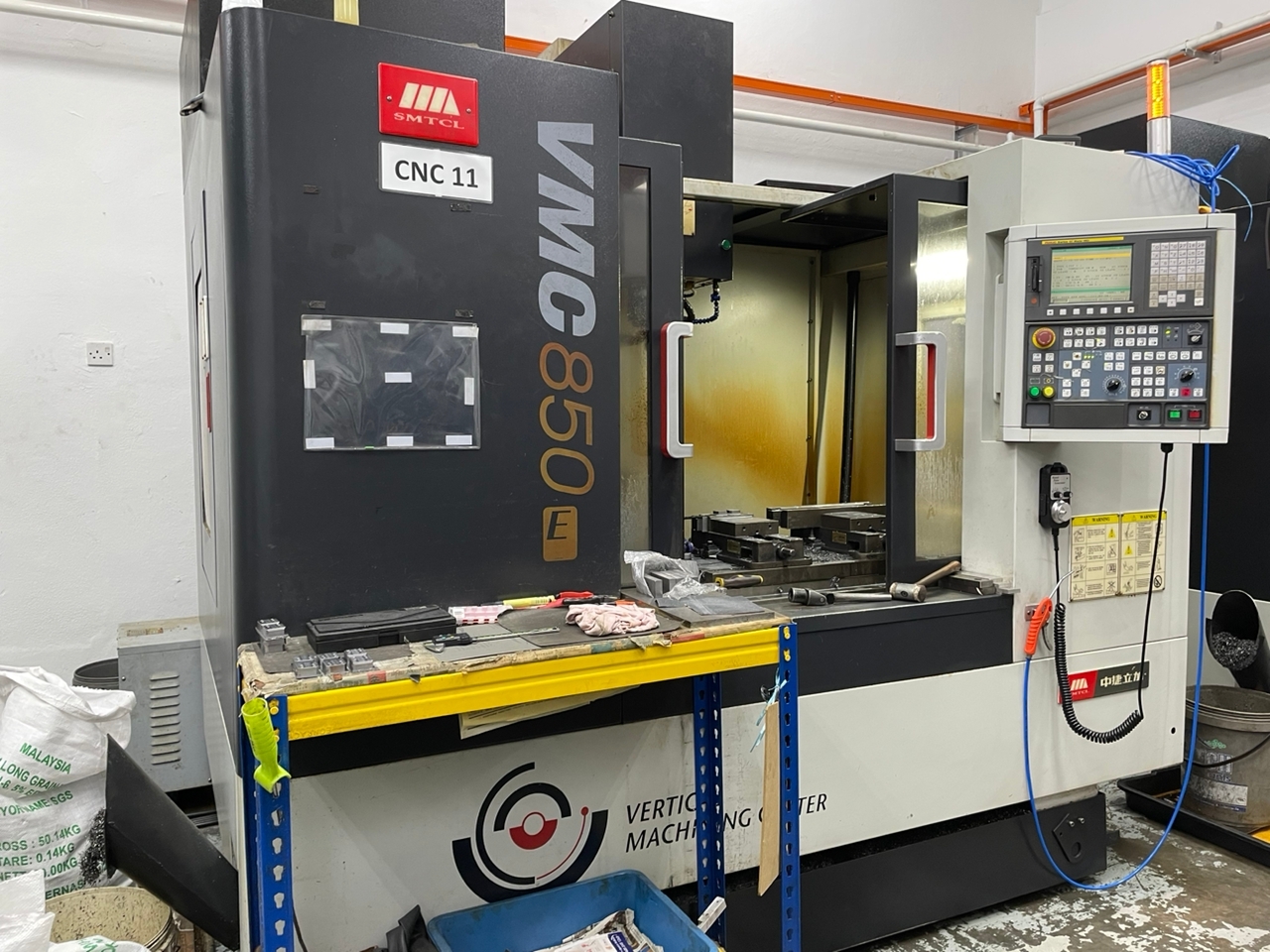

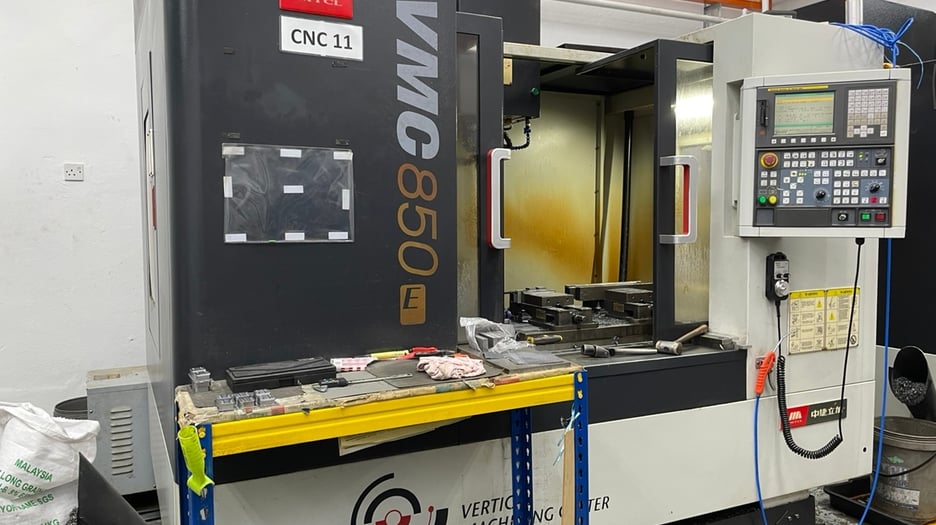

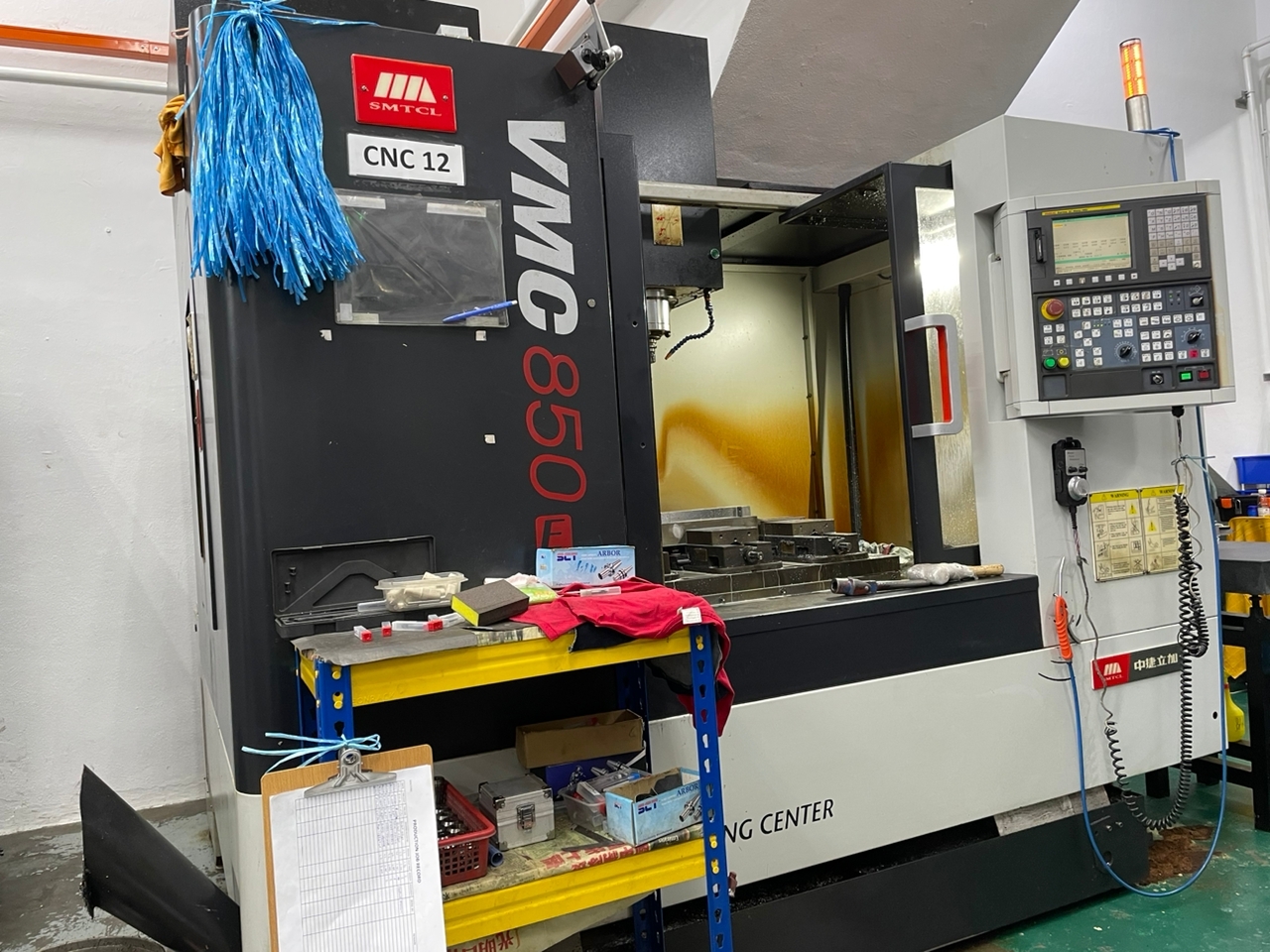

Used SMTCL 850E CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

This used SMTCL 850E CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining centre cuts metal parts with a rotating tool on a vertical spindle.

It has travels of 850 x 500 x 540 mm on X/Y/Z and a 1,000 x 500 mm table that takes up to 600 kg. The spindle runs at up to 10,000 rpm with a cooler, and a 24-position arm-type tool changer is fitted.

Key Features

• Belt drive from motor to spindle
• Spindle supplied with cooler
• Arm-type automatic tool changer with 24 positions

Technical Specifications

• Model: 850E
• Table size: 1,000 x 500 mm
• Maximum table load: 600 kg
• Travels X/Y/Z: 850 x 500 x 540 mm
• Spindle speed: 10,000 rpm, with cooler
• Spindle transmission: Belt drive
• Rapid traverse X/Y/Z: 32/32/30 m/min
• Tool changer: 24-position arm type
• Machine weight: 5,800 kg

Applications

• Machining of metal components in job shops
• Mould, die and fixture parts
• Engineering and general machined parts
• Batch production of prismatic parts

Commercial Details

• Make: SMTCL
• Model: 850E
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the working travel of this machine? The X/Y/Z travels are 850 x 500 x 540 mm.
• How many tools does the tool changer hold? It has a 24-position arm-type automatic tool changer.
• What is the spindle speed? The spindle runs at up to 10,000 rpm and comes with a cooler.

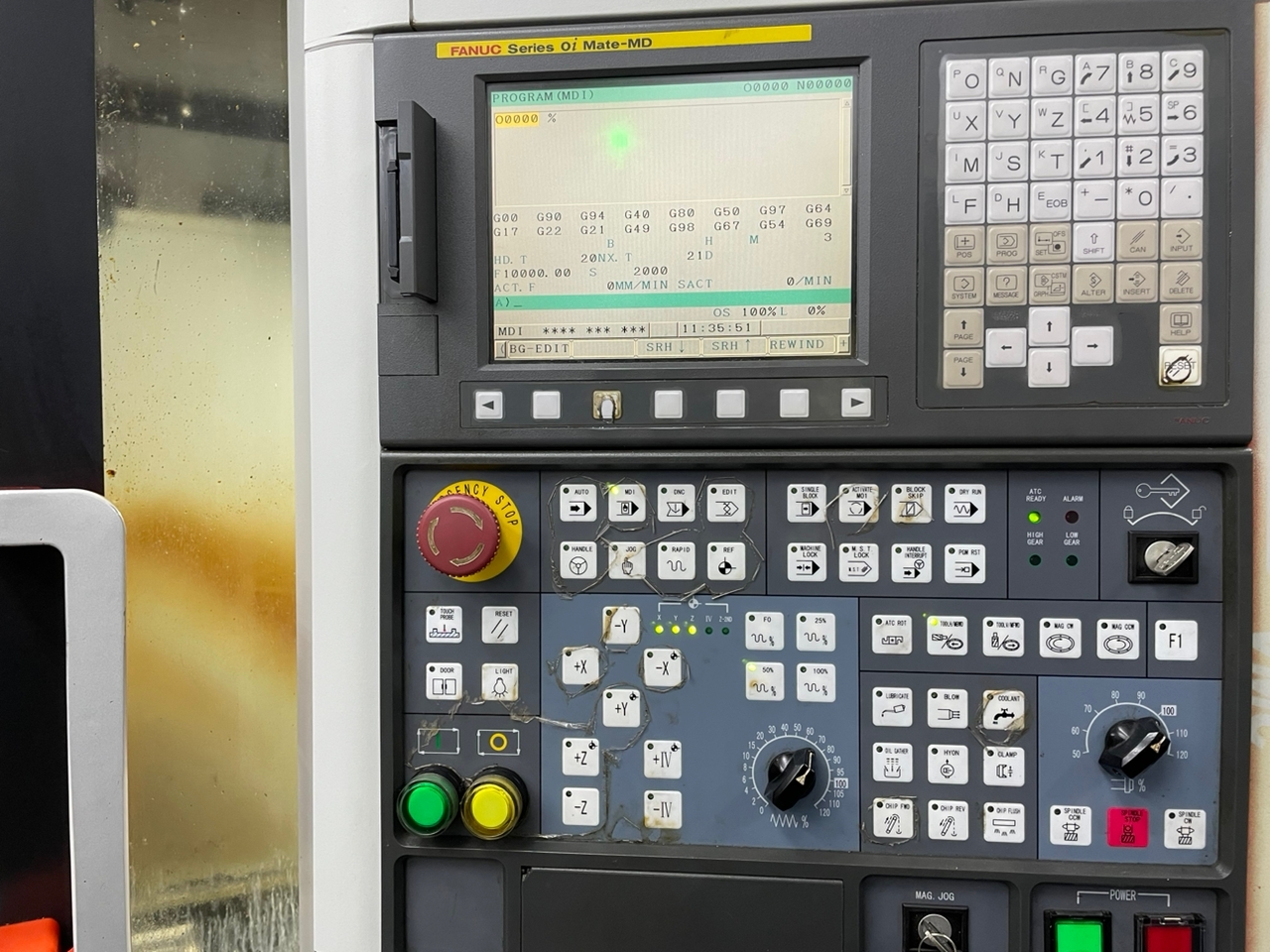

• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which control, tooling and accessories are included, the electrical supply requirements, and how loading and shipping will be handled.
