Used Spinner TC 52MC CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

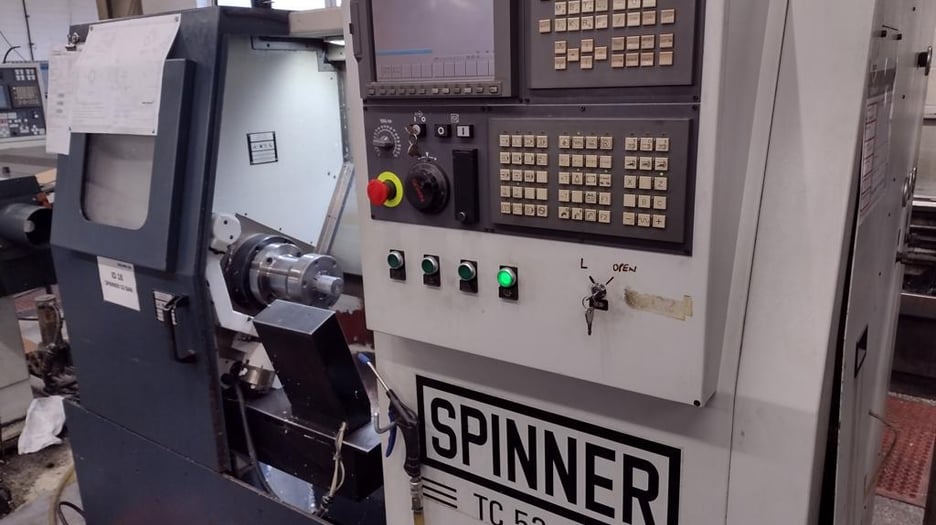

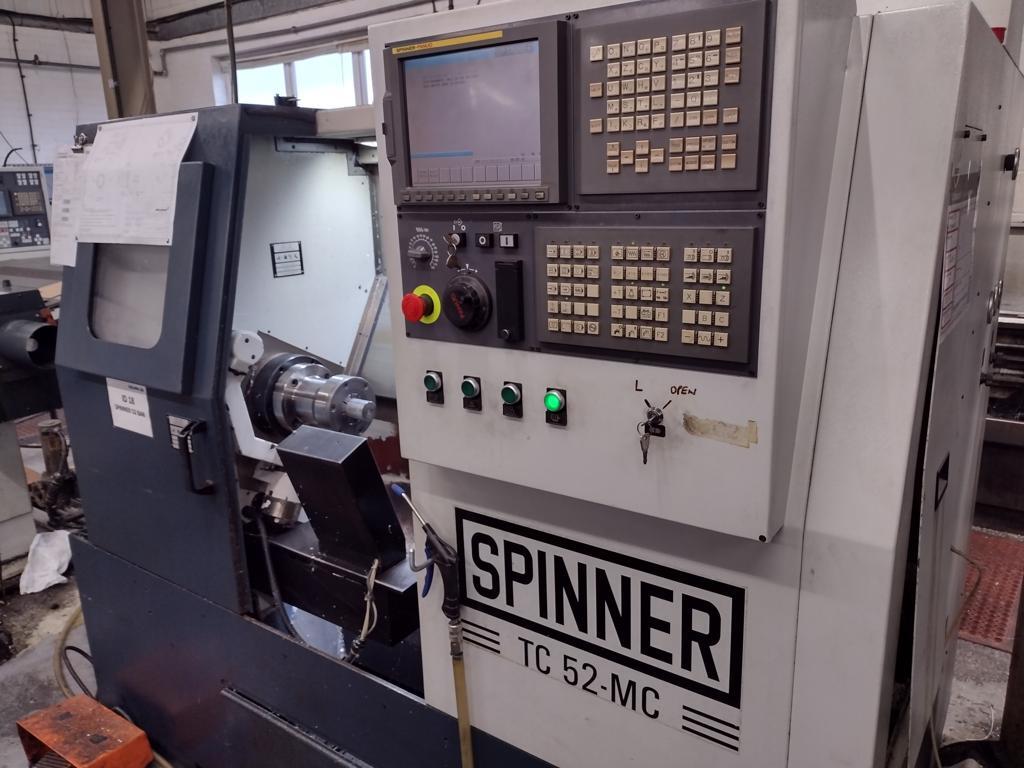

This used Spinner TC 52MC CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. A CNC lathe turns round parts by rotating the workpiece against cutting tools under computer control.

It has a 52 mm spindle bore, a top spindle speed of 5,000 rpm and an 11 kW spindle motor. A 12-tool turret carries rotating tools that run up to 6,000 rpm, and a Fanuc 21iTB control runs the machine.

Key Features

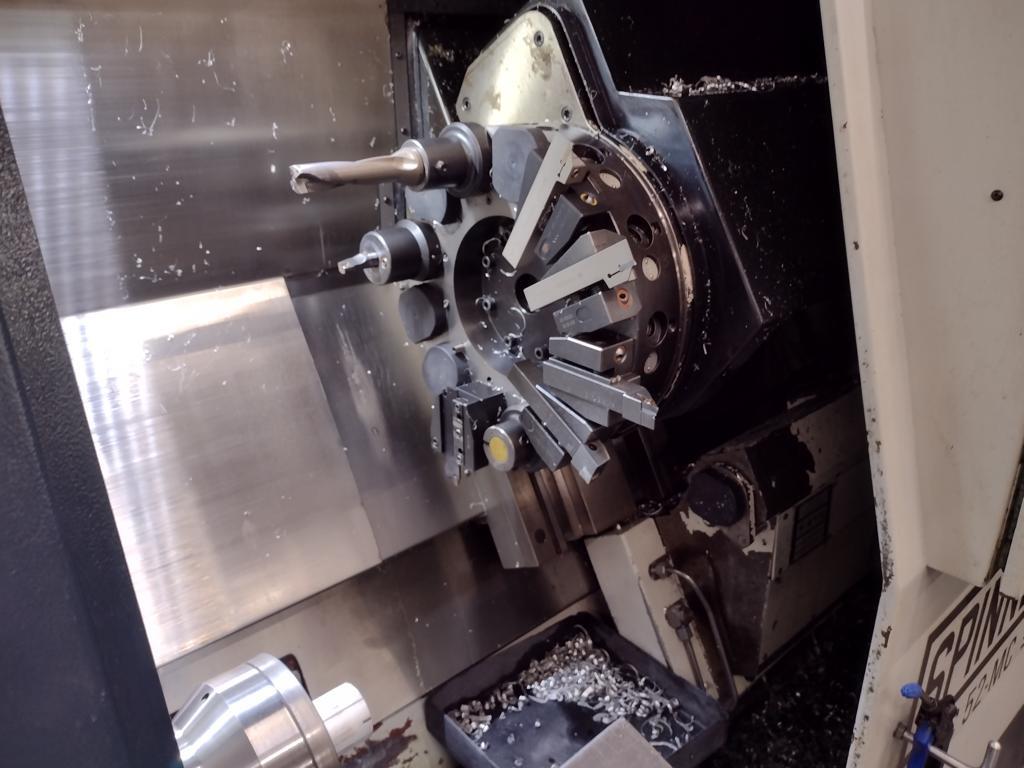

• Turret with driven (rotating) tools for milling and drilling in the same setup
• Fanuc 21iTB CNC control

Technical Specifications

• Model: Spinner TC 52MC
• Maximum diameter above bed: 400 mm
• Maximum diameter above cross slide: 280 mm
• Maximum machining length: 550 mm
• Z axis stroke: 515 mm
• Spindle bore: 52 mm
• Spindle speed: 5,000 rpm
• Maximum speed of rotating tools: 6,000 rpm
• Tools on turret: 12
• Rapid traverse, longitudinal: 24 mm/min
• Rapid traverse, transverse: 15 mm/min
• Spindle motor: 11 kW
• Control: Fanuc 21iTB
• Footprint: 2,100 × 1,400 × 1,800 mm
• Weight: 2,500 kg

Applications

• Turned shafts, pins and bushes
• Round components that also need milled flats or cross holes
• Small to medium batch production of precision turned parts
• General engineering and toolroom turning work

Commercial Details

• Make: Spinner
• Model: TC 52MC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest part this lathe can turn? It swings 400 mm over the bed and 280 mm over the cross slide, with a maximum machining length of 550 mm.
• What control does it use? It is fitted with a Fanuc 21iTB CNC control.
• Does it have driven tools? Yes, the 12-position turret carries rotating tools that run up to 6,000 rpm.
• What should I ask when enquiring? Ask for photos or a video of the machine running under power, whether an inspection can be arranged, which tooling and accessories are included, the condition of the control and electrics, and how loading and shipping of the 2,500 kg machine will be handled.
