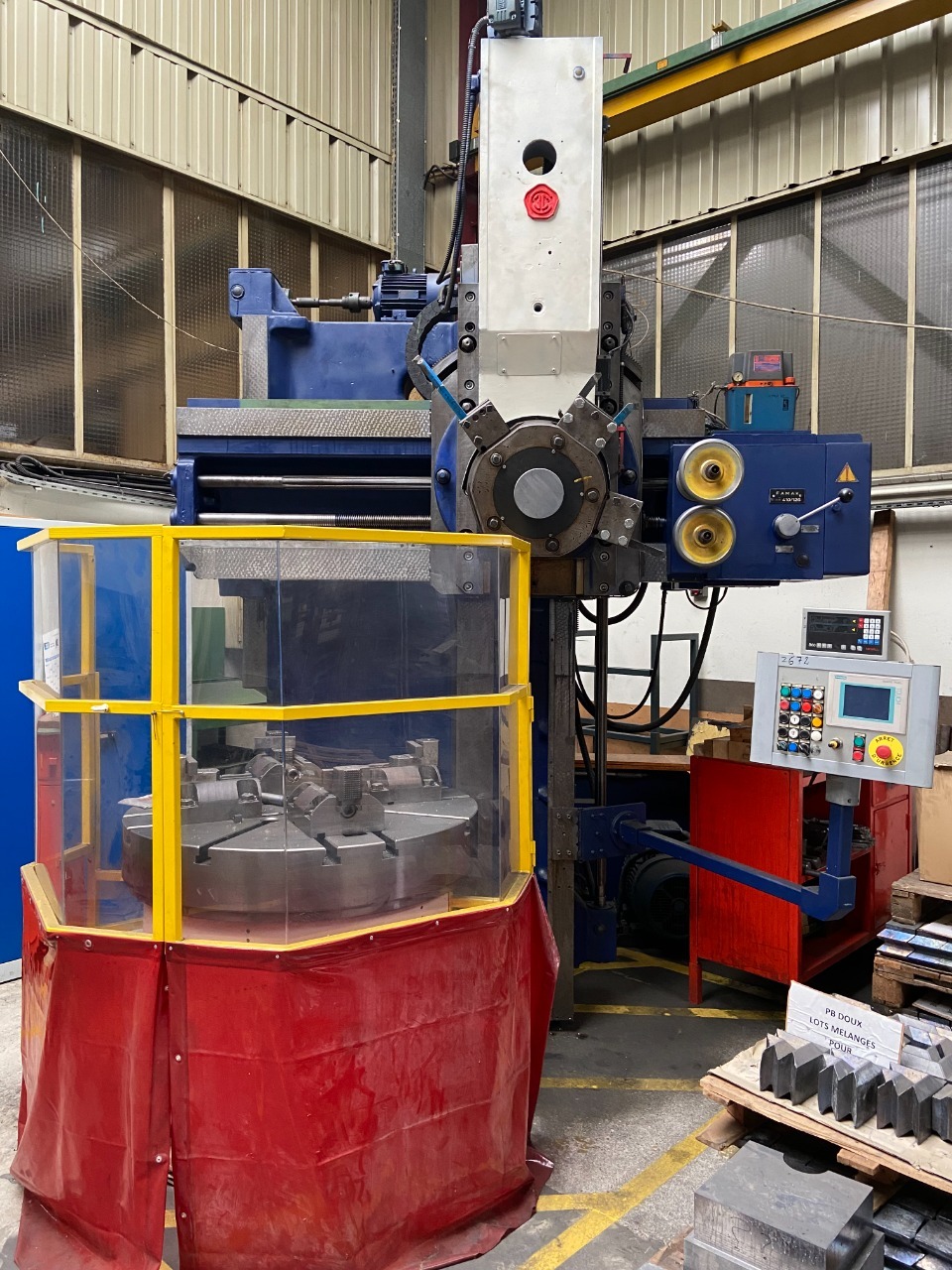

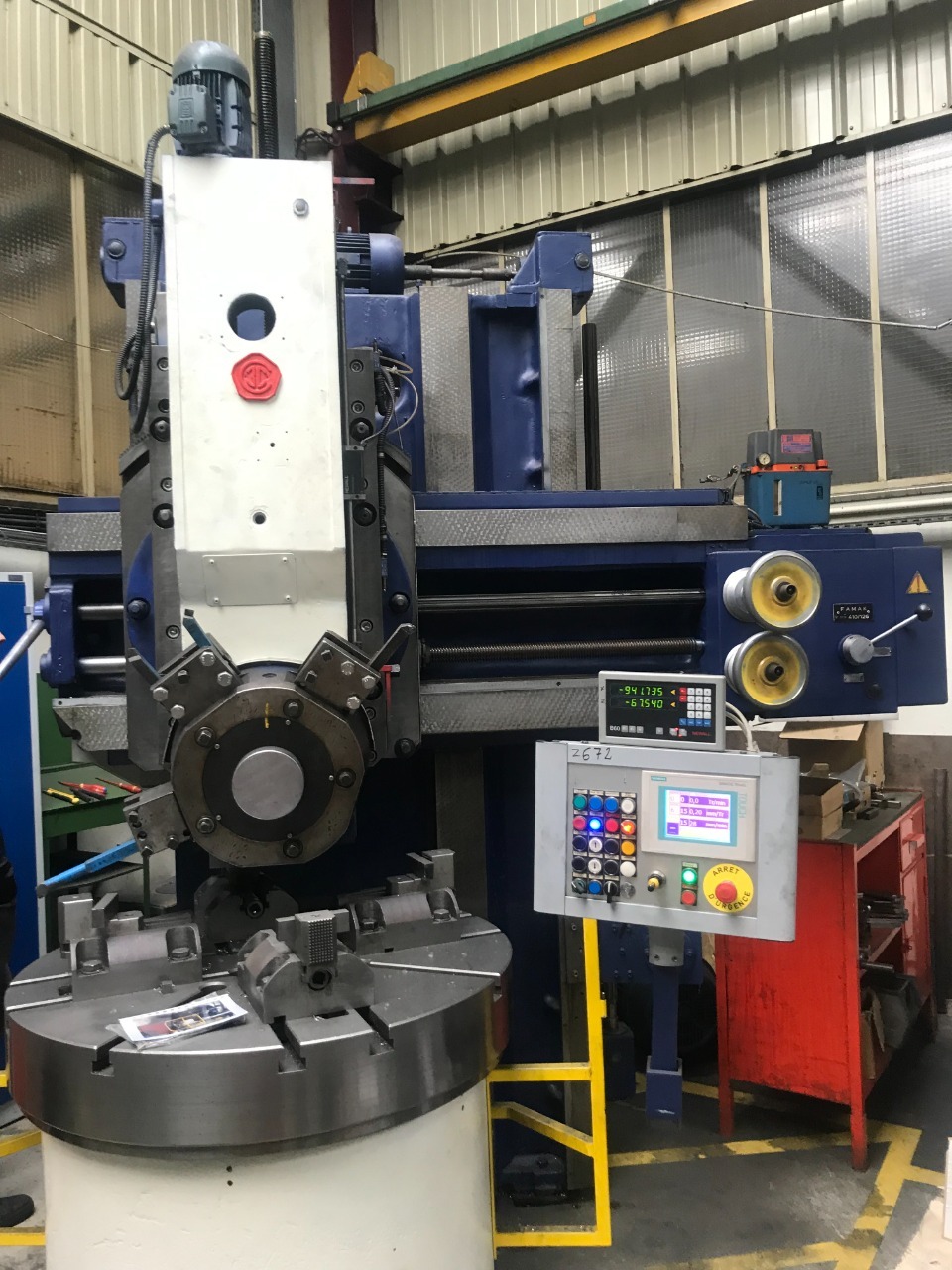

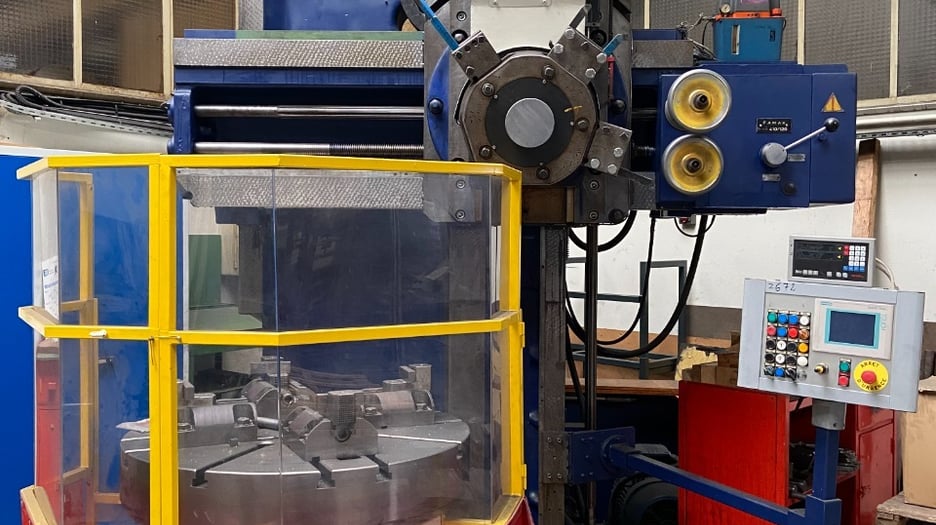

Used Stanko 1512 Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Stanko 1512 vertical turret lathe (VTL) is available from A.K. Machine Traders in Navi Mumbai, India. A vertical turret lathe turns workpieces mounted on a horizontal rotating table.

It has a 1,120 mm table and turns parts up to 1,250 mm in diameter and 1,000 mm high. Permitted workpiece weight depends on table speed: up to 4,000 kg at 5–160 rpm and up to 2,800 kg at 200–250 rpm.

Technical Specifications

• Model: Stanko 1512 VTL
• Table diameter: 1,120 mm
• Maximum turning diameter: 1,250 mm
• Maximum workpiece height: 1,000 mm
• Maximum workpiece weight at 5–160 rpm: 4,000 kg
• Maximum workpiece weight at 200–250 rpm: 2,800 kg
• Machine dimensions: 2,875 x 2,660 x 4,100 mm
• Machine weight: 16,500 kg

Applications

• Turning large, heavy round workpieces
• Machining discs, flanges and wheels
• Machining rings, housings and casings
• General heavy engineering and toolroom turning

Commercial Details

• Make: Stanko
• Model: 1512 VTL
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest part this lathe can turn? It turns up to 1,250 mm in diameter and 1,000 mm in height.
• How heavy a workpiece can it carry? Up to 4,000 kg at 5–160 rpm, or up to 2,800 kg at 200–250 rpm.
• How big and heavy is the machine? It measures 2,875 x 2,660 x 4,100 mm and weighs 16,500 kg, which matters for transport and foundations.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, chucks and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
