Used Stanko 50822W CNC Thread Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

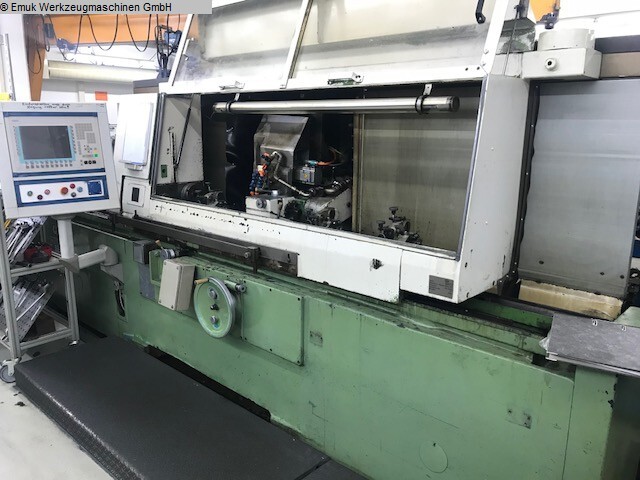

This used Stanko 50822W CNC thread grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It grinds threads on workpieces up to 160 mm in thread diameter over a grinding length of 1,450 mm.

Thread pitch is set steplessly through the CNC, and the machine is controlled by a Siemens Sicom system. It was built in Russia and is listed as new in 1983 and reconditioned in 2010.

Key Features

• Stepless thread pitch setting through the CNC
• Siemens Sicom control

Technical Specifications

• Model: Stanko 50822W CNC
• Thread diameter: 160 mm
• Grinding length: 1,450 mm
• Thread pitch: Stepless, CNC controlled

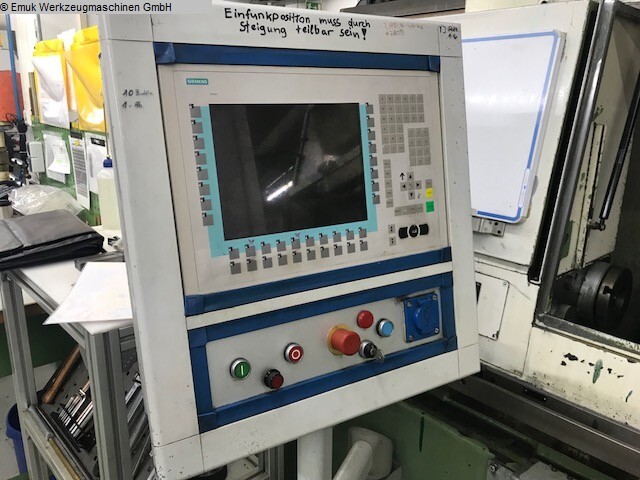

• Control: Siemens Sicom CNC
• Total power requirement: 20 kW
• Dimensions: approx. 3.5 x 2 x 1.8 m
• Weight: approx. 6 t
• Origin: Russia

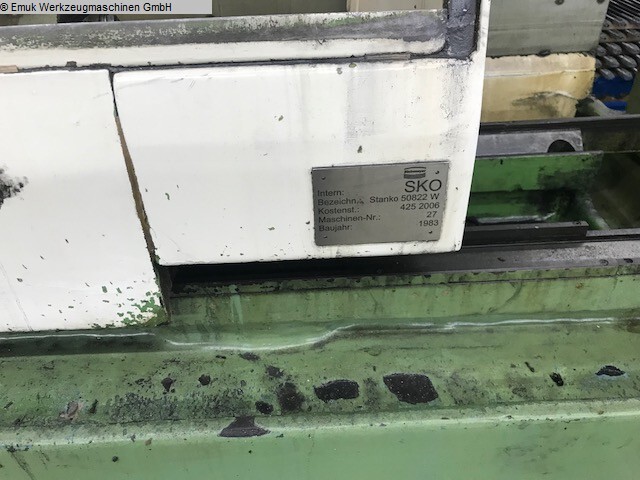

• Year: 1983, reconditioned 2010

Applications

• Precision threaded shafts and spindles
• Lead screws and feed screws
• Threaded parts for machine tools and general engineering

Commercial Details

• Make: Stanko
• Model: 50822W CNC
• Year: 1983 (reconditioned 2010)
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of thread can it grind? It handles thread diameters up to 160 mm over a grinding length of 1,450 mm.
• What control does it use? It has a Siemens Sicom CNC control, with thread pitch set steplessly through the CNC.
• What are its size, weight and power needs? It weighs approximately 6 t, measures approximately 3.5 x 2 x 1.8 m and needs 20 kW in total.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories, tooling and workholding are included, the condition of the Siemens Sicom control and electrics, and the loading and shipping arrangements.
