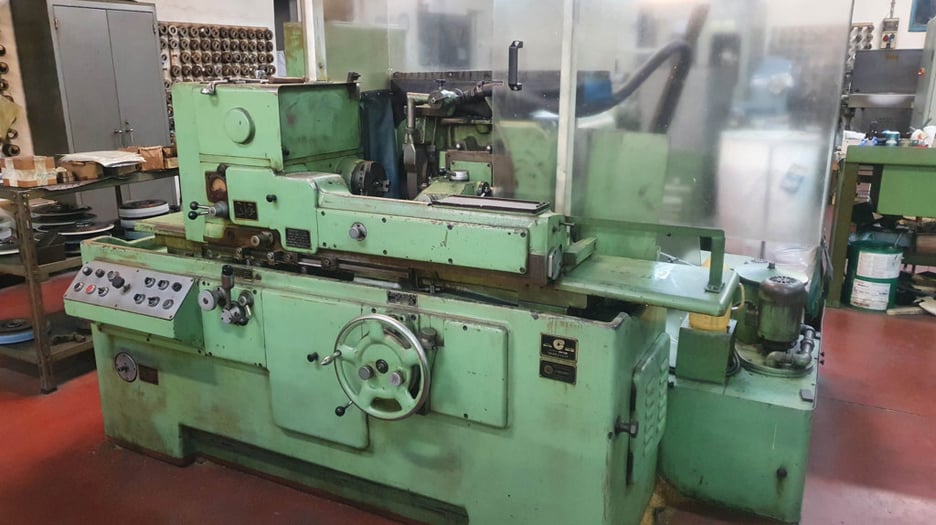

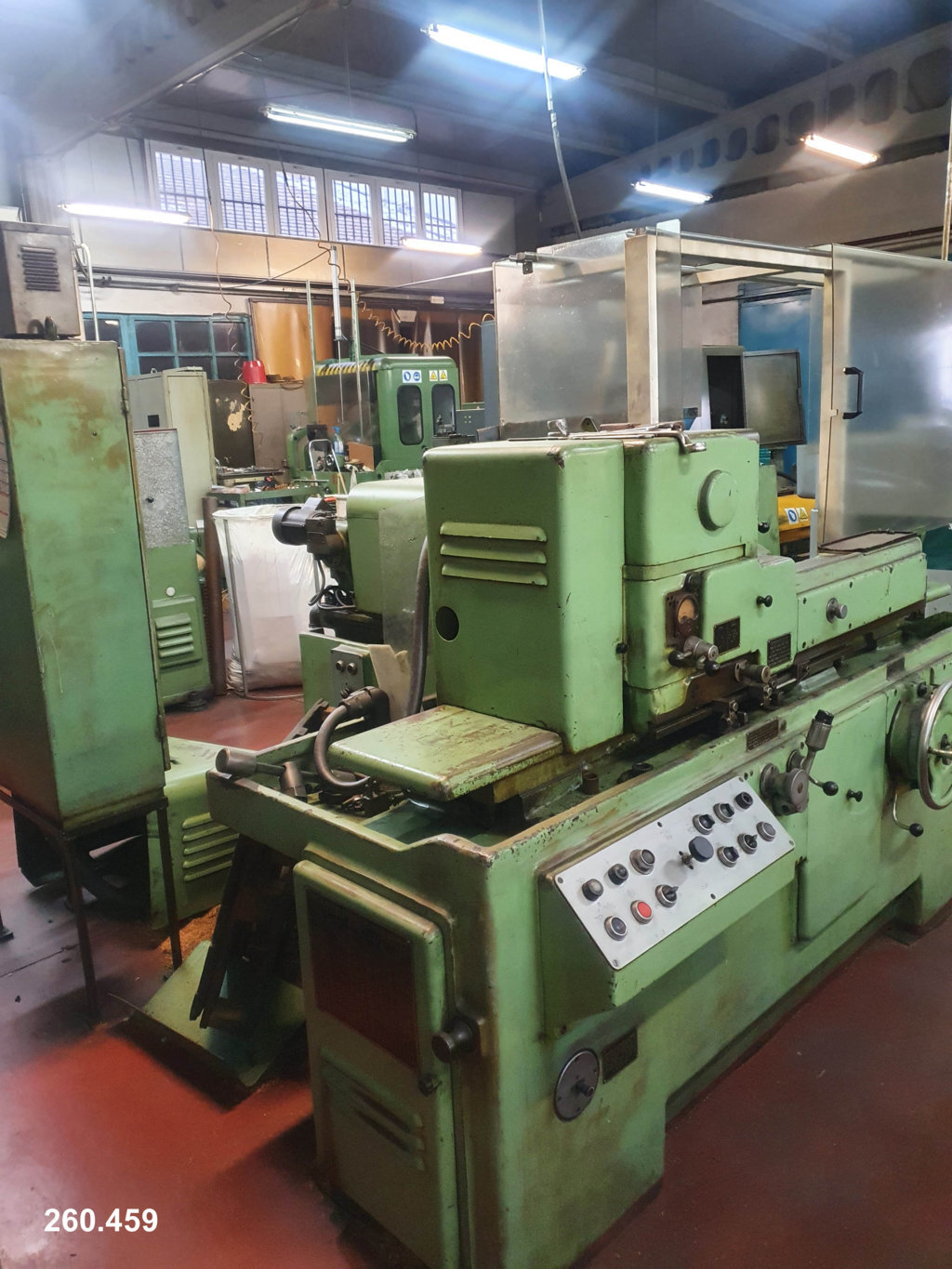

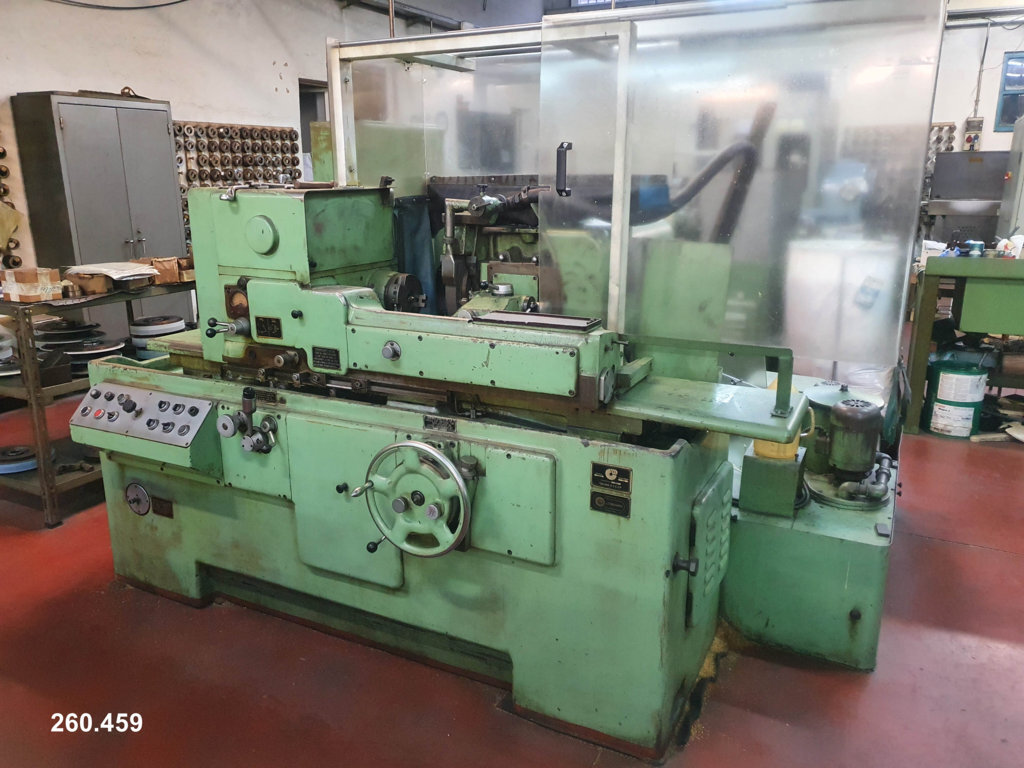

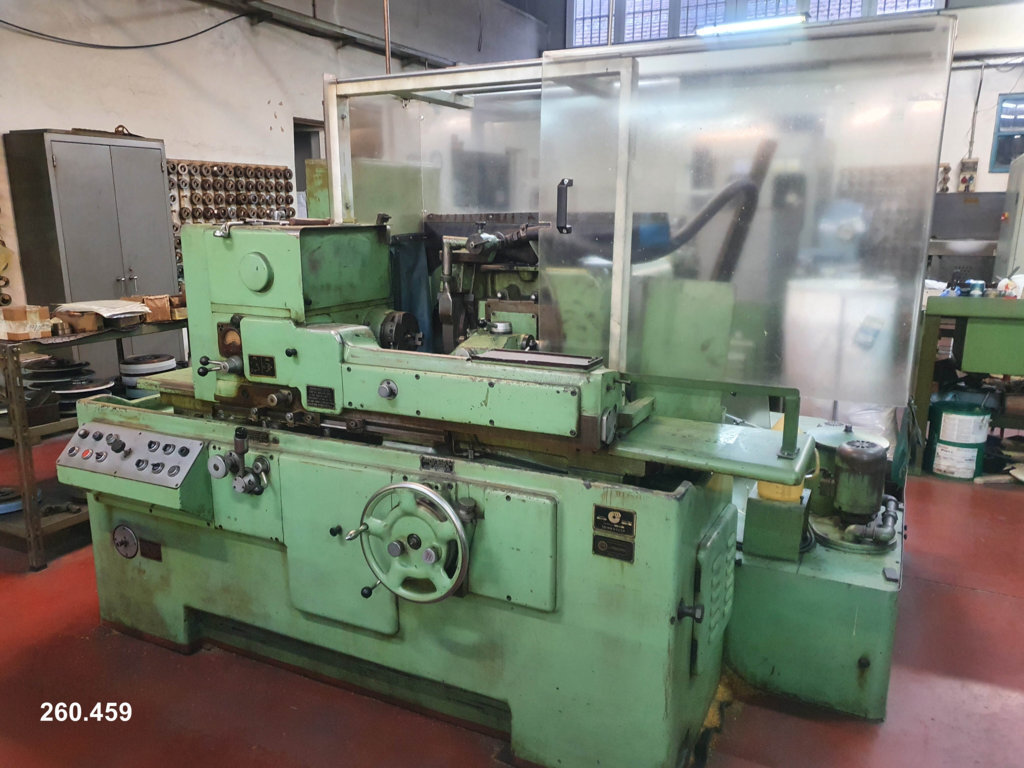

Used Stanko 5822M Thread Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Stanko 5822M thread grinder is available from A.K. Machine Traders in Navi Mumbai, India. A thread grinder uses a grinding wheel to produce precise threads on a workpiece.

It takes workpieces up to 200 mm in diameter and 500 mm long, weighing up to 30 kg. It uses grinding wheels of 300–400 mm and offers a spindle speed range of 0.3–55 rpm.

Technical Specifications

• Model: 5822M
• Max workpiece diameter: 200 mm
• Max workpiece length: 500 mm
• Max workpiece weight: 30 kg
• Grinding wheel diameter: 300–400 mm
• Max helix lift angle of ground thread: ±30
• Max diameter of grinding spindle end: 50 mm
• Morse taper: 4
• Spindle speed: 0.3–55 rpm

Applications

• Threaded screws and leadscrews
• Thread gauges and measuring tools
• Taps and threaded tooling
• Precision threaded machine components

Commercial Details

• Make: Stanko
• Model: 5822M
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it grind? It takes workpieces up to 200 mm in diameter and 500 mm long, weighing up to 30 kg.
• What grinding wheel size does it use? It uses grinding wheels of 300–400 mm.
• What is the spindle speed range? The spindle speed runs from 0.3 to 55 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, and which wheels, centres, accessories and tooling are included. Also confirm the condition of the control and electrics, and the loading and shipping arrangements.
