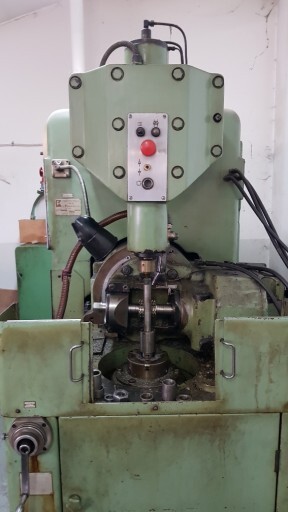

Used Stanko 5B312 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used Stanko 5B312 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth into a workpiece using a rotating hob.

It handles workpieces up to 320 mm in diameter and cuts gears up to module 6. The machine weighs 5,420 kg and measures 1,790 × 1,375 × 2,200 mm.

Technical Specifications

• Model: Stanko 5B312
• Maximum diameter: 320 mm
• Module: 6
• Dimensions (L × W × H): 1,790 × 1,375 × 2,200 mm
• Weight: 5,420 kg

Applications

• Spur and helical gears for gearboxes
• Gears for general machinery and transmissions
• Small-batch and workshop gear production

Commercial Details

• Make: Stanko
• Model: 5B312
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece diameter? The Stanko 5B312 takes workpieces up to 320 mm in diameter.
• What module can it cut? It is rated for module 6.
• How large and heavy is the machine? It measures 1,790 × 1,375 × 2,200 mm and weighs 5,420 kg.

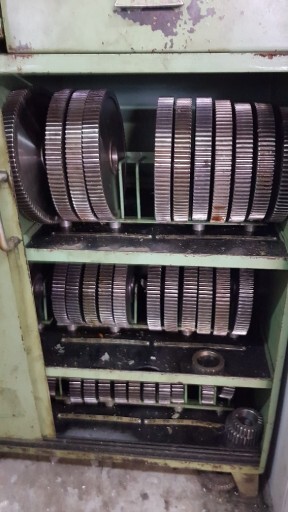

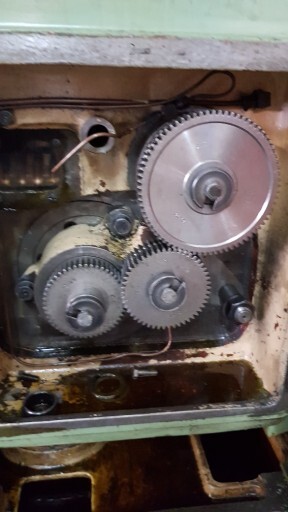

• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which hobs, change gears and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
