Used Studer S40 CNC Cylindrical Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

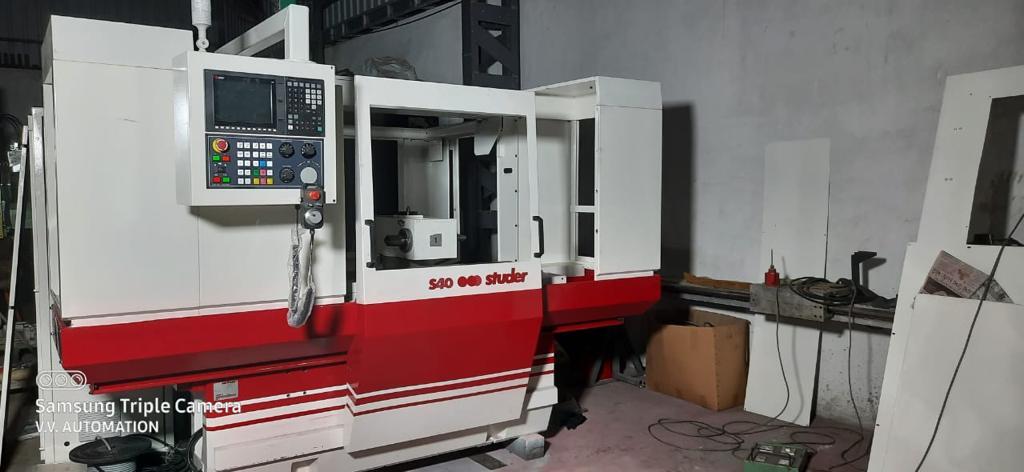

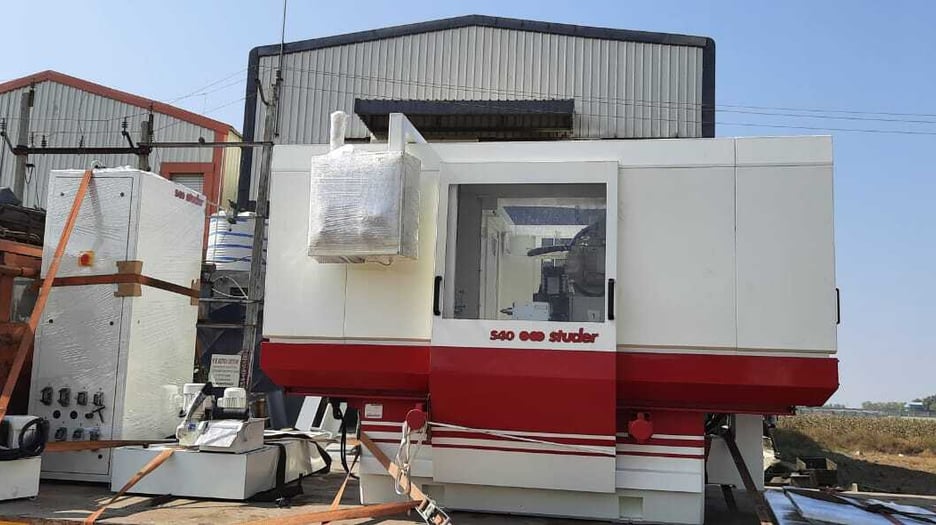

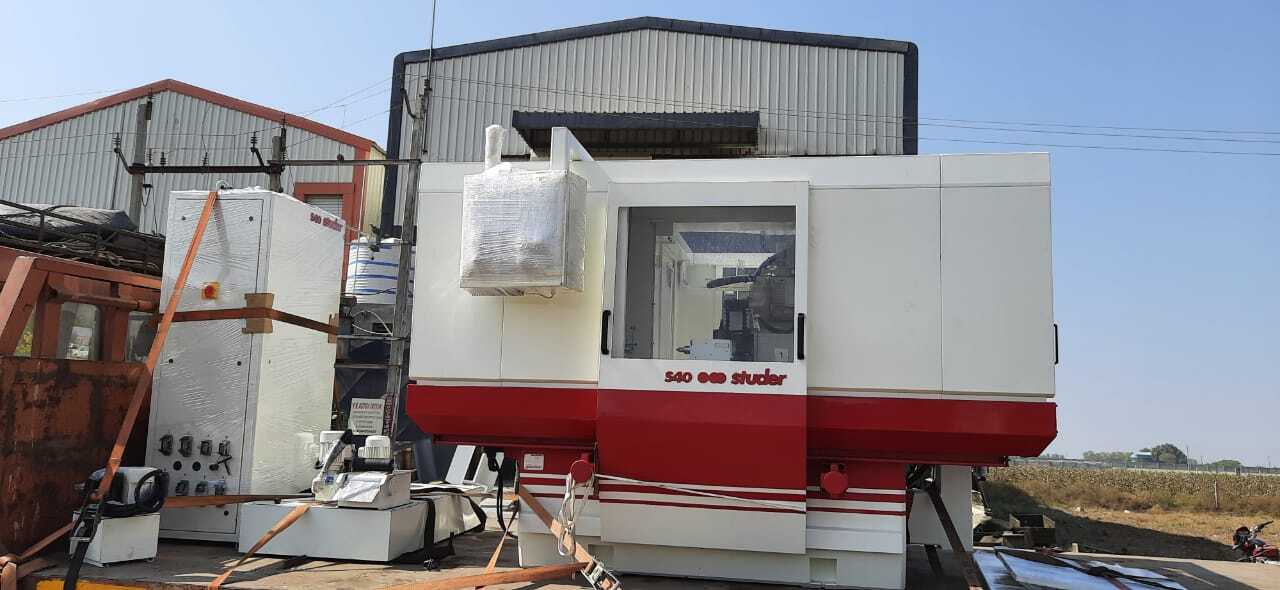

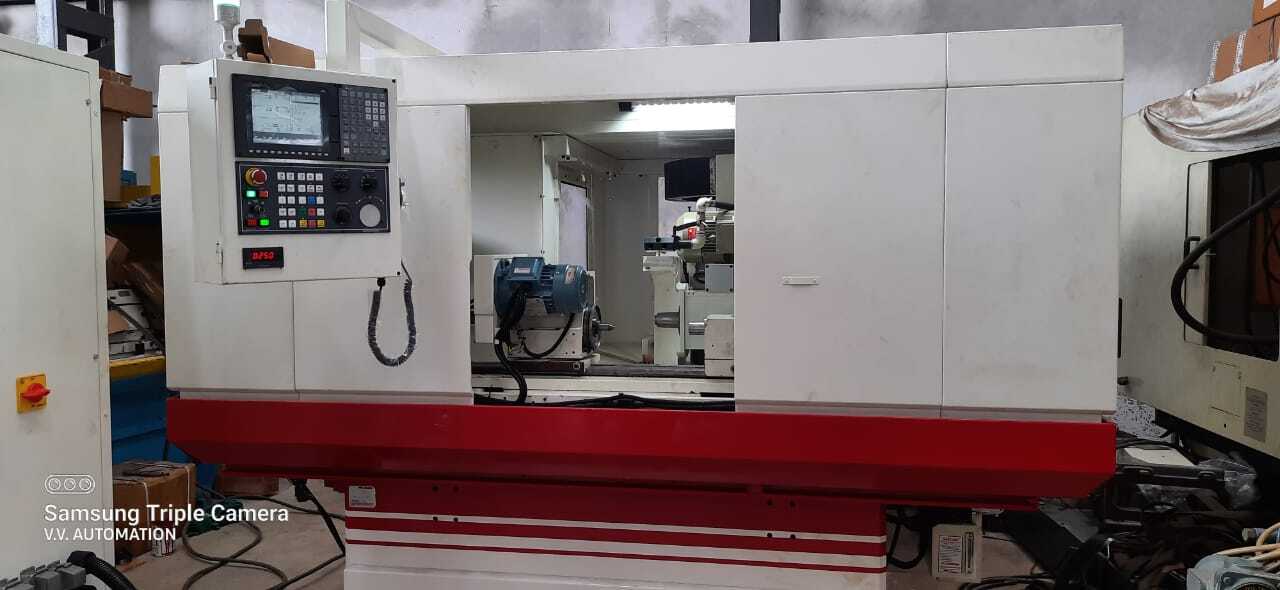

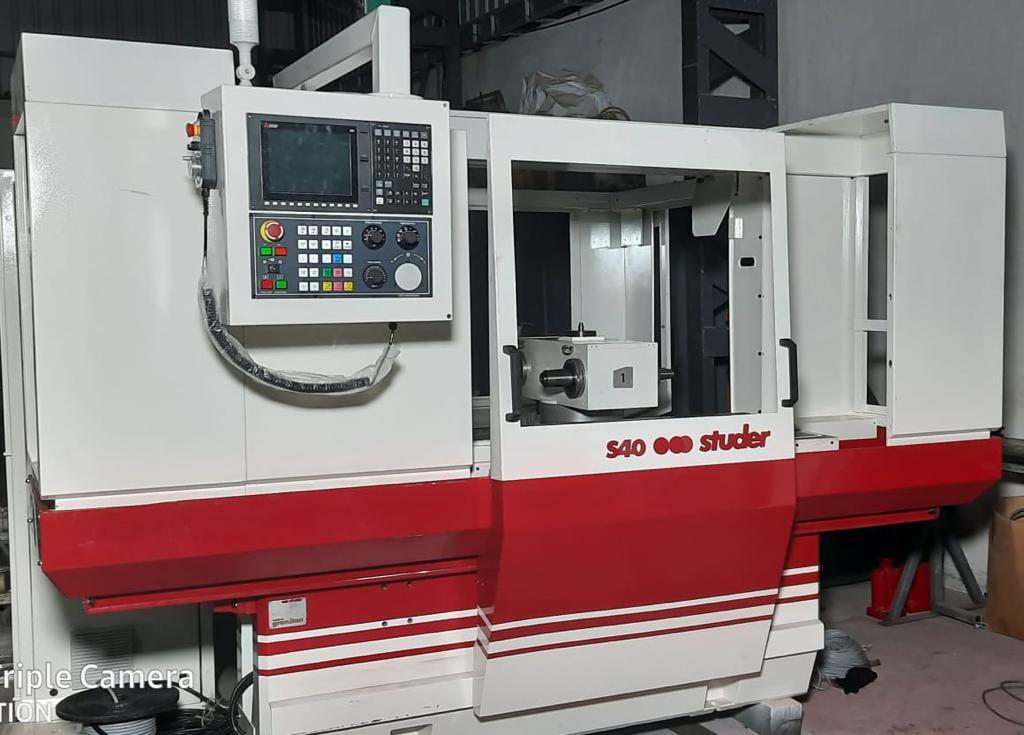

This used Studer S40 CNC cylindrical grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It grinds round workpieces held between centres under CNC control.

It handles grinding diameters of 0.2–240 mm over a centre distance of 1,000 mm, with a centre height of 125 mm and workpieces up to 100 kg between centres. Total power requirement is 13.5 kW.

Technical Specifications

• Model: Studer S40

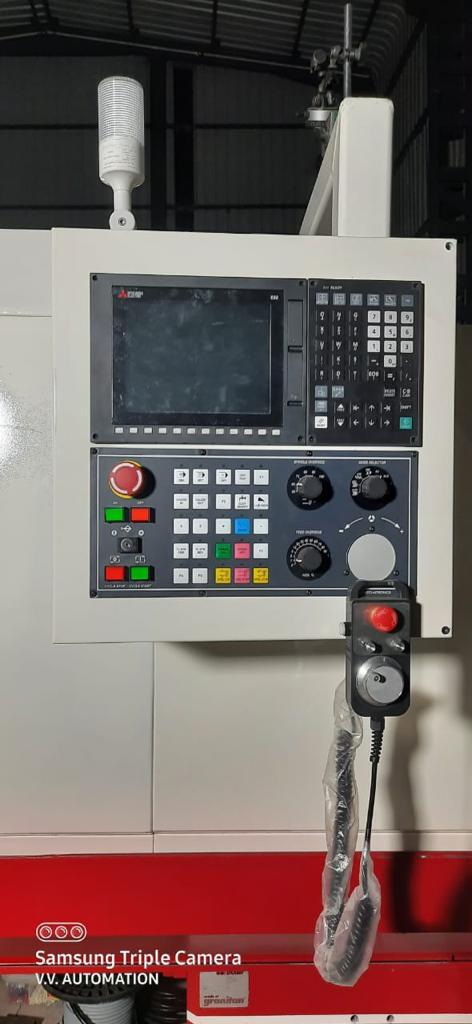

• Control: CNC
• Grinding diameter: 0.2–240 mm
• Centre height: 125 mm
• Centre distance: 1,000 mm
• Grinding length: approx. 1,600 mm
• Grinding depth: 170 mm
• Feed speed: 0.0001–10,000 mm/min
• Swivelling range: 180°
• Max. swivel: 8.5°
• Max. workpiece weight between centres: 100 kg
• Workpiece speed range: 30–750 min⁻¹
• Spindle speed range: 1,671–2,801 min⁻¹
• Spindle bore: 30 mm
• Fitting taper: MK 5
• Max. grinding wheel diameter: 510 mm
• Grinding wheel hole diameter: 203.2 mm
• Total power requirement: 13.5 kW
• Machine dimensions: approx. 4.0 x 4.8 x 2.5 m
• Machine weight: approx. 3.8 t

Applications

• Grinding shafts and spindles to finished diameter
• Precision round parts between centres
• Tooling and toolroom components
• General engineering and machine building parts

Commercial Details

• Make: Studer
• Model: S40
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpieces can it grind? It grinds diameters of 0.2–240 mm over a centre distance of 1,000 mm, with up to 100 kg between centres.
• What is the grinding wheel size? The maximum wheel diameter is 510 mm with a 203.2 mm hole.
• What power does it need and how large is it? Total power requirement is 13.5 kW, and the machine weighs approx. 3.8 t with dimensions of approx. 4.0 x 4.8 x 2.5 m.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories, wheels and tooling are included, the condition of the CNC control and electrics, and loading and shipping arrangements.
