Used Studer S50 CNC Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

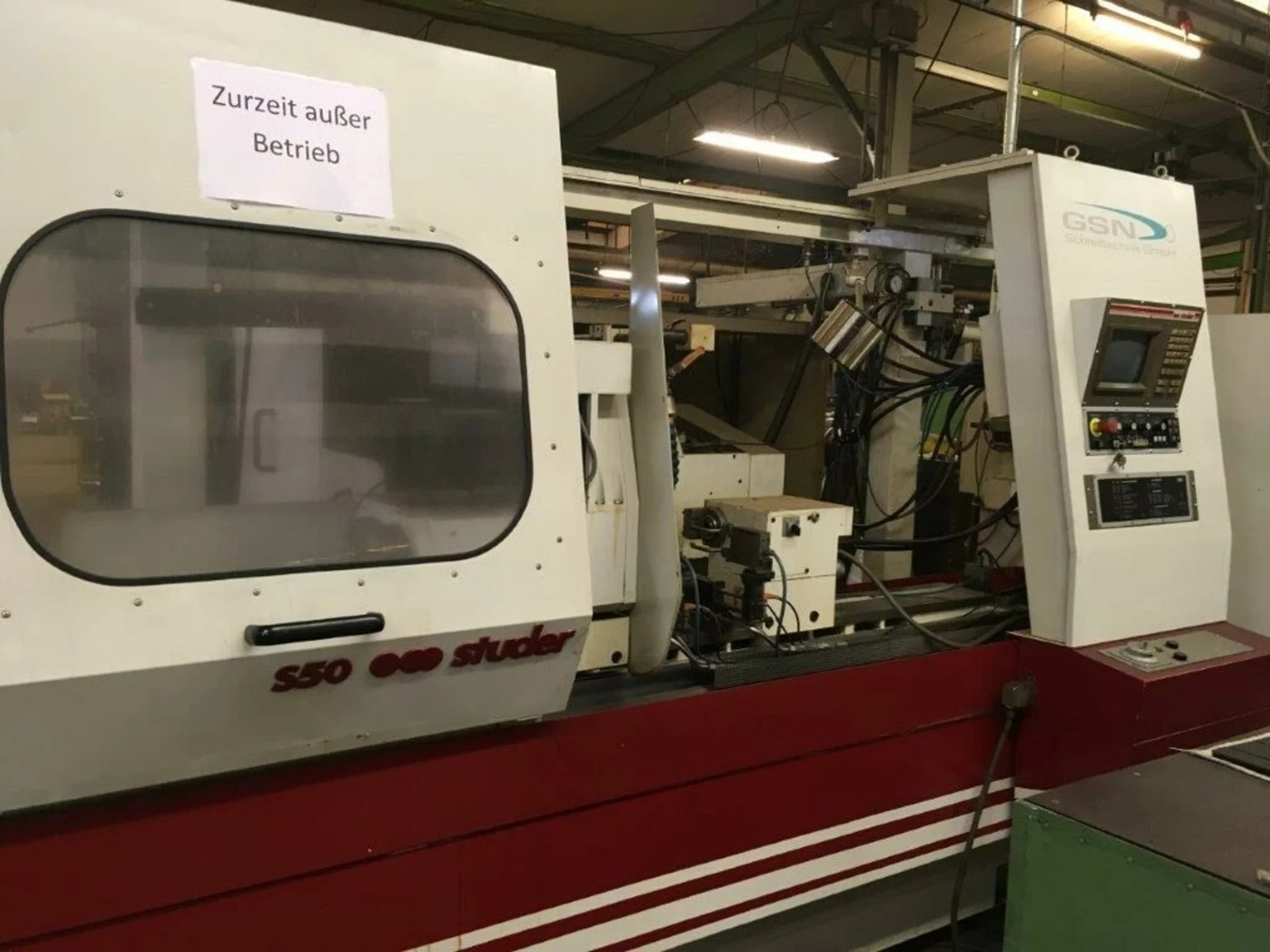

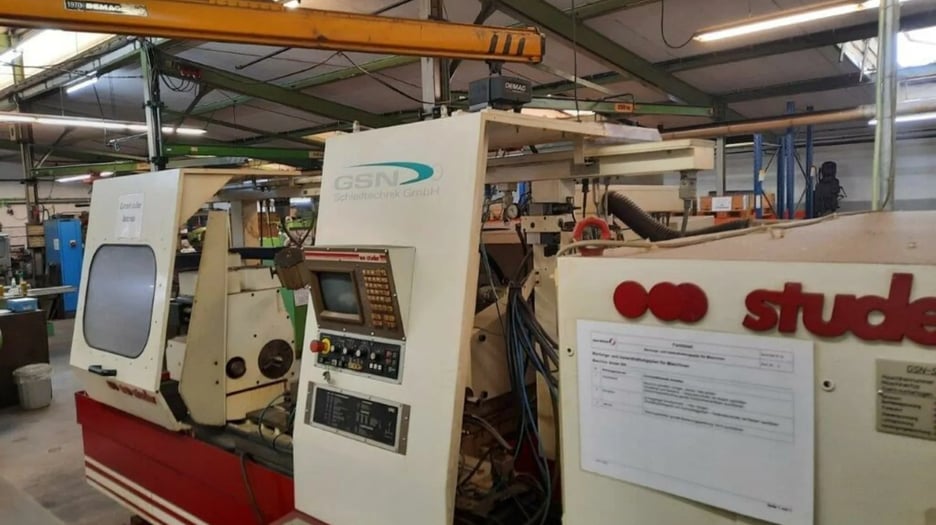

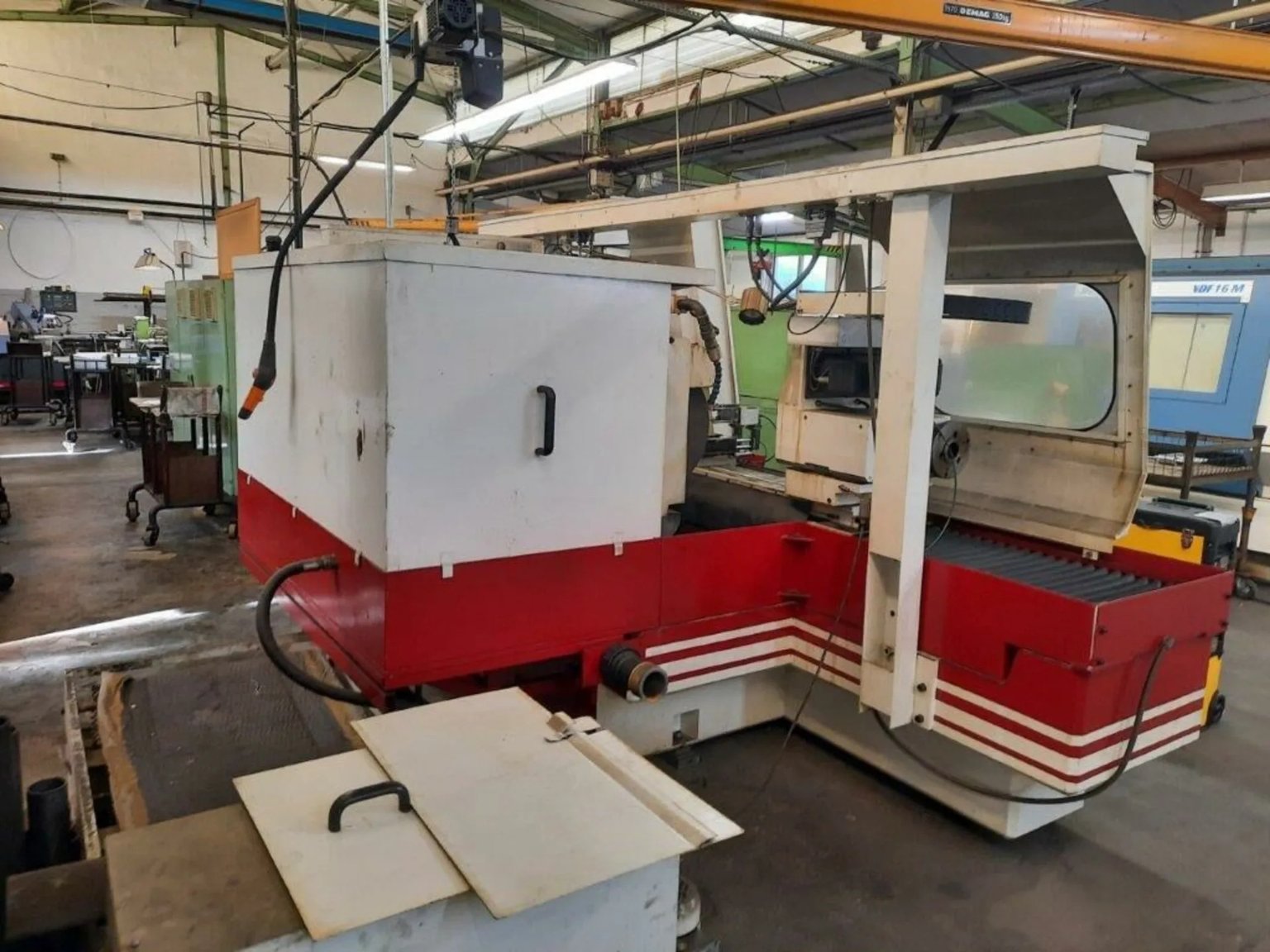

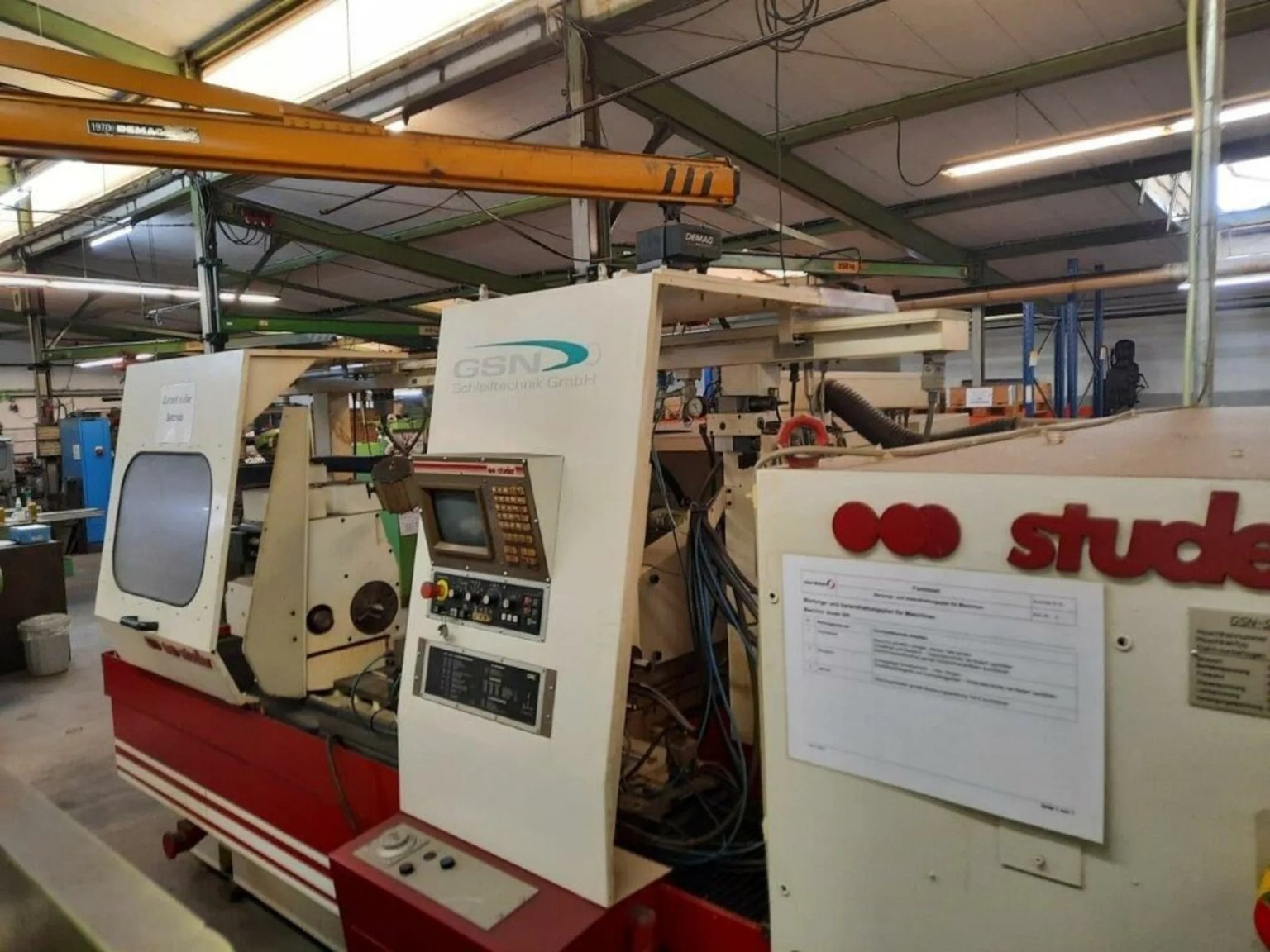

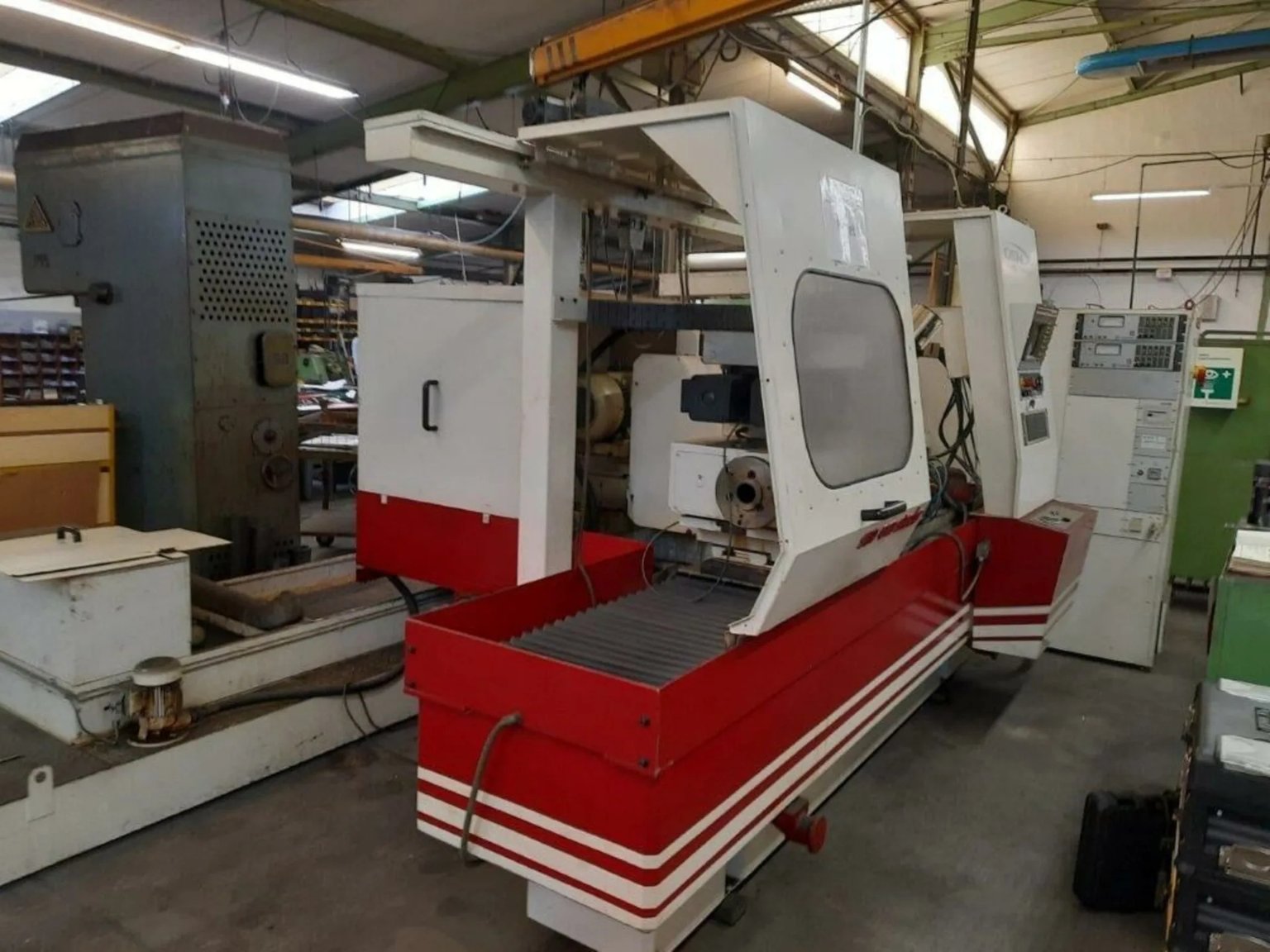

This used Studer S50 CNC cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. A cylindrical grinder finishes the outside surfaces of round workpieces held between centres.

It has 225 mm centre height, 1,000 mm distance between centres and 1,000 mm grinding length. The wheel head is driven by a 7.5 kW motor and takes external and face grinding wheels.

Key Features

• Swivelling wheel head, 0–210° turn range
• Swivelling workhead, 0–90° turn range
• External wheels of 450 mm or 500 mm diameter, plus a face grinding wheel
• Workhead accepts Morse 4 and Morse 6 fixing cones and V-45 collet chucks
• Transversal carriage with ±45 turn range

Technical Specifications

• Height of centres: 225 mm
• Distance between centres: 1,000 mm
• Grinding length: 1,000 mm
• Longitudinal carriage speed: 6–1,000 mm/min
• Longitudinal minimum travel: 0.001 mm
• Longitudinal maximum travel: 1,150 mm
• Maximum inclined table position: 10°/8°/8°
• Transversal carriage turn range: ±45
• Maximum depth of cut: 200 mm
• Transversal average travel speed: 0.06–10,000 mm/min
• External grinding wheel (left): 450 × 80 × 203 mm or 500 × 80 × 203 mm
• Face grinding wheel (right): 250 × 30 × 76 mm
• Wheel head drive power: 7.5 kW
• Wheel linear speed: 30/45 m/sec
• Wheel head draft travel: 380 mm
• Wheel head turn range: 0–210°
• Workhead turn angle: 0–90°
• Workhead fixing cone (static): Morse 4
• Workhead fixing cone (rotating): Morse 6
• Collet chucks: V-45
• Workhead drive power: 2.2 kW
• Tailstock fixing cone: Morse 4
• Tailstock pintle travel: 40 mm
• Total power required: 15 kW
• Weight: 5,300

Applications

• Precision shafts and spindles
• Round parts ground between centres
• Face and shoulder grinding of turned components
• Tool and die components with cylindrical surfaces

Commercial Details

• Make: Studer
• Model: S50
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the grinding length? The grinding length is 1,000 mm, with 1,000 mm between centres and 225 mm centre height.
• What wheels does it take? External wheels of 450 × 80 × 203 mm or 500 × 80 × 203 mm, and a 250 × 30 × 76 mm face grinding wheel.
• How much power does it need? Total power required is 15 kW, including a 7.5 kW wheel head drive and 2.2 kW workhead drive.

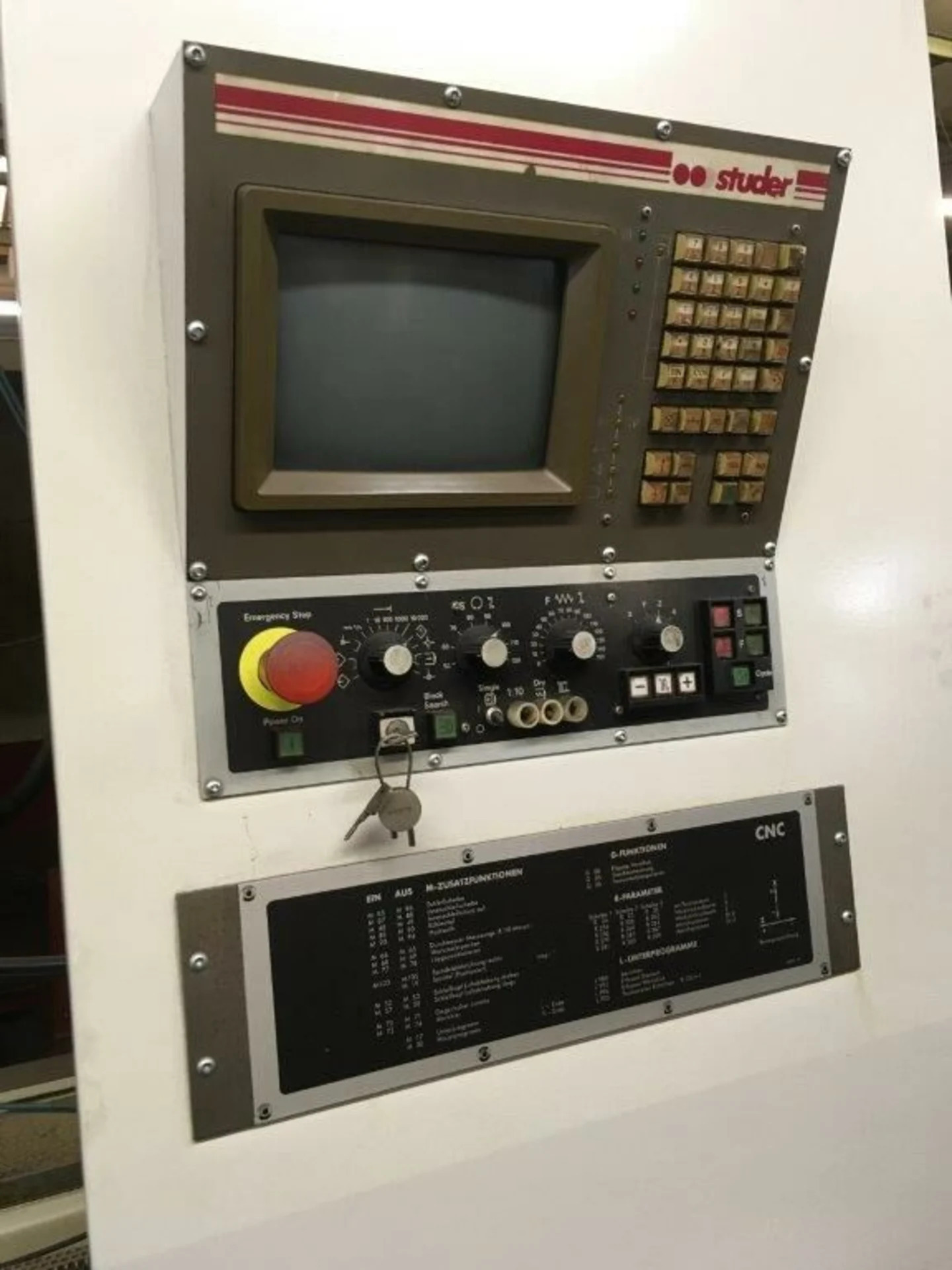

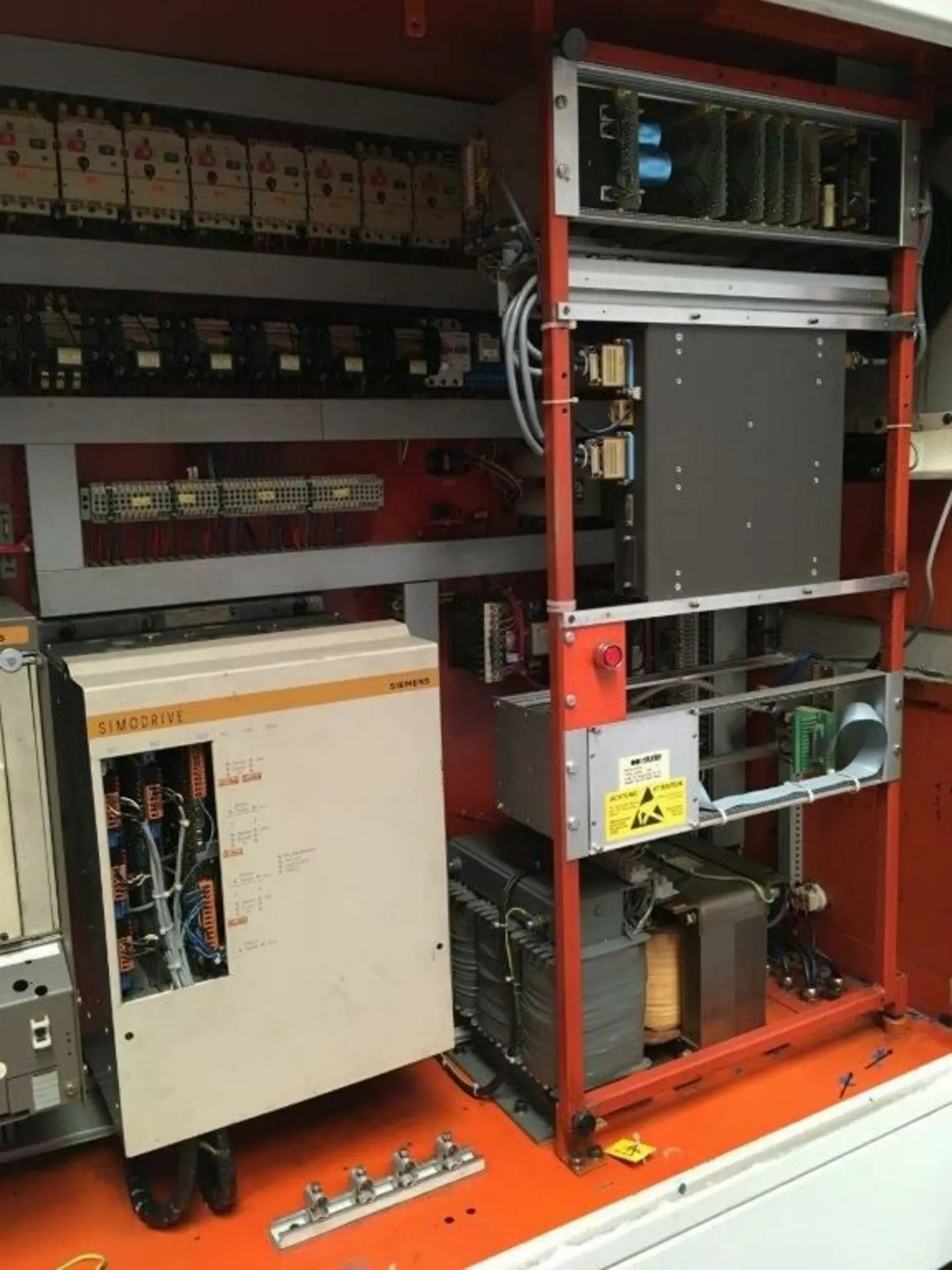

• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm the CNC control and electrics, which wheels, chucks, centres and accessories are included, and loading and shipping arrangements.
